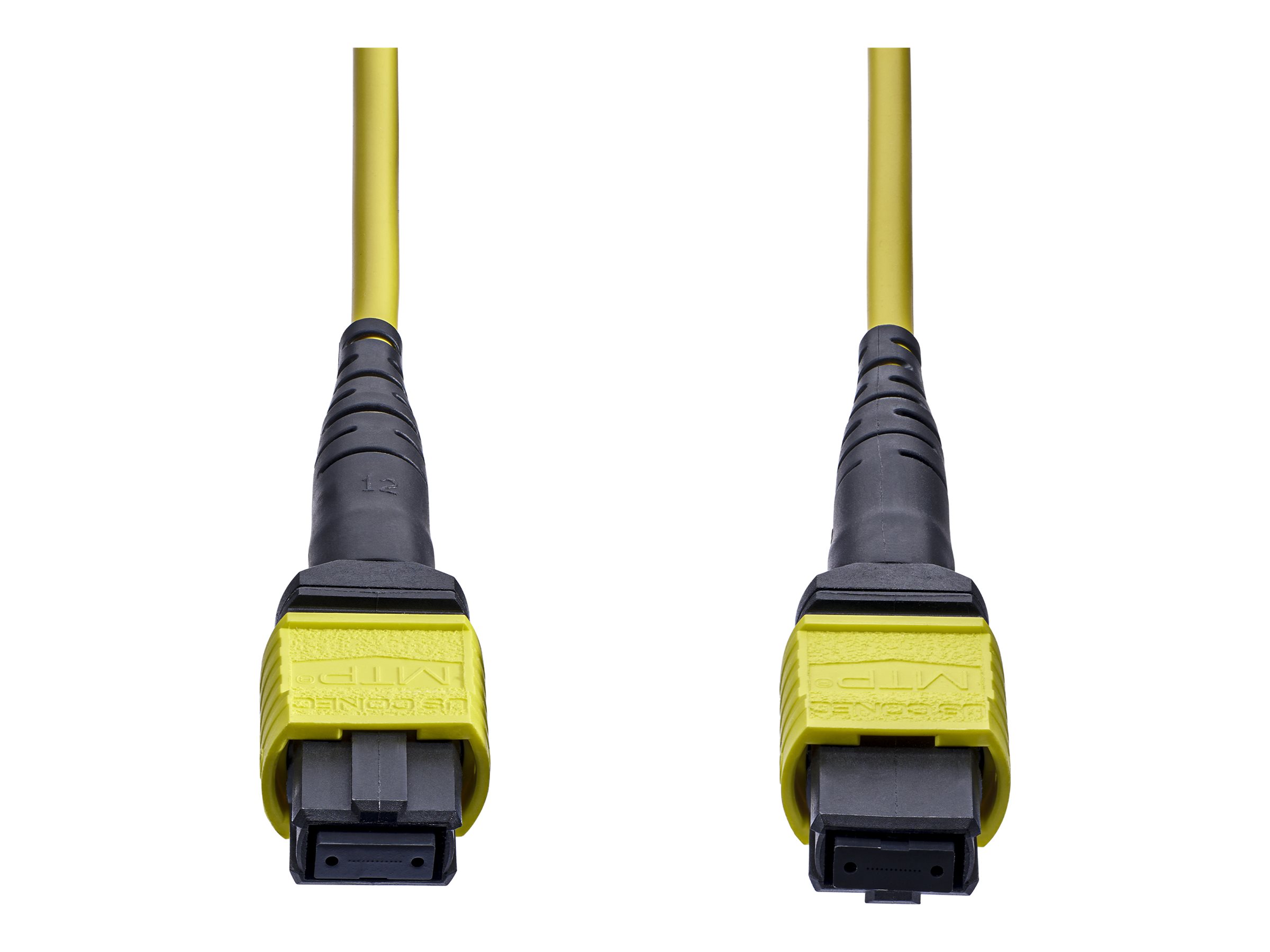

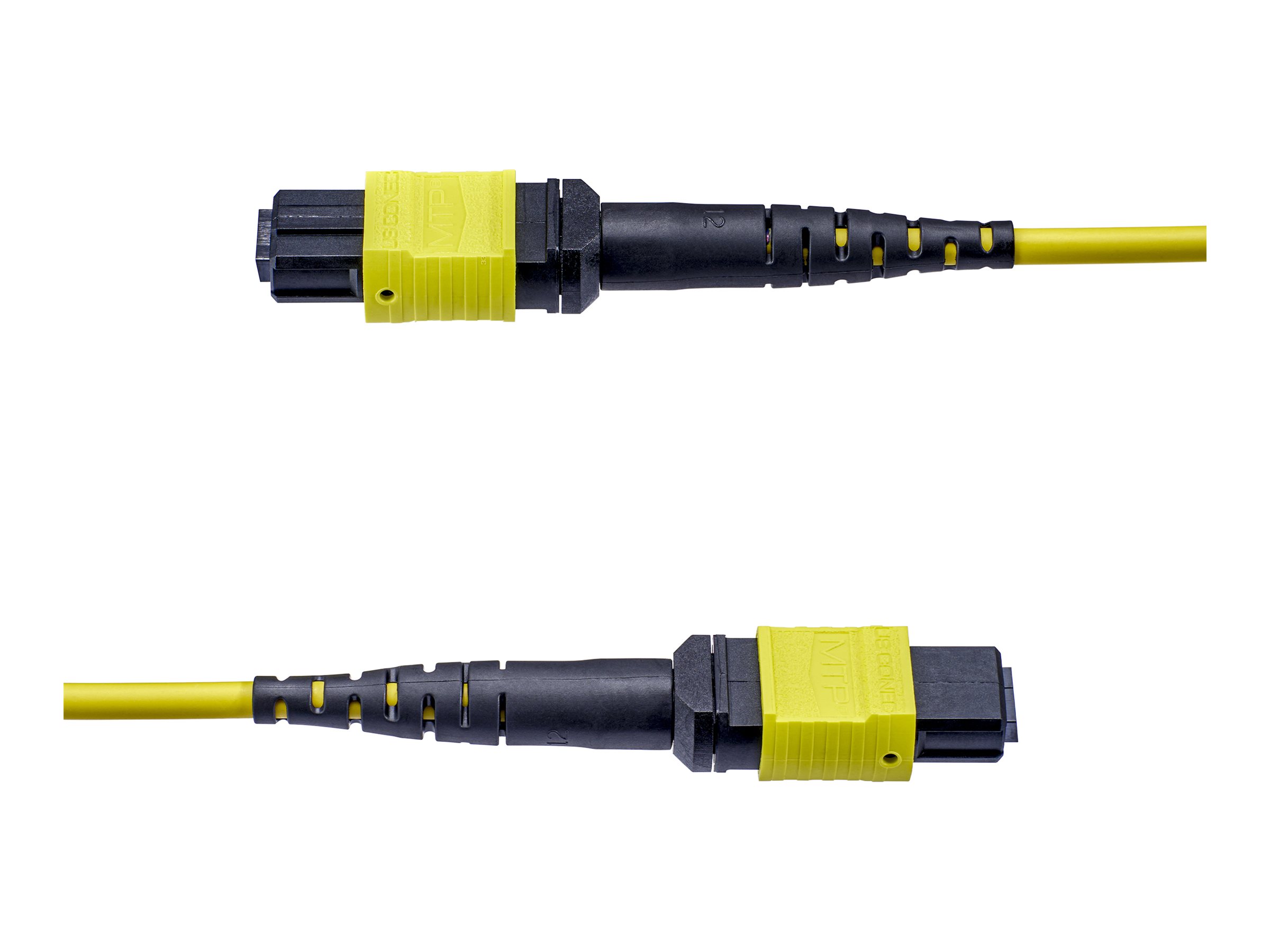

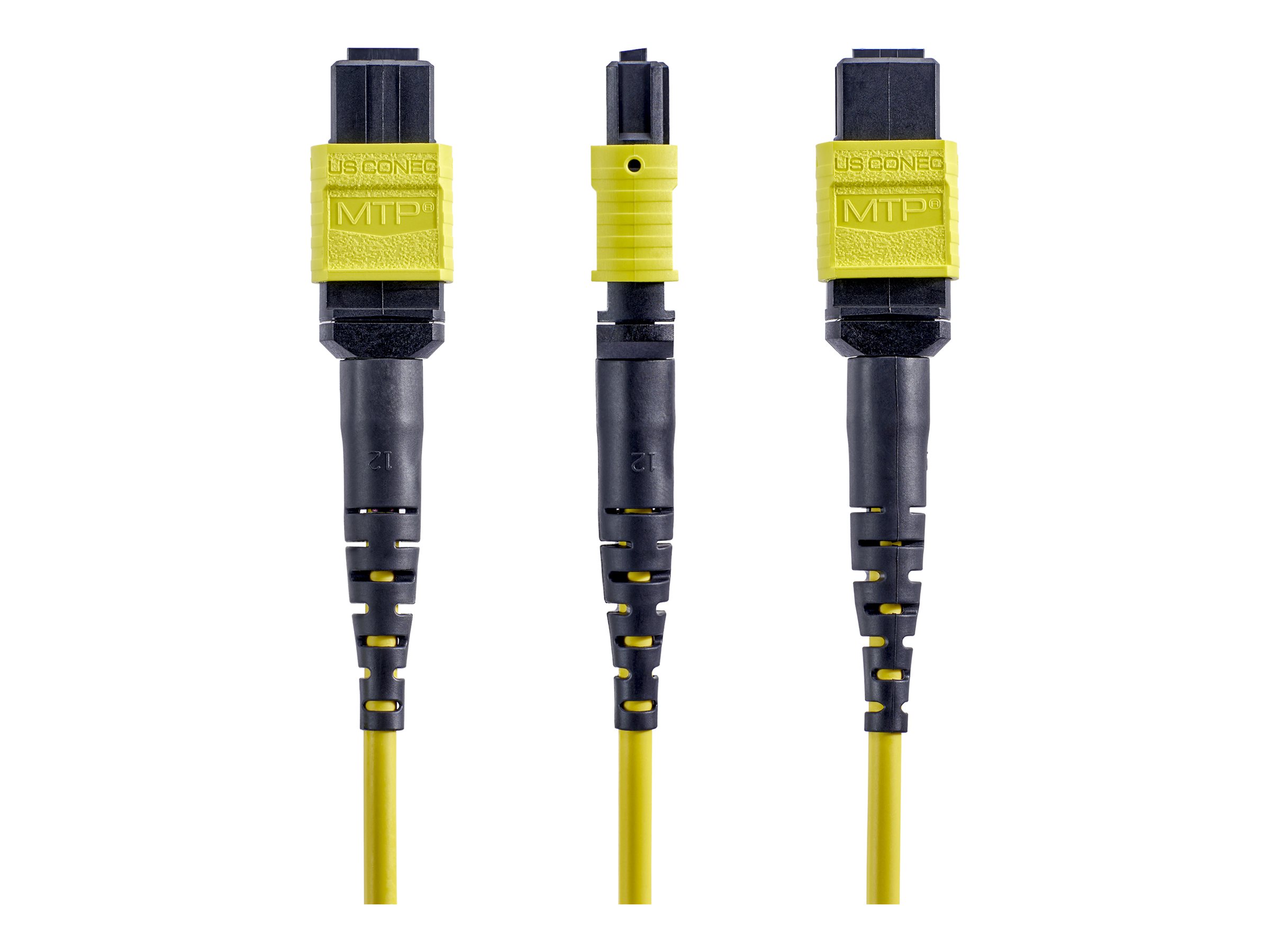

Startech, Patch cable, MTP/MPO-12 single-mode (F) to MTP/MPO-12 single-mode (F), 5 m, 3 mm, fibre optic, 9 / 125 micron, OS2, OFNP, plenum, yellow
$305.74 inc GST
✕ Backorder - Email us for a lead time or ETA
✓ Free NZ Delivery
Available on back-order
- Allow 1–2 days for delivery to the North Island
- Allow 2–3 days for delivery to the South Island
- Add 1–2 days if you are rural
- Collection can be arranged
We are currently experiencing 1-2 day shipping delays from this supplier warehouse
Description
The StarTech OS2MTP12AOFNP5M patch cable enhances network performance with its singlemode fiber optic design, ensuring high-speed data transmission over long distances. The 12-fiber configuration allows for effective data handling, while the Angled Physical Contact (APC) features enhance signal integrity. The cable is plenum-rated, making it suitable for installation in areas where fire codes require plenums to be free of combustible materials.
With a core and cladding diameter of 9 / 125 micron, this cable is engineered to deliver optimal performance at wavelengths of 1310 and 1550 nm. The cable operates efficiently in temperatures ranging from 0 °C to 70 °C, ensuring reliability in various environmental conditions. Its dual MTP/MPO-12 female connectors facilitate easy and secure connections, making it a preferable choice for network setups requiring robust cabling solutions.
- Singlemode fiber optic technology for enhanced performance
- Plenum-rated design for safe installation in sensitive environments
- 12-fiber configuration allows for efficient data transmission
- Angled Physical Contact (APC) features improve signal quality
- Operates reliably within a temperature range of 0 °C to 70 °C
- High-quality construction
Constructed with a core diameter of 9 micron and cladding diameter of 125 micron, this fiber optic cable offers a reliable and efficient pathway for data transmission. - Plenum-rated
The plenum-rated design complies with fire safety codes, making it suitable for use in air-handling spaces, reducing the risk of combustion. - Robust connectivity
Featuring dual MTP/MPO-12 female connectors, this cable provides secure and stable connections for network applications. - Temperature resilient
Capable of operating in a temperature range from 0 °C to 70 °C, ensuring dependable performance in diverse environmental conditions. - High-performance standards
Complies with OS2 standards, ensuring compatibility and quality for advanced networking tasks.
Main Specifications
Product Description | Startech patch cable – 5 m – yellow |
Type | Patch cable – OS2 – OFNP |
Technology | Fibre optic |
Type of Fibre Optics | Singlemode |
Features | Plenum, Angled Physical Contact (APC), Type-A, wavelength of 1310/1550 nm |
Cable Length | 5 m |
Length | 5 m |
Diameter | 3 mm |
Core / Cladding Diameter | 9 / 125 micron |
Connector | MTP/MPO-12 single-mode – female |
Connector (Second End) | MTP/MPO-12 single-mode – female |
Colour | Yellow |
Image Colour Disclaimer | The displayed product image may be a different colour |
Extended Specifications
General
Network Cable Type | Patch cable – OS2 – OFNP |
|---|---|
Technology | Fibre optic |
Type of Fibre Optics | Singlemode |
Fibre Qty | 12 |
Core / Cladding Diameter | 9 / 125 micron |
Features | Plenum, Angled Physical Contact (APC), Type-A, wavelength of 1310/1550 nm |
Cable Length | 5 m |
Length | 5 m |
Diameter | 3 mm |
Colour | Yellow |
Image Colour Disclaimer | The displayed product image may be a different colour |
Connectivity
Connector | MTP/MPO-12 single-mode – female |
|---|---|
Connector (Second End) | MTP/MPO-12 single-mode – female |
Miscellaneous
Compliant Standards | RoHS, OFNP, WEEE |
|---|
Dimensions & Weight (Shipping)
Shipping Width | 23 cm |
|---|---|
Shipping Depth | 18 cm |
Shipping Height | 1.5 cm |
Shipping Weight | 11.2 g |
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|---|
Max Operating Temperature | 70 °C |
