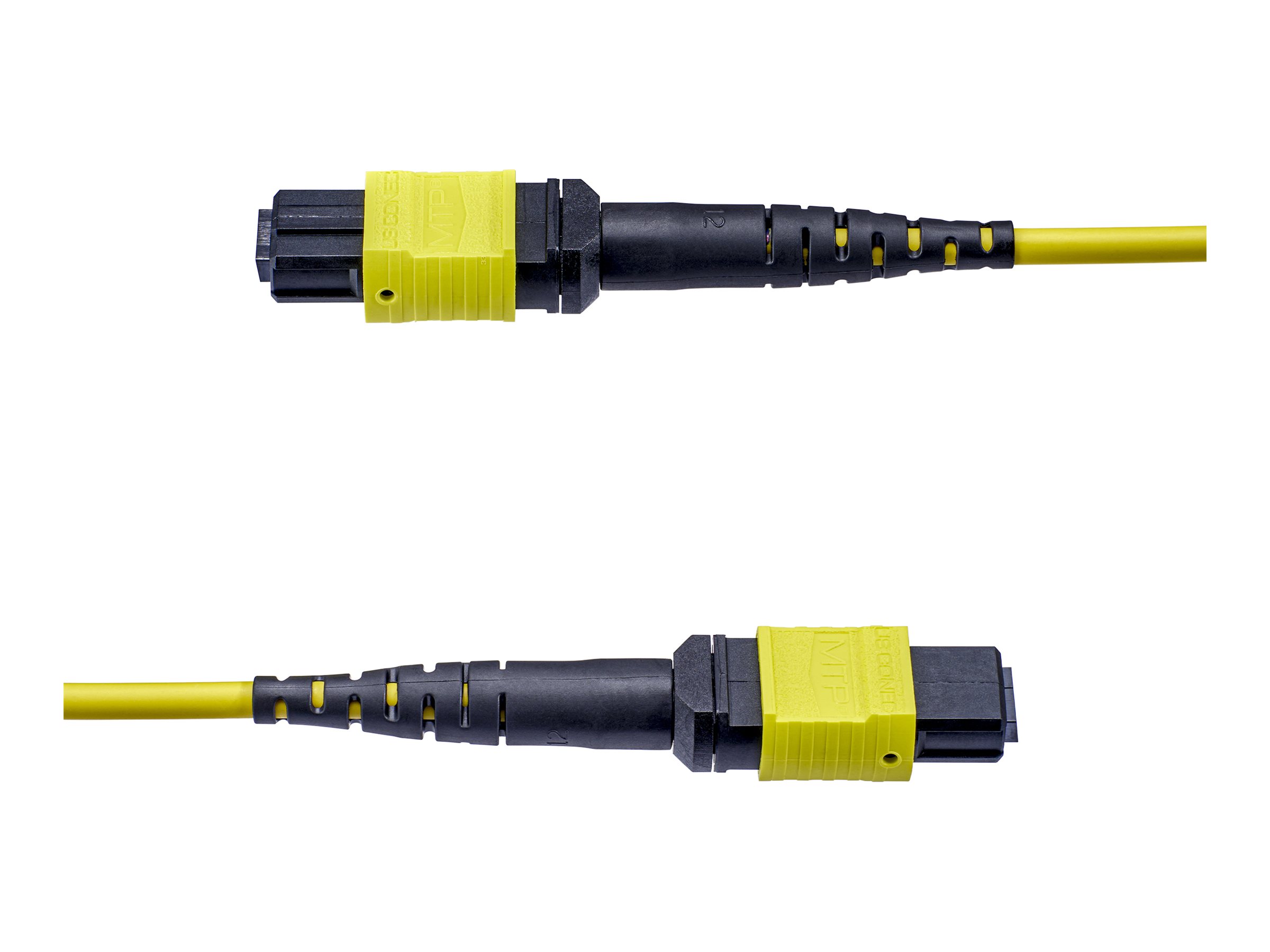

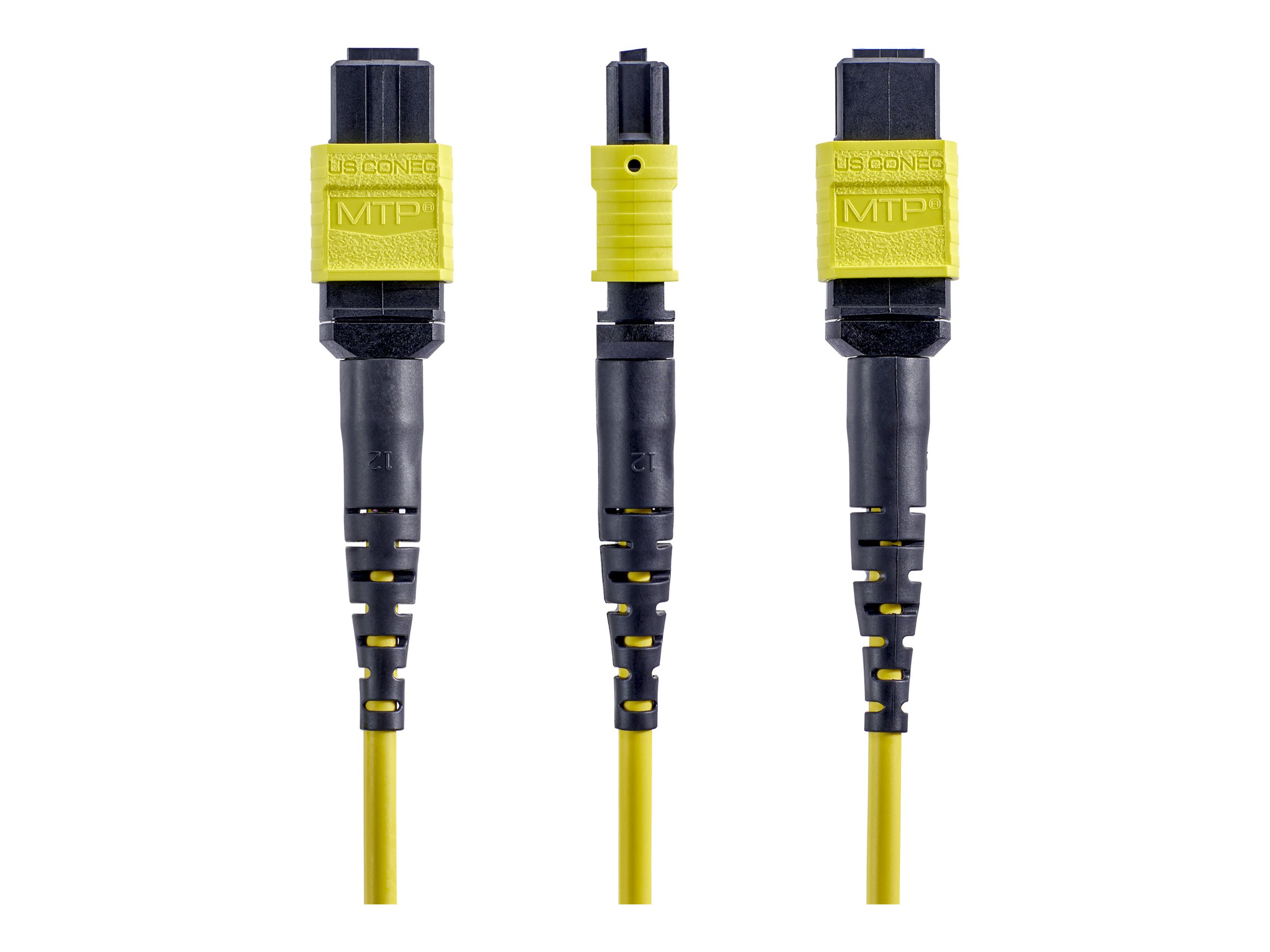

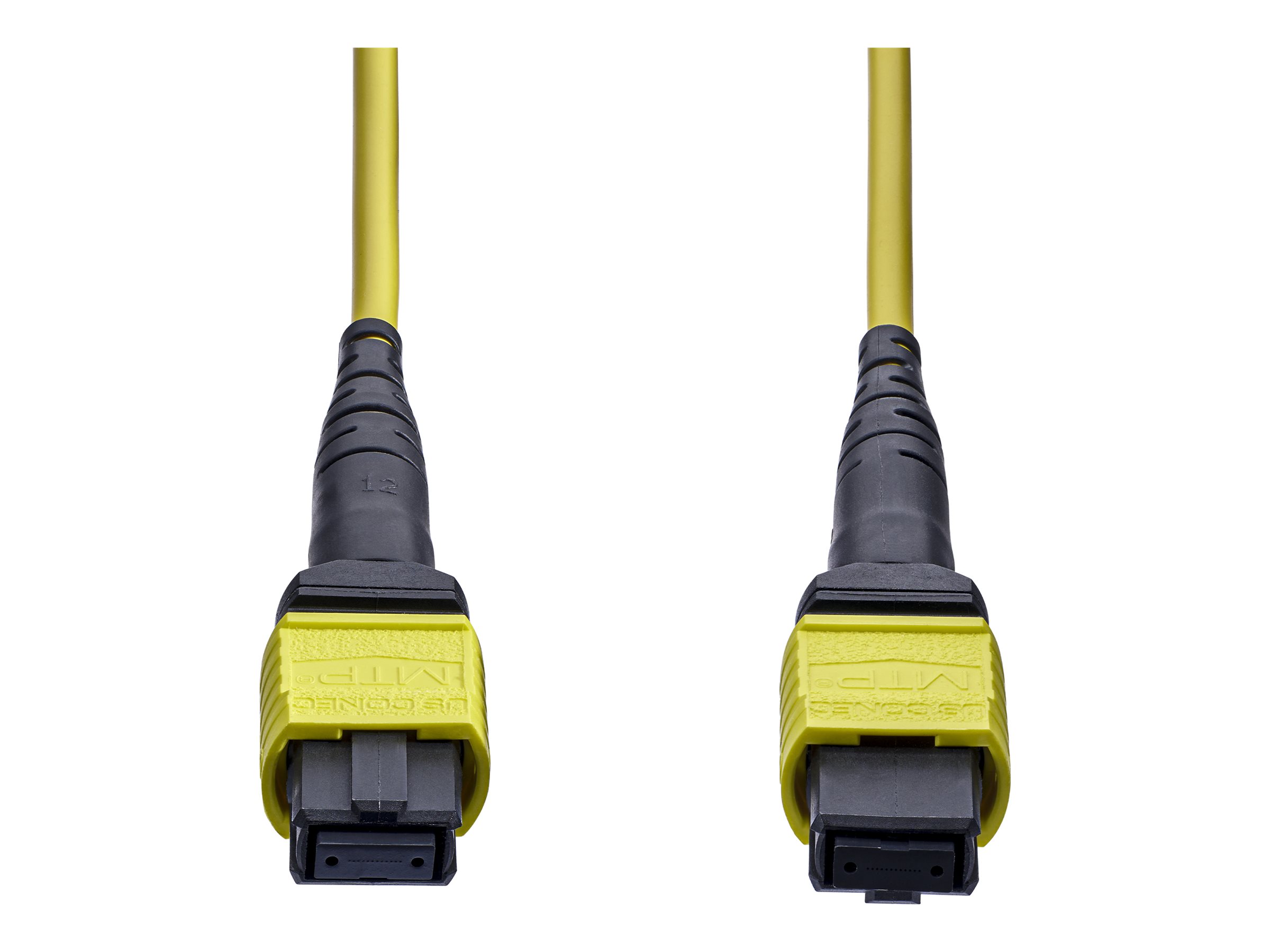

Startech, Patch cable, MTP/MPO-12 single-mode (F) to MTP/MPO-12 single-mode (F), 1 m, 3 mm, fibre optic, 9 / 125 micron, OS2, OFNP, plenum, yellow
$288.94 inc GST
✕ Backorder - Email us for a lead time or ETA
✓ Free NZ Delivery
Available on back-order
- Allow 1–2 days for delivery to the North Island
- Allow 2–3 days for delivery to the South Island
- Add 1–2 days if you are rural
- Collection can be arranged
We are currently experiencing 1-2 day shipping delays from this supplier warehouse
Description
The StarTech Patch Cable offers reliable connectivity with fiber optic technology, designed for high-performance data transfer. Utilizing singlemode fiber optics, this cable provides signal clarity and minimal loss, making it suitable for demanding network environments. Built to meet OFNP standards, this plenum-rated cable is appropriate for installation in ceilings and walls, ensuring compliance with fire safety regulations. With features such as Angled Physical Contact (APC) and Type-A connectors, this cable provides performance and longevity in various applications.
Designed for versatility, the StarTech Patch Cable comes equipped with MTP/MPO-12 connectors on both ends, facilitating easy connection to network devices. It is engineered to operate efficiently within a temperature range of 0°C to 70°C, making it suitable for a variety of environments. This cable is RoHS and WEEE compliant, ensuring adherence to environmental standards while providing a dependable solution for any networking setup.
- Singlemode fiber optic technology for signal clarity
- Plenum-rated design compliant with fire safety regulations
- MTP/MPO-12 connectors for easy network device connections
- Operates efficiently between 0°C and 70°C
- RoHS and WEEE compliant for environmental safety
- Robust Construction
This patch cable features a sturdy design with a core and cladding diameter of 9 / 125 micron, ensuring durability and reliability in high-demand environments. - Versatile Compatibility
Equipped with MTP/MPO-12 single-mode connectors on both ends, this cable easily connects to various devices, enhancing connectivity in networking setups. - Fire-Safe Design
The plenum-rated construction meets stringent fire safety standards, making it suitable for installation in ceilings and walls.
Main Specifications
Product Description | Startech patch cable – 1 m – yellow |
Type | Patch cable – OS2 – OFNP |
Technology | Fibre optic |
Type of Fibre Optics | Singlemode |
Features | Plenum, Angled Physical Contact (APC), Type-A |
Cable Length | 1 m |
Length | 1 m |
Diameter | 3 mm |
Core / Cladding Diameter | 9 / 125 micron |
Connector | MTP/MPO-12 single-mode – female |
Connector (Second End) | MTP/MPO-12 single-mode – female |
Colour | Yellow |
Image Colour Disclaimer | The displayed product image may be a different colour |
Extended Specifications
General
Network Cable Type | Patch cable – OS2 – OFNP |
|---|---|
Technology | Fibre optic |
Type of Fibre Optics | Singlemode |
Fibre Qty | 12 |
Core / Cladding Diameter | 9 / 125 micron |
Features | Plenum, Angled Physical Contact (APC), Type-A |
Cable Length | 1 m |
Length | 1 m |
Diameter | 3 mm |
Colour | Yellow |
Image Colour Disclaimer | The displayed product image may be a different colour |
Connectivity
Connector | MTP/MPO-12 single-mode – female |
|---|---|
Connector (Second End) | MTP/MPO-12 single-mode – female |
Miscellaneous
Compliant Standards | RoHS, OFNP, WEEE |
|---|
Dimensions & Weight (Shipping)
Shipping Width | 23 cm |
|---|---|
Shipping Depth | 18 cm |
Shipping Height | 1.5 cm |
Shipping Weight | 11.2 g |
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|---|
Max Operating Temperature | 70 °C |
