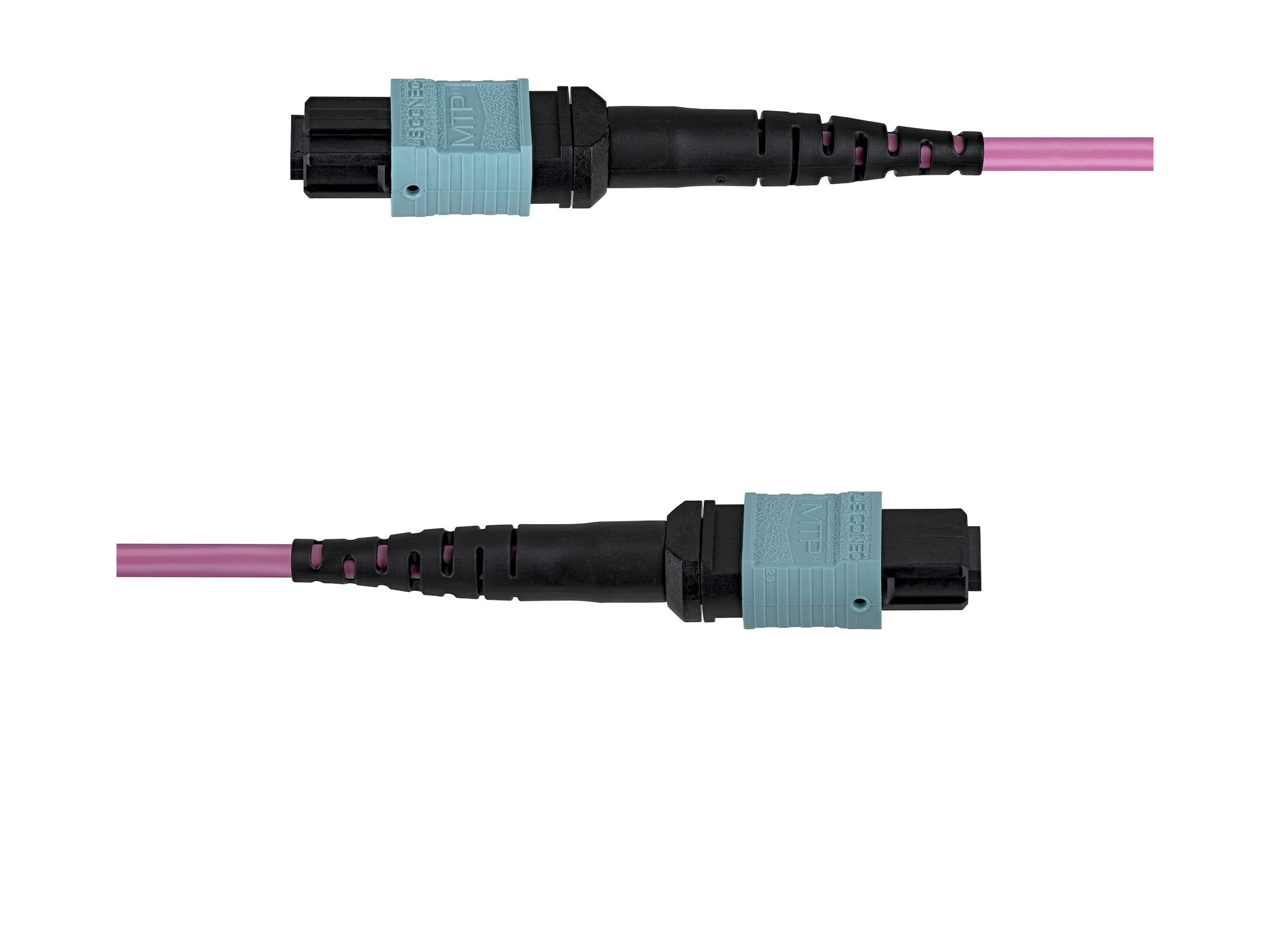

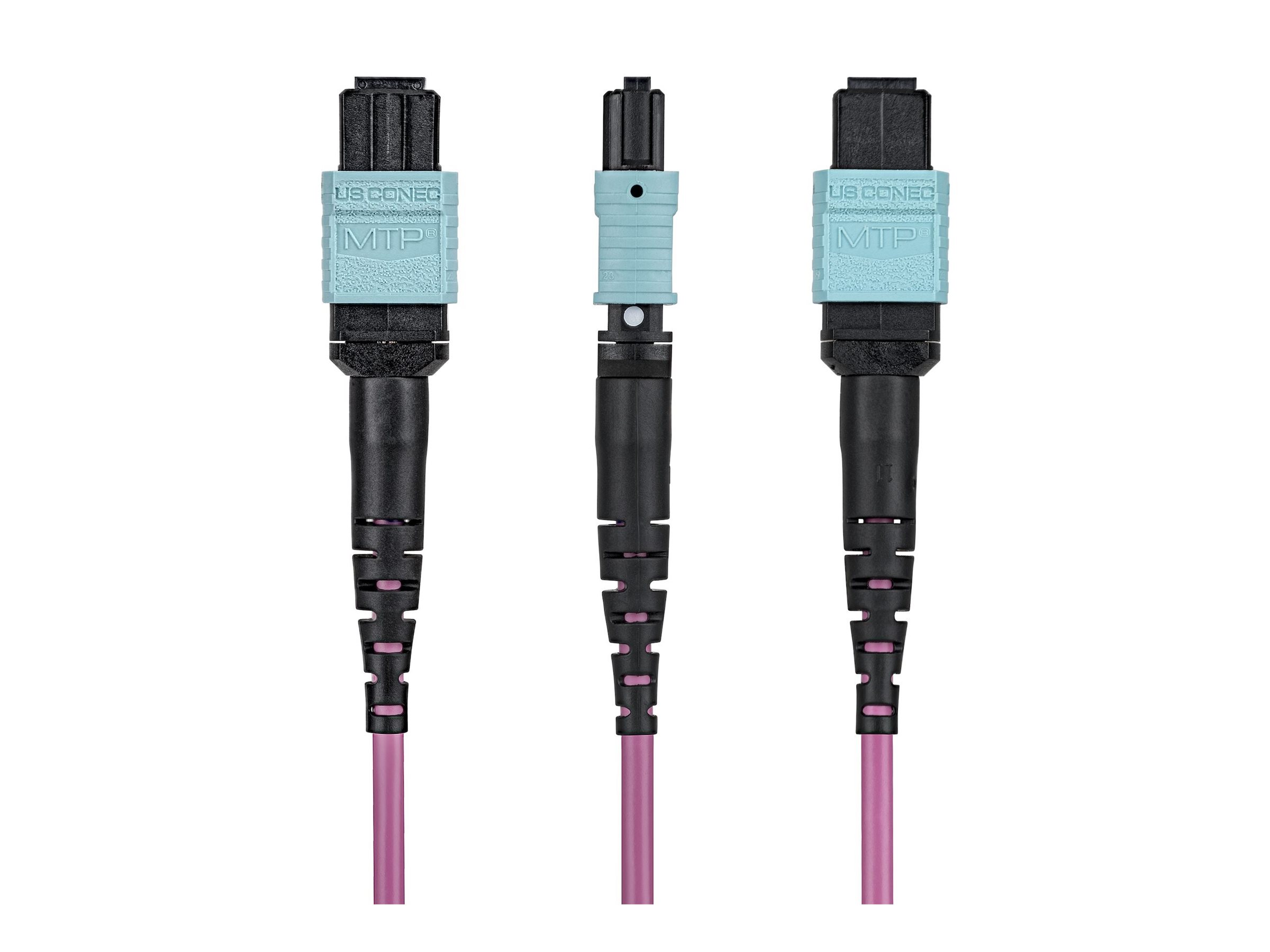

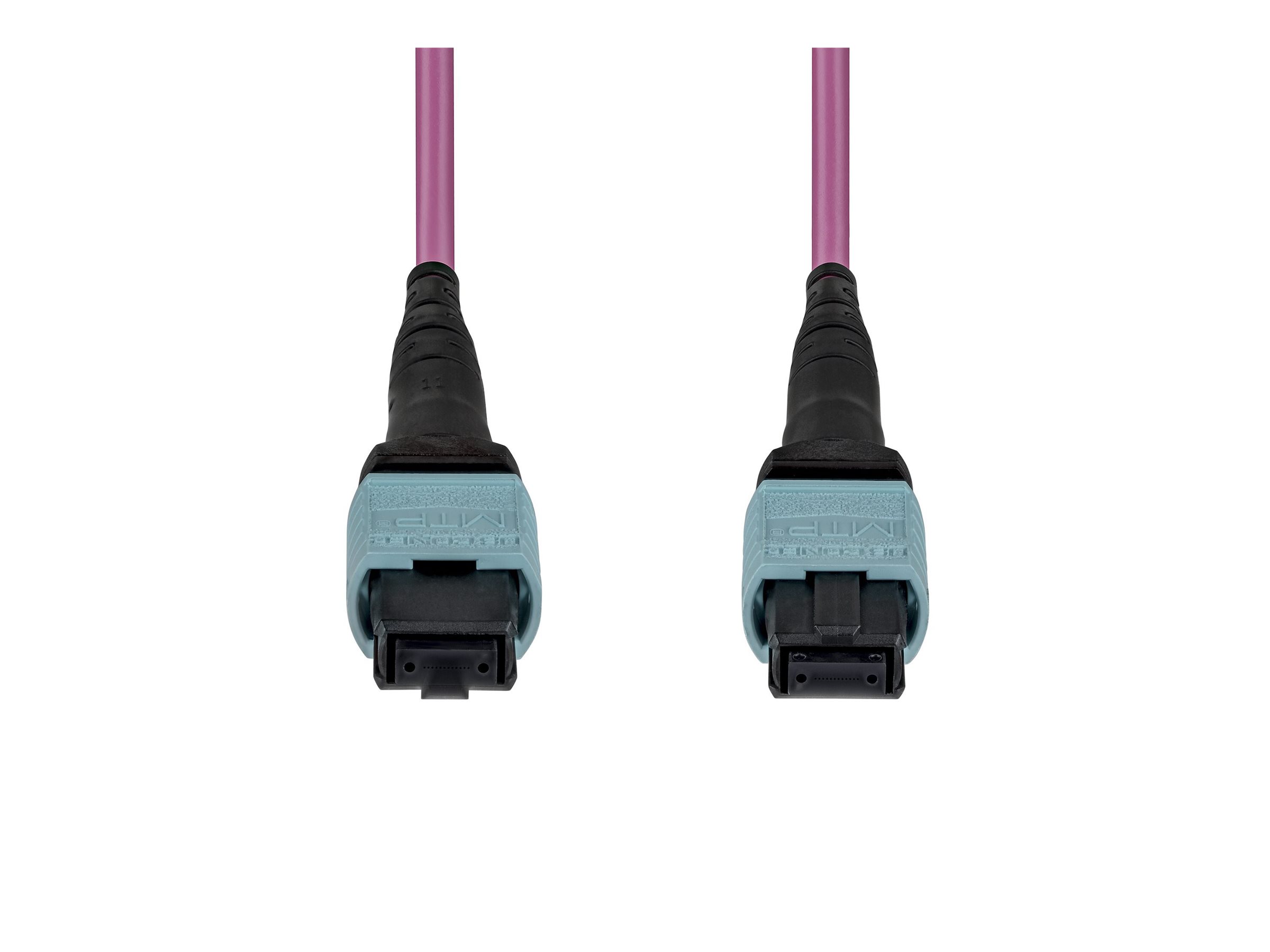

Startech, Patch cable, MTP/MPO-12 multi-mode (F) to MTP/MPO-12 multi-mode (F), 5 m, 3 mm, fibre optic, duplex, 50 / 125 micron, OM4, OFNP, plenum, erika violet
$278.05 inc GST
✕ Backorder - Email us for a lead time or ETA
✓ Free NZ Delivery
Available on back-order
- Allow 1–2 days for delivery to the North Island
- Allow 2–3 days for delivery to the South Island
- Add 1–2 days if you are rural
- Collection can be arranged
We are currently experiencing 1-2 day shipping delays from this supplier warehouse
Description
The StarTech OM4MTP12BOFNP5M patch cable offers reliable fiber optic technology, designed to meet the demands of networking environments with precision. This duplex multimode cable features 12 fibers that enable efficient data transfer, while its plenum-rated construction ensures safety and compliance in various installation scenarios. Operating within a temperature range of 0°C to 70°C, this cable remains durable under several conditions, making it an ideal choice for both commercial and residential use.
With MTP/MPO-12 female connectors on both ends, this cable allows for easy and efficient connections. The cable’s compliance with OM4 standards ensures optimal performance at wavelengths of 850/1300 nm, making it suitable for high-bandwidth applications. Trust in the quality of this StarTech patch cable for your networking needs and experience the benefits of fast, reliable connectivity.
- Duplex multimode design with 12 fibers for efficient data transfer
- MTP/MPO-12 female connectors on both ends for easy connections
- Compliance with OM4 standards for optimal performance
- Plenum-rated construction for safe installation
- Robust operating temperature range of 0°C to 70°C
- Reliable Connectivity
The patch cable features multimode fiber optic technology, providing reliable connectivity for various networking applications. - Compliant Construction
Compliant with RoHS, OFNP, and WEEE standards, this cable ensures safety and environmental responsibility. - High-Performance Specifications
Designed for use at wavelengths of 850/1300 nm, it supports high performance and demanding data transfer requirements. - Robust Design
With a core and cladding diameter of 50/125 micron, the cable offers a robust design suited for challenging networking environments. - Easy Installation
The MTP/MPO-12 female connectors simplify installation, allowing for quick setup and seamless integration into existing networks.
Main Specifications
Product Description | Startech patch cable – 5 m – erika violet |
Type | Patch cable – OM4 – OFNP |
Technology | Duplex fibre optic |
Type of Fibre Optics | Multimode |
Features | Plenum, wavelength of 850/1300 nm, Physical Contact (PC), Type-B |
Cable Length | 5 m |
Length | 5 m |
Diameter | 3 mm |
Core / Cladding Diameter | 50 / 125 micron |
Connector | MTP/MPO-12 multi-mode – female |
Connector (Second End) | MTP/MPO-12 multi-mode – female |
Colour | Erika violet |
Extended Specifications
General
Network Cable Type | Patch cable – OM4 – OFNP |
|---|---|
Technology | Duplex fibre optic |
Type of Fibre Optics | Multimode |
Fibre Qty | 12 |
Core / Cladding Diameter | 50 / 125 micron |
Features | Plenum, wavelength of 850/1300 nm, Physical Contact (PC), Type-B |
Cable Length | 5 m |
Length | 5 m |
Diameter | 3 mm |
Colour | Erika violet |
Connectivity
Connector | MTP/MPO-12 multi-mode – female |
|---|---|
Connector (Second End) | MTP/MPO-12 multi-mode – female |
Miscellaneous
Compliant Standards | RoHS, OFNP, WEEE |
|---|
Dimensions & Weight (Shipping)
Shipping Width | 23 cm |
|---|---|
Shipping Depth | 18 cm |
Shipping Height | 1.5 cm |
Shipping Weight | 11.2 g |
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|---|
Max Operating Temperature | 70 °C |
