Description

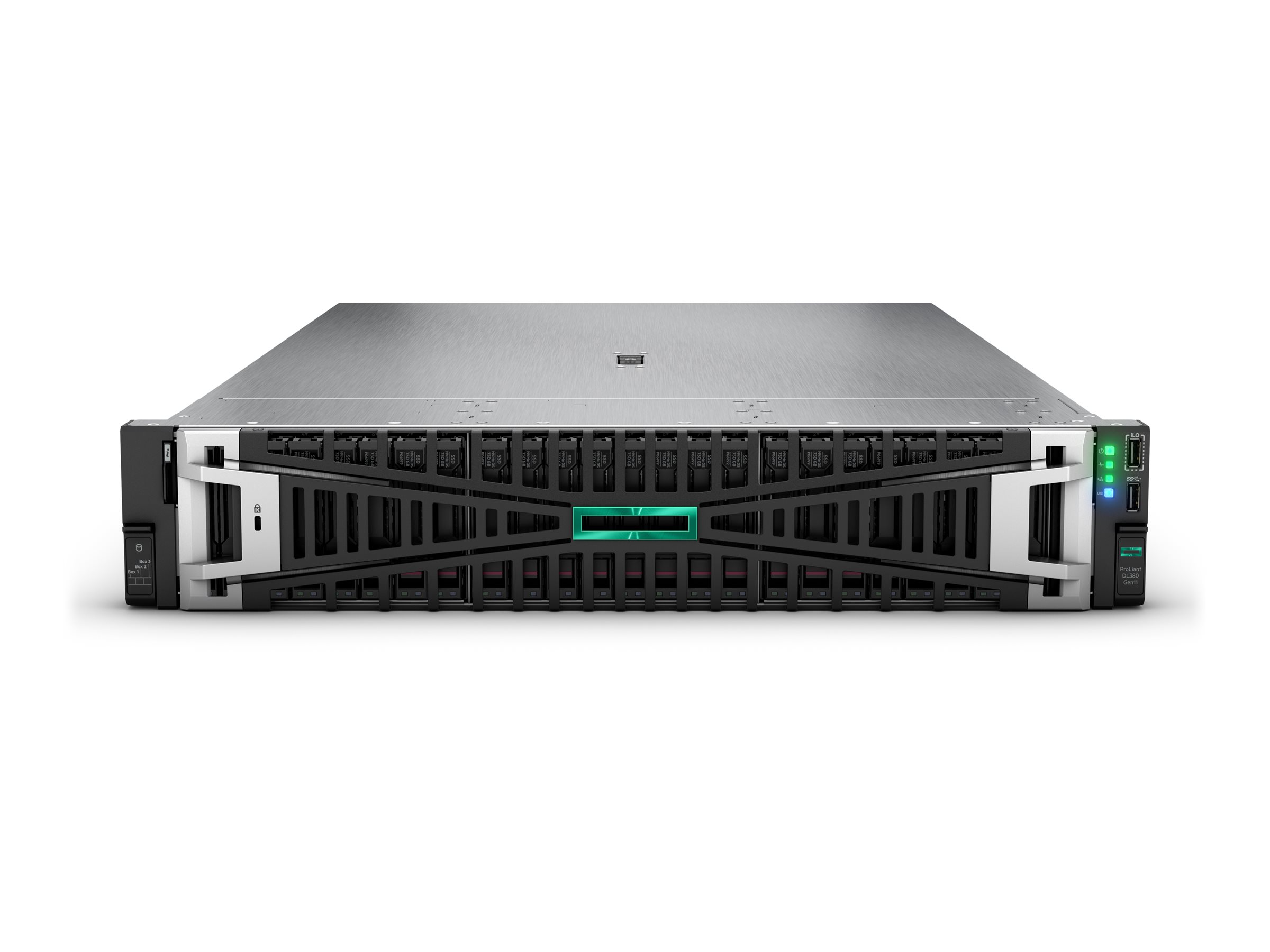

The HPE ProLiant DL380 Gen11 is designed to meet the demanding needs of enterprise environments, providing a robust and versatile solution for businesses. This rack-mountable server features a 64 MB L3 cache memory per processor, ensuring efficient data processing. With 8 hot-swap bays for storage and the ability to accommodate SATA, SAS, and NVMe drive interfaces, it offers flexibility and easy maintenance for your storage needs. Built to operate within an optimal temperature range of 10°C to 35°C, this server is compliant with multiple environmental standards, including ENERGY STAR certification. The integration of advanced security features, including a Trusted Platform Module (TPM 2.0), ensures that your data remains protected. With its scalable design supporting up to 2 processors and 24 RAM slots, the HPE ProLiant DL380 Gen11 is equipped to handle growing workloads while providing reliable performance.
- Supports hot-swap SATA/SAS/NVMe storage drives
- Features a robust 16-core EPYC processor with a clock speed of 2.6 GHz
- Complies with multiple environmental standards including ENERGY STAR certified
- Equipped with 800 W hot-plug power supplies for redundancy
- Offers flexible RAM configurations with up to 24 slots available
- Efficient performance with powerful processing
The HPE ProLiant DL380 Gen11 is powered by a 16-core AMD EPYC processor that can achieve clock speeds of up to 4.1 GHz, providing significant computational resources for demanding applications. - Flexible storage options
With 8 hot-swap bays for 2.5-inch drives, the server allows easy upgrades and maintenance without downtime, supporting a variety of drive types including SATA, SAS, and NVMe. - Reliable power redundancy
The server comes with 2 hot-plug power supplies providing 800 W each, ensuring uninterrupted power and minimizing the risk of hardware failure. - Extensive memory capacity

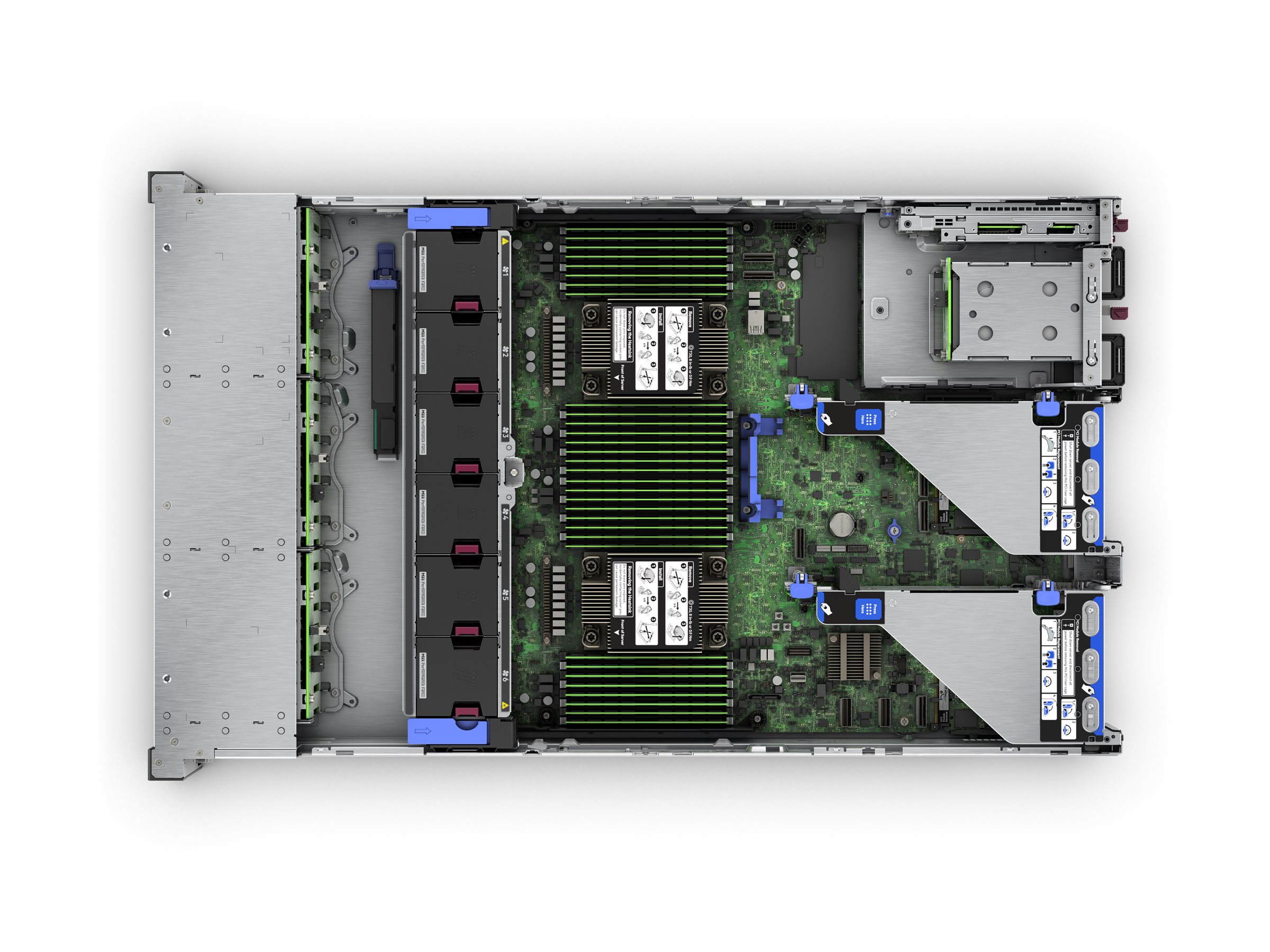

Featuring 24 DIMM slots and supporting up to 2 processors, the HPE ProLiant DL380 Gen11 allows for ample RAM configurations, accommodating growing workloads effectively. - Enhanced security features
With a Trusted Platform Module (TPM 2.0) security chip built-in, this server ensures secure boot and protects sensitive data, making it ideal for enterprise-level applications.
What’s in the Box
- HPE ProLiant DL380 Gen11
- HPE standard heatsink, 6 x standard fans, HPE Easy Install Rail 2 Kit
Main Specifications
Product Description | HPE ProLiant DL380 Gen11 – rack-mountable EPYC 9115 2.6 GHz – 16 GB – HDD 1 TB |
Type | Server – rack-mountable |
Height (Rack Units) | 2U |
Server Scalability | 2-way |
Processor | 1 x AMD EPYC 9115 / 2.6 GHz (up to 4.1 GHz, (16-core) |
Processor Main Features | Intel Turbo Boost Technology 2, Hyper-Threading Technology |
Cache Memory | 64 MB L3 Cache |
Cache Per Processor | 64 MB |
RAM | 16 GB (installed) / 6 TB (max) – DDR5 SDRAM |
Storage Controller | RAID (Serial ATA-600 / SAS 3.0 / PCI Express (NVMe)) – OCP (HPE MR408i-o Gen11 SPDM) |
Server Storage Bays | Hot-swap 2.5″ |
Hard Drive | HDD 1 TB |
Optical Storage | No optical drive |
Video Memory | 16 MB |
Networking | 1GbE, 10GbE |
Power | (50/60 Hz) |
Power Redundancy | Yes |
Dimensions (WxDxH) | 43.47 cm x 64.64 cm x 8.75 cm |
Weight | 16.78 kg |
Manufacturer Selling Program | HPE Smart Choice |
Environmental Standards | ENERGY STAR Qualified |
Documents
Extended Specifications
Environmental Parameters
Min Operating Temperature | 10 °C |
|---|
Max Operating Temperature | 35 °C |
|---|
Humidity Range Operating | 8 – 90% RH (non-condensing) |
|---|
General
Type | Server |
|---|
Product Form Factor | Rack-mountable – 2U |
|---|
Built-in Devices | Led panel |
|---|
Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
|---|
Server Scalability | 2-way |
|---|
Hot-Swap Bays Qty | 8 |
|---|
Processor / Chipset
CPU | AMD EPYC 9115 |
|---|
Clock Speed | 2.6 GHz |
|---|
Max Turbo Speed | 4.1 GHz |
|---|
Number of Cores | 16-core |
|---|
CPU Qty | 1 |
|---|
Max CPU Qty | 2 |
|---|
CPU Upgradability | Upgradable |
|---|
Processor Main Features | Intel Turbo Boost Technology 2, Hyper-Threading Technology |
|---|
Cache Memory
Installed Size | L3 Cache – 64 MB |
|---|
Cache Per Processor | 64 MB |
|---|
RAM
Installed Size | 16 GB (installed) / 6 TB (max) |
|---|
Technology | DDR5 SDRAM |
|---|
Effective Memory Speed | 2200 MT/s |
|---|
Rated Memory Speed | 2800 MT/s |
|---|
Form Factor | DIMM 288-pin |
|---|
Slots | 24 (Total) / 23 (empty) |
|---|
Features | Registered, HPE SmartMemory, slots 13 – 24 are available in two-processor configuration only |
|---|
Configuration Features | 1 x 16 GB |
|---|
Hard Drive
Storage Controller
Type | 1 x RAID – OCP |
|---|
Controller Interface Type | Serial ATA-600 / SAS 3.0 / PCI Express (NVMe) |
|---|
Storage Controller Name | HPE MR408i-o Gen11 SPDM |
|---|
Channel Qty | 8 |
|---|
RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60 |
|---|
Buffer Size | 4 GB |
|---|
Optical Storage
Monitor
Graphics Controller
Video Memory | 16 MB |
|---|
Video Interfaces | VGA |
|---|
Networking
Interface (Bus) Type | Open Compute Project mezzanine (OCP) 3.0 |
|---|
Ethernet Ports | 2 x 10 Gigabit Ethernet |
|---|
Ethernet Controller | Broadcom BCM57416 |
|---|
Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet |
|---|
Remote Management Protocol | IPMI 2.0, SNMP 3 |
|---|
Remote Management Controller | Integrated Lights-Out 6 |
|---|
Features | Wake on LAN (WoL), PXE support |
|---|
Expansion / Connectivity
Bays | 8 (total) / 6 (free) x hot-swap 2.5″ SFF |
|---|
Slots | 1 (total) / 1 (free) x PCIe 5.0 x16 (x16 mode) |
|---|

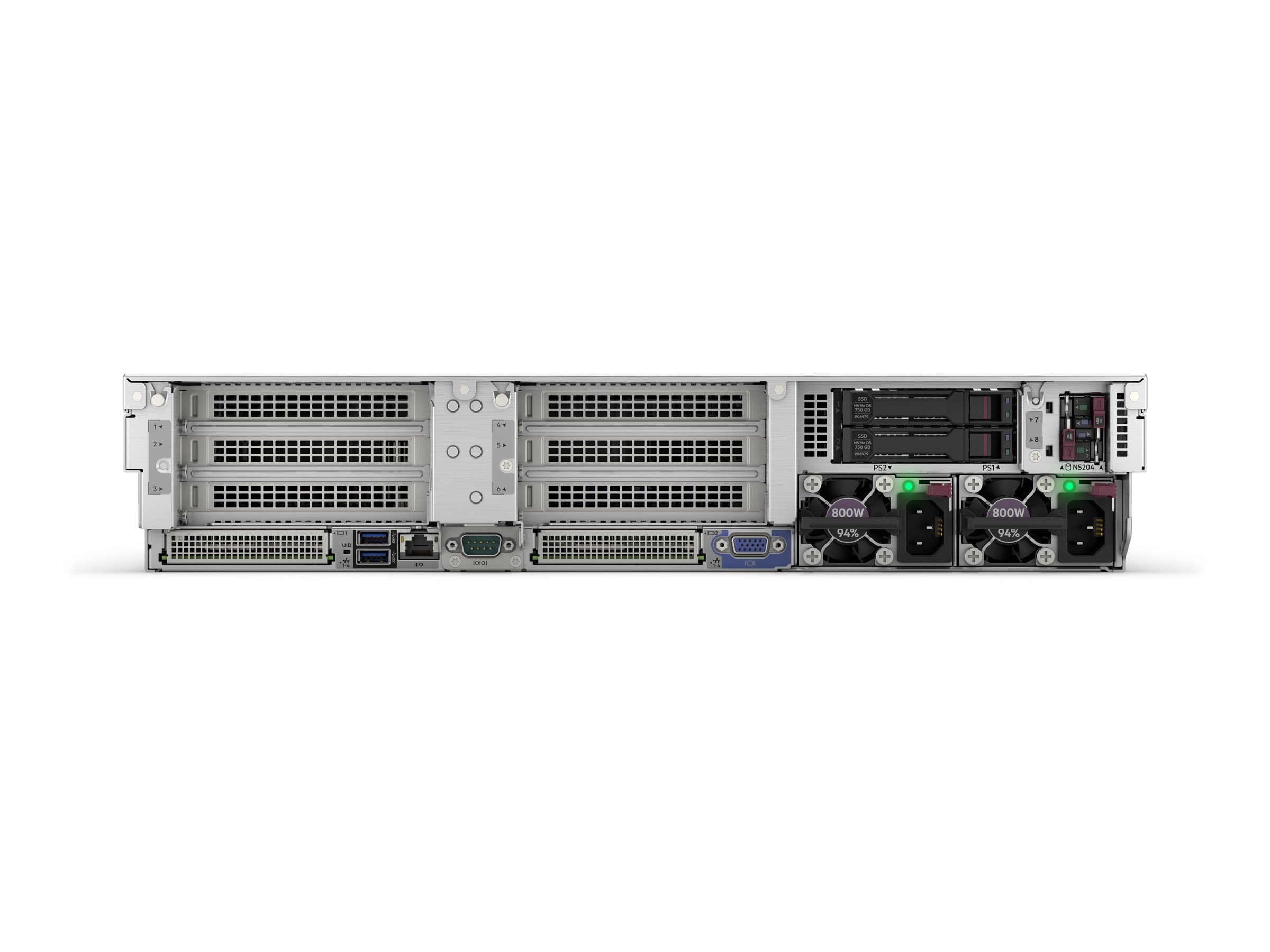

Interfaces | 1 x HPE iLO (1 in front) (service port)
5 x USB 3.2 Gen 1 (1 front, 2 rear, 2 internal)
1 x VGA
2 x LAN (1/10 Gigabit Ethernet) |
|---|
Miscellaneous
Included Accessories | 6 x standard fans, HPE standard heatsink, HPE Easy Install Rail 2 Kit |
|---|
Compliant Standards | AES, FIPS 140-2, Triple DES, IPv6 Ready, PCI DSS, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, ACPI 6.1, SMBIOS 3.1, UEFI 2.7, Redfish API, APML 1.0, Active Directory v1.0 |
|---|
Manufacturer Selling Program | HPE Smart Choice |
|---|
Power
Device Type | Power supply – hot-plug |
|---|
Power Redundancy | Yes |
|---|
Power Redundancy Scheme | 1+1 |
|---|
Installed Qty | 2 |
|---|
Max Supported Qty | 2 |
|---|
Voltage Required | AC 100-240 V (50/60 Hz) |
|---|
Power Provided | 800 Watt |
|---|
80 PLUS Certification | 80 PLUS Platinum |
|---|
Sustainability Information
ENERGY STAR Certified | Yes |
|---|
ENERGY STAR Version | 4.0 |
|---|
Dimensions & Weight
Width | 43.47 cm |
|---|
Depth | 64.64 cm |
|---|
Height | 8.75 cm |
|---|
Weight | 16.78 kg |
|---|
Dimensions & Weight (Shipping)
Shipping Width | 60 cm |
|---|
Shipping Depth | 99.8 cm |
|---|
Shipping Height | 27 cm |
|---|
Shipping Weight | 26.2 kg |
|---|
