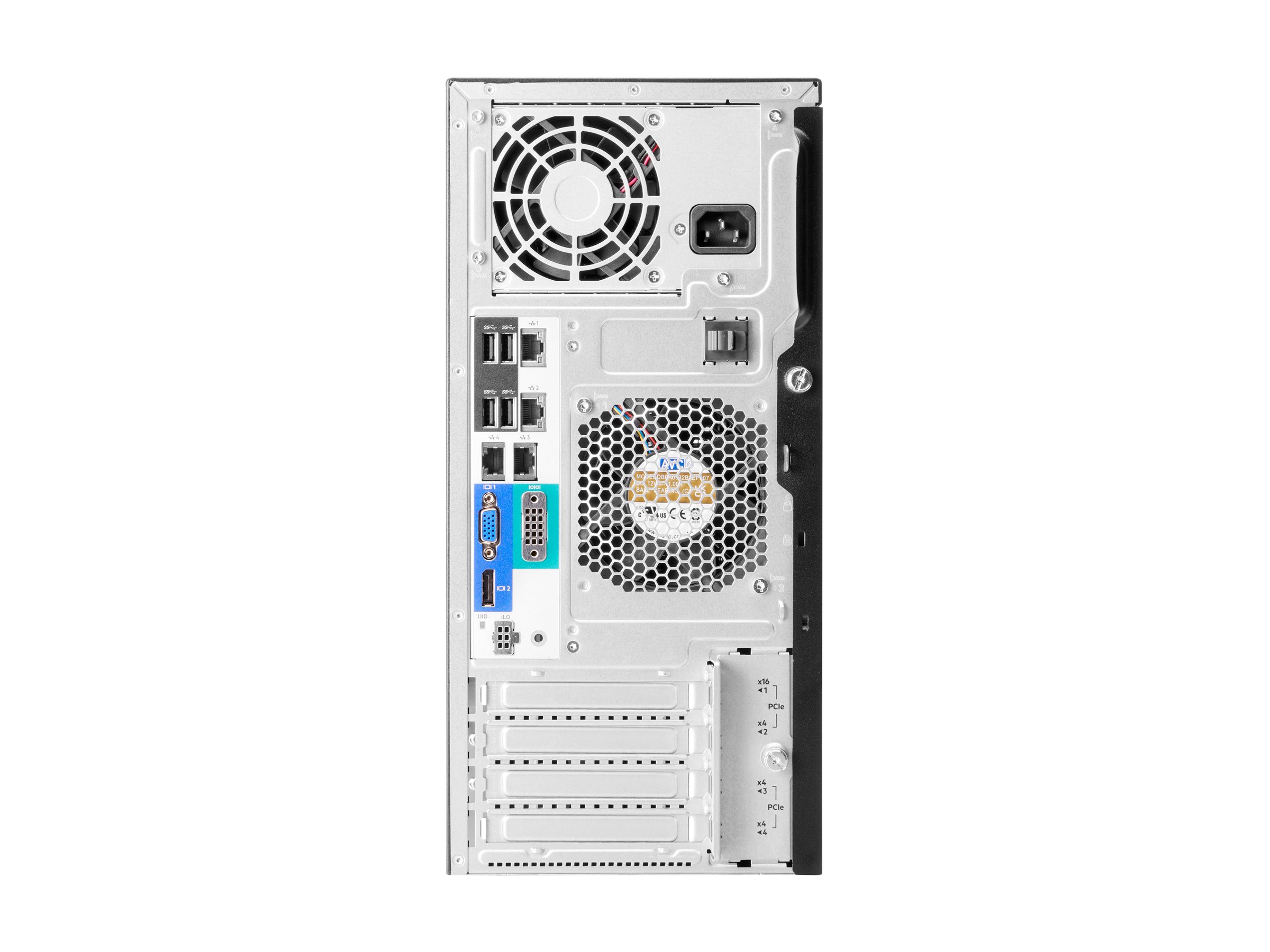

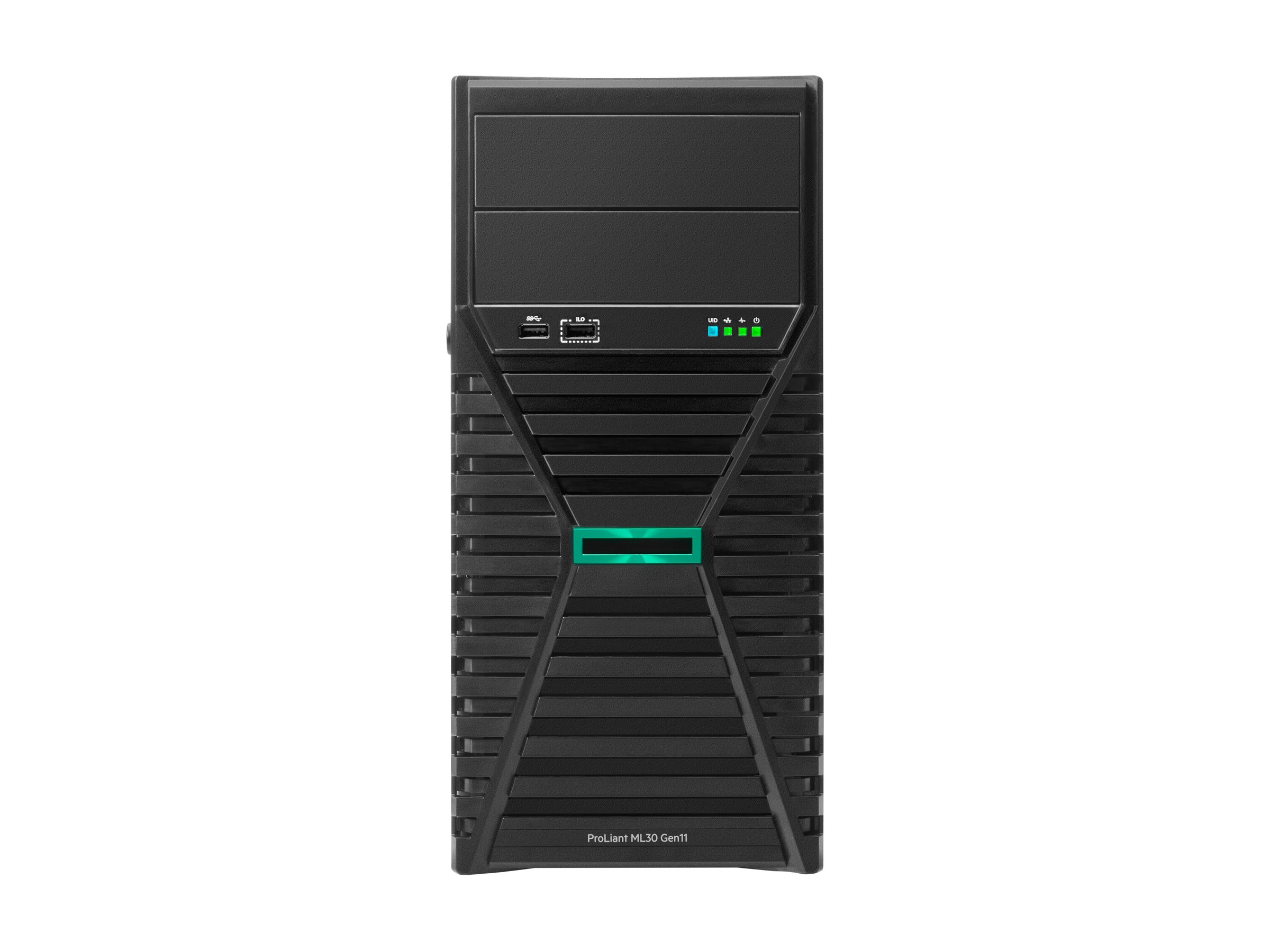

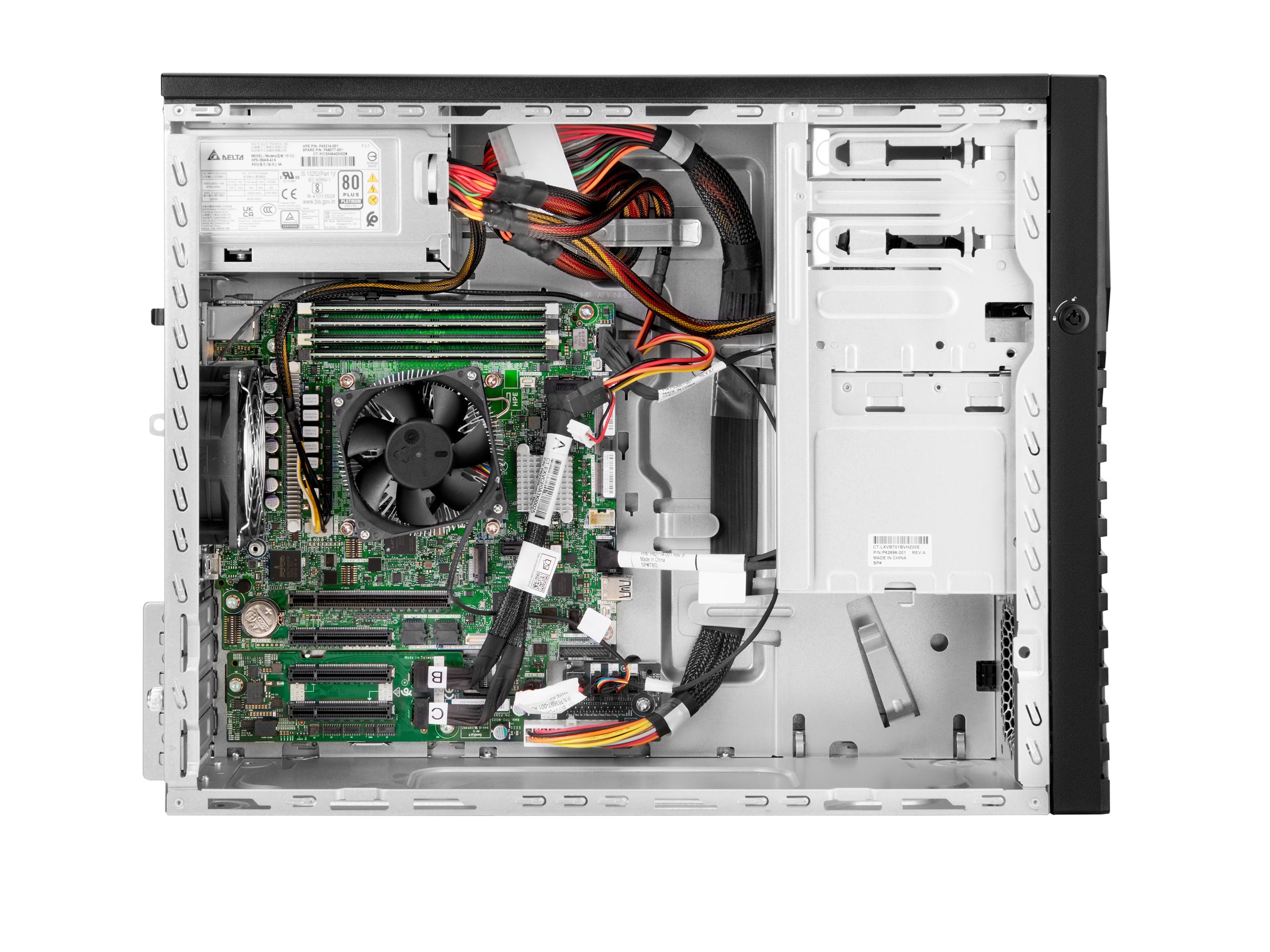

HPE ProLiant ML30 Gen11, Server, tower 4U, 1-way, 1 x Xeon 6325P / up to 5.2 GHz, RAM 32 GB, SATA, non-hot-swap 3.5" bay(s), SSD 2 x 480 GB, Gigabit Ethernet, monitor: none
$10,991.38 inc GST
✓ In Stock - 3 available
✓ Free NZ Delivery
3 in stock
Ships from: Auckland
- Allow 1–2 days for delivery to the North Island
- Allow 2–3 days for delivery to the South Island
- Add 1–2 days if you are rural
- Collection can be arranged
We are currently experiencing 1-2 day shipping delays from this supplier warehouse
Description
Main Specifications
Product Description | HPE ProLiant ML30 Gen11 – tower Xeon 6325P 3.5 GHz – 32 GB – SSD 2 x 480 GB |
Type | Server – tower |
Height (Rack Units) | 4U |
Server Scalability | 1-way |
Processor | 1 x Intel Xeon 6325P / 3.5 GHz (up to 5.2 GHz, (Quad-Core) |
Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology 2, 8 Threads, 55W TDP |
Cache Memory | 12 MB L3 Cache |
Cache Per Processor | 12 MB |
RAM | 32 GB (installed) / 128 GB (max) – DDR5 SDRAM – ECC |
Storage Controller | SATA (SATA 6Gb/s) (Intel VROC SATA Software RAID) |
Server Storage Bays | Non-hot-swap 3.5″ |
Hard Drive | 2 x SSD 480 GB |
Optical Storage | No optical drive |
Video Memory | 16 MB |
Networking | 1GbE |
Power Redundancy | Yes |
Software Included | HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download) |
Dimensions (WxDxH) | 17.53 cm x 47.5 cm x 36.83 cm |
Weight | 10.2 kg |
Environmental Standards | ENERGY STAR Qualified EPEAT Bronze |
Documents
Extended Specifications
General
Type | Server |
|---|---|
Product Form Factor | Tower – 4U |
Built-in Devices | Led panel |
Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
Server Scalability | 1-way |
Internal Bays Qty | 4 |
Processor / Chipset
CPU | Intel Xeon 6325P |
|---|---|
Clock Speed | 3.5 GHz |
Max Turbo Speed | 5.2 GHz |
Number of Cores | Quad-Core |
CPU Qty | 1 |
Max CPU Qty | 1 |
CPU Upgradability | Upgradable |
Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology 2, 8 Threads, 55W TDP |
Chipset Type | Intel C262 |
Cache Memory
Installed Size | L3 Cache – 12 MB |
|---|---|
Cache Per Processor | 12 MB |
RAM
Installed Size | 32 GB (installed) / 128 GB (max) |
|---|---|
Technology | DDR5 SDRAM – ECC |
Effective Memory Speed | 3600 MT/s |
Rated Memory Speed | 3600 MT/s |
Form Factor | DIMM 288-pin |
Slots | 4 (Total) / 3 (empty) |
Features | Unbuffered, HPE Standard Memory |
Configuration Features | 1 x 32 GB |
Hard Drive
Type | SSD |
|---|---|
Capacity | 2 x 480 GB |
Storage Controller
Type | 1 x SATA |
|---|---|
Controller Interface Type | SATA 6Gb/s |
Storage Controller Name | Intel VROC SATA Software RAID |
RAID Level | RAID 0, RAID 1, RAID 5, RAID 10 |
Optical Storage
Type | No optical drive |
|---|
Monitor
Monitor Type | None. |
|---|
Graphics Controller
Video Memory | 16 MB |
|---|---|
Video Interfaces | VGA, DisplayPort |
Networking
Ethernet Ports | 4 x Gigabit Ethernet |
|---|---|
Ethernet Controller | Broadcom BCM5719 |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
Remote Management Controller | Integrated Lights-Out 6 |
Features | Wake on LAN (WoL), PXE support |
Expansion / Connectivity
Bays | 4 (total) / 2 (free) x internal 3.5″ LFF |
|---|---|
Slots | 1 (total) / 1 (free) x PCIe 5.0 x16 – full-length, full-height (x16 mode, processor) 1 (total) / 1 (free) x PCIe 4.0 x8 – full-length, full-height (x4 mode, processor) 2 (total) / 2 (free) x PCIe 4.0 x8 – half-length, full-height (x4 mode, PCH) 1 (total) / 1 (free) x M.2 Card (PCIe 3.0 x2/NVMe) |
Interfaces | 1 x DisplayPort 1 x VGA 3 x LAN (Gigabit Ethernet) 1 x HPE iLO – Type A (1 front) (service port) 5 x USB 3.2 Gen 1 (1 front, 4 rear) 1 x LAN (Gigabit Ethernet) / HPE iLO – RJ-45 (1 rear) |
Miscellaneous
Theft/Intrusion Protection | Security lock slot (cable lock sold separately), padlock eye |
|---|---|
Security Slot Type | Kensington security slot |
Compliant Standards | AES, Triple DES, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, Redfish API, ACPI 6.3, Active Directory v1.0, UEFI 2.9 |
Power
Device Type | Power supply – hot-plug |
|---|---|
Power Redundancy | Yes |
Power Redundancy Scheme | 1+1 |
Installed Qty | 2 |
Max Supported Qty | 2 |
Voltage Required | AC 100-120/200-240 V |
Power Provided | 500 watt |
80 PLUS Certification | 80 PLUS Platinum |
Operating System / Software
Software | HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download) |
|---|
Sustainability Information
EPEAT Compliant | EPEAT Bronze |
|---|---|
ENERGY STAR Certified | Yes |
ENERGY STAR Version | 4.0 |
Dimensions & Weight
Width | 17.53 cm |
|---|---|
Depth | 47.5 cm |
Height | 36.83 cm |
Weight | 10.2 kg |
Environmental Parameters
Min Operating Temperature | 10 °C |
|---|---|
Max Operating Temperature | 35 °C |
Humidity Range Operating | 8 – 90% RH (non-condensing) |
Additional information
| Manufacturer | |
|---|---|
| Installed Storage | |
| CPU |
