Description

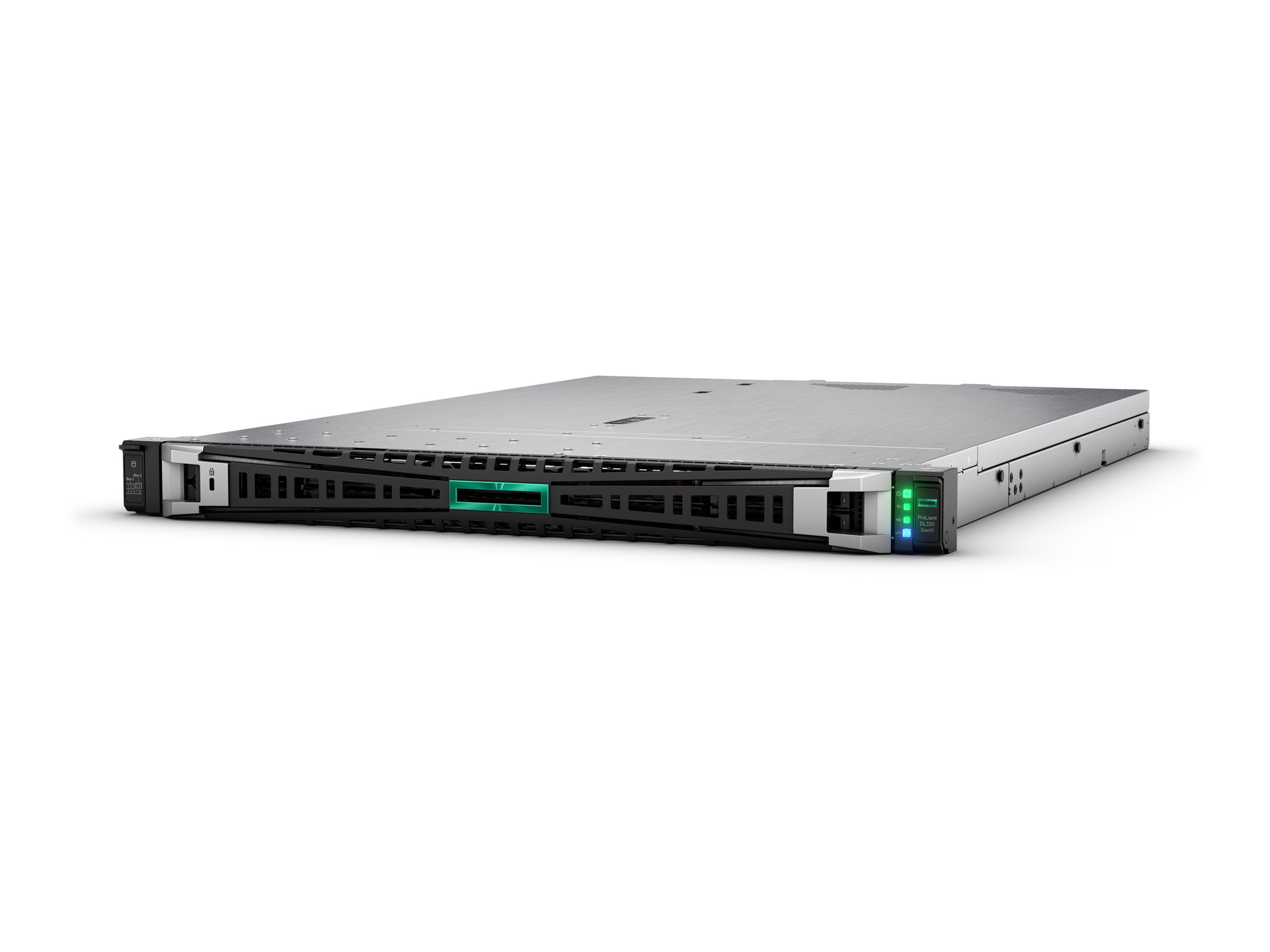

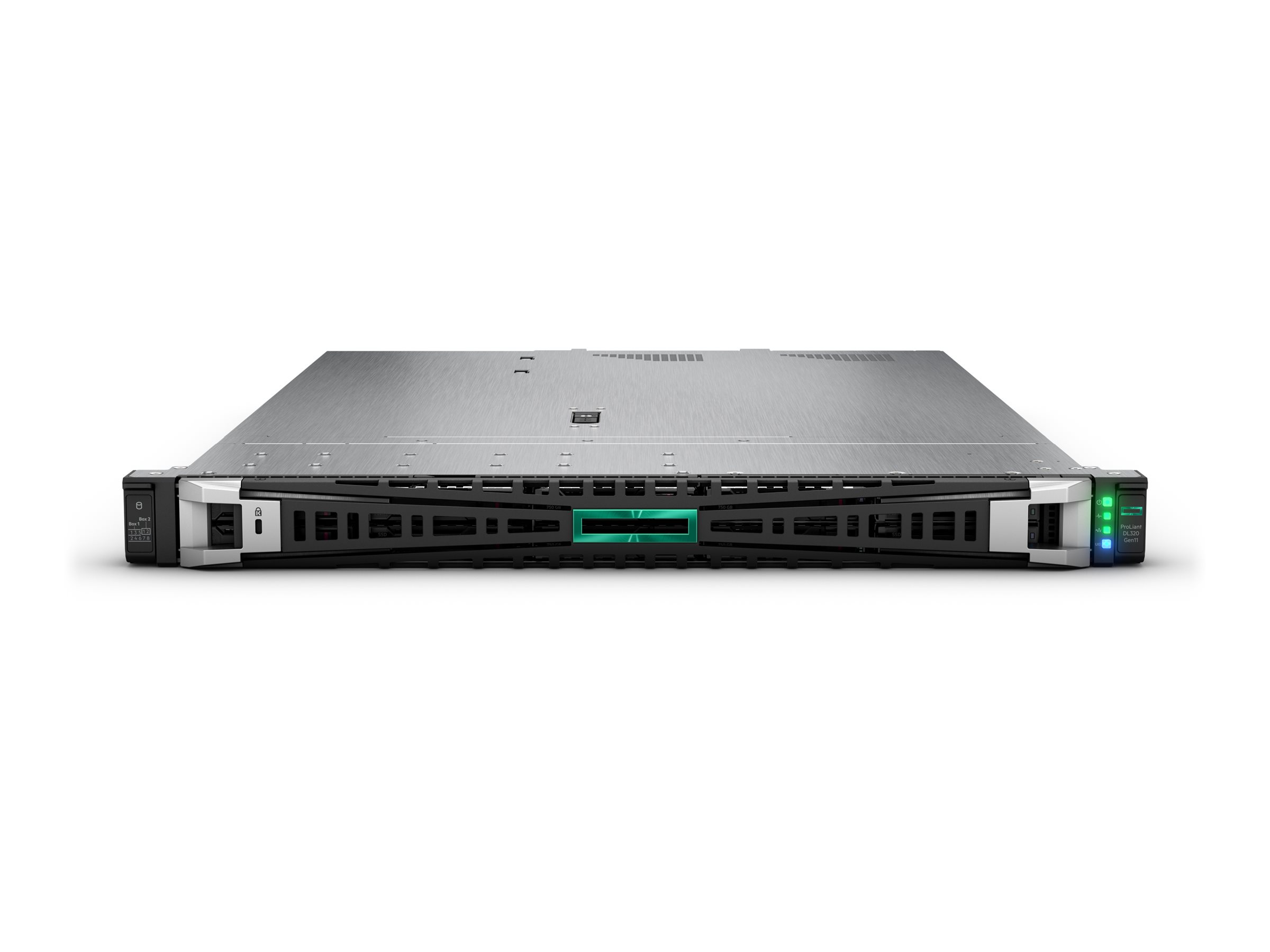

Do you need to efficiently expand or refresh your IT infrastructure to propel the business? Adaptable to diverse workloads and environments, the compact 1U 1P HPE ProLiant DL320 Gen11 delivers enhanced performance with the right balance of expandability and density. Designed for supreme versatility and resiliency, the HPE ProLiant DL320 Gen11 is ideal for IT infrastructure, either physical, virtual, or containerized.
The HPE ProLiant DL320 Gen11 supports the Intel Xeon, plus 4800 MT/s HPE DDR5 Smart Memory. Introducing PCIe Gen5 and Intel Software Guard Extensions (SGX) support on the single socket segment, the HPE ProLiant DL320 Gen11 delivers premium compute, memory, I/O, and security capabilities for customers focused on performance at 1P economics. DL320 Gen11 is an excellent choice for daily business and workloads in Data Management, Virtualization, Content Delivery Network (CDN), Intelligent Video Analytics (IVA), General Compute, Data Collection, Software Defined Storage, Software Defined Compute, Cold Storage, Compute Storage, Edge AI, and Virtual Desktop Infrastructure (VDI).
What’s in the Box
- HPE ProLiant DL320 Gen11
- 5 x standard fans
Main Specifications
Product Description | HPE ProLiant DL320 Gen11 – rack-mountable Xeon Bronze 3508U 2.1 GHz – 16 GB – SSD 2 x 480 GB |
Type | Server – rack-mountable |
Height (Rack Units) | 1U |
Server Scalability | 1-way |
Processor | 1 x Intel Xeon Bronze 3508U / 2.1 GHz (up to 2.2 GHz, (8-core) |
Processor Main Features | Intel Turbo Boost Technology |
Cache Memory | 22.5 MB L3 Cache |
Cache Per Processor | 22.5 MB |
RAM | 16 GB (installed) / 2.04 TB (max) – DDR5 SDRAM |
Storage Controller | RAID (Serial ATA-600 / SAS 3.0 / PCI Express (NVMe)) – OCP (HPE MR408i-o Gen11 SPDM) |
Server Storage Bays | Hot-swap 3.5″ |
Hard Drive | 2 x SSD 480 GB – SATA 6Gb/s – 2.5″ |
Optical Storage | No optical drive |
Video Memory | 16 MB |
Networking | 1GbE |
Power Redundancy | Optional |
OS Provided | No operating system |
Dimensions (WxDxH) | 43.46 cm x 66.47 cm x 4.28 cm |
Weight | 13.2 kg |
Manufacturer Selling Program | HP Smart Choice |
Environmental Standards | ENERGY STAR Qualified |
Documents
Extended Specifications
General
Type | Server |
|---|
Product Form Factor | Rack-mountable – 1U |
|---|
Built-in Devices | Led panel |
|---|
Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
|---|
Server Scalability | 1-way |
|---|
Hot-Swap Bays Qty | 4 |
|---|
Processor / Chipset
CPU | Intel Xeon Bronze 3508U |
|---|
Clock Speed | 2.1 GHz |
|---|
Max Turbo Speed | 2.2 GHz |
|---|
Number of Cores | 8-core |
|---|
CPU Qty | 1 |
|---|
Max CPU Qty | 1 |
|---|
CPU Upgradability | Upgradable |
|---|
Processor Main Features | Intel Turbo Boost Technology |
|---|
Chipset Type | Intel C741 |
|---|
Cache Memory
Installed Size | L3 Cache – 22.5 MB |
|---|
Cache Per Processor | 22.5 MB |
|---|
RAM
Installed Size | 16 GB (installed) / 2.04 TB (max) |
|---|
Technology | DDR5 SDRAM |
|---|
Effective Memory Speed | 4400 MT/s |
|---|
Rated Memory Speed | 5600 MT/s |
|---|
Form Factor | DIMM 288-pin |
|---|
Slots | 16 (Total) / 15 (empty) |
|---|
Features | Registered, HPE SmartMemory |
|---|
Configuration Features | 1 x 16 GB |
|---|
Hard Drive
Type | SSD – 2.5″ |
|---|
Capacity | 2 x 480 GB |
|---|
Interface Type | SATA 6Gb/s |
|---|
Features | HPE Multi Vendor, Read Intensive |
|---|
Storage Controller
Type | 1 x RAID – OCP |
|---|
Controller Interface Type | Serial ATA-600 / SAS 3.0 / PCI Express (NVMe) |
|---|
Storage Controller Name | HPE MR408i-o Gen11 SPDM |
|---|
Channel Qty | 8 |
|---|
RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60 |
|---|
Buffer Size | 4 GB |
|---|
Optical Storage
Monitor
Graphics Controller
Video Memory | 16 MB |
|---|
Video Interfaces | VGA |
|---|
Networking
Ethernet Ports | 2 x Gigabit Ethernet |
|---|
Ethernet Controller | Broadcom BCM5720 |
|---|
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
|---|
Remote Management Protocol | IPMI 2.0, SNMP 3 |
|---|
Remote Management Controller | Integrated Lights-Out 6 |
|---|
Features | ACPI support, PXE support, Wake on LAN (WoL) |
|---|
Expansion / Connectivity
Bays | 4 (total) / 2 (free) x hot-swap 3.5″ LFF |
|---|
Slots | 2 (total) / 2 (free) x PCIe 5.0 x16 – half-length, full-height
1 (total) / 1 (free) x PCIe 5.0 x16 / Open Compute Project mezzanine (OCP) 3.0 (x16 mode) |
|---|

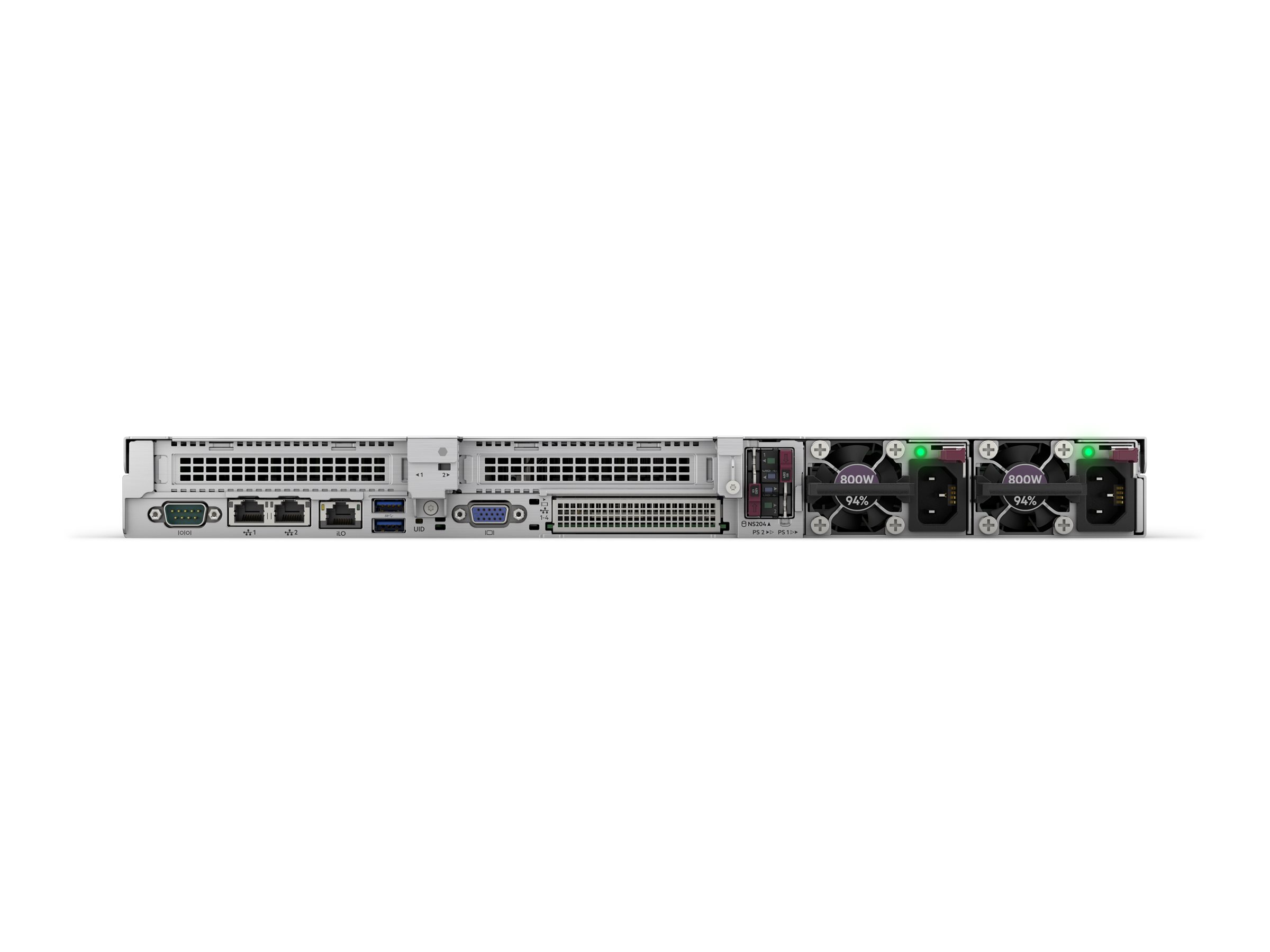

Interfaces | 1 x HPE iLO (1 in front) (service port)
3 x USB 3.2 Gen 1 (1 front, 2 rear)
1 x USB 2.0
1 x VGA
2 x LAN (Gigabit Ethernet) |
|---|
Miscellaneous
Included Accessories | 5 x standard fans |
|---|
Compliant Standards | AES, Triple DES, IPv6 Ready, PCI DSS, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, FIPS 140-2, ACPI 6.3, Active Directory v1.0, SMBIOS 3.2, Redfish API |
|---|
Manufacturer Selling Program | HP Smart Choice |
|---|
Power
Device Type | Power supply – hot-plug |
|---|
Power Redundancy | Optional |
|---|
Power Redundancy Scheme | 1+1 (with optional power supply) |
|---|
Installed Qty | 2 |
|---|
Max Supported Qty | 2 |
|---|
Power Provided | 800 Watt |
|---|
80 PLUS Certification | 80 PLUS Platinum |
|---|
Operating System / Software
OS Provided | No operating system |
|---|
Sustainability Information
ENERGY STAR Certified | Yes |
|---|
ENERGY STAR Version | 4.0 |
|---|
Dimensions & Weight
Width | 43.46 cm |
|---|
Depth | 66.47 cm |
|---|
Height | 4.28 cm |
|---|
Weight | 13.2 kg |
|---|
Environmental Parameters
Min Operating Temperature | 10 °C |
|---|
Max Operating Temperature | 35 °C |
|---|
Humidity Range Operating | 8 – 90% RH (non-condensing) |
|---|
