Description
Are you looking for a scalable, compute-dense solution for high-performance workloads such as VDI, EDA, or CAD?

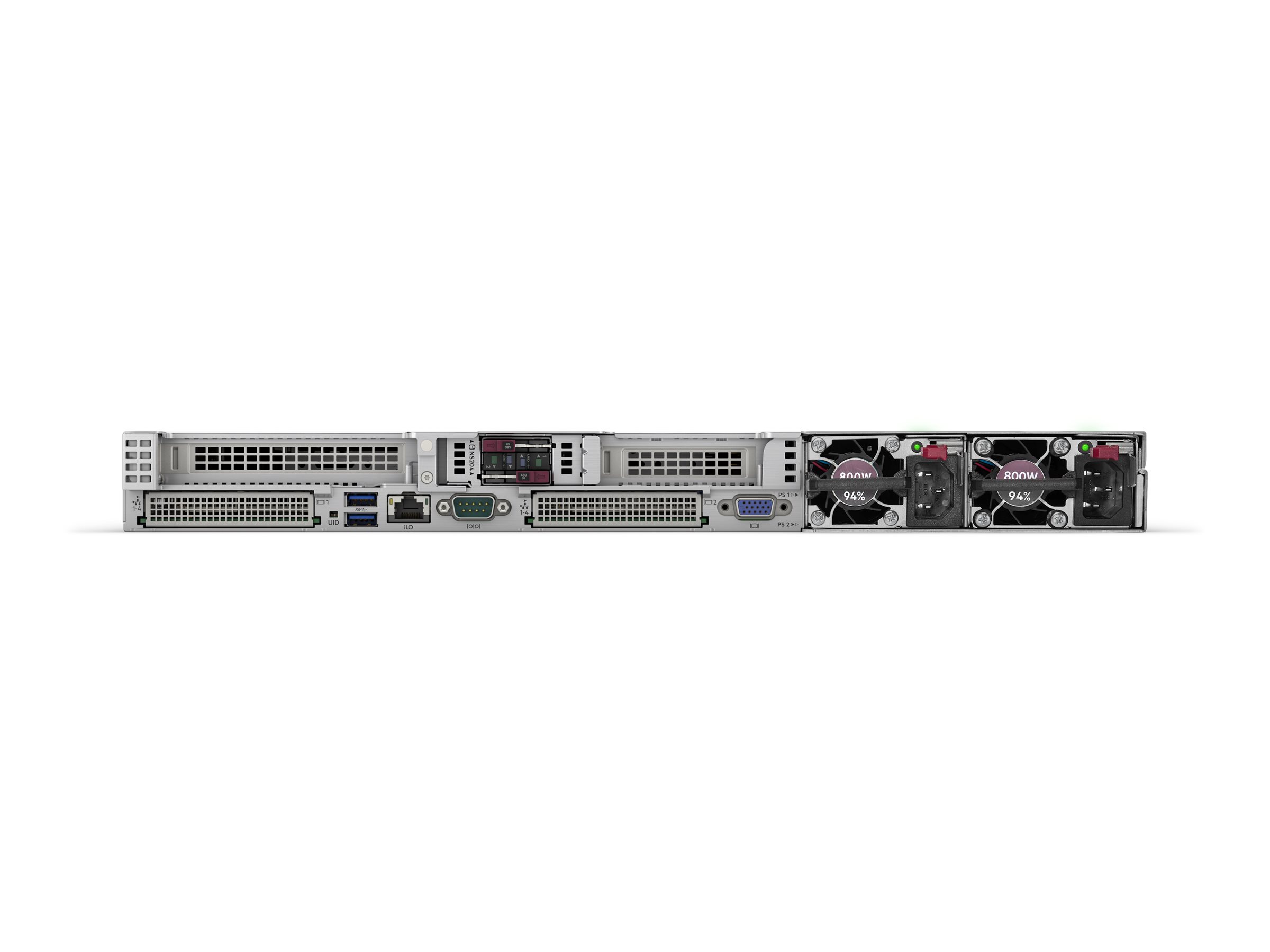

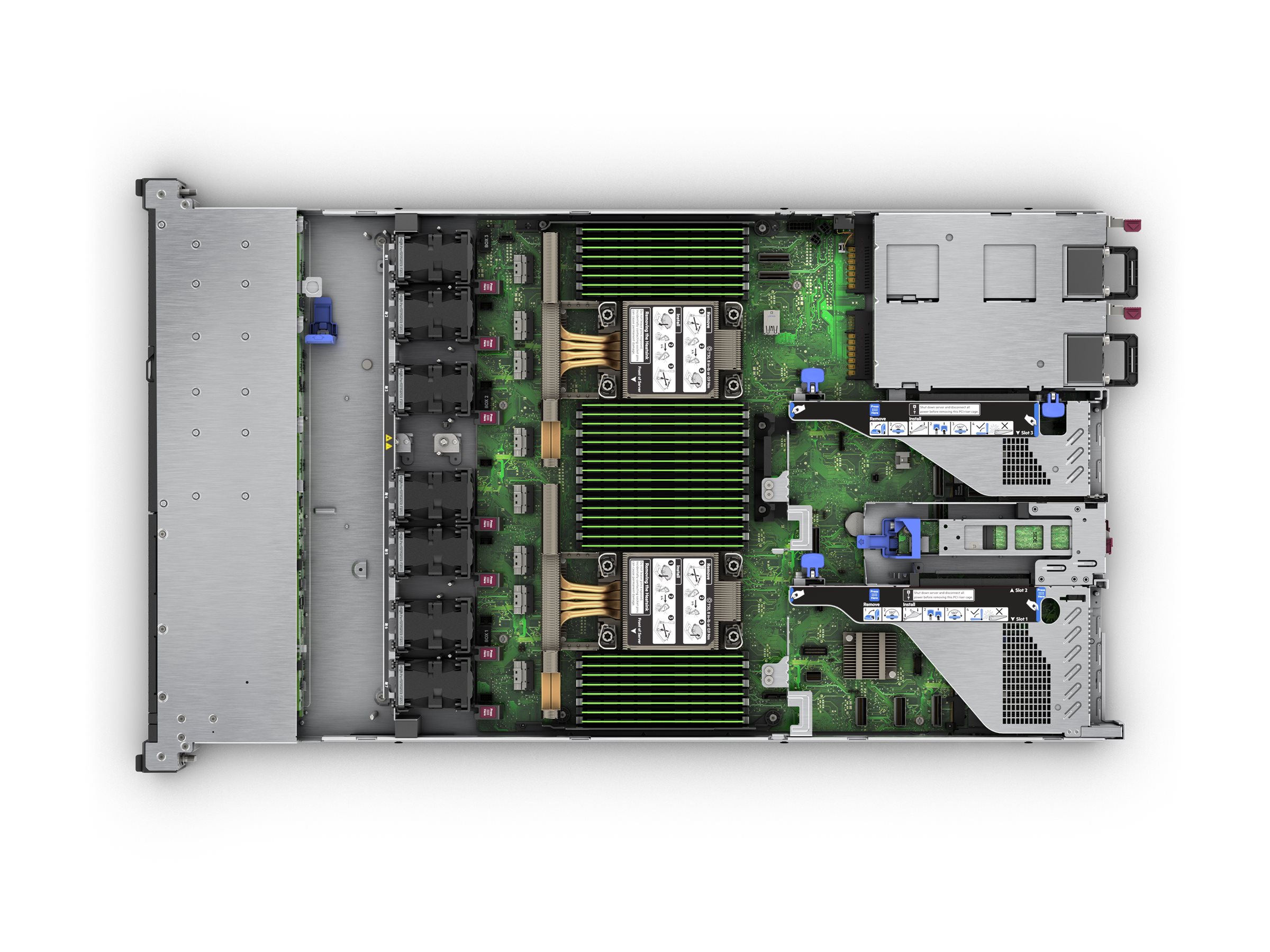

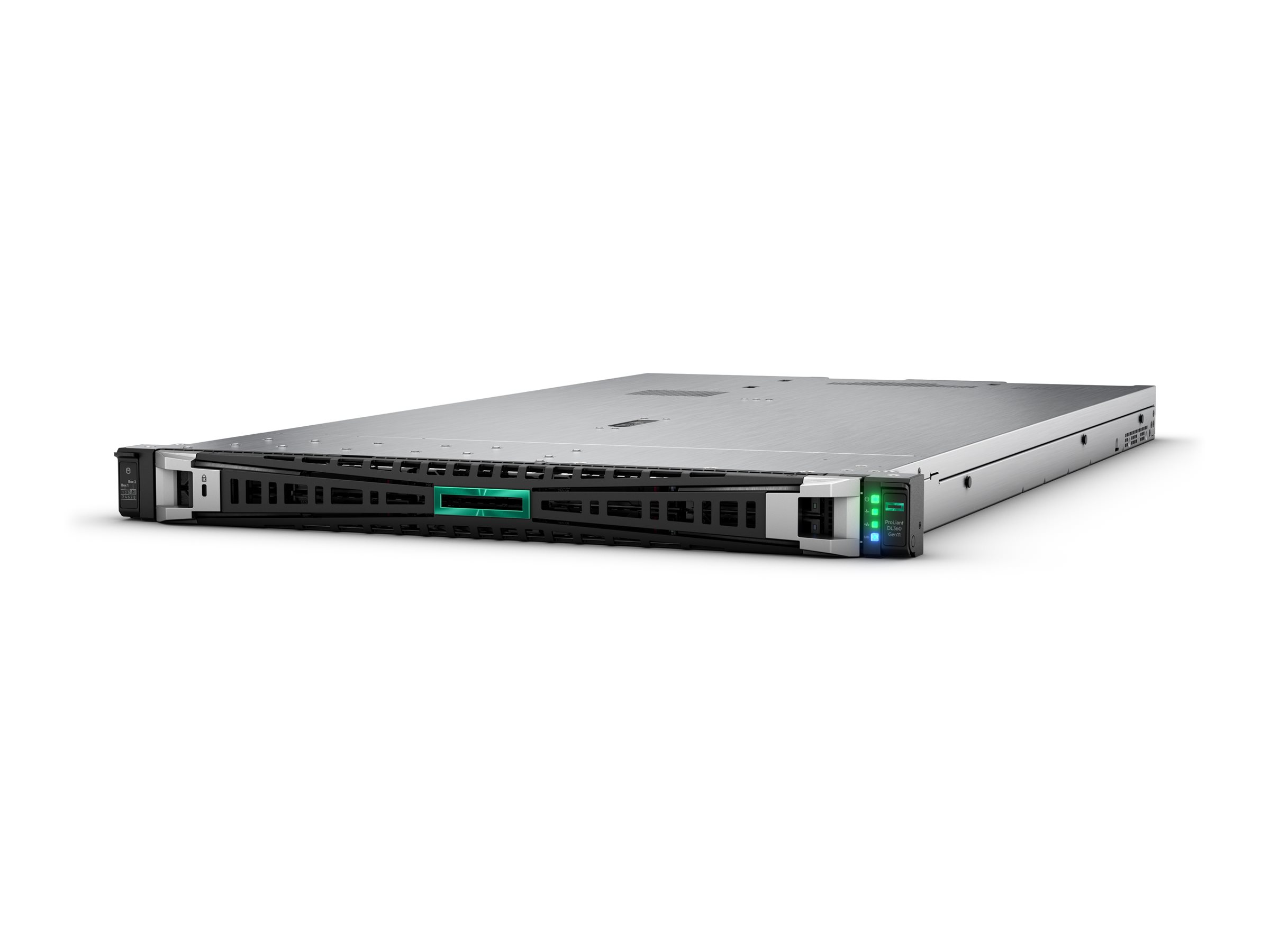

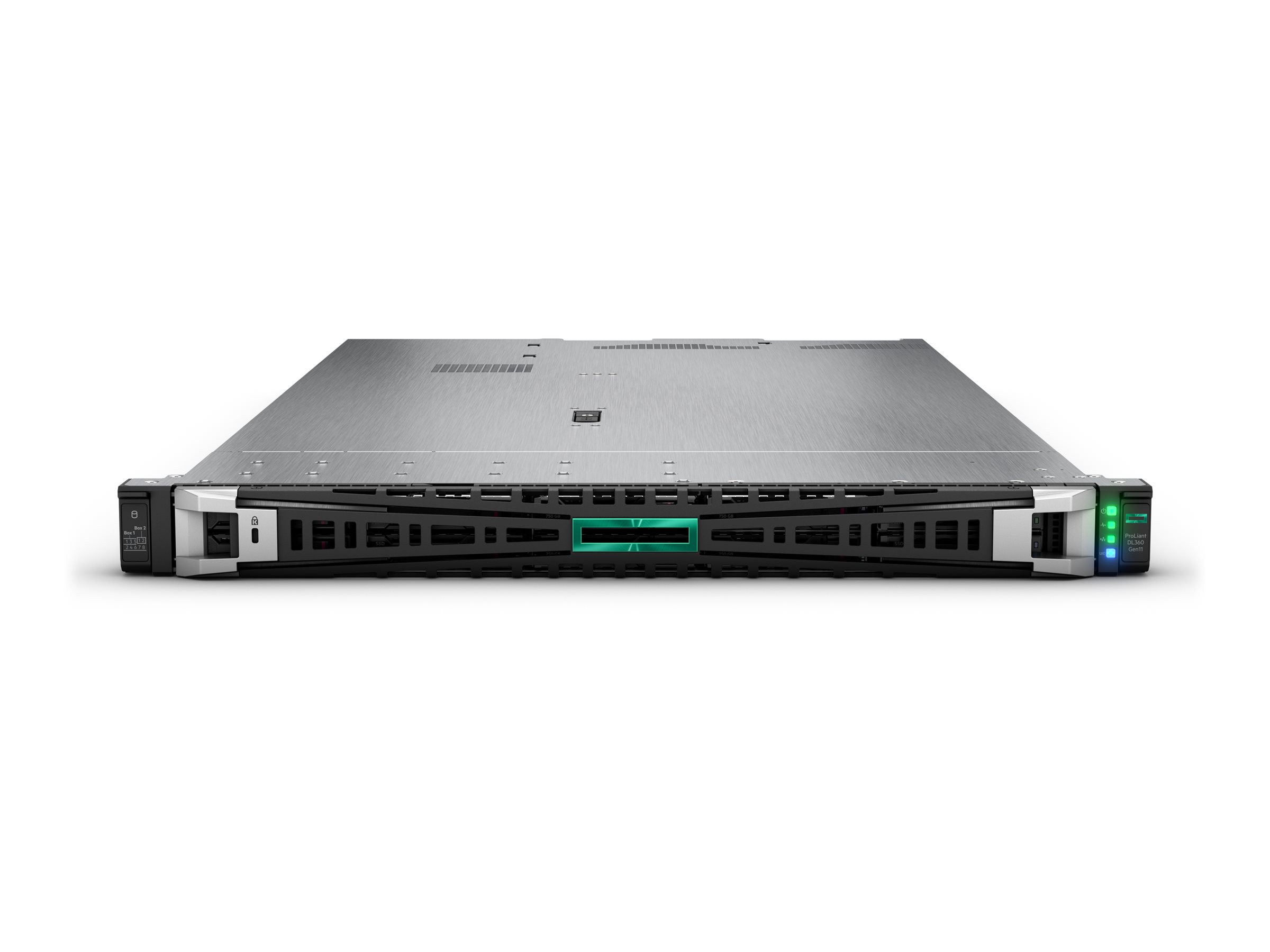

The HPE ProLiant DL360 Gen11 server is a rack-optimized 1U dense solution that delivers exceptional compute performance, upgraded high-speed data transfer rate, and memory depth with 2P compute capability. Powered by 4th Gen Intel Xeon Scalable processors with up to 60 cores, increased memory bandwidth, up to 8 TB of memory, and high-speed PCIe Gen5 I/O, the HPE ProLiant DL360 Gen11 server is a perfect rack-optimized, 1U 2P, dense solution for general-purpose virtualization workloads that require increased compute density with built-in security and flexibility.
The silicon root of trust anchors the server firmware to an HPE-exclusive ASIC, creating an immutable fingerprint for the Secure Intel Processor that must be matched exactly before the server will boot. The HPE ProLiant DL360 Gen11 server is an excellent choice for EDA, CAD, and VDI.
- Powered by 4th Gen Intel Xeon scalable processors with next-generation technology that supports up to 60 cores at 350W, and 16 DIMMs for up to 8 TB of high bandwidth DDR5 memory up to 4800 MHz
- 16 DIMMs per processor for up to 8 TB total DDR5 memory per server with increased performance, High Bandwidth Memory (HBM) support, and lower power requirements
- Advanced data transfer rates and higher network speeds from the PCIe Gen5 serial expansion bus, with up to 2 x16 PCIe Gen5 and 2 OCP slots
- Includes the HPE Integrated Lights-Out 6 (iLO 6) server management software that enables you to securely configure, monitor, and update your HPE ProLiant Gen11 servers seamlessly, from anywhere
- Supports up to 2 single wide (SW) GPUs1 to accelerate graphic intense workloads
- Supports Smart Cooling Modules for highest thermal design points (TDPs)
- Intuitive cloud operating experience: simple, self-service, and automated
HPE ProLiant DL360 Gen11 servers are engineered for your hybrid world. ProLiant DL360 Gen11 servers are powered by 4th Generation Intel Xeon processors and simplify the way you control your business’s compute – from edge to cloud – with a cloud operating experience. Transform business operations and pivot your team from reactive to proactive with global visibility and insight through a self-service console. Automate tasks for efficiency in deployment, instant scalability, and seamless, simplified support and lifecycle management to reduce and shorten maintenance windows. Self-service automated experiences are engineered and built into all HPE ProLiant Gen11 servers, whether purchased as physical servers or consumed as-a-service using HPE GreenLake as your compute and storage demands grow. Simplify and secure server management from edge to cloud with HPE GreenLake for Compute Ops Management. HPE GreenLake for Compute Ops Management is an as-a-service compute management experience that delivers greater simplicity, agility, and speed across your entire compute landscape, globally. - Trusted security by design: uncompromising, fundamental, and protected
The HPE ProLiant DL360 Gen11 server utilizes the HPE Silicon Root of Trust, HPE’s fundamental approach to security that provides zero-trust architecture at the silicon level and ensures all server essential firmware is free from malware or compromised code. This server, powered by 4th Gen Intel Xeon Scalable Processors, adds hardware- and software-assisted security features, including Intel Software Guard Extensions and Intel Boot Guard, which help secure the server hardware foundation on which critical apps run and better protect data in memory. HPE ProLiant Gen11 servers continuously protect healthy servers by a) providing rapid detection of security-compromised servers, even to the point of not allowing them to boot if it identifies malicious code, and b) securing servers at the edge with IDevID certificates installed by default. HPE ProLiant Gen11 servers provide automated recovery from a security event, including restoration of validated firmware, and facilitating recovery of the operating system, application, and data connections, providing a fast path to bring a server back online and into normal operations. Embedded in Hewlett Packard Enterprise servers, HPE Integrated Lights-Out 6 (iLO 6) is an exclusive core intelligence that monitors server status, providing the means for reporting, ongoing management, service alerting, and local or remote management to quickly identify and resolve issues. - Optimized performance for your workloads: accelerated, open, and efficient
The HPE ProLiant DL360 Gen11 server is an excellent choice for EDA, CAD, and general-purpose virtualization workloads (including large-scale VDI), and Platforms (VCF & Containers) that require increased compute density with built-in security and flexibility. Harness major computer performance. The HPE ProLiant DL360 Gen11 server is powered by the 4th Generation Intel Xeon Scalable Processors with next-generation technology that supports up to 60 cores, 350W, and up to 8 TB of memory. The HPE ProLiant DL360 Gen11 server provides advanced data transfer rates and higher network speeds from the PCIe Gen5 serial expansion bus, with up to 2 x16 PCIe Gen5 and 2 OCP slots to improve I/O throughput and reduce latency. The server provides 16 DIMMs per processor for up to 8 TB total DDR5 memory with increased memory bandwidth and performance, and lower power requirements. The HPE ProLiant DL360 Gen11 server provides real-time operational feedback on server performance plus recommendations for fine-tuning BIOS settings to customize for changing business needs.
What’s in the Box
- HPE ProLiant DL360 Gen11
- 7 x high performance fans
Main Specifications
Product Description | HPE ProLiant DL360 Gen11 – rack-mountable Xeon Gold 5515+ 3.2 GHz – 64 GB – SSD 2 x 480 GB |
Type | Server – rack-mountable |
Height (Rack Units) | 1U |
Server Scalability | 2-way |
Processor | 1 x Intel Xeon Gold 5515+ / 3.2 GHz (up to 4.1 GHz, (8-core) |
Processor Main Features | Intel Turbo Boost Technology 2 |
Cache Memory | 22.5 MB L3 Cache |
Cache Per Processor | 22.5 MB |
RAM | 64 GB (installed) / 8 TB (max) – DDR5 SDRAM |
Storage Controller | RAID (Serial ATA-600 / SAS 3.0 / PCI Express (NVMe)) – OCP (HPE MR408i-o Gen11 SPDM) |
Server Storage Bays | Hot-swap 2.5″ |
Hard Drive | 2 x SSD 480 GB |
Optical Storage | No optical drive |
Video Memory | 16 MB |
Networking | 1GbE |
Power Redundancy | Yes |
OS Provided | No operating system |
Software Included | HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download), HPE iLO Advanced, HPE OneView Advanced |
Dimensions (WxDxH) | 43.46 cm x 75.31 cm x 4.29 cm |
Weight | 14.56 kg |
Manufacturer Selling Program | HPE Smart Choice |
Environmental Standards | ENERGY STAR Qualified |
Documents
Extended Specifications
General
Type | Server |
|---|
Product Form Factor | Rack-mountable – 1U |
|---|
Built-in Devices | Led panel |
|---|
Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
|---|
Server Scalability | 2-way |
|---|
Hot-Swap Bays Qty | 8 |
|---|
Processor / Chipset
CPU | Intel Xeon Gold 5515+ |
|---|
Clock Speed | 3.2 GHz |
|---|
Max Turbo Speed | 4.1 GHz |
|---|
Number of Cores | 8-core |
|---|
CPU Qty | 1 |
|---|
Max CPU Qty | 2 |
|---|
CPU Upgradability | Upgradable |
|---|
Processor Main Features | Intel Turbo Boost Technology 2 |
|---|
Chipset Type | Intel C741 |
|---|
Cache Memory
Installed Size | L3 Cache – 22.5 MB |
|---|
Cache Per Processor | 22.5 MB |
|---|
RAM
Installed Size | 64 GB (installed) / 8 TB (max) |
|---|
Technology | DDR5 SDRAM |
|---|
Effective Memory Speed | 4400 MT/s |
|---|
Rated Memory Speed | 5600 MT/s |
|---|
Form Factor | DIMM 288-pin |
|---|
Slots | 32 (Total) / 30 (empty) |
|---|
Features | HPE SmartMemory, registered, slots 17 – 32 are available in two-processor configuration only |
|---|
Configuration Features | 2 x 32 GB |
|---|
Hard Drive
Type | SSD |
|---|
Capacity | 2 x 480 GB |
|---|
Storage Controller
Type | 1 x RAID – OCP |
|---|
Controller Interface Type | Serial ATA-600 / SAS 3.0 / PCI Express (NVMe) |
|---|
Storage Controller Name | HPE MR408i-o Gen11 SPDM |
|---|
Channel Qty | 8 |
|---|
RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60 |
|---|
Buffer Size | 4 GB |
|---|
Optical Storage
Monitor
Graphics Controller
Video Memory | 16 MB |
|---|
Video Interfaces | VGA |
|---|
Networking
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
|---|
Expansion / Connectivity
Bays | 8 (total) / 4 (free) x hot-swap 2.5″ SFF |
|---|
Slots | 2 (total) / 0 (free) x PCIe 5.0 x16 / Open Compute Project mezzanine (OCP) 3.0 (x16 mode) |
|---|
Interfaces | 1 x HPE iLO – Type A (1 in front)
1 x HPE iLO – RJ-45
4 x USB 3.2 Gen 1 (1 front, 2 rear, 1 internal)
1 x VGA
4 x LAN (Gigabit Ethernet) – RJ-45
1 x USB 2.0 |
|---|
Miscellaneous
Included Accessories | 7 x high performance fans |
|---|
Compliant Standards | ACPI 6.4, PCIe 5.0, SMBIOS 3.4, Redfish API, AES, Triple DES, TLS v1.2, ASHRAE Class A3, ASHRAE Class A4, Active Directory v1.0, DMTF, ErP Lot 9, FIPS 140-3, IPv6 Ready, PCI DSS, WEEE 2002/95/EC |
|---|
Manufacturer Selling Program | HPE Smart Choice |
|---|
Power
Device Type | Power supply – hot-plug |
|---|
Power Redundancy | Yes |
|---|
Power Redundancy Scheme | 1+1 |
|---|
Installed Qty | 2 |
|---|
Max Supported Qty | 2 |
|---|
Voltage Required | AC 100-240 V |
|---|
Power Provided | 800 Watt |
|---|
Operating System / Software
OS Provided | No operating system |
|---|
Software | HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download), HPE iLO Advanced, HPE OneView Advanced |
|---|
Sustainability Information
ENERGY STAR Certified | Yes |
|---|
ENERGY STAR Version | 4.0 |
|---|
Dimensions & Weight
Width | 43.46 cm |
|---|
Depth | 75.31 cm |
|---|
Height | 4.29 cm |
|---|
Weight | 14.56 kg |
|---|
Environmental Parameters
Min Operating Temperature | 10 °C |
|---|
Max Operating Temperature | 35 °C |
|---|
Humidity Range Operating | 8 – 90% RH (non-condensing) |
|---|
