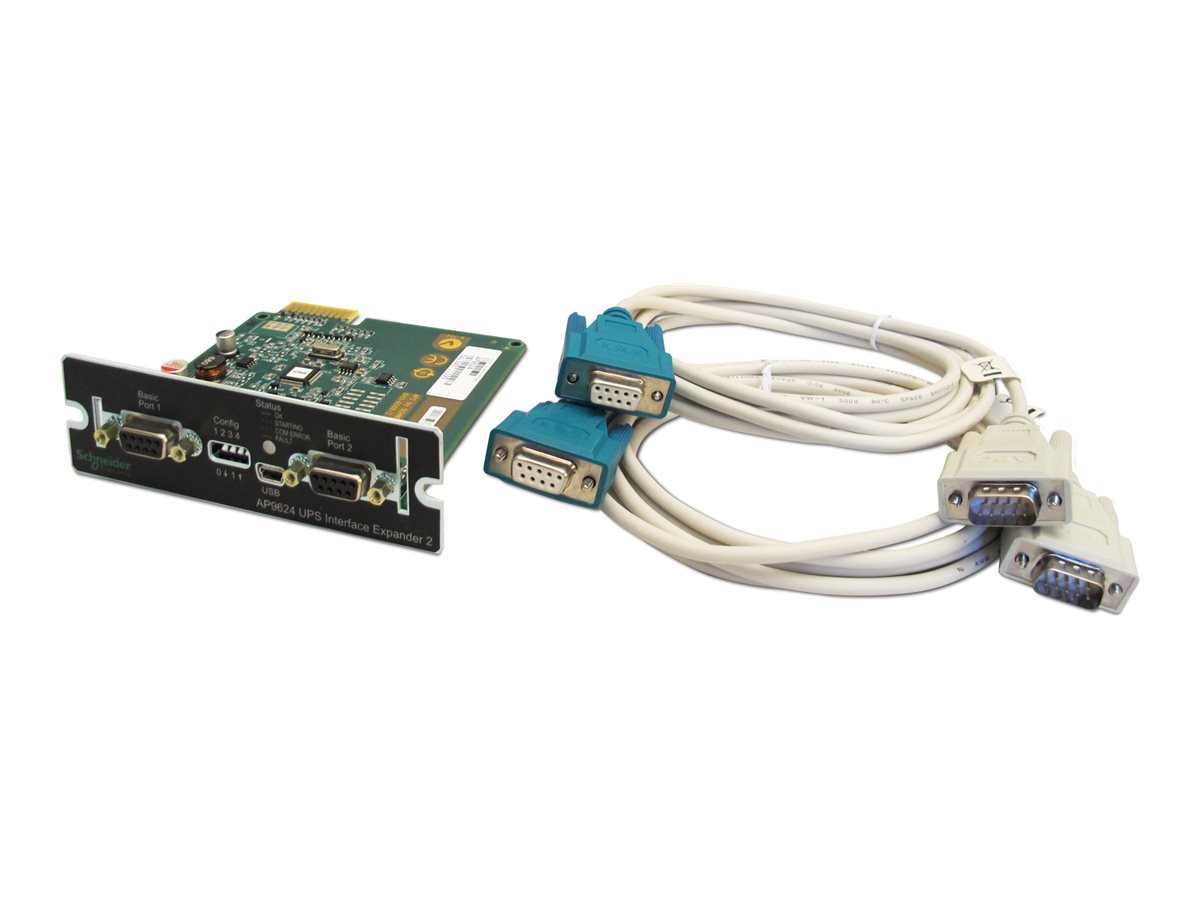

Schneider AP9624 UPS Interface Expander 2, Remote management adapter, SmartSlot, RS-232 x 2
$490.06 inc GST
✕ Backorder - Email us for a lead time or ETA
✓ Free NZ Delivery
Available on back-order
Ships from: Auckland
- Allow 1–2 days for delivery to the North Island
- Allow 2–3 days for delivery to the South Island
- Add 1–2 days if you are rural
- Collection can be arranged
We are currently experiencing 1-3 day shipping delays from this supplier warehouse
Description
The UPS Interface Expander 2 provides two additional computer interface ports for a UPS with a SmartSlot . This enables the UPS to provide a graceful system shutdown for connected servers or other devices during an extended power outage via PowerChute Serial Shutdown. The Interface Expander 2 also monitors the UPS and reports power events in the PowerChute software.
- Provides 2 additional interface ports for your Smart-UPS
- For UPS devices with a SmartSlot 3kVA or below
- PowerChute Serial Shutdown support for up to 3 servers with a single UPS
- Monitor UPS and report power events in PowerChute Serial Shutdown
- Compatible with all Smart-UPS as well as the Symmetra Power Array, LX and RM UPS ranges.
Supports graceful shutdown for up to two additional devices such as servers and network storage devices connected serially. - Additional Device Shutdown
Supports graceful shutdown for up to two additional devices such as servers and network storage devices connected serially. - lt/ /a gt/
The UPS Interface Expander 2 firmware can be upgraded using the USB mini B port - USB mini B port for Firmware Upgrade
The UPS Interface Expander 2 firmware can be upgraded using the USB mini B port - PowerChute Business Edition OS Compatibility
This software supports numerous operating systems and processors.
Main Specifications
Product Description | Schneider AP9624 UPS Interface Expander 2 – remote management adapter – SmartSlot – RS-232 x 2 |
Device Type | Remote management adapter |
Form Factor | Plug-in module |
Interface (Bus) Type | SmartSlot |
Ports | RS-232 x 2 |
Dimensions (WxDxH) | 12.1 cm x 11.4 cm x 3.8 cm |
Weight | 70 g |
Data Link Protocol | RS-232 |
Documents
Extended Specifications
General
Device Type | Remote management adapter |
|---|---|
Form Factor | Plug-in module |
Interface (Bus) Type | SmartSlot |
Networking
Ports | RS-232 x 2 |
|---|---|
Connectivity Technology | Wired |
Data Link Protocol | RS-232 |
Features | Firmware upgradable |
Expansion / Connectivity
Interfaces | 2 x management – 9 pin D-Sub (DB-9) |
|---|
Miscellaneous
Cables Included | 2 x serial cable (external) |
|---|---|
Compliant Standards | C-Tick, EN55022 Class A, EN55024, FCC Part 15 A, IC, IEC 62040-2, China RoHS, REACH, RoHS |
Dimensions & Weight
Width | 12.1 cm |
|---|---|
Depth | 11.4 cm |
Height | 3.8 cm |
Weight | 70 g |
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|---|
Max Operating Temperature | 40 °C |
Humidity Range Operating | 0 – 95% |
Additional information
| Manufacturer |
|---|
