APC Smart-UPS Ultra SRTL2K2RM1UC, UPS (rack-mountable) (high density), AC 230 V, 2200 Watt, 2200 VA, Lithium Ion, Ethernet, USB, output connectors: 5, 1U, silver grey, for P/N: SRTL50RMBP1U-LI
$6,590.91 inc GST
✓ In Stock - 2 available
✓ Free NZ Delivery
2 in stock
Ships from: Auckland
- Allow 1–2 days for delivery to the North Island
- Allow 2–3 days for delivery to the South Island
- Add 1–2 days if you are rural
- Collection can be arranged
We are currently experiencing 1-3 day shipping delays from this supplier warehouse
Description
With Smart-UPS Ultra you can put up to 2200W of power protection in places never before possible. At half the size and weight of comparable UPS the mounting brackets can be used in any of the 5 mounting styles: rack (2 and 4 post), tower, wall, ceiling and desk under mount. The auto-rotating touch screen display makes switching between horizontal and vertical mounting options instantaneous. Lithium-ion batteries provide reduced maintenance cost with 3x the battery life. EcoStruxure Ready Smart-UPS provide visibility anywhere, anytime.

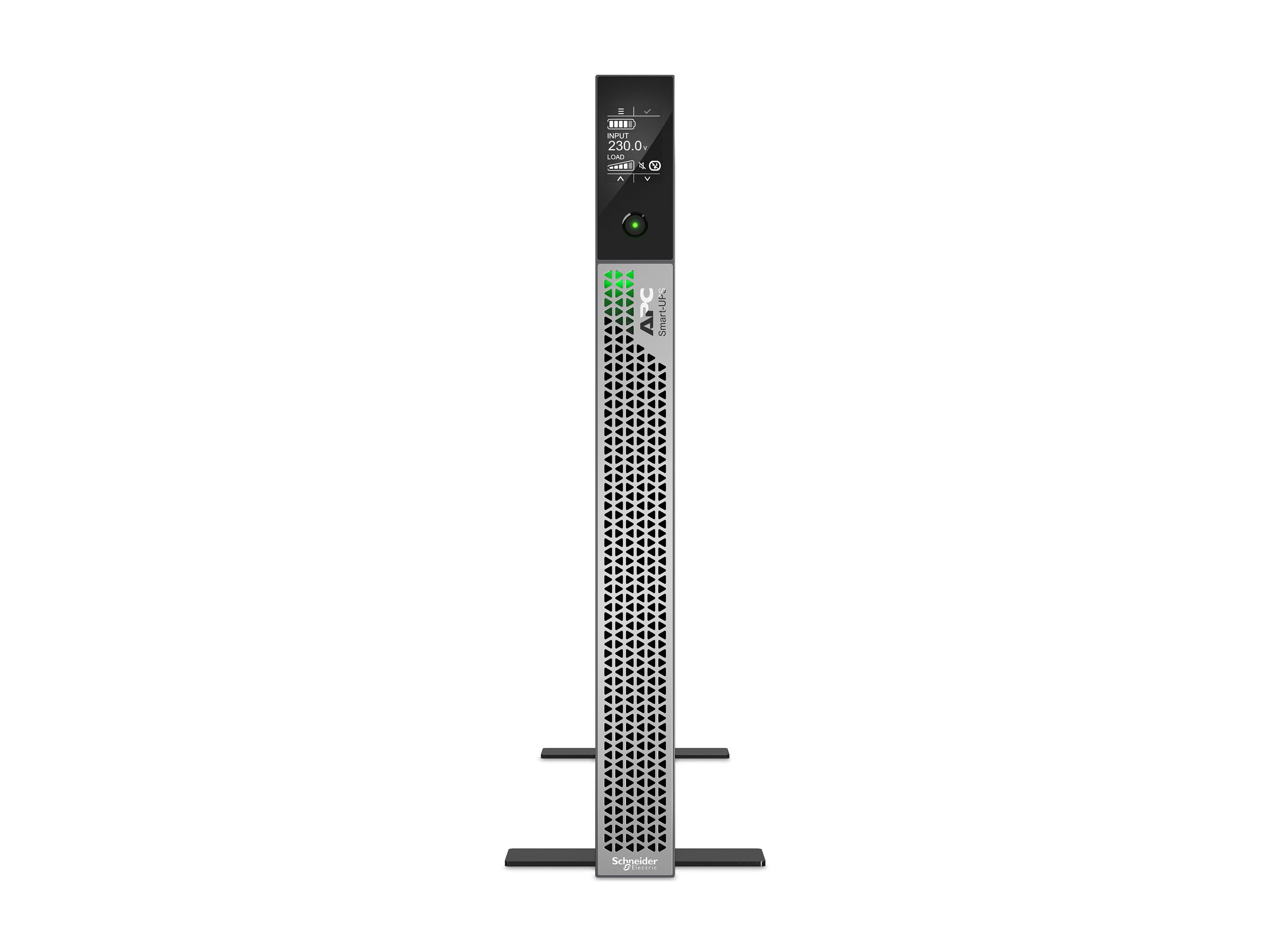

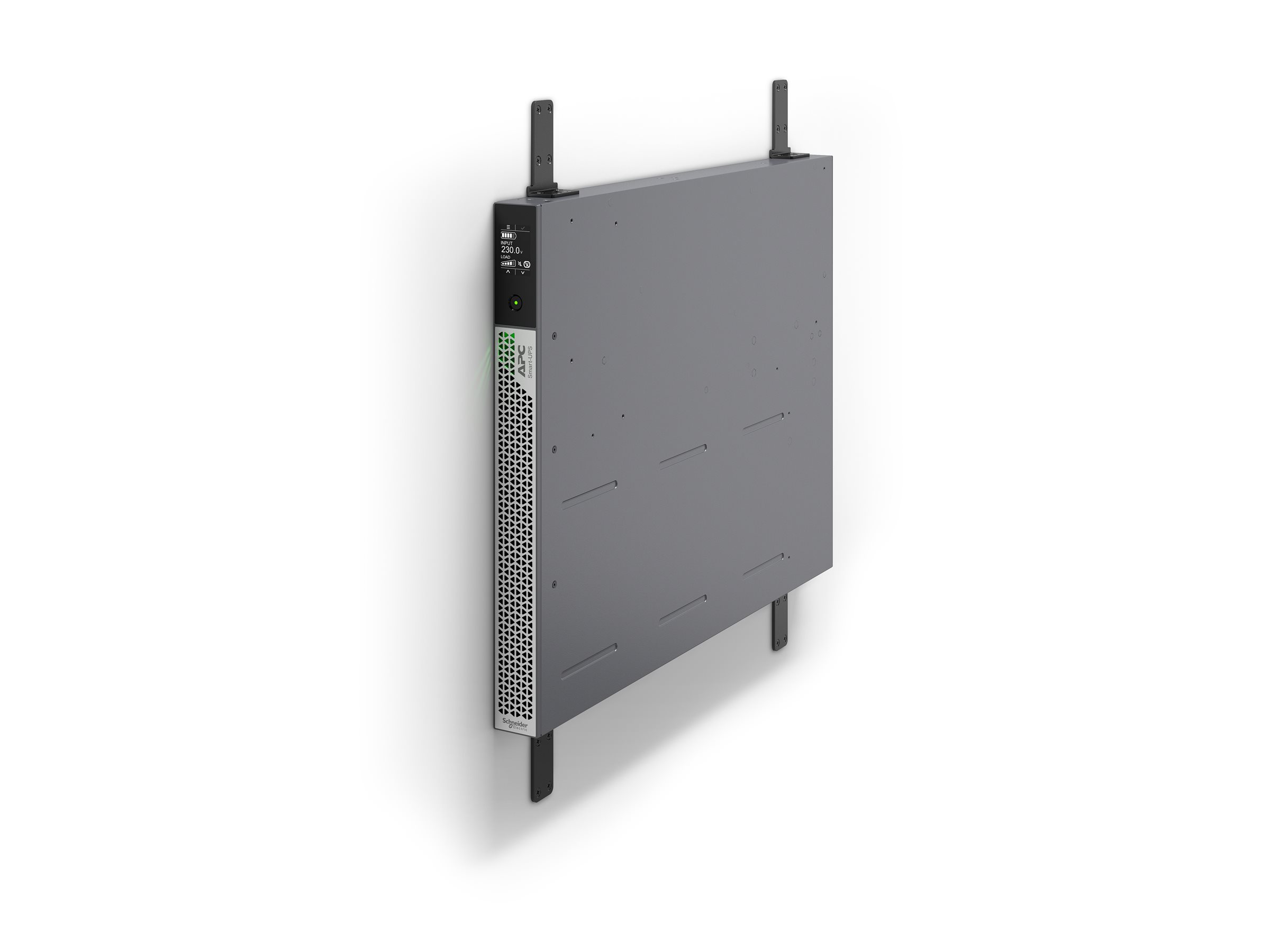

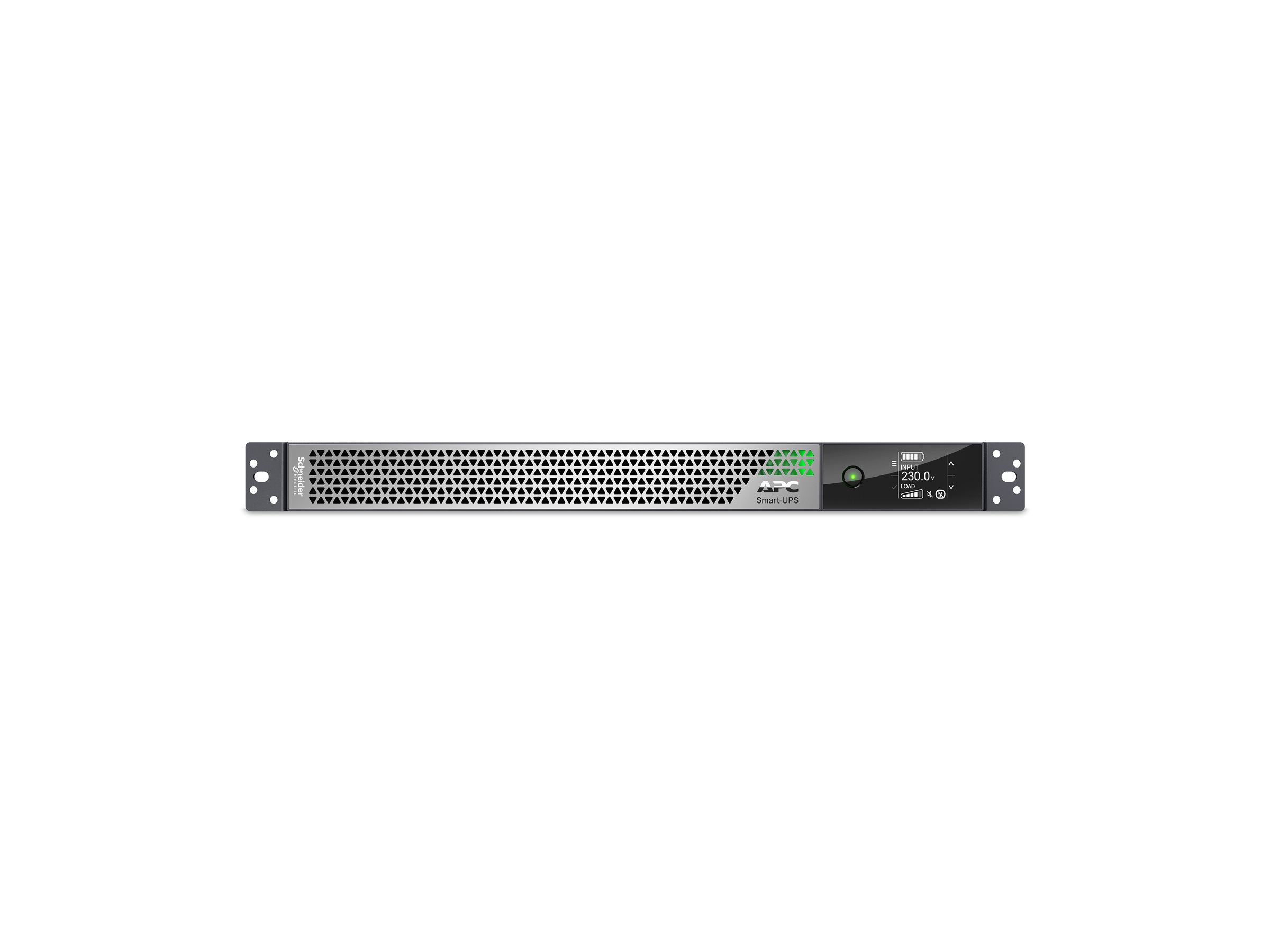

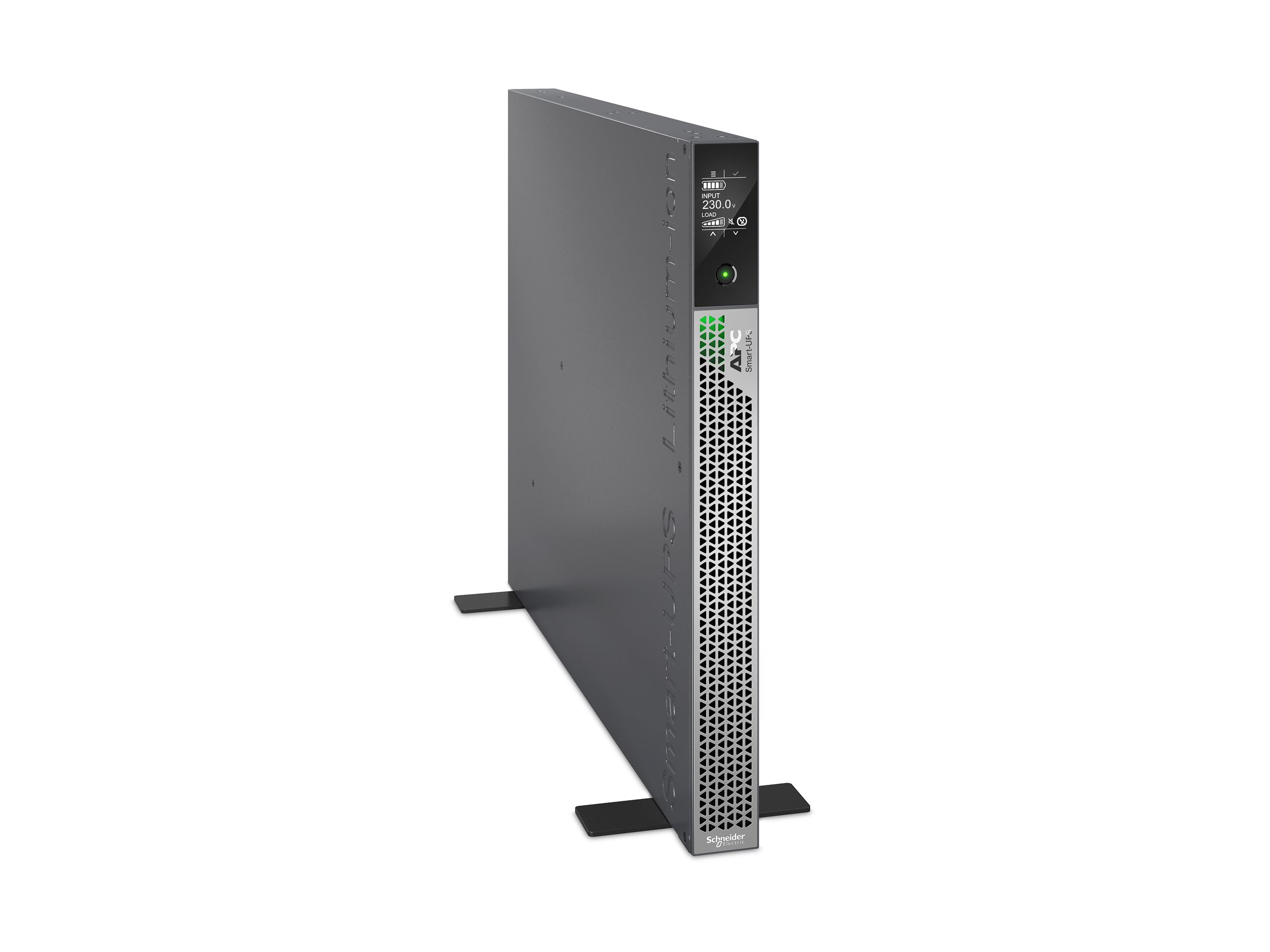

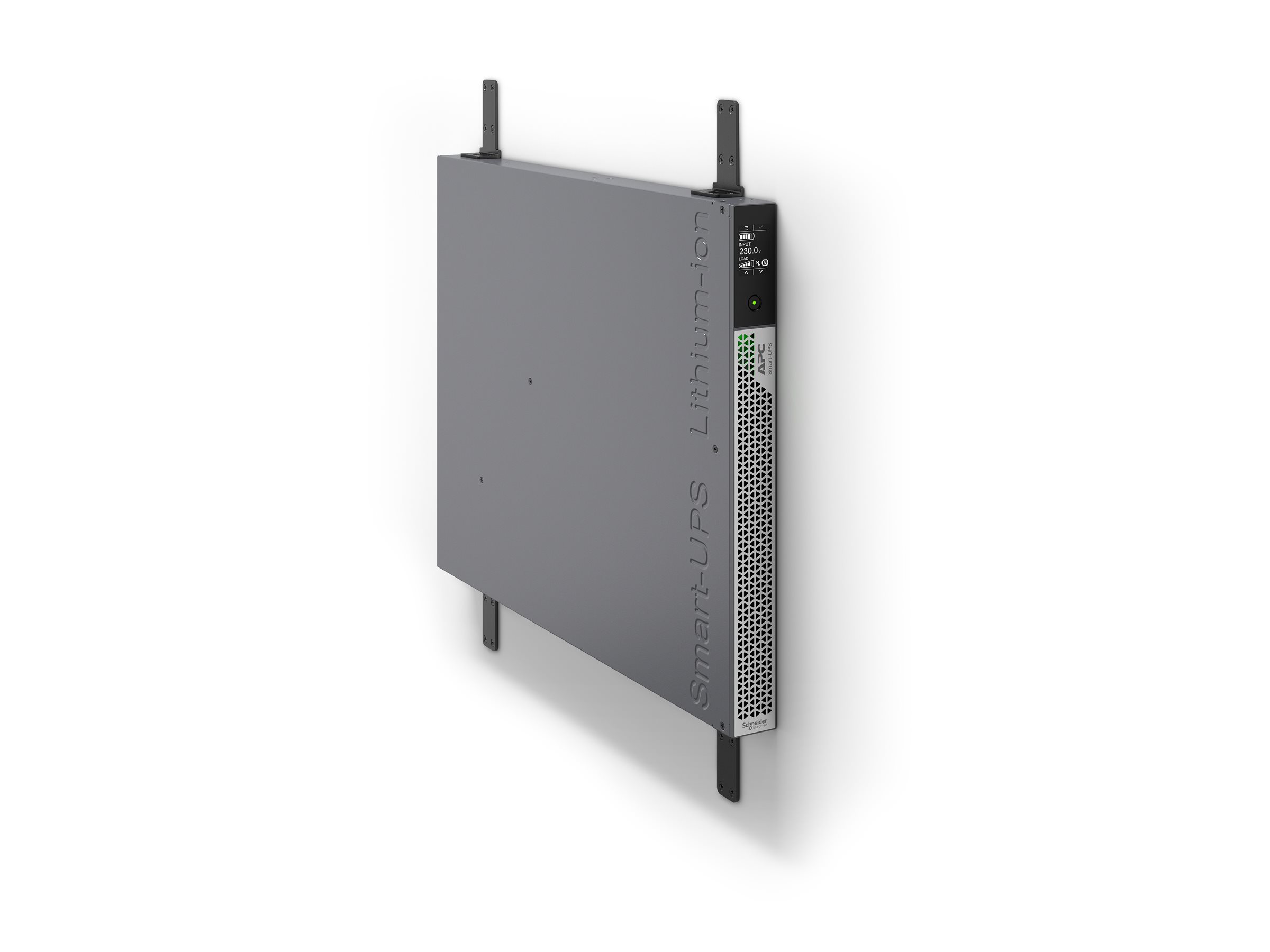

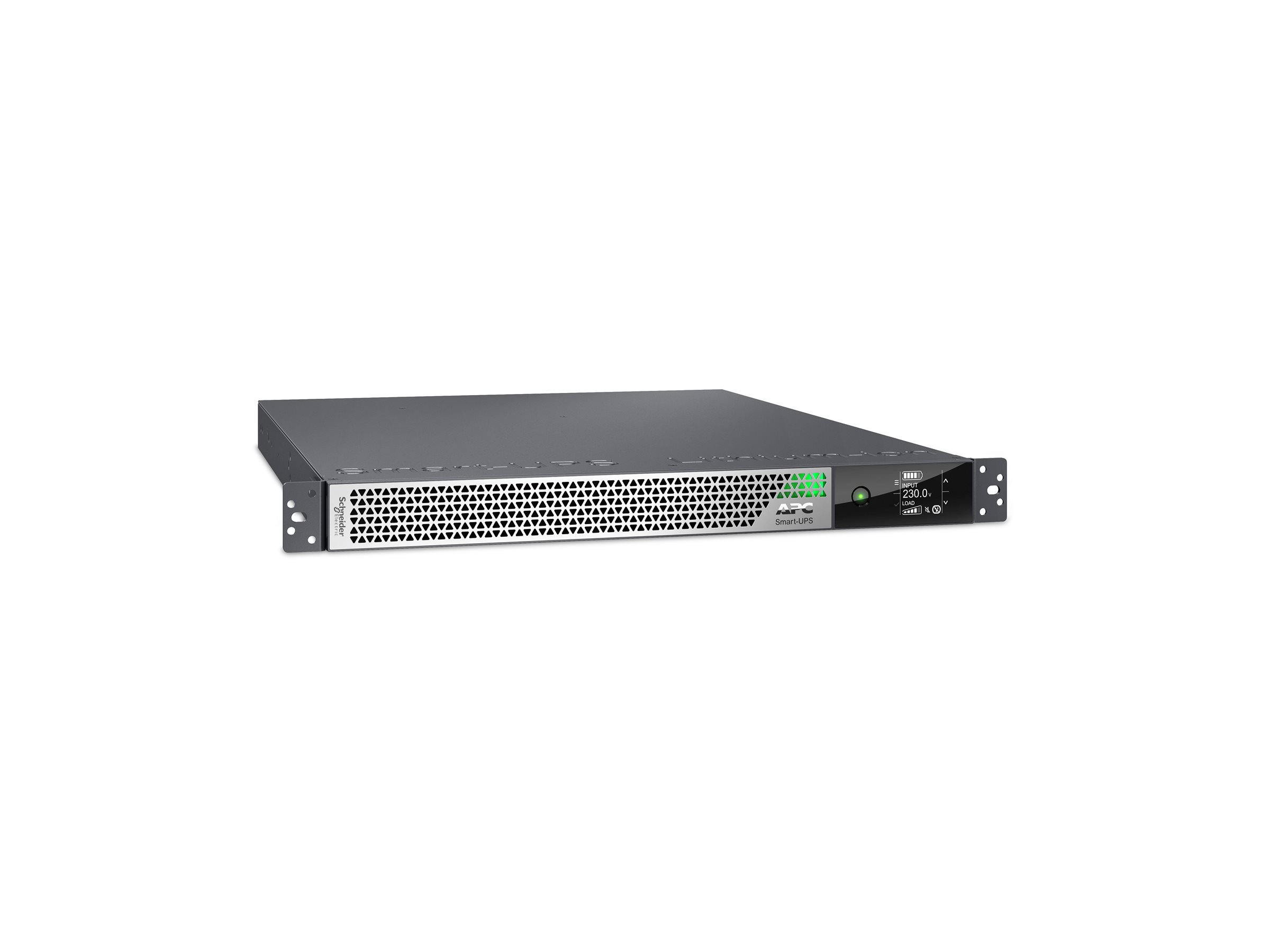

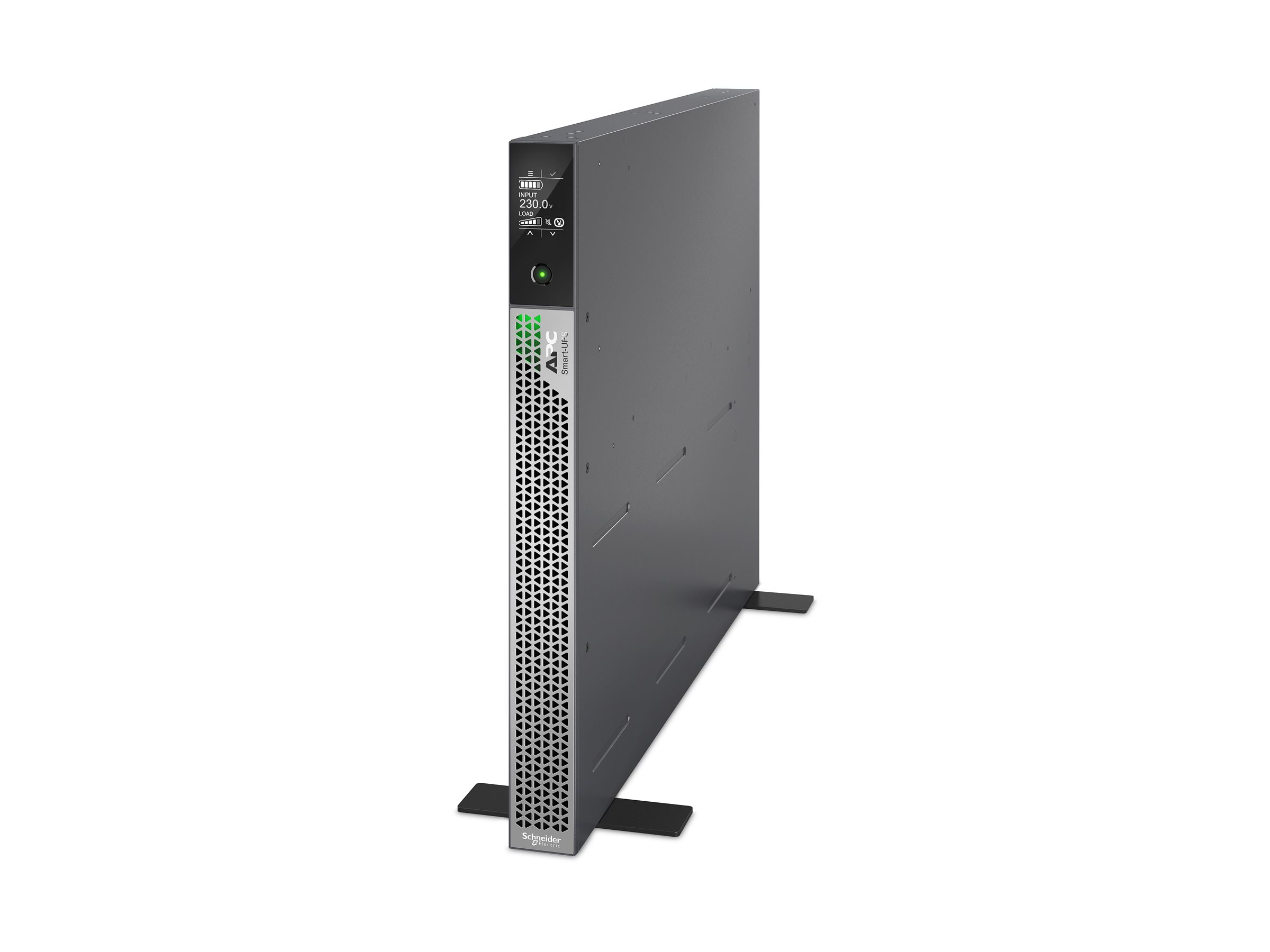

- 1U, 2200VA/2200W UPS with 5 mounting styles: rack/tower/wall/ceiling/desk under mount
- Lithium-ion batteries lasts 3X VRLA UPS, no need to replace the battery during the life of the UPS
- EcoStruxure Ready SmartConnect. Connects to EcoStruxure IT for remote monitoring and management
- 5-year warranty on UPS and internal batteries
- SmartConnect software for remote power monitoring feature availability varies by terms of use
SmartConnect Ethernet port for cloud monitoring feature availability varies by terms of use - SmartConnect Ethernet port for cloud monitoring feature availability varies by terms of use
Start-up is fast and efficient, with easy-to-install, plug-in components. Features including low-maintenance joints and integrated couplers reduce the risk of installation error, saving installation and maintenance time and cost.
What’s in the Box
- RJ45 cable
- rack mounting brackets
- network cable
- terminal
- stabilization feet
- safety guide
- rail extension
- washer
- USB cable
- screws
Main Specifications
Product Description | APC Smart-UPS Ultra SRTL2K2RM1UC – UPS – 2200 watt – 2200 VA – Li-Ion |
Device Type | UPS – rack-mountable |
Rack Size | 1U |
Weight | 15.9 kg |
Input Voltage | AC 230 V |
Output Voltage | AC 230 V |
Power Capacity | 2200 watt / 2200 VA |
Input Connectors | Power IEC 60320 C20, power CEE 7/7, power BS 1363A |

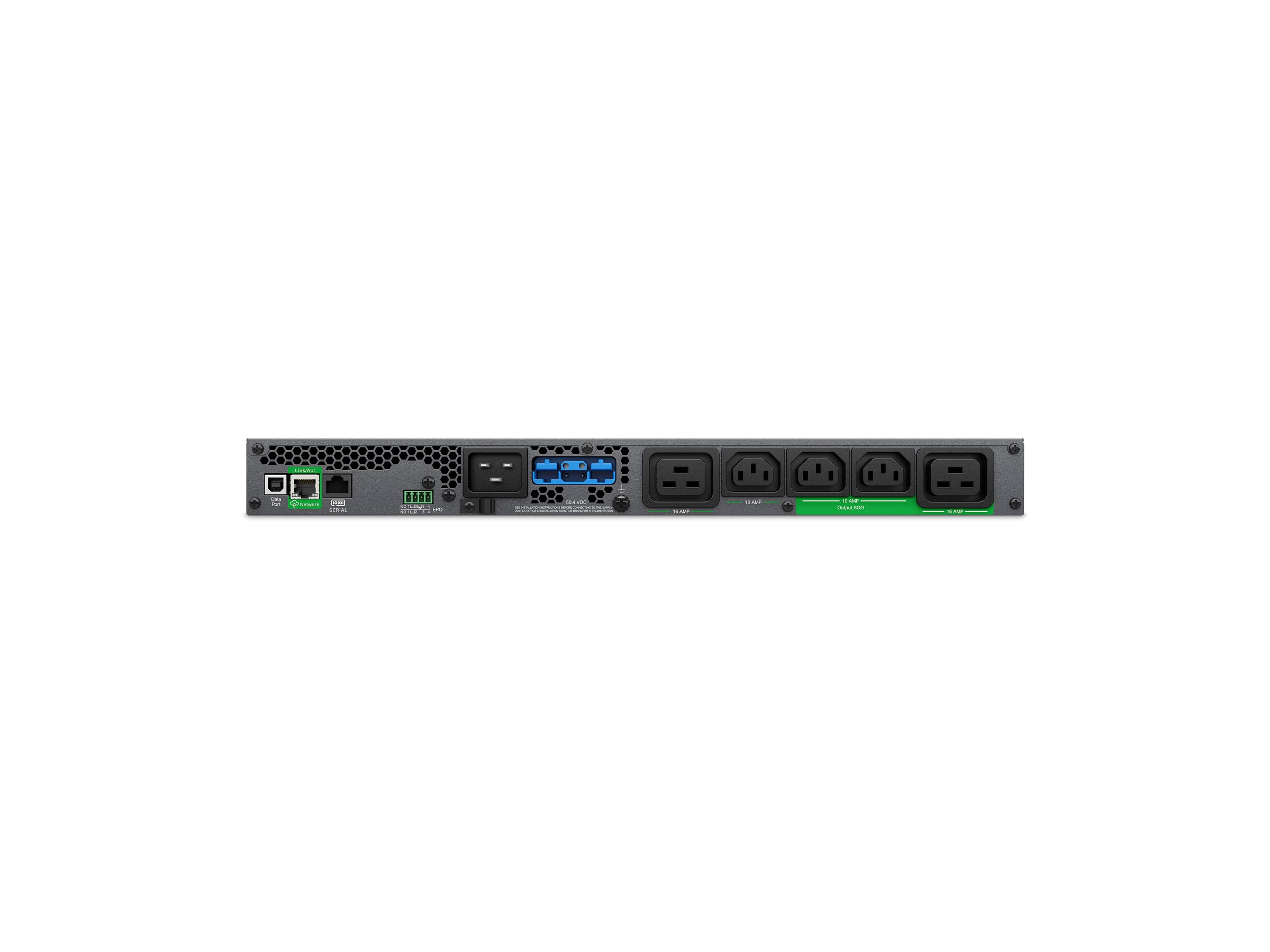

Output connectors | 3 x power IEC 60320 C13 2 x power IEC 60320 C19 |
Battery | Lithium ion expandable high density – Lithium Ion |
Run Time (Up To) | 6 min at full load |
Networking | Ethernet, USB |
Remote Management Protocol | Modbus, TCP/IP |
Colour | Silver grey |
Dimensions (WxDxH) | 43.2 cm x 56 cm x 4.3 cm |
Designed For | P/N: SRTL50RMBP1U-LI |
Documents
Extended Specifications
General
Device Type | UPS – rack-mountable |
|---|---|
Height (Rack Units) | 1U |
Colour | Silver grey |
Power Device
UPS Technology | On-line |
|---|---|
Input Voltage | AC 230 V |
Input Voltage Range | AC 160 – 275 V |
Frequency Provided | 50/60 Hz ± 3Hz |
Frequency Required | 50/60 Hz ± 3Hz |
Input Connectors | Power IEC 60320 C20, power CEE 7/7, power BS 1363A |
Power Output Connectors Details | 3 x power IEC 60320 C13 2 x power IEC 60320 C19 |
Output Voltage | AC 230 V 50/60 Hz |
Power Capacity | 2200 watt / 2200 VA |
Output Waveform | Sinewave |
Efficiency | 97% Green mode |
Battery
Type | Expandable high density |
|---|---|
Technology | Lithium Ion lithium ion |
Voltage Provided | 50 V |
Recharge Time | 1.5 hours |
Networking
Remote Management Interface | Ethernet, USB |
|---|---|
Remote Management Protocol | Modbus, TCP/IP |
Expansion / Connectivity
Interfaces | 1 x management (Ethernet) – RJ-45 1 x management (USB) – 4 pin USB Type B 1 x EPO (emergency power off) |
|---|
Miscellaneous
Rack Mounting Kit | Included |
|---|---|
Features | Vertical mount, horizontal mount, audible alarm, internal bypass, touch screen LCD display, visible alarm |
Compliant Standards | RoHS, REACH, IP20, IEC 62040-1-2, China RoHS, UL 1778 5th edition, Mercury-free, ICES-003 issue 7, IEC 62040-2 2nd Ed., CAN/CSA C22.2 No. 107.3, FCC-15 (Class A) |
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|---|
Max Operating Temperature | 40 °C |
Humidity Range Operating | 0 – 95% (non-condensing) |
Sound Emission | 55 dB |
Dimensions & Weight
Width | 43.2 cm |
|---|---|
Depth | 56 cm |
Height | 4.3 cm |
Weight | 15.9 kg |
Dimensions & Weight (Shipping)
Shipping Width | 56.4 cm |
|---|---|
Shipping Depth | 76.4 cm |
Shipping Height | 27.8 cm |
Shipping Weight | 24.18 kg |
Compatibility Information
Designed For | P/N: SRTL50RMBP1U-LI |
|---|
