Description
It provides 1600VA and 900W of power and nominal output voltage of 230V. It features Automatic Voltage Regulation (AVR) to correct voltage fluctuations and includes 4 Australian outlets for battery backup and surge protection. The UPS has a lead-acid battery with a recharge time of 8 hours.
- Provides 1600VA and 900W of power, suitable for protecting multiple devices during power outages
- AVR corrects voltage variations, ensuring stable power supply
- Easy-to-read LED display provides real-time status of unit and utility power conditions
- Allows the UPS to be powered on even when utility power is unavailable
Main Specifications

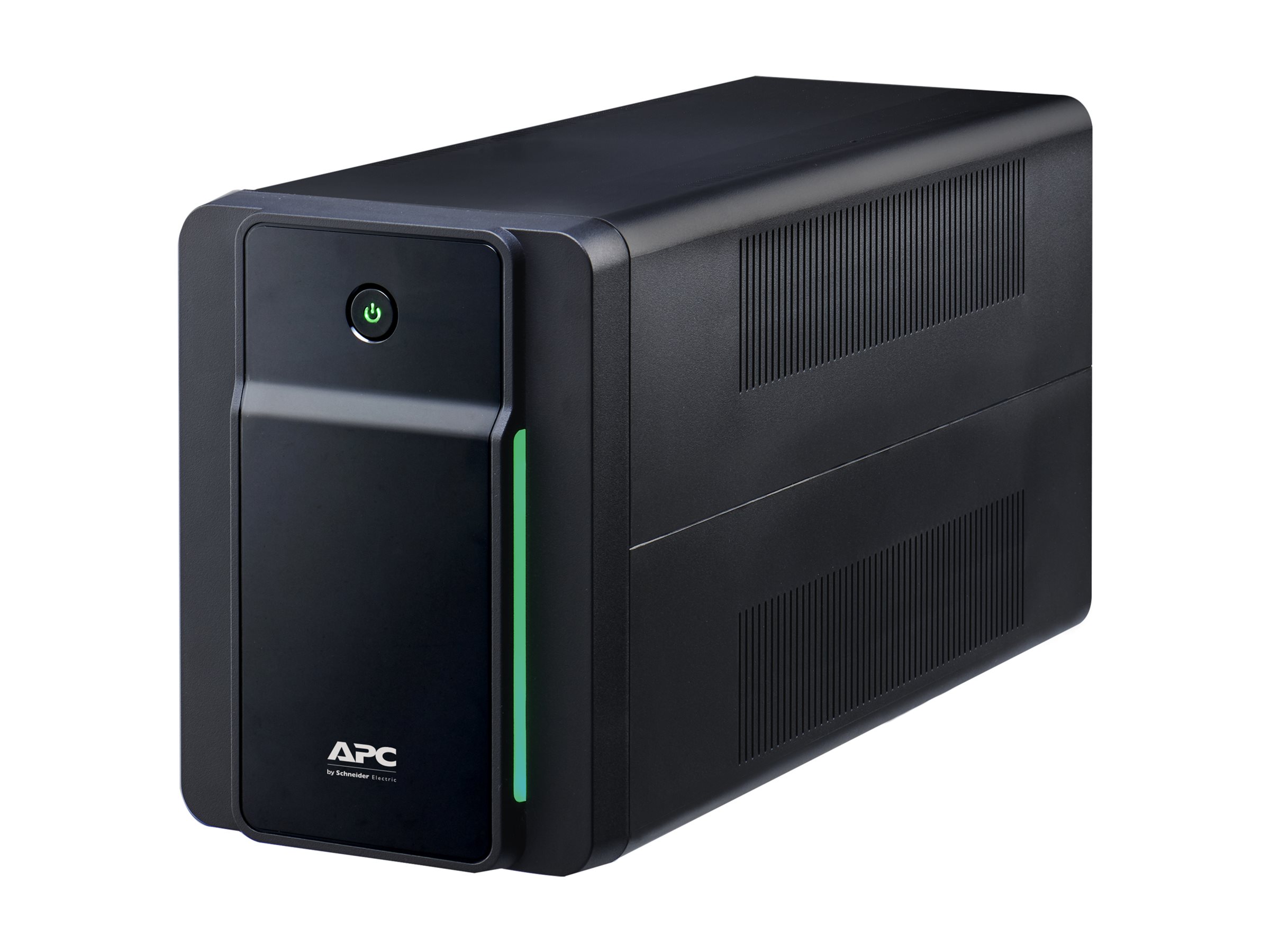

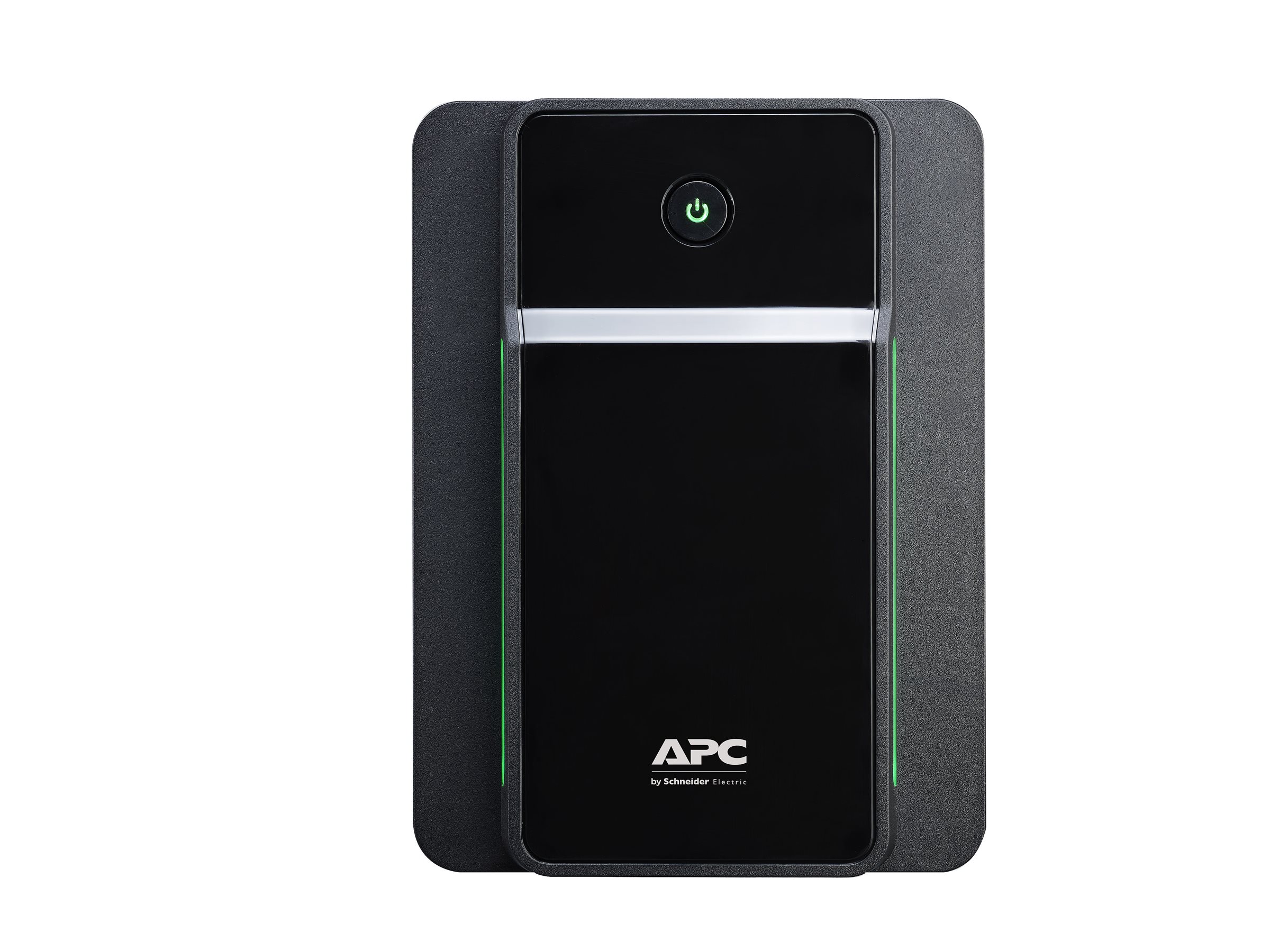

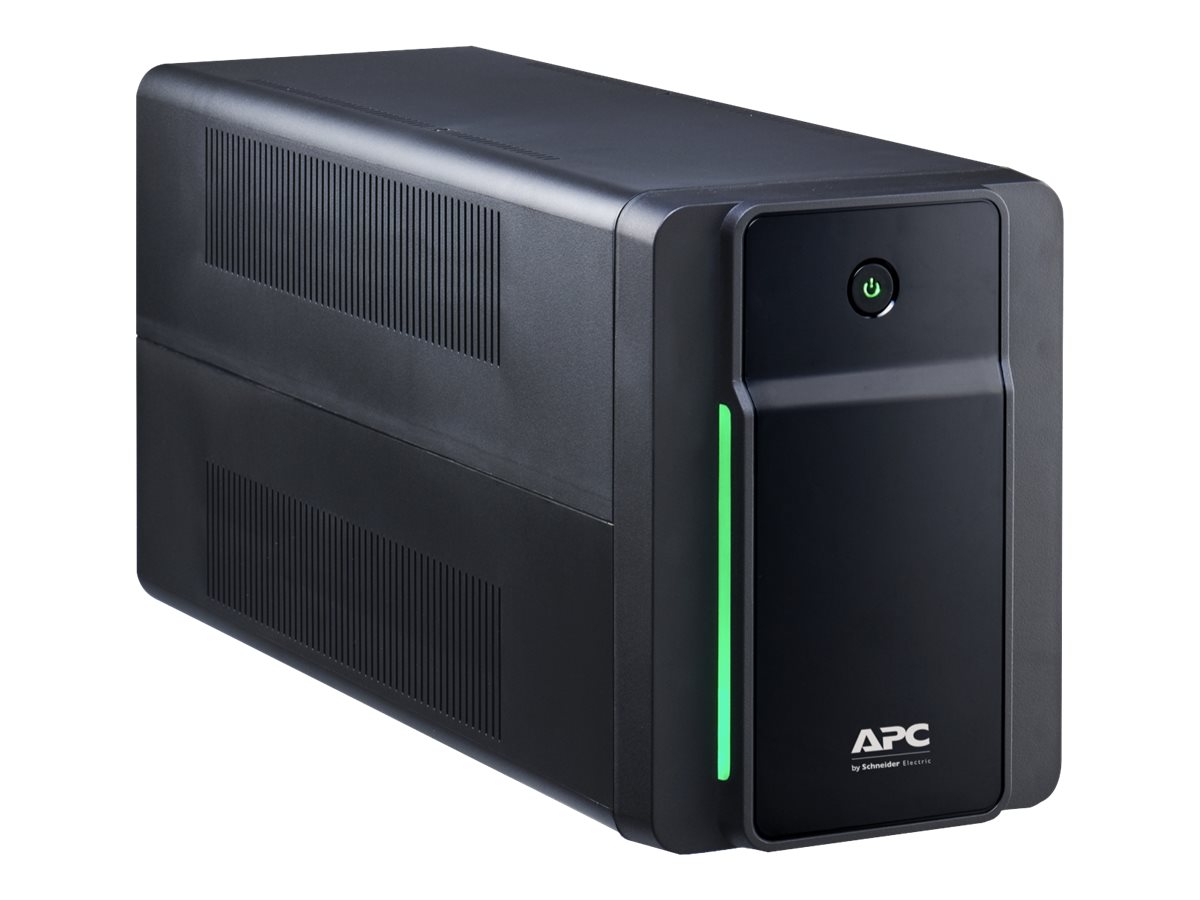

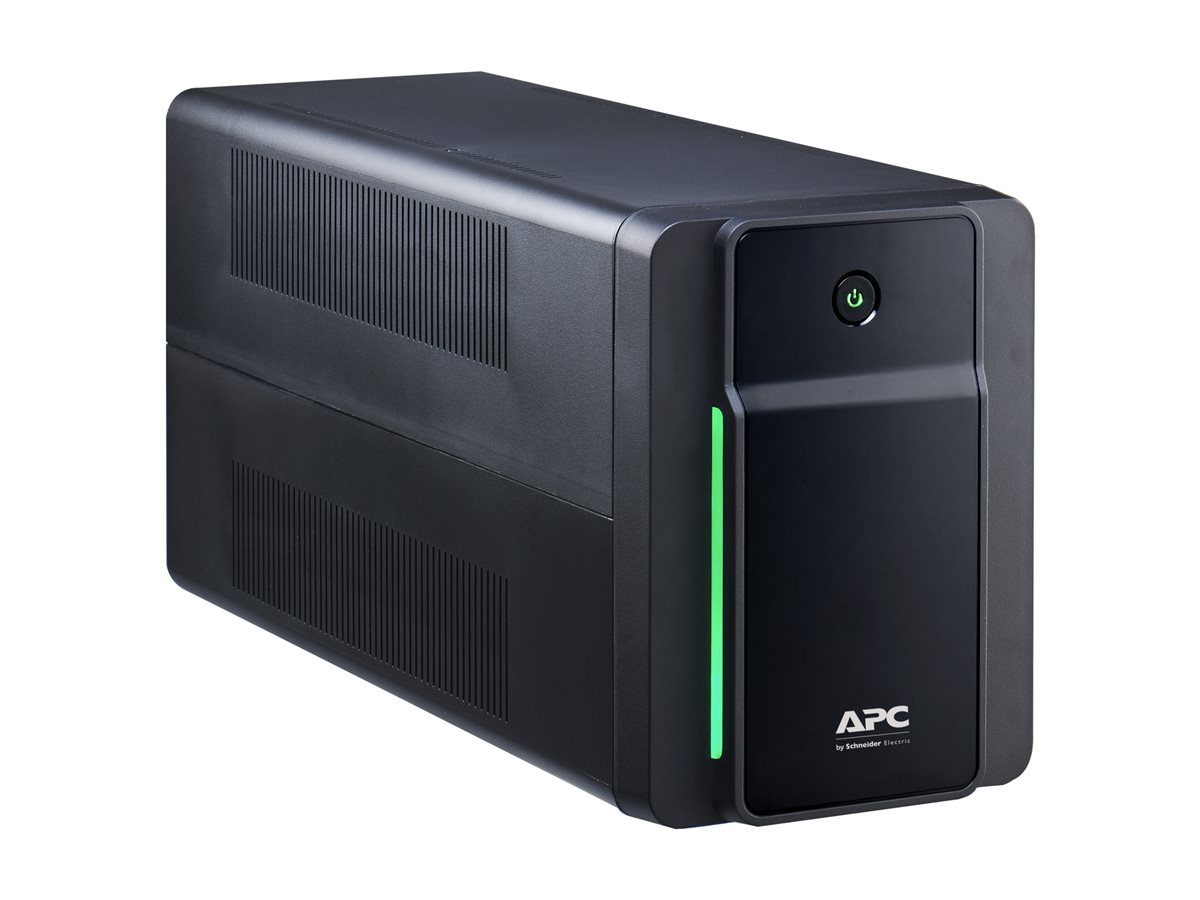

Product Description | APC Back-UPS BX Series BX1600MI-AZ – UPS – 900 Watt – 1600 VA |
Device Type | UPS – external |
Weight | 10.3 kg |
Input Voltage | AC 230 V |
Output Voltage | AC 230 V ± 10% |
Power Capacity | 900 Watt / 1600 VA |
Input Connectors | 1 x power AS/NZS 3112 |
Output connectors | 4 x power |
Battery | Lead Acid |
Run Time (Up To) | 1 min at full load |
Colour | Black |
Dimensions (WxDxH) | 14 cm x 39 cm x 19 cm |
Documents
Extended Specifications
General
Device Type | UPS – external |
|---|
Colour | Black |
|---|
Power Device
UPS Technology | Off-line |
|---|
Input Voltage | AC 230 V |
|---|
Input Voltage Range | AC 140 – 300 V |
|---|
Frequency Provided | 50/60 Hz ± 1Hz |
|---|
Frequency Required | 50/60 Hz ± 5Hz |
|---|
Input Connectors | 1 x power AS/NZS 3112 |
|---|
Power Output Connectors Details | 4 x power |
|---|
Output Voltage | AC 230 V ± 10% – 50/60 Hz |
|---|
Power Capacity | 900 Watt / 1600 VA |
|---|
Dataline Surge Protection | Network – RJ-45 – 1 input line / 1 output line |
|---|
Output Waveform | Stepped approximation to a sinewave |
|---|
Surge Suppression | Yes |
|---|
Surge Energy Rating | 273 Joules |
|---|
Efficiency | 96.6% at 75% Load, 95.6% at 50% Load, 97% at 100% Load, 92.2% at 25% Load |
|---|
Power Factor (PF) | 0.56 |
|---|
Battery
Technology | Lead Acid |
|---|
Run Time (Up To) | 6.5 min at 50% load
1 min at full load |
|---|
Recharge Time | 8 hours |
|---|
Transfer Time | 6 ms |
|---|
Miscellaneous
Cables Included | Power cable – external – 1.22 m |
|---|
Equipment Protection Value | 50000 Euros |
|---|
Features | Audible alarm, Automatic Voltage Regulation (AVR), LED indicators |
|---|
Compliant Standards | CB, IEC 62040-2, RoHS, EN 62040-2, IP20, IEC 62040-1, EN 62040-1 |
|---|
Software / System Requirements
Software Included | APC PowerChute Personal Edition |
|---|
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|
Max Operating Temperature | 40 °C |
|---|
Humidity Range Operating | 0 – 95% (non-condensing) |
|---|
Sound Emission | 40 dBA |
|---|
Dimensions & Weight
Width | 14 cm |
|---|
Depth | 39 cm |
|---|
Height | 19 cm |
|---|
Weight | 10.3 kg |
|---|
Dimensions & Weight (Shipping)
Shipping Width | 23.5 cm |
|---|
Shipping Depth | 49.5 cm |
|---|
Shipping Height | 29.7 cm |
|---|
Shipping Weight | 11.3 kg |
|---|
