Description

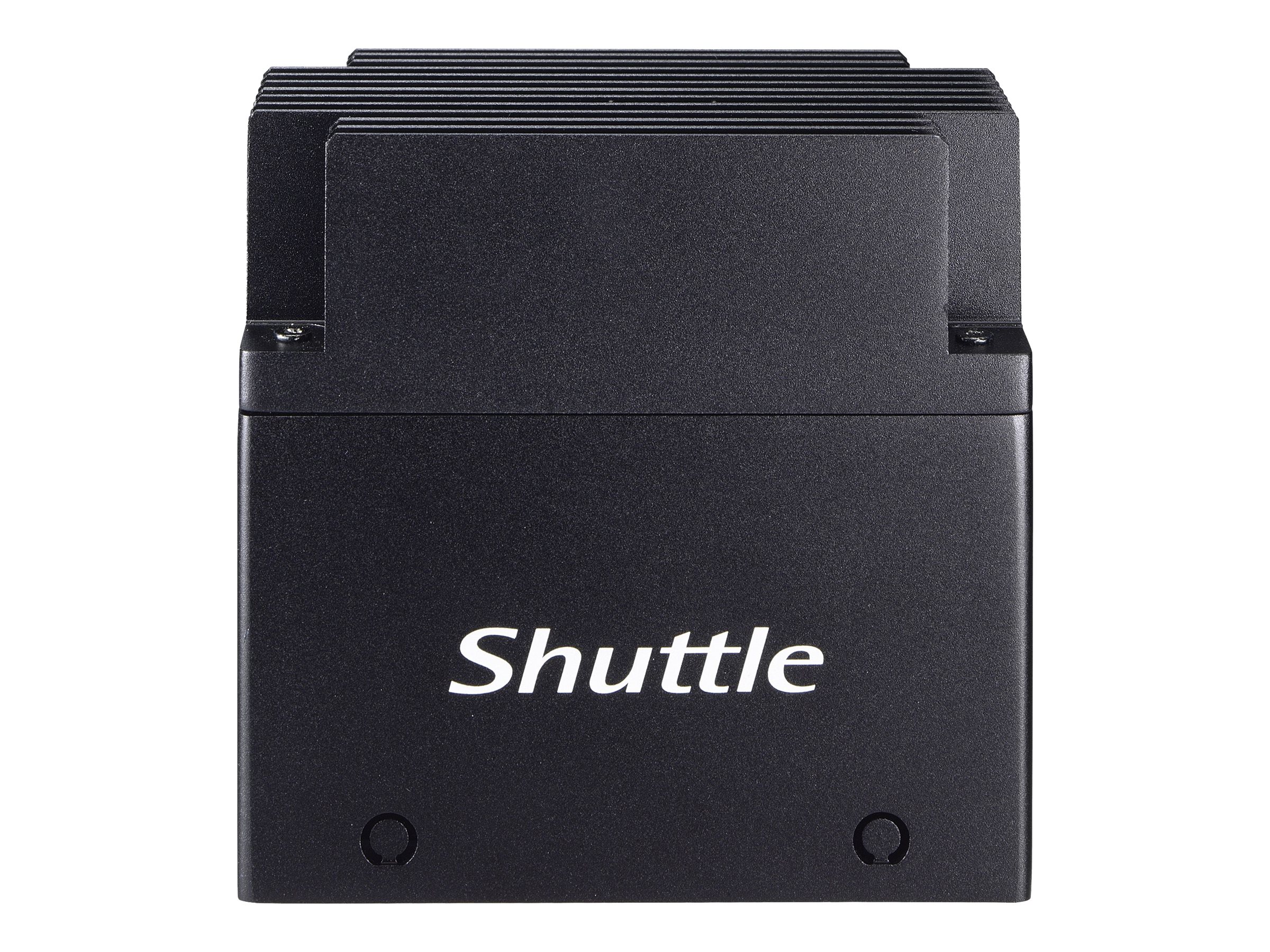

The Shuttle EN01J3 is a fanless IPC in a robust metal chassis and intended for DIN-rail or VESA mounting. It is flexible in use and designed for maintenance-free 24/7 operation at ambient temperatures of up to 50°C. This product is targeted at professional applications such as edge computing (IoT gateway), automation, digital signage, control, data logging and video surveillance.
- Ideal for DIN rail
- Suitable for constant operation
- Fanless and whisper-quiet
- Anti-theft protection
- HDMI interface
- Low energy consumption
- Card reader
- Securely attached
- Ideal for DIN rail
With a DIN rail mounting, this model can be attached to a top-hat rail by means of a clamping mechanism and thus be used in switch cabinets and distribution boxes, for example. - Suitable for constant operation
Work 24 hours a day, 7 days a week. As it does not use any moving parts, such as a fan, this Mini-PC is approved for constant operation. This means lower maintenance costs and a longer lifespan. - Fanless and whisper-quiet
The fanless technology used in this PC means it is incredibly quiet. Doing away with these mechanical components also reduces the number of wearing parts, making the machine more durable and stable. - Anti-theft protection
The Kensington Lock forms part of the anti-theft system. As with many other Notebooks, this Mini-PC can also be safely locked, ensuring long-term enjoyment from your Shuttle product. - HDMI interface
Goodbye cable spaghetti! Modern flat-screen TVs and large-format TFT screens can be connected to this Mini-PC with just a single thin cable. Often the audio output is also transferred in brilliant quality via the HDMI cable. - Low energy consumption
Thrift is a virtue. In terms of power consumption this Mini-PC sets an example. It is not just good for the environment but for your pocket, too. - Card reader
Simply insert the memory card and you can access all stored photos and videos immediately. - Securely attached
The practical VESA mounting surface on the back of the device enables it to be attached to monitor arms or wall mounts.
Main Specifications
Product Description | Shuttle Edge series EN01J3 – USFF – AI Ready – Celeron J3355 2 GHz – 4 GB – SSD 64 GB |
Type | Personal computer – USFF AI Ready |
Processor | Intel Celeron J3355 / 2 GHz (, up to 2.5 GHz, (Dual-Core) |
Cache Memory | 2 MB |
Cache Per Processor | 2 MB |
RAM | 4 GB LPDDR4 SDRAM |
Storage Controller | SATA (SATA 6Gb/s) |
Hard Drive | SSD 64 GB – eMMC |
Optical Storage | No optical drive |
Card Reader | Yes |
Graphics Controller | Intel HD Graphics 500 |
Networking | 1GbE |
OS Provided | No operating system |
Software Included | Drivers & Utilities |
Colour | Black |
Dimensions (WxDxH) | 9.24 cm x 5.44 cm x 9 cm |
Weight | 480 g |
Extended Specifications
General
Type | Personal computer – AI Ready |
|---|
Product Form Factor | USFF |
|---|
Colour | Black |
|---|
Processor / Chipset
CPU | Intel Celeron J3355 |
|---|
Clock Speed | 2 GHz |
|---|
Max Turbo Speed | 2.5 GHz |
|---|
Number of Cores | Dual-Core |
|---|
CPU Qty | 1 |
|---|
Cache Memory
Installed Size | 2 MB |
|---|
Cache Per Processor | 2 MB |
|---|
RAM
Installed Size | 4 GB |
|---|
Technology | LPDDR4 SDRAM |
|---|
Effective Memory Speed | 2400 MHz |
|---|
Configuration Features | Provided memory is soldered |
|---|
Hard Drive
Type | SSD – eMMC |
|---|
Capacity | 1 x 64 GB |
|---|
Storage Controller
Type | 1 x SATA |
|---|
Controller Interface Type | SATA 6Gb/s |
|---|
Optical Storage
Card Reader
Type | Card reader |
|---|
Supported Flash Memory Cards | microSD, microSDHC, microSDXC |
|---|
Monitor
Graphics Controller
Graphics Processor | Intel HD Graphics 500 |
|---|
Networking
Ethernet Controller | Realtek RTL8119I-CG |
|---|
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
|---|
Features | Wake on LAN (WoL) |
|---|
Expansion / Connectivity
Slots | 1 (total) / 1 (free) x M.2 Card – 3042 (Key B) |
|---|
Interfaces | 2 x USB 3.2 Gen 1
1 x USB 2.0 – micro-USB
1 x HDMI
1 x LAN (Gigabit Ethernet) |
|---|
Miscellaneous
Included Accessories | VESA mounting kit, screw set, DIN-rail bracket |
|---|
Cables Included | DC input cable |
|---|
Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
|---|
Security Slot Type | Kensington security slot |
|---|
VESA Mounting Interface | 100 x 100 mm, 75 x 75 mm |
|---|
Compliant Standards | VCCI, BSMI, CB, FCC, RoHS, ETL, ERP, IP20, EMI, RCM, ErP 2009/125/EC, EMC 2014/30/EU, LVD 2014/35/EU, RED 2014/53/EU |
|---|
Operating System / Software
OS Provided | No operating system |
|---|
Software | Drivers & Utilities |
|---|
Dimensions & Weight
Width | 9.24 cm |
|---|
Depth | 5.44 cm |
|---|
Height | 9 cm |
|---|
Weight | 480 g |
|---|
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|
Max Operating Temperature | 50 °C |
|---|
Humidity Range Operating | 10 – 90% (non-condensing) |
|---|
