Description
The Beelink EQR7 is a compact mini PC that offers performance in a remarkably small form factor. Powered by an AMD Ryzen 7 processor with 8 cores, it reaches clock speeds up to 4.75 GHz, providing processing power for various applications. The integration of 16 GB of LPDDR5 RAM ensures smooth multitasking capabilities, while the 500 GB SSD allows for rapid data access and storage.
Designed for flexibility, the EQR7 comes with multiple USB 3.2 Gen 2 ports and supports dual HDMI outputs capable of 4K@60Hz, making it suitable for home entertainment or professional use. Additionally, it features wireless connectivity with Intel Wi-Fi 6 and Bluetooth 5.2, enhancing online experiences. The ultra small form factor chassis is ideal for users seeking to save space without sacrificing performance.
- AMD Ryzen 7 processor with 8 cores for performance
- 16 GB LPDDR5 RAM for efficient multitasking
- 500 GB SSD for quick data access
- Supports dual 4K displays through HDMI outputs
- Wireless connectivity with Wi-Fi 6 and Bluetooth 5.2
- Compact design
The ultra small form factor makes the Beelink EQR7 ideal for environments with limited space, allowing easy placement on desks or entertainment setups. - Powerful processing
Featuring an AMD Ryzen 7 processor with 8 cores and advanced technologies like AMD Precision Boost 2, the EQR7 delivers performance for demanding tasks. - Versatile connectivity
Equipped with various USB ports, including USB 3.2 Gen 2 and USB-C, as well as dual HDMI outputs, this mini PC offers flexibility for connecting peripherals and displays. - Enhanced networking
With support for Intel Wi-Fi 6 and Bluetooth 5.2, the EQR7 ensures fast and reliable connections for both Internet and device communication. - Efficient cooling
The built-in MSC 2.0 Cooling System maintains optimal temperatures during operation, enhancing performance and prolonging the lifespan of the components.
Main Specifications
Product Description | Beelink EQR7 – mini PC Ryzen 7 7735U 2.7 GHz – 16 GB – SSD 500 GB |
Type | Personal computer – mini PC |
Processor | AMD Ryzen 7 7735U / 2.7 GHz (up to 4.75 GHz, (8-core) |
Processor Main Features | 16 Threads, AMD Precision Boost 2 technology, AMD simultaneous multithreading (SMT) |
Cache Memory | 16 MB L3 Cache |
Cache Per Processor | 16 MB |
RAM | 16 GB LPDDR5 SDRAM |
Hard Drive | SSD 500 GB – PCI Express 4.0 x4 – M.2 2280 |
Optical Storage | No optical drive |
Graphics Controller | AMD Radeon 680M |
Networking | 802.11a, Wi-Fi 5, Wi-Fi 6, 802.11b/g/n, 1GbE, Bluetooth 5.2 |
Power | (50/60 Hz) |
OS Provided | Windows 11 Pro |

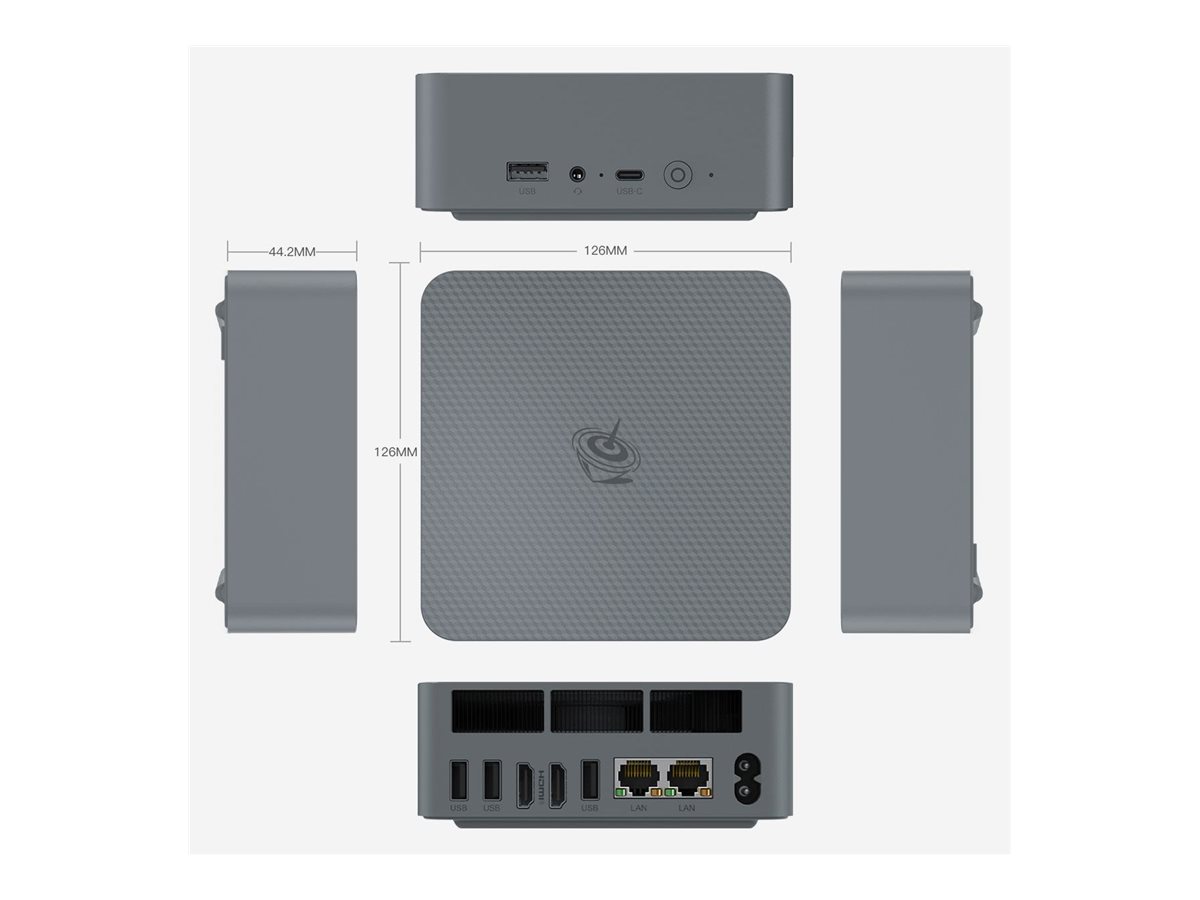

Dimensions (WxDxH) | 12.6 cm x 12.6 cm x 4.42 cm |
Weight | 520 g |
Extended Specifications
General
Type | Personal computer |
|---|
Product Form Factor | Mini PC |
|---|
Built-in Devices | MSC 2.0 Cooling System |
|---|
Processor / Chipset
CPU | AMD Ryzen 7 7735U |
|---|
Clock Speed | 2.7 GHz |
|---|
Max Turbo Speed | 4.75 GHz |
|---|
Number of Cores | 8-core |
|---|
CPU Qty | 1 |
|---|
Max CPU Qty | 1 |
|---|
Processor Main Features | 16 Threads, AMD Precision Boost 2 technology, AMD simultaneous multithreading (SMT) |
|---|
Cache Memory
Installed Size | L3 Cache – 16 MB |
|---|
Cache Per Processor | 16 MB |
|---|
RAM
Installed Size | 16 GB |
|---|
Technology | LPDDR5 SDRAM |
|---|
Form Factor | SO-DIMM 262-pin |
|---|
Configuration Features | 2 x 8 GB (soldered) |
|---|
Hard Drive
Type | SSD – M.2 2280 |
|---|
Capacity | 1 x 500 GB |
|---|
Interface Type | PCI Express 4.0 x4 |
|---|
Optical Storage
Monitor
Graphics Controller
Graphics Processor | AMD Radeon 680M |
|---|
Max Monitors Supported | 4 |
|---|
Networking
Ethernet Controller | Realtek RTL8111H |
|---|
Wireless LAN Supported | Yes |
|---|
Wireless NIC | Intel Wi-Fi 6 AX 200 |
|---|
Data Link Protocol | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Ethernet, Fast Ethernet, Gigabit Ethernet, Bluetooth 5.2 |
|---|
Features | Wake on LAN (WoL) |
|---|
Expansion / Connectivity
Slots | 2 (total) / 1 (free) x M.2 Card – 2280 |
|---|
Interfaces | 3 x USB 3.2 Gen 2 (1 front, 2 rear)
1 x USB-C (1 in front)
1 x USB 2.0 (1 rear)
1 x headphones – mini-jack (1 in front)
2 x HDMI (2 rear) (supports 4K@60Hz)
2 x LAN (Gigabit Ethernet) – RJ-45 (2 rear) |
|---|
Miscellaneous
Included Accessories | Power cable, HDMI cable |
|---|
Power
Device Type | Power supply |
|---|
Voltage Required | AC 100-240 V (50/60 Hz) |
|---|
Operating System / Software
OS Provided | Windows 11 Pro |
|---|
Dimensions & Weight
Width | 12.6 cm |
|---|
Depth | 12.6 cm |
|---|
Height | 4.42 cm |
|---|
Weight | 520 g |
|---|
