Description

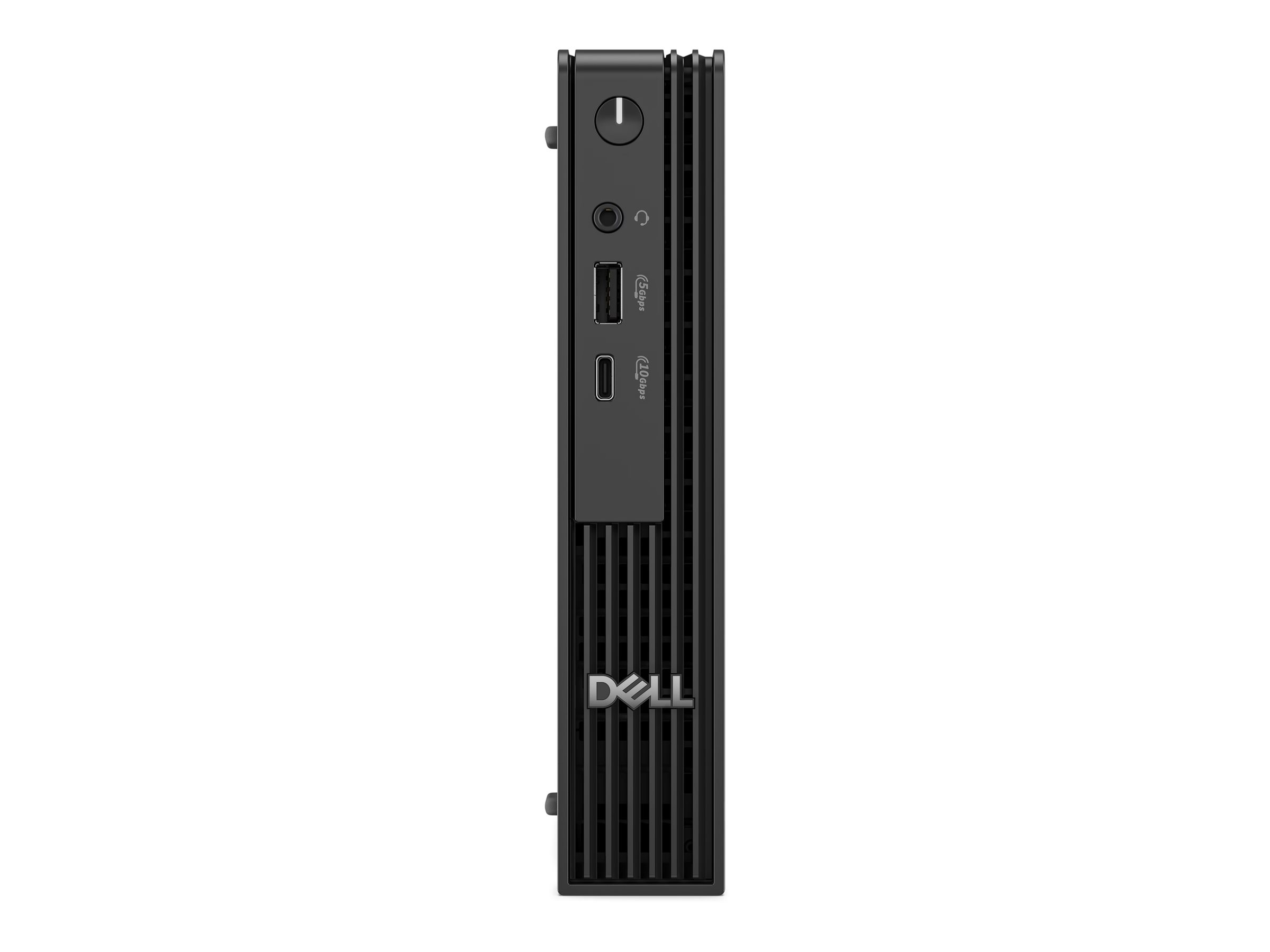

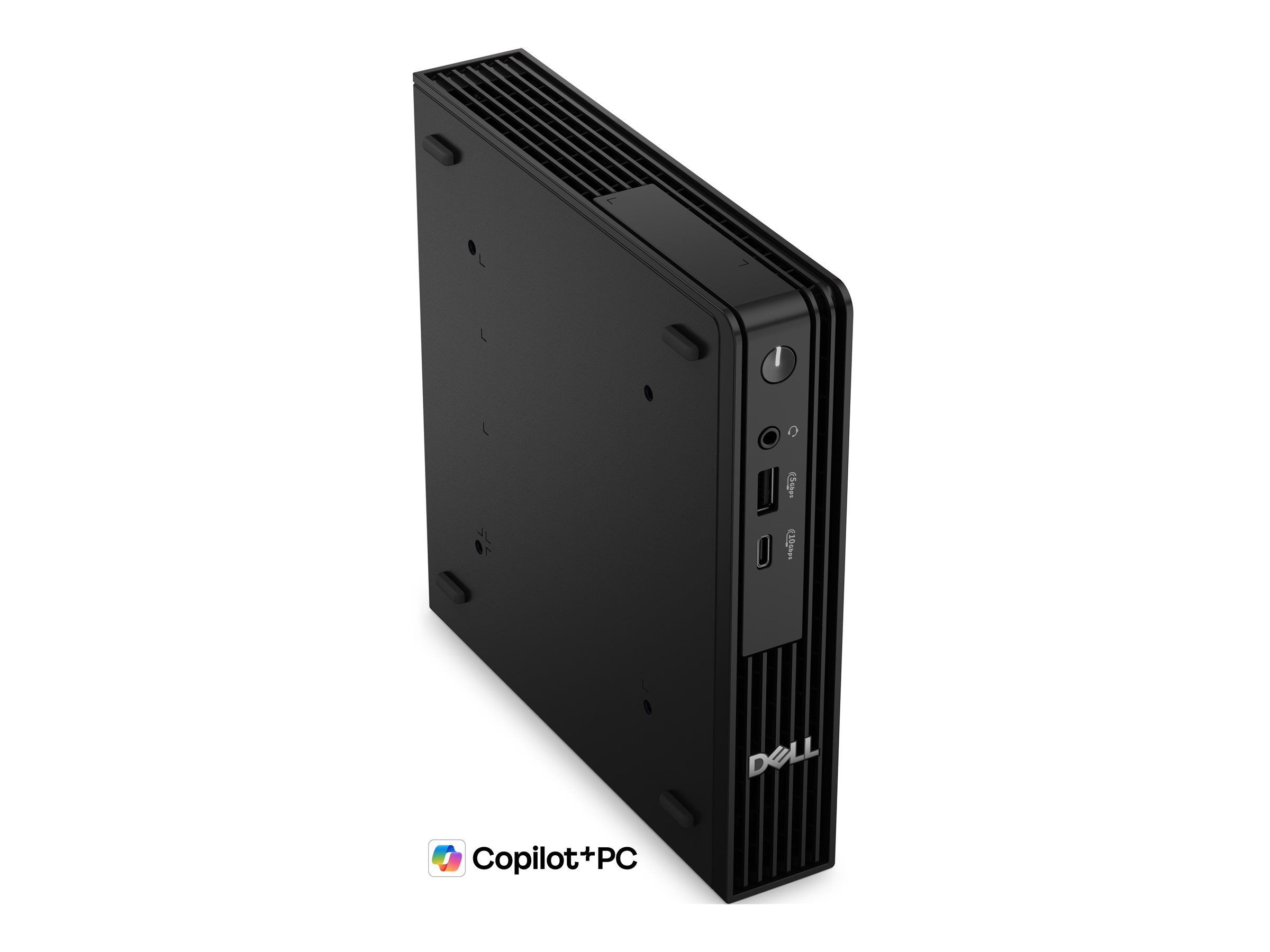

The Dell Pro 5 Micro P5M1260 is designed for those seeking a compact and efficient desktop solution. This ultra small form factor system is equipped with a powerful 8-core Intel Core Ultra 5 processor, capable of boosting performance with speeds up to 4.6 GHz. With its 16 GB DDR5 RAM and a 512 GB SSD, users can expect rapid data access and smooth multitasking, making it suitable for productivity tasks and general computing needs.
- Designed with an ultra small form factor for space-saving efficiency
- Powerful 8-core Intel Core Ultra 5 processor for enhanced performance
- Equipped with 16 GB of DDR5 RAM for smooth multitasking
- 512 GB SSD for fast data access and reliable storage
- Integrated audio with Waves MaxxAudio for quality sound
- Compact Design
The ultra small form factor allows for placement in tight spaces, making it ideal for desks with limited room while maximizing functionality. - Powerful Processing
Featuring an 8-core Intel Core Ultra 5 processor, this desktop provides robust performance for demanding applications and tasks. - Fast Storage
The 512 GB SSD offers rapid boot and load times, ensuring efficient workflow without the delays typically associated with traditional hard drives. - High-Quality Audio
Integrated with a Realtek ALC3204 audio codec and Waves MaxxAudio technology, it delivers an immersive audio experience suitable for various media. - Versatile Connectivity
Includes multiple USB ports, HDMI, and DisplayPort options, enabling flexible connections to peripherals and external displays.
Main Specifications
Product Description | Dell Pro 5 Micro P5M1260 – micro – Copilot+ PC – Core Ultra 5 335 2.2 GHz – 16 GB – SSD 512 GB |
Type | Personal computer – micro – Copilot+ PC |
Bundled Services | 3 Years ProSupport Next Business Day Onsite Service after remote diagnosis with HW-SW Support |
Processor | Intel Core Ultra 5 (Series 3) 335 / 2.2 GHz (up to 4.6 GHz, (8-core) |
Processor Main Features | 8 Threads |
Neural Processor Unit (NPU) | – up to 47 TOPS |
Cache Memory | 12 MB |
Cache Per Processor | 12 MB |
RAM | 16 GB (installed) / 64 GB (max) – DDR5 SDRAM – non-ECC |
Hard Drive | SSD 512 GB – PCI Express – M.2 2230 – NVM Express (NVMe), triple-level cell (TLC) |
Optical Storage | No optical drive |
Graphics Controller | Intel Graphics Shared Video Memory (UMA) – up to 40 TOPS |
Networking | 802.11a, Wi-Fi 5, Wi-Fi 6, Wi-Fi 7, 802.11b/g/n, Bluetooth, 1GbE |
Power | (50/60 Hz) |
OS Provided | Windows 11 Pro |
Software Included | Activate your Microsoft 365 for a 30 day trial |
Colour | Black |
Dimensions (WxDxH) | 3.6 cm x 17.8 cm x 18.2 cm |
Weight | 1.1 kg |
Carbon Footprint | 104 kg carbon emissions (EU) |
Documents
Extended Specifications
General
Type | Personal computer |
|---|
AI Level | Copilot+ PC |
|---|
Bundled Services | 3 Years ProSupport Next Business Day Onsite Service after remote diagnosis with HW-SW Support |
|---|
Product Form Factor | Micro |
|---|
Built-in Devices | Internal aerial |
|---|
Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
|---|
Colour | Black |
|---|
Processor / Chipset
CPU | Intel Core Ultra 5 (Series 3) 335 |
|---|
Clock Speed | 2.2 GHz (P-core) / 1.6 GHz (E-core) |
|---|
Max Turbo Speed | 4.6 GHz (P-core) / 3.4 GHz (E-core) |
|---|
Number of Cores | 8-core |
|---|
CPU Qty | 1 |
|---|
Max CPU Qty | 1 |
|---|
Processor Main Features | 8 Threads |
|---|
Chipset Type | Intel Q870 |
|---|
Neural Processor Unit (NPU)
NPU Performance Up To (TOPS) | 47 TOPS |
|---|
AI Datatype Support on NPU | INT8 |
|---|
Sparsity Support | Yes |
|---|
AI Software Frameworks Supported by NPU | OpenVINO, WebNN, WindowsML, ONNX RT |
|---|
Windows Studio Effects Support | Yes |
|---|
Cache Memory
Installed Size | 12 MB |
|---|
Cache Per Processor | 12 MB |
|---|
RAM
Installed Size | 16 GB (installed) / 64 GB (max) |
|---|
Technology | DDR5 SDRAM – non-ECC |
|---|
Effective Memory Speed | 5600 MT/s |
|---|
Rated Memory Speed | 5600 MT/s |
|---|
Form Factor | SO-DIMM 262-pin |
|---|
Slots | 2 (Total) / 1 (empty) |
|---|
Configuration Features | 1 x 16 GB |
|---|
Hard Drive
Type | SSD – M.2 2230 |
|---|
Capacity | 1 x 512 GB |
|---|
Interface Type | PCI Express |
|---|
Features | NVM Express (NVMe), triple-level cell (TLC) |
|---|
Optical Storage
Monitor
Graphics Controller
Graphics Processor | Intel Graphics Shared Video Memory (UMA) – up to 40 TOPS |
|---|
Video Interfaces | HDMI, DisplayPort |
|---|
Audio Output
Compliant Standards | High Definition Audio, Waves MaxxAudio |
|---|
Input Device
Type | Mouse (on selected markets only), keyboard (on selected markets only) |
|---|
Keyboard
Keyboard Name | Dell KB216 Wired Keyboard |
|---|
Mouse
Mouse Name | Dell MS116 USB Optical Mouse |
|---|
Networking
Interface (Bus) Type | M.2 2230 |
|---|
Ethernet Controller | Intel I219-LM |
|---|
Wireless LAN Supported | Yes |
|---|
Wireless NIC | Intel WI-FI 7 BE211 |
|---|
Data Link Protocol | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n, Bluetooth, Ethernet, Fast Ethernet, Gigabit Ethernet |
|---|
Features | Dual stream (2×2), MU-MIMO Support |
|---|
Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be |
|---|
Expansion / Connectivity
Slots | 2 (total) / 1 (free) x M.2 Card – 2230/2280 (for SSD)
1 (total) / 0 (free) x M.2 Card – 2230 (for wireless module) |
|---|

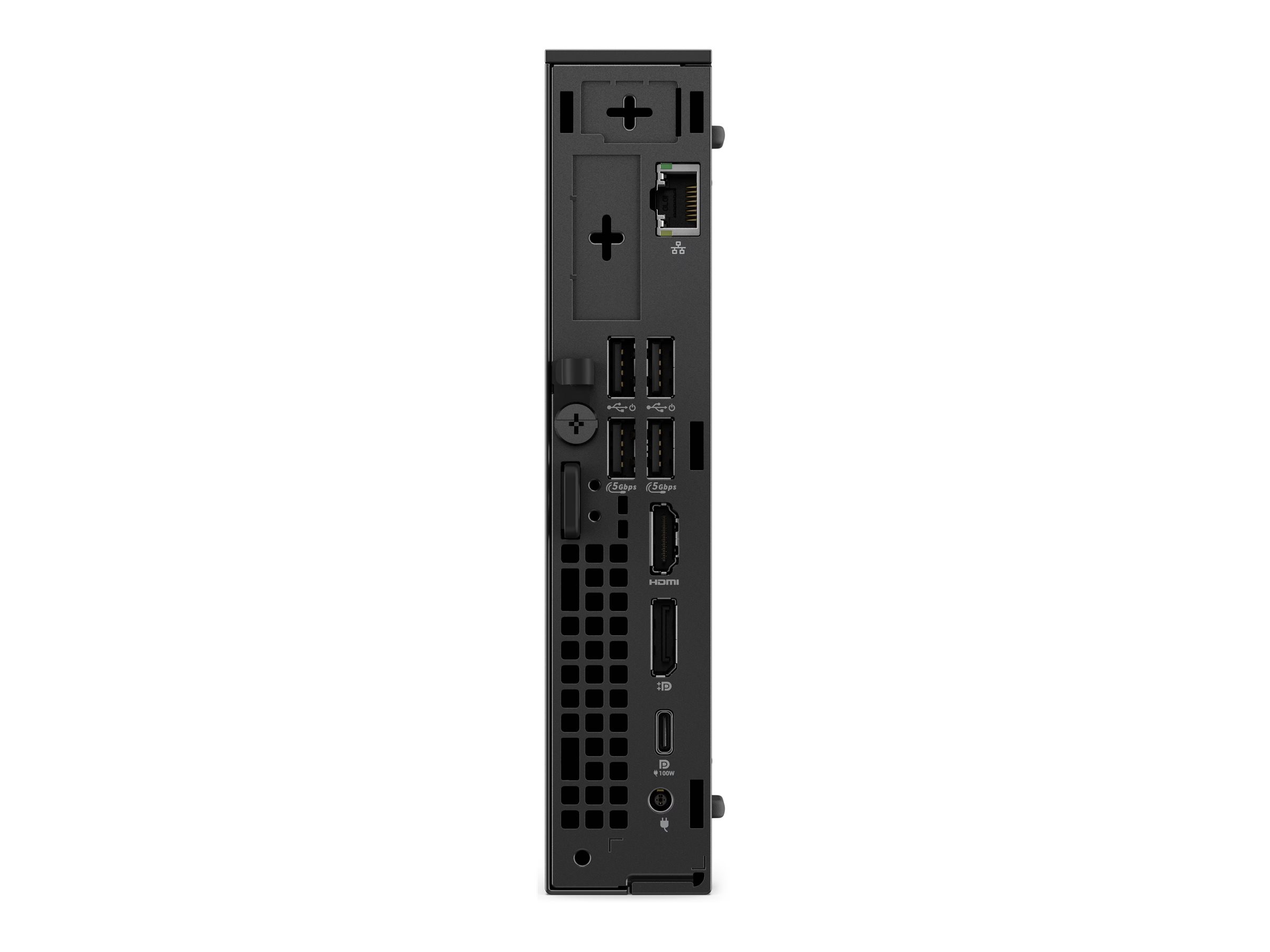

Interfaces | 1 x LAN (Gigabit Ethernet) (1 rear)
1 x USB-C 3.2 Gen 2 (1 front)
3 x USB 3.2 Gen 1 (1 front, 2 rear)
2 x USB 2.0 (2 rear) (supports SmartPower On)
1 x USB-C 3.2 Gen 2×2/DisplayPort 1.4a (1 rear) (100W USB Power Delivery)
1 x HDMI (1 rear)
1 x DisplayPort 1.4a (1 rear)
1 x headphones/microphone (1 front) |
|---|
Miscellaneous
Theft/Intrusion Protection | Security lock slot (cable lock sold separately), padlock loop |
|---|
Security Slot Type | Kensington security slot |
|---|
Power
Device Type | Power adapter |
|---|
Voltage Required | AC 100-240 V (50/60 Hz) |
|---|
Operating System / Software
OS Provided | Windows 11 Pro |
|---|
Software | Activate your Microsoft 365 for a 30 day trial |
|---|
Sustainability Information
Carbon Footprint | 104 kg carbon emissions (EU) |
|---|
Dimensions & Weight
Width | 3.6 cm |
|---|
Depth | 17.8 cm |
|---|
Height | 18.2 cm |
|---|
Weight | 1.1 kg |
|---|
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|
Max Operating Temperature | 35 °C |
|---|
Humidity Range Operating | 10 – 90% (non-condensing) |
|---|
