Description

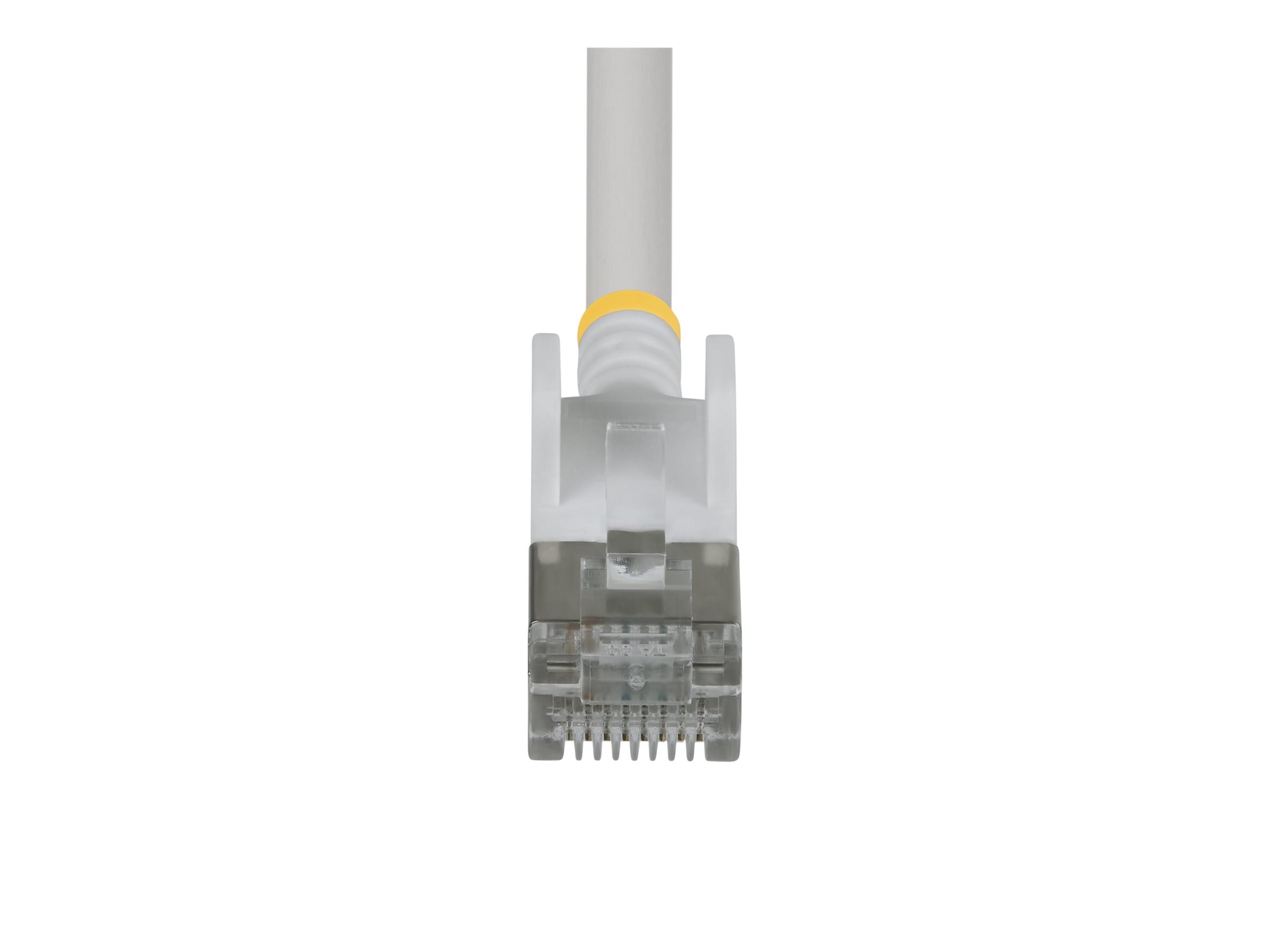

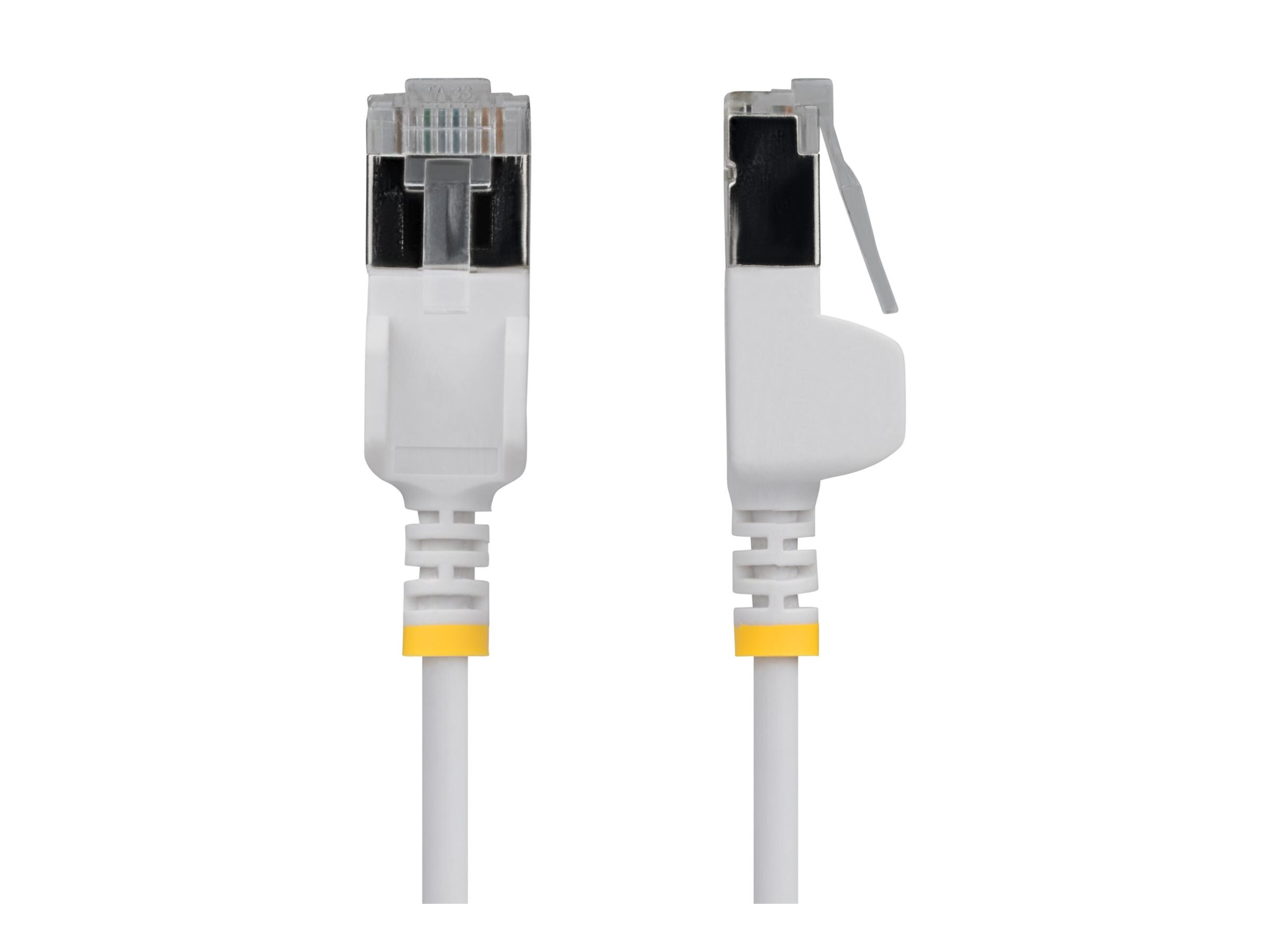

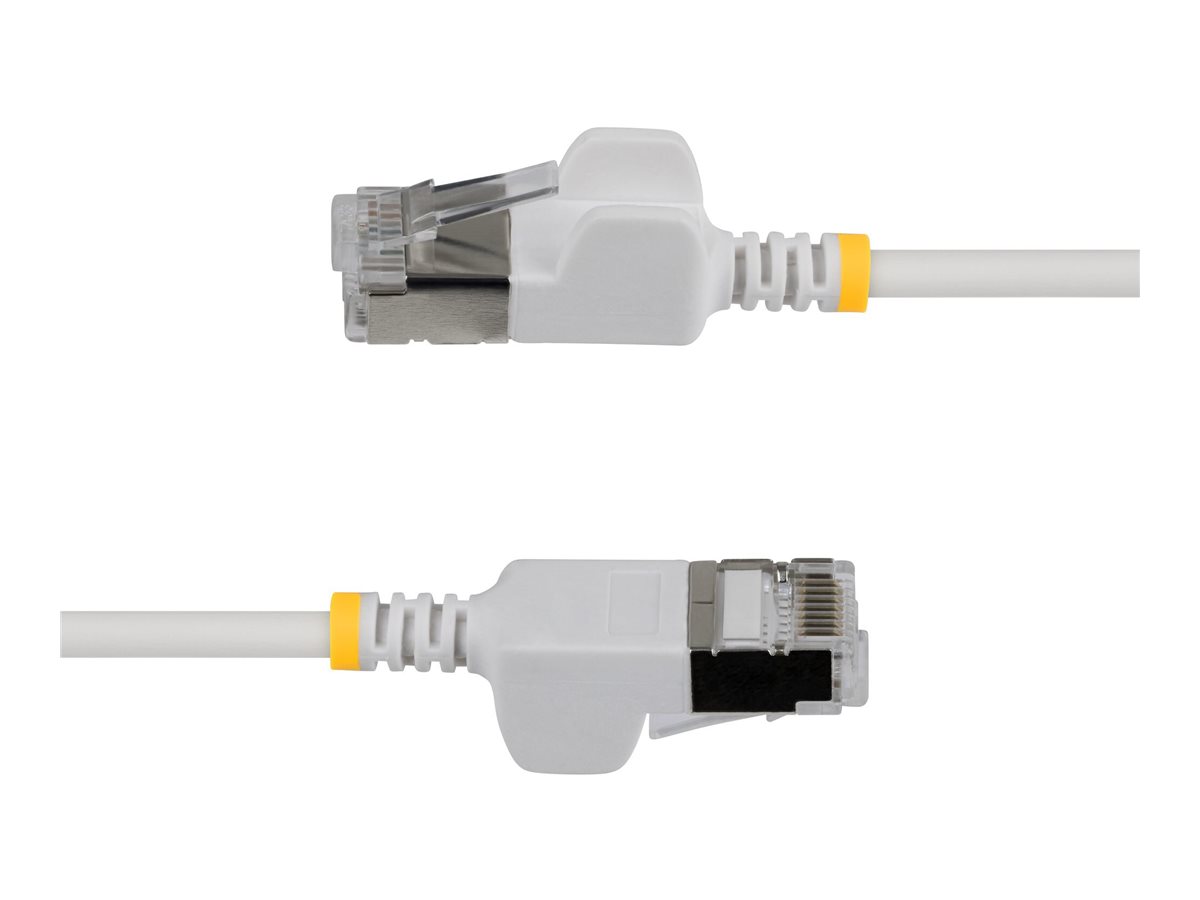

The StarTech N6APATSTP34WHS50CM patch cable is designed to enhance network performance with its technology and robust construction. Featuring U/FTP design and aluminum mylar foil shielding, this cable minimizes electromagnetic interference while ensuring reliable data transmission. The jacket, made from thermoplastic elastomer (TPE), provides durability and flexibility for various installation environments, making it a suitable choice for both home and professional settings.
Capable of supporting up to 10 Gbps with a tested frequency of 500 MHz, this CAT 6a cable ensures high-speed connectivity with reduced Near-End Crosstalk (NEXT) and minimized Return Loss (RL). With pure bare copper conductors and snagless design, the StarTech patch cable is reliable and ultraslim, allowing for easy routing in tight spaces. Experience stable and efficient networking with this engineered cable that complies with ANSI/TIA-568-C.2 and RoHS standards.
- Supports up to 10 Gbps for quick data transmission
- Snagless design prevents cable damage during installation
- Ultraslim profile allows easy routing in confined spaces
- High-frequency performance tested up to 500 MHz
- Compliant with ANSI/TIA-568-C.2 and RoHS standards
- Durable shielding
The aluminum mylar foil shielding effectively reduces electromagnetic interference, ensuring a cleaner signal for uninterrupted data transfer. - High-quality connectors
Equipped with 50 micron gold-plated connectors, the cable provides optimal conductivity and resistance to corrosion for lasting performance. - Environmentally compliant
This cable meets RoHS standards, ensuring safe and environmentally friendly materials are used in its construction. - Effective temperature range
Designed to operate between -20°C and 60°C, this cable is suited for various environments, ensuring reliability under different conditions.
Main Specifications
Product Description | Startech patch cable – 50 cm – white |
Type | Patch cable – CAT 6a |
Technology | U/FTP |
Wiring Scheme | T568B |
Shielding Material | Aluminium mylar foil with drain |
Wires per Cable | 8 wires |
Features | Snagless, ultra-slim, stranded copper, pure bare copper conductors, up to 10 Gbps, 50 micron gold-plated connectors, minimised Near-End Crosstalk (NEXT), EMI shielding, reduced Return Loss (RL) |
Cable Length | 50 cm |
Diameter | 3.7 mm |
Connector | RJ-45 – male |
Connector (Second End) | RJ-45 – male |
Colour | White |
Extended Specifications
General
Network Cable Type | Patch cable – CAT 6a |
|---|
Technology | U/FTP |
|---|
Wiring Scheme | T568B |
|---|
Shielding Material | Aluminium mylar foil with drain |
|---|
Jacket Material | Thermoplastic elastomer (TPE) |
|---|
American Wire Gauge (AWG) | 34 |
|---|
Wires per Cable | 8 wires |
|---|
Pairs per Cable | 4 pairs |
|---|
Plated Connector | Gold |
|---|
Features | Snagless, ultra-slim, stranded copper, pure bare copper conductors, up to 10 Gbps, 50 micron gold-plated connectors, minimised Near-End Crosstalk (NEXT), EMI shielding, reduced Return Loss (RL) |
|---|
Cable Length | 50 cm |
|---|
Diameter | 3.7 mm |
|---|
Weight | 10 g |
|---|
Colour | White |
|---|
Connectivity
Connector | RJ-45 – male |
|---|
Connector (Second End) | RJ-45 – male |
|---|
Miscellaneous
Compliant Standards | ANSI/TIA-568-C.2, RoHS – up to 500 MHz |
|---|
Dimensions & Weight (Shipping)
Shipping Width | 15 cm |
|---|
Shipping Depth | 12 cm |
|---|
Shipping Height | 1.6 cm |
|---|
Shipping Weight | 16 g |
|---|
Environmental Parameters
Min Operating Temperature | -20 °C |
|---|
Max Operating Temperature | 60 °C |
|---|
