Description
The StarTech N6APATSTP34WHS80CM patch cable is designed to provide reliable connectivity for all networking needs. Constructed with U/FTP technology to enhance shielding, this cable minimizes electromagnetic interference while ensuring high performance. The ultraslim design makes it ideal for tight spaces, allowing for neat installations without compromising data transmission quality.
Featuring pure bare copper conductors and 50 micron gold-plated connectors, this Category 6a cable supports data speeds of up to 10 Gbps, with a tested frequency of 500 MHz. Designed for durability with thermoplastic elastomer (TPE) jacket material, the snagless connectors prevent cable snags during installation and offer longevity in use. This cable is compliant with ANSI/TIA-568-C.2 standards and RoHS regulations, ensuring a safe and dependable option for all networking applications.
- Ultraslim design for easy installation in tight spaces
- Supports data speeds up to 10 Gbps with minimal interference
- Snagless connectors help prevent snags during installation
- Durable thermoplastic elastomer (TPE) jacket material
- Compliant with ANSI/TIA-568-C.2 and RoHS standards
- Reliable performance
This patch cable features pure bare copper conductors that deliver consistent signal integrity and are designed for high-speed data transmission. - Effective shielding
The aluminum mylar foil with drain effectively reduces electromagnetic interference, maintaining a stable connection even in environments with electrical noise. - Durable construction
Designed with thermoplastic elastomer (TPE) material, this cable is built to endure various environmental conditions, providing a robust solution for networking. - Enhanced connectivity
With RJ-45 male connectors on both ends and a wiring scheme compliant with T568B, this cable ensures quick and easy connection to network devices. - Minimized distortion
The design of this cable significantly reduces Near-End Crosstalk (NEXT) and Return Loss (RL), enhancing the quality of the data signal during transmission.
Main Specifications
Product Description | Startech patch cable – 80 cm – white |
Type | Patch cable – CAT 6a |
Technology | U/FTP |
Wiring Scheme | T568B |
Shielding Material | Aluminium mylar foil with drain |
Wires per Cable | 8 wires |
Features | Snagless, ultra-slim, stranded copper, pure bare copper conductors, up to 10 Gbps, 50 micron gold-plated connectors, minimised Near-End Crosstalk (NEXT), EMI shielding, reduced Return Loss (RL) |
Cable Length | 80 cm |
Diameter | 3.7 mm |

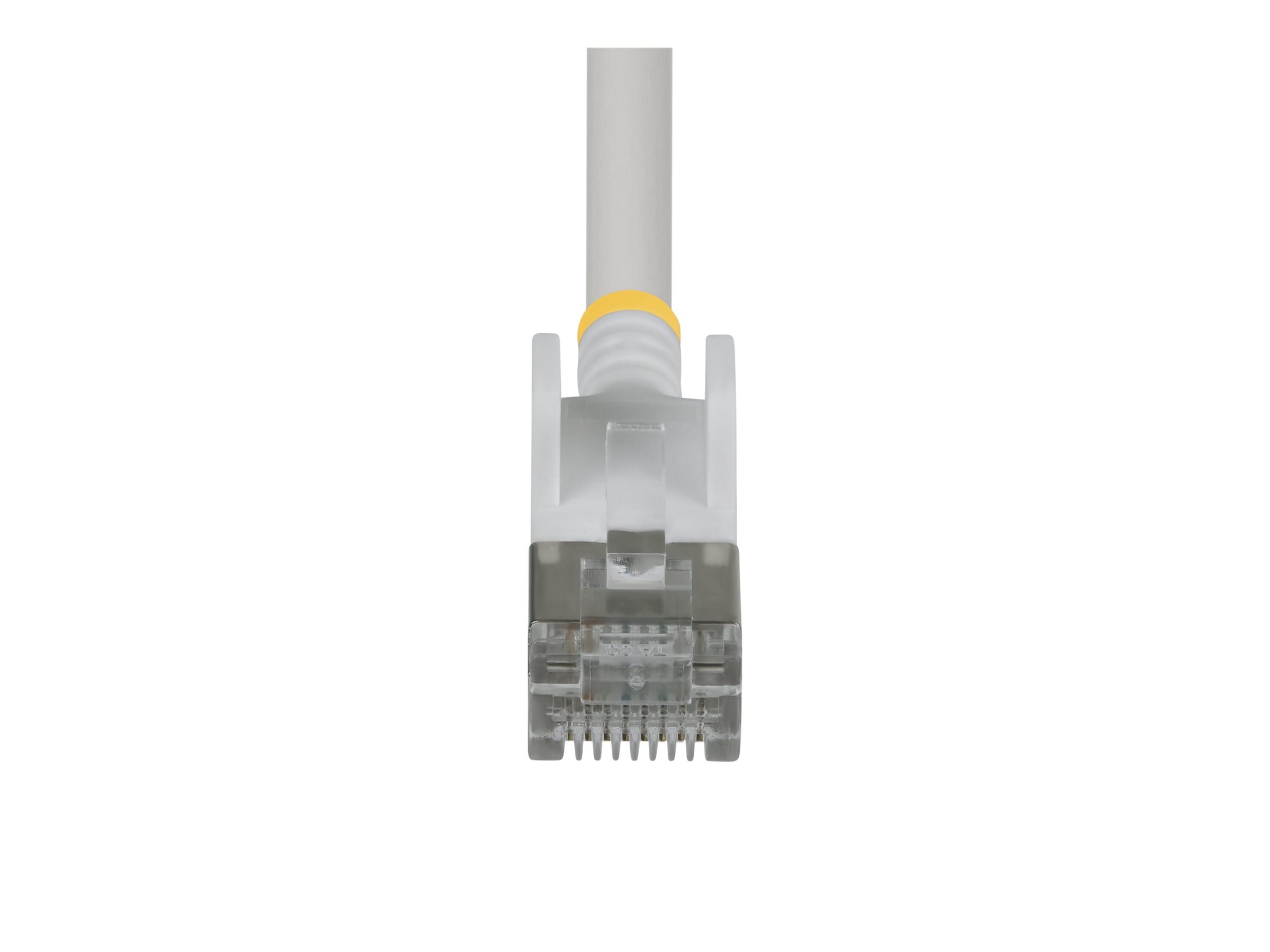

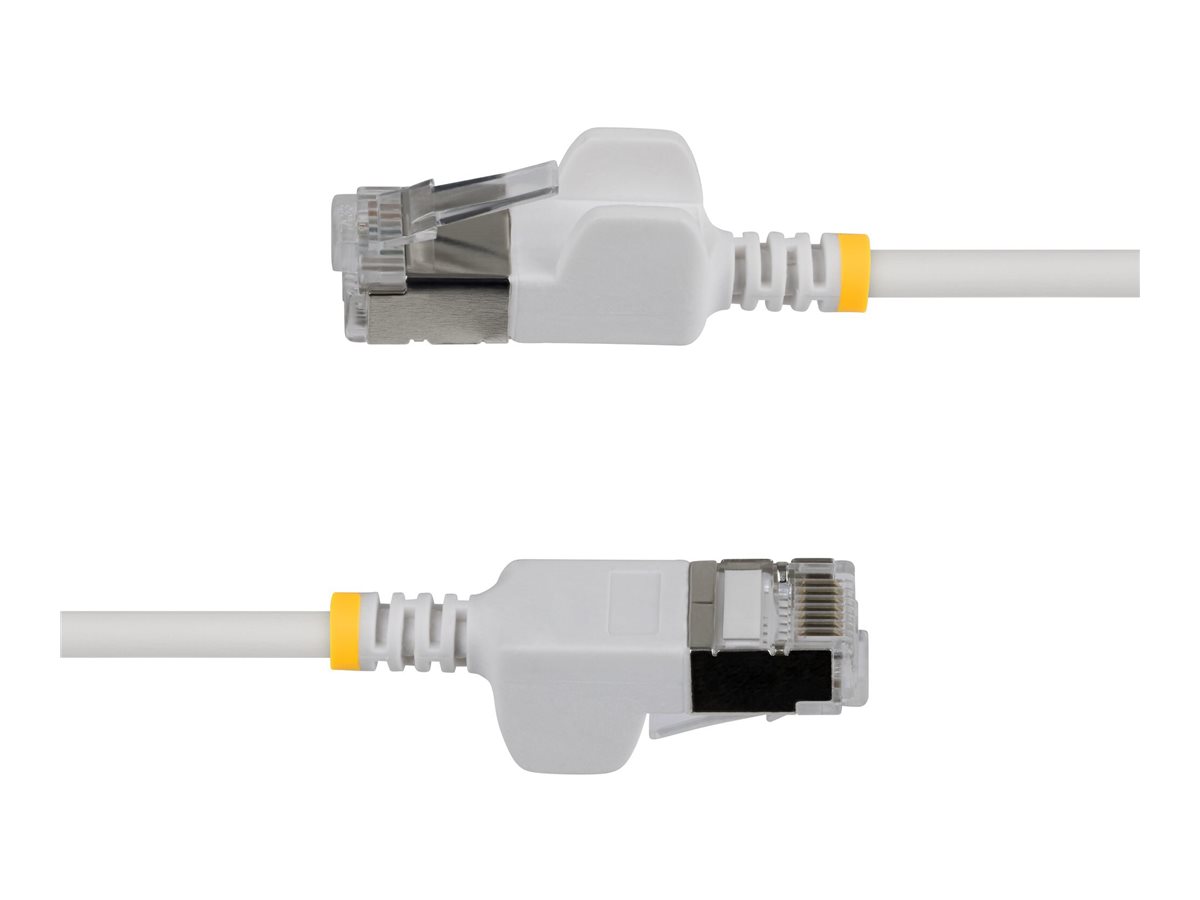

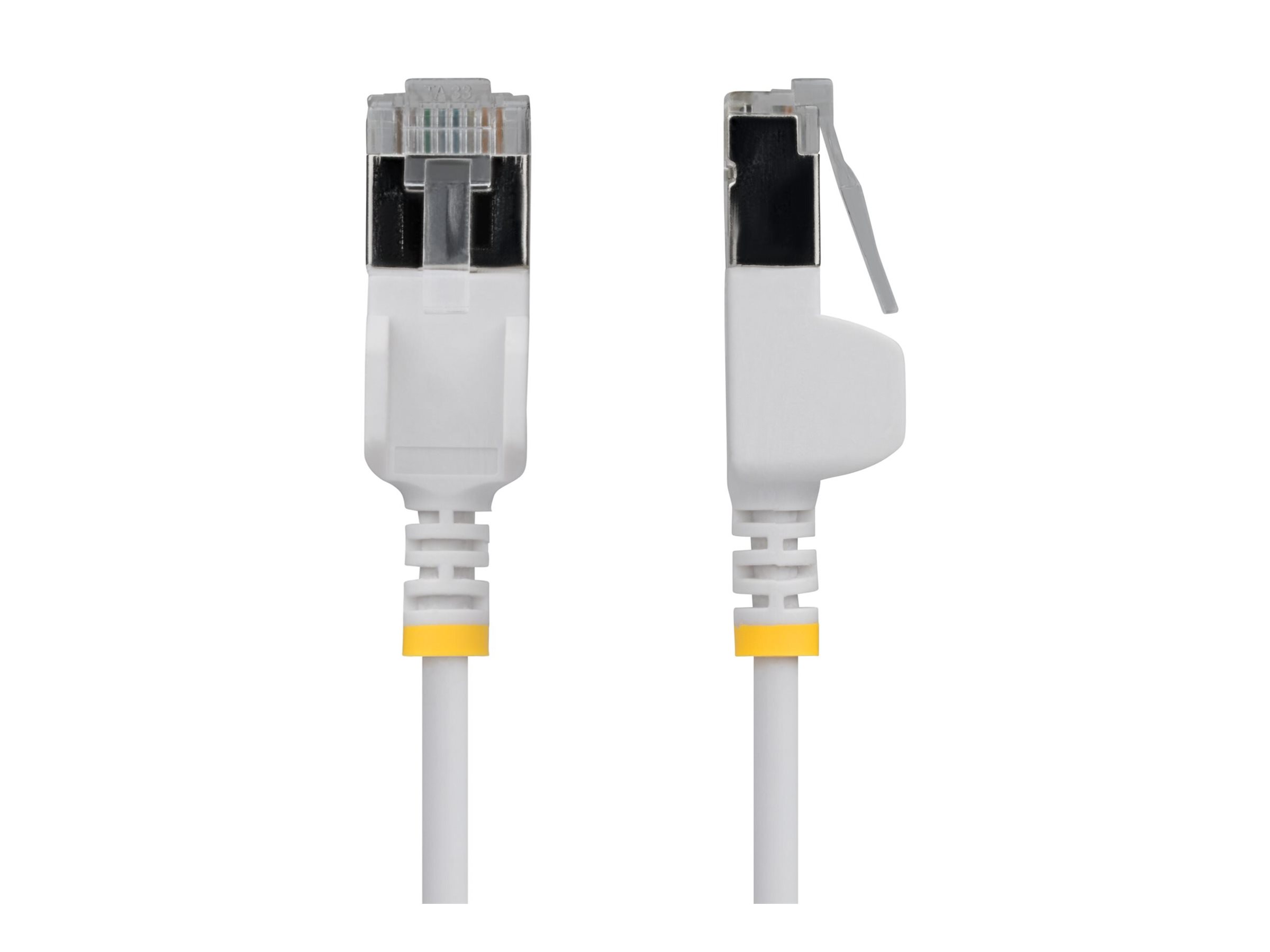

Connector | RJ-45 – male |
Connector (Second End) | RJ-45 – male |
Colour | White |
Extended Specifications
General
Network Cable Type | Patch cable – CAT 6a |
|---|
Technology | U/FTP |
|---|
Wiring Scheme | T568B |
|---|
Shielding Material | Aluminium mylar foil with drain |
|---|
Jacket Material | Thermoplastic elastomer (TPE) |
|---|
American Wire Gauge (AWG) | 34 |
|---|
Wires per Cable | 8 wires |
|---|
Pairs per Cable | 4 pairs |
|---|
Plated Connector | Gold |
|---|
Features | Snagless, ultra-slim, stranded copper, pure bare copper conductors, up to 10 Gbps, 50 micron gold-plated connectors, minimised Near-End Crosstalk (NEXT), EMI shielding, reduced Return Loss (RL) |
|---|
Cable Length | 80 cm |
|---|
Diameter | 3.7 mm |
|---|
Weight | 13 g |
|---|
Colour | White |
|---|
Connectivity
Connector | RJ-45 – male |
|---|
Connector (Second End) | RJ-45 – male |
|---|
Miscellaneous
Compliant Standards | ANSI/TIA-568-C.2, RoHS – up to 500 MHz |
|---|
Dimensions & Weight (Shipping)
Shipping Width | 15 cm |
|---|
Shipping Depth | 12 cm |
|---|
Shipping Height | 1.6 cm |
|---|
Shipping Weight | 23 g |
|---|
Environmental Parameters
Min Operating Temperature | -20 °C |
|---|
Max Operating Temperature | 60 °C |
|---|
