Teltonika RUTC41, Wireless router, WWAN 4-port switch, 1GbE, PPP Dual Band, 3G, 4G, 2G, DIN rail mountable, wall-mountable, surface-mountable

$787.88 inc GST

✓  In Stock  -  15 available

✓  Free NZ Delivery

15 in stock

Ships from: Christchurch
  • Allow 2–3 days for delivery to the North Island
  • Allow 1–2 days for delivery to the South Island
  • Add 1–2 days if you are rural
  • Collection can be arranged
Manufacturer:Teltonika
Part Number:RUTC41
Warranty:2 Years
PPID:AB59894

Description

The Teltonika RUTC41 is a versatile router designed to enhance connectivity in varied environments. It supports both wired and wireless technology, accommodating multiple devices with a maximum Wi-Fi user capacity of 512. The external detachable antennas ensure strong signal reception, while the 4-port switch provides ample LAN connections for your network needs.
Operating efficiently in extreme conditions, the RUTC41 functions within a wide temperature range, from -40 °C to 75 °C, and humidity levels of 10% to 90%. Its advanced security features include various encryption methods like WPA3-SAE and AES, protecting your data without compromising performance. With integrated VPN support and robust firefighting capabilities, this router is ideal for secure office environments and mobile use cases alike.

  • Supports up to 512 Wi-Fi users for extensive connectivity
  • Operates in extreme temperatures from -40 °C to 75 °C
  • Equipped with multiple encryption algorithms for enhanced security
  • Includes a 4-port integrated switch for efficient wired connections
  • Features dual SIM slots for mobile broadband redundancy
  • Flexible connectivity options
    The RUTC41 offers a variety of connectivity technologies, including wired and wireless options with support for Wi-Fi 6 and multiple cellular bands for robust Internet access.
  • High user capacity
    Designed to handle a large number of devices, this router can support up to 512 simultaneous Wi-Fi users, making it suitable for both office and public environments.
  • Extreme environmental resilience
    With a wide operating temperature range from -40 °C to 75 °C, the RUTC41 is built to function reliably in challenging conditions, ensuring continuous connectivity.
  • Advanced security features
    The router incorporates multiple encryption algorithms, keeping your network safe from unauthorized access while supporting secure remote management protocols.
  • Multiple expansion capabilities
    Equipped with two Mini-SIM slots and ample ports including USB and LAN, the RUTC41 allows for significant expansion and flexibility to meet varying connectivity needs.

Main Specifications

Product Description

Teltonika RUTC41 – wireless router – WWAN – Wi-Fi 6 – 3G, 4G, 2G – DIN rail mountable, wall-mountable, surface-mountable

Device Type

Wireless router – wireless cellular modem – 4-port switch (integrated)

Enclosure Type

DIN rail mountable, wall-mountable, surface-mountable

Mobile Communication Protocol

FDD LTE, TDD LTE

Generation

3G, 4G, 2G

Cellular Band

LTE B1, LTE B3, LTE B5, LTE B7, LTE B8, LTE B20, LTE B28, LTE B38, LTE B40, LTE B41

WAN Ports Qty

1

Data Link Protocol

IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Ethernet, Fast Ethernet, Gigabit Ethernet, PPP

Frequency Band

2.4 GHz / 5 GHz

Capacity

Maximum WiFi user capacity: 512

Network / Transport Protocol

TCP, UDP, IPv4, IPv6, NTP, DNS, HTTP, HTTPs, SFTP, FTP, SMTP, ARP, PPPoE, IPSec

Routing Protocol

Static IP routing, BGP, OSPFv2, RIP-1, RIP-2, EIGRP, NHRP, policy-based routing (PBR), VRRP, VXLAN

Platform

Cumulocity, ThingWorx, Azure IoT Hub, AWS IoT Core

Remote Management Protocol

SSH, DHCP, Telnet, SMPP, SNMP, MQTT, ICMP, SNMP 1, SNMP 2, SNMP 3, HTTP, HTTPS, TR-069, JSON-RPC, CLI

VoIP Protocols

H.323, SIP

Features

3GPP Release 9, RSSI support, USSD support, allow/block list, auto APN, band management, bridge mode, multiple PDN, SIM idle protection service, SIM PIN management, MU-MIMO technology, protected management frames, ESSID stealth mode, auto-uplink (auto MDI/MDI-X), WOL, DHCP relay, DHCP server, QoS, WMM Admission Control, Teltonika RMS, FOTA, reset button, anodised aluminium housing, DNP3 outstation, DNP3 station, H.323 Pass-Through, DDoS Protection, port-based VLAN, tagged VLAN, SSHFS support, Tailscale encryption, Tinc encryption, DMVPN, SSTP client instance support, WireGuard, ZeroTier VPN client support, GRE tunneling, Docker Support, eSIM support

Compliant Standards

IEEE 802.11w, IEEE 802.11s, IEEE 802.11k, IEEE 802.11r, IEEE 802.11v, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, UPnP, IEEE 802.11e

Power

DC 9 – 50 V

Dimensions (WxDxH)

13.04 cm x 10.34 cm x 4.26 cm

Weight

480 g

Documents

Extended Specifications

General

Device Type

Wireless router – 4-port switch (integrated)

Enclosure Type

DIN rail mountable, wall-mountable, surface-mountable

Connectivity Technology

Wired, wireless

Data Link Protocol

IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Ethernet, Fast Ethernet, Gigabit Ethernet, PPP

Frequency Band

2.4 GHz / 5 GHz

Capacity

Maximum WiFi user capacity: 512

Network / Transport Protocol

TCP, UDP, IPv4, IPv6, NTP, DNS, HTTP, HTTPs, SFTP, FTP, SMTP, ARP, PPPoE, IPSec

Routing Protocol

Static IP routing, BGP, OSPFv2, RIP-1, RIP-2, EIGRP, NHRP, policy-based routing (PBR), VRRP, VXLAN

Remote Management Protocol

SSH, DHCP, Telnet, SMPP, SNMP, MQTT, ICMP, SNMP 1, SNMP 2, SNMP 3, HTTP, HTTPS, TR-069, JSON-RPC, CLI

Encryption Algorithm

WPA2-Enterprise, PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE, AES-CCMP, TKIP, EAP-TLS, PKCS#12, TLS, SSL, RC2, DESX, CAST5, 128-bit AES-CBC, 192-bit AES-CBC, 256-bit AES-CBC, IKEv1, IKEv2, MODBUS, 128-bit AES, 192-bit AES, 256-bit AES

Authentication Method

RADIUS, TACACS+, Secure Shell (SSH), Secure Shell v.2 (SSH2), X.509 certificates

Features

3GPP Release 9, RSSI support, USSD support, allow/block list, auto APN, band management, bridge mode, multiple PDN, SIM idle protection service, SIM PIN management, MU-MIMO technology, protected management frames, ESSID stealth mode, auto-uplink (auto MDI/MDI-X), WOL, DHCP relay, DHCP server, QoS, WMM Admission Control, Teltonika RMS, FOTA, reset button, anodised aluminium housing, DNP3 outstation, DNP3 station, H.323 Pass-Through, DDoS Protection, port-based VLAN, tagged VLAN, SSHFS support, Tailscale encryption, Tinc encryption, DMVPN, SSTP client instance support, WireGuard, ZeroTier VPN client support, GRE tunneling, Docker Support, eSIM support

Compliant Standards

IEEE 802.11w, IEEE 802.11s, IEEE 802.11k, IEEE 802.11r, IEEE 802.11v, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, UPnP, IEEE 802.11e, 3GPP Release 9, IP30, REACH, RoHS, UKCA, CB, WEEE

Processor

1 x MediaTek Cortex-A53 1.3 GHz

RAM

1 GB DDR4 SDRAM

Flash Memory

16 MB

Status Indicators

WAN, mobile network type, signal strength, LAN, power, 2.4 GHz, 5 GHz

Communications

Type

Wireless cellular modem

Mobile Communication Protocol

FDD LTE, TDD LTE

Generation

3G, 4G, 2G

Cellular Band

LTE B1, LTE B3, LTE B5, LTE B7, LTE B8, LTE B20, LTE B28, LTE B38, LTE B40, LTE B41

Max Transfer Rate

150 Mbps

IP Telephony

VoIP Protocols

H.323, SIP

Internet of Things (IoT)

Internet of Things (IoT) Compatible

Yes

Platform

Cumulocity, ThingWorx, Azure IoT Hub, AWS IoT Core

Expansion / Connectivity

Interfaces

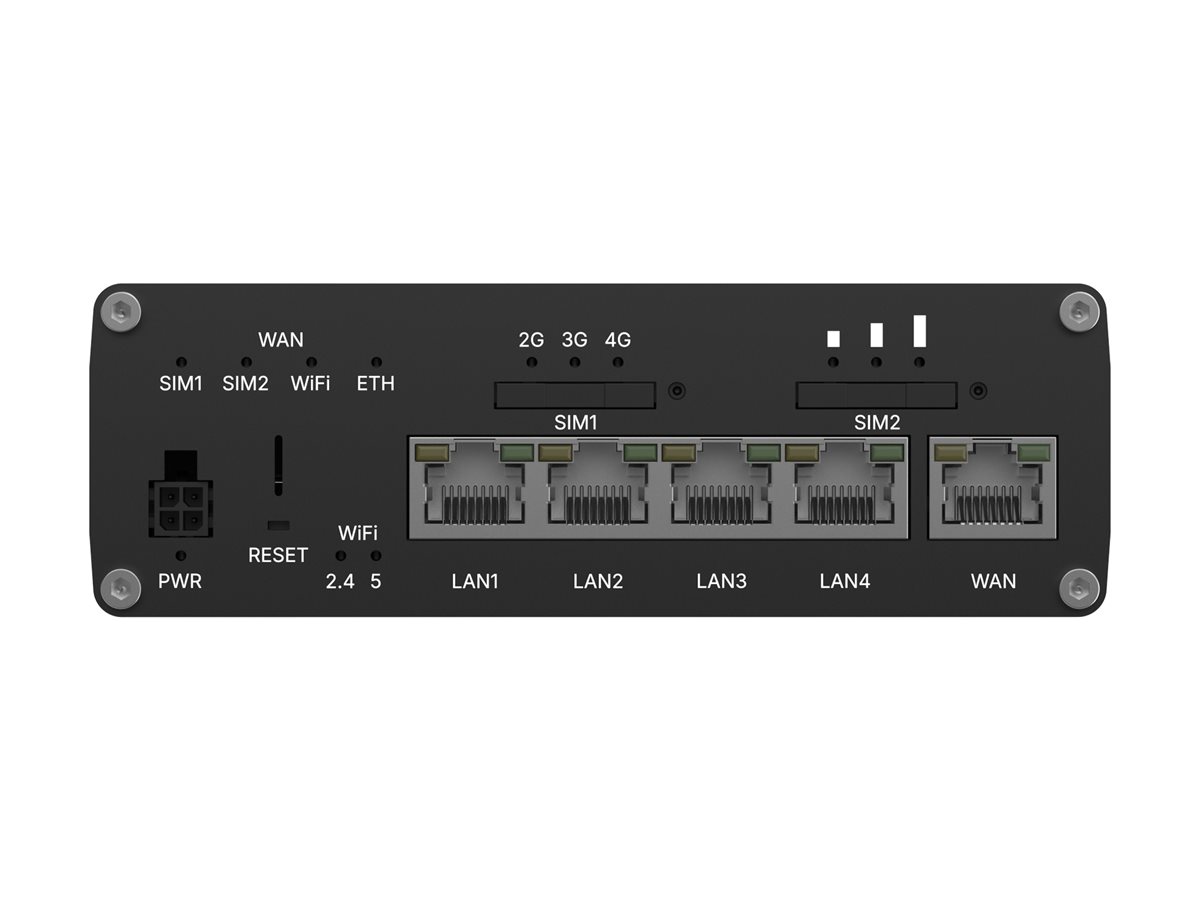

WAN: 1 x 10Base-T/100Base-TX/1000Base-T – RJ-45
LAN: 4 x 10Base-T/100Base-TX/1000Base-T – RJ-45
1 x DI – 4 pin power
1 x DO – 4 pin power
USB 2.0: 1 x 4 pin USB Type A

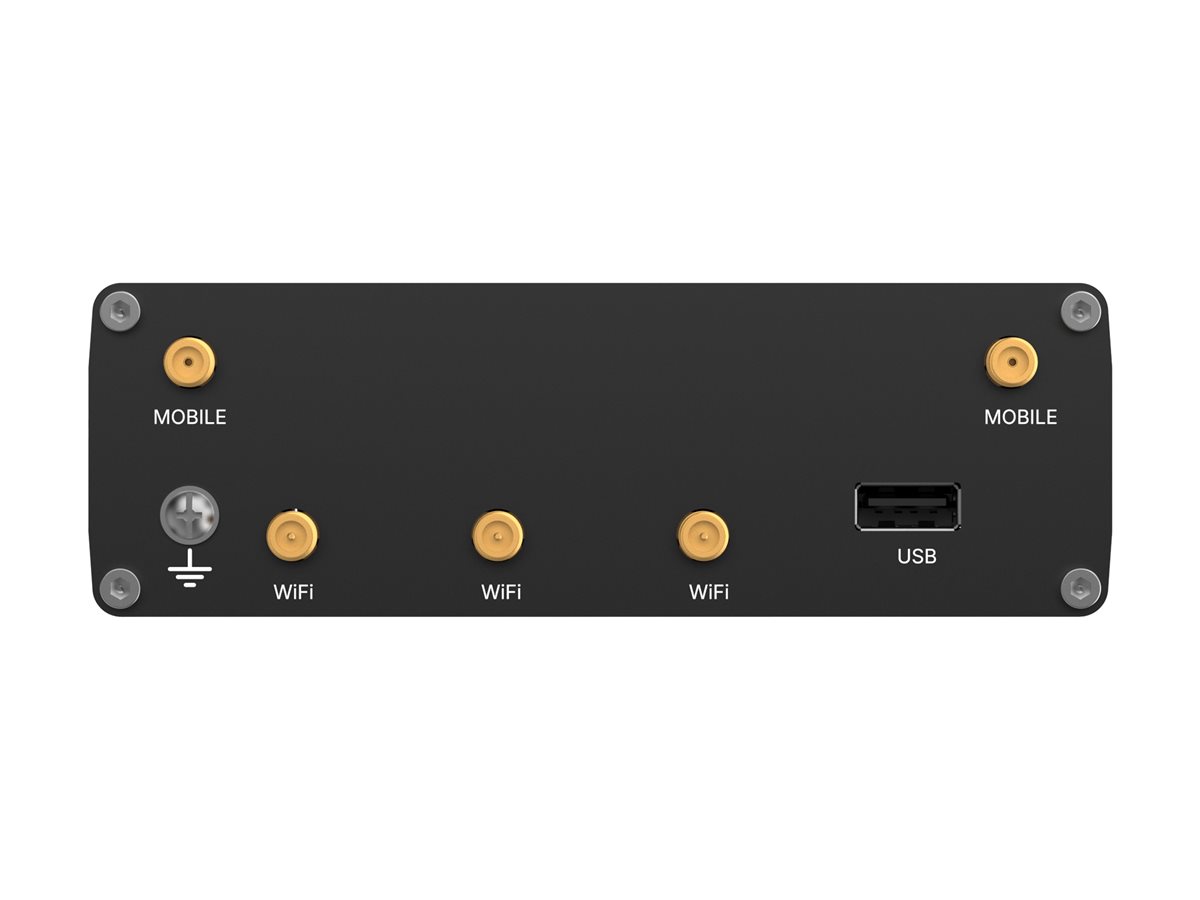

Antenna: 2 x SMA – mobile
Antenna: 3 x RP-SMA – Wi-Fi

Expansion Slots

2 (total) / 2 (free) x Mini-SIM

Aerial

Aerial

External detachable

Antenna Qty

5

Power

Power Device

External power adapter

Voltage Required

DC 9 – 50 V

Power Consumption Operational

5.5 watt

Miscellaneous

Included Accessories

Power adapter (EU), SIM card adapter kit

Cables Included

Network cable – 1.5 m

Software / System Requirements

OS Provided

RutOS

Dimensions & Weight

Width

13.04 cm

Depth

10.34 cm

Height

4.26 cm

Weight

480 g

Environmental Parameters

Min Operating Temperature

-40 °C

Max Operating Temperature

75 °C

Humidity Range Operating

10 – 90% (non-condensing)
