Description

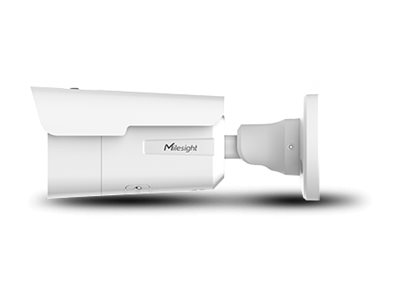

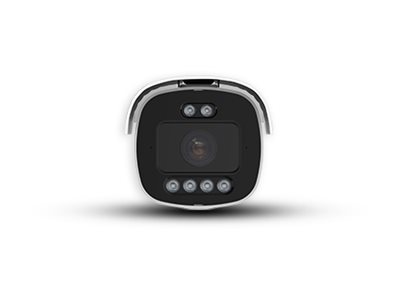

The Milesight AI Motorized MS-CQ8168-FHYPG1 network surveillance camera is designed to deliver high-quality video footage with its 8,000,000 pixels optical sensor. With a maximum digital video resolution of 3840 x 2160, this camera ensures clear visuals that capture every detail. The camera is equipped with a versatile lens system featuring a lens aperture of f/1.4 and a focal length range of 2.7 mm to 13.5 mm, allowing for multitasking in various surveillance scenarios.
Designed for resilience, the MS-CQ8168-FHYPG1 is compliant with IP67 and IK10 standards, making it both vandal- and weatherproof. This ensures reliable performance in diverse environmental conditions, with an operational temperature range from -40°C to 60°C and humidity tolerance from 0% to 95%. Additionally, the camera supports a variety of network protocols and offers built-in audio capabilities, enhancing its utility for effective monitoring and communication.
- High-definition video resolution of up to 3840 x 2160
- Vandal- and weatherproof design for outdoor use
- Wide operating temperature range from -40°C to 60°C
- Versatile lens system with adjustable focal length
- Integrated audio support with multiple formats
- Robust construction
The camera’s IP67 and IK10 compliance ensures that it is resistant to both water and vandalism, making it suitable for deployment in challenging environments. - High-quality imaging
With its Progressive Scan CMOS sensor and total pixel count of 8,000,000, the surveillance camera provides sharp and detailed images, crucial for security purposes. - Flexible lens options
The lens system features a wide aperture of f/1.4 and a focal length range of 2.7 mm to 13.5 mm, offering versatility for various surveillance angles and distances. - Advanced connectivity
Equipped with multiple network protocols, this camera ensures seamless integration into existing surveillance systems, enhancing its usability. - Efficient power supply
The camera operates on low voltage DC 12 V or Power over Ethernet (PoE), providing flexible and energy-efficient power options for installation.
Main Specifications
Product Description | Milesight AI Motorized MS-CQ8168-FHYPG1 – network surveillance camera – bullet |
Device Type | Network surveillance camera – fixed – bullet – vandal / weatherproof |
Audio | Yes: built-in microphone |
Dimensions (WxDxH) | 9.7 cm x 23 cm x 8.8 cm |
Weight | 1 kg |
Connectivity Technology | Wired |
Camera | Colour – Day&Night |
Max Resolution | 3840 x 2160 |
Frame Rate (max) | 30 frames per second |
Motion Detection | Yes |
Optical Sensor Type | Progressive Scan CMOS – 1/2.65" – 8 MP |
Focal Length | 2.7 mm – 13.5 mm |
Lens Mounting | Φ16 mount |
Lens Iris | F/1.4 |
Interfaces | Ethernet 10Base-T/100Base-T |
Voltage | DC 12 V / PoE |
Environmental Parameters (operating) | -40 °C – 60 °C; 0 – 95% (non-condensing) relative humidity |
Documents
Extended Specifications
General
Device Type | Network surveillance camera |
|---|
Audio Support | Yes: built-in microphone |
|---|
Audio Formats | G.711, G.722, G.726, AAC |
|---|
Form Factor | Bullet |
|---|
Connectivity Technology | Wired |
|---|
Width | 9.7 cm |
|---|
Depth | 23 cm |
|---|
Height | 8.8 cm |
|---|
Weight | 1 kg |
|---|
Camera
Type | Colour – Day&Night – fixed – vandal / weatherproof |
|---|
Digital Video Format | H.265+, H.265, H.264+, H.264, MJPEG |
|---|
Max Digital Video Resolution | 3840 x 2160 |
|---|
Motion Detection | Yes |
|---|
Exposure Range | 1 sec – 1/100000 sec |
|---|
Digital Video Capture Resolution | 3840 x 2160, 3200 x 1800, 2688 x 1520, 1920 x 1080, 1280 x 720, 704 x 576, 640 x 480, 640 x 360 |
|---|
Frame Rate (max) | 30 frames per second |
|---|
Image Sensor
Type | 8 MP Progressive Scan CMOS 1/2.65" |
|---|
Lens Construction
Type | Φ16 mount |
|---|
Focal Length | 2.7 mm – 13.5 mm |
|---|
Lens Iris | F/1.4 |
|---|
Interfaces
Network Interface | Ethernet 10Base-T/100Base-T |
|---|
Network Protocols | IPv4, IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, QOS, IGMP, ICMP, SSL, NFS, SMB, CIFS |
|---|
Expansion / Connectivity
Ports | LAN/power – RJ-45 |
|---|
Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
|---|
Miscellaneous
Compliant Standards | IP67, IK10 |
|---|
Power
Power Requirements | DC 12 V / PoE |
|---|
Dimensions & Weight (Shipping)
Environmental Parameters
Min Operating Temperature | -40 °C |
|---|
Max Operating Temperature | 60 °C |
|---|
Relative Humidity (operating) | 0 – 95% (non-condensing) |
|---|
