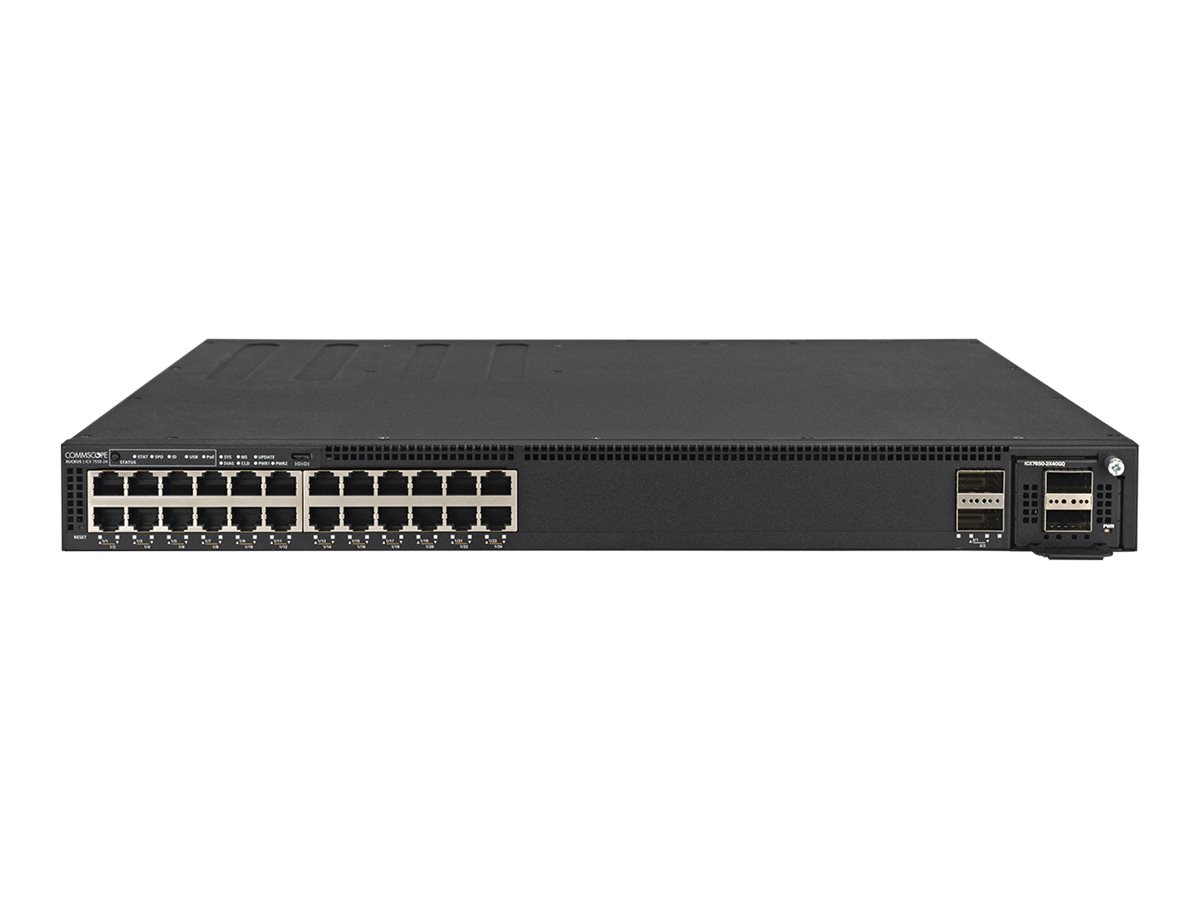

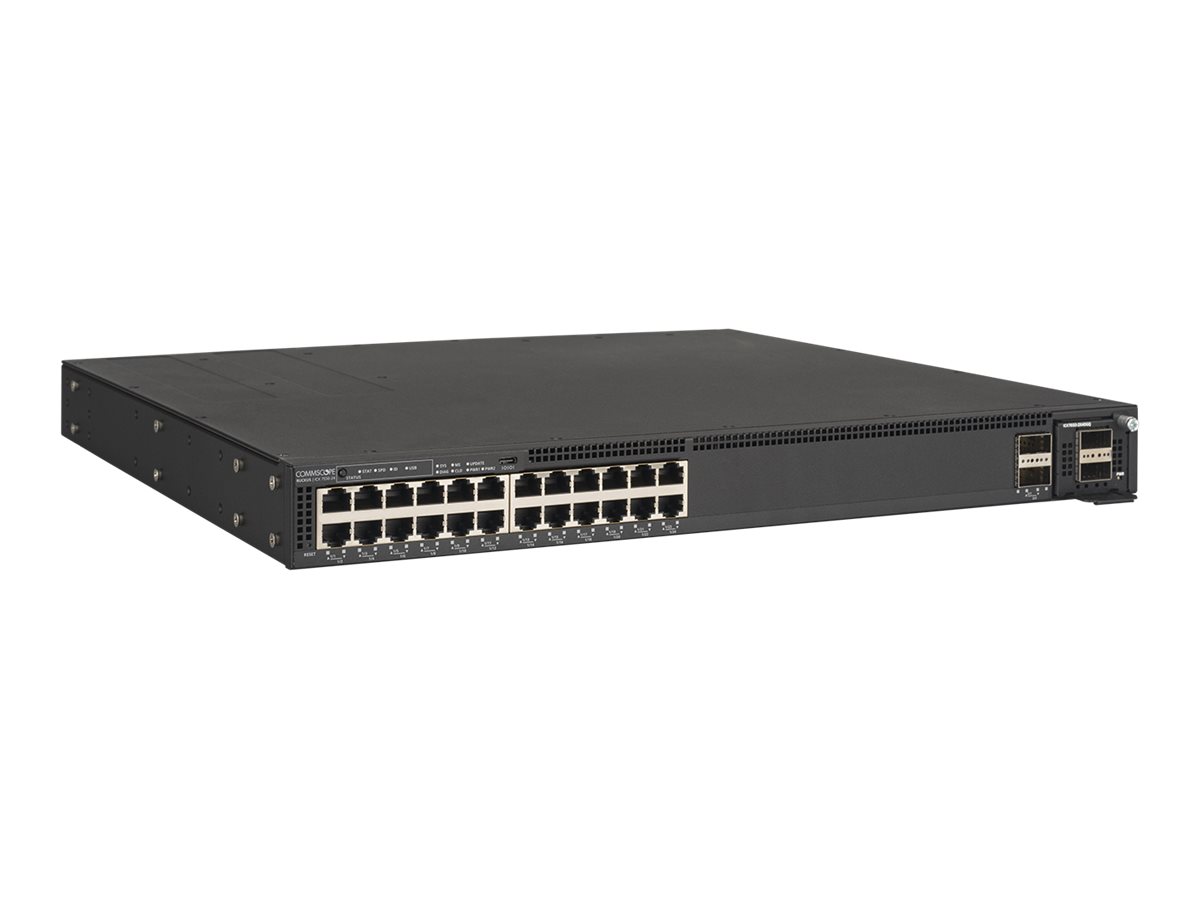

Ruckus ICX 7550-24, Switch, L3, Managed, 24 x 10/100/1000 + 4 x 40 Gigabit QSFP+ (uplink), rack-mountable
$6,619.14 inc GST
✕ Backorder - Email us for a lead time or ETA
✓ Free NZ Delivery
Available on back-order
Ships from: Auckland
- Allow 1–2 days for delivery to the North Island
- Allow 2–3 days for delivery to the South Island
- Add 1–2 days if you are rural
- Collection can be arranged
Description
The CommScope Ruckus ICX 7550 switch delivers the premium performance and scalability required for Wi-Fi 6 deployments and beyond with up to 48 ports of multigigabit connectivity and full 90 watts of 802.3bt PoE power per port with perpetual and fast-boot PoE support. The mid-market stackable switch is one of the first in its class to offer 100 GbE uplinks, enabling enterprises to dramatically increase their network capacity while using their existing optical wire infrastructure.
- Maximum flexibility with 1G/10G aggregation covers a broad range of deployment scenarios
- Optimized for Wi-Fi 6 deployments and beyond
- Power next generation PoE devices
- Advanced L3 routing delivers design flexibility
- Security and data privacy
- Redundant, load-sharing power supplies enhance availability
- Multigigabit network edge
Delivers the ultimate solution for Wi-Fi 6 access points Ethernet connectivity. - Gigabit Ethernet access
The ICX 7550 series offers traditional Gigabit Ethernet connectivity for legacy Wi-Fi access points, VoIP phones, printers, laptop and desktop computers. - Gigabit Ethernet support for uplink and stacking
Ensures maximum performance and eliminates any network bottleneck considering the multigigabit and GbE port density.
Main Specifications
Product Description | Ruckus ICX 7550-24 – switch – 24 ports – Managed – rack-mountable |
Device Type | Switch – 24 ports – L3 – Managed – stackable |
Enclosure Type | Rack-mountable 1U |
Subtype | Gigabit Ethernet |
Ports | 24 x 10/100/1000 + 4 x 40 Gigabit QSFP+ (uplink) |
Performance | Switching capacity: 368 Gbps Forwarding capacity: 274 Mpps Aggregate stacking bandwidth: 960 Gbps |
Capacity | Virtual interfaces (VLANs): 4095 PVLANs supported: 256 Maximum ports per trunk: 32 Trunk groups: 256 Spanning Tree Protocol instances: 512 Priority QoS queues: 48 Multicast groups: 8192 VRF instances: 128 |
Jumbo Frame Support | 12288 bytes |
Routing Protocol | RIP-1, RIP-2, static IPv4 routing, static IPv6 routing, ECMP |
Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH-2, CLI |
Features | Flow control, full duplex capability, BOOTP support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, MAC address filtering, LFS, MRP support, sFlow, PVST, PIM-SM snooping, RFN, VSRP support, VCT technology, MSTP support, DHCP snooping, ACL support, QoS, DOM support, DHCP server, MLD snooping, PVST+, UDLD, RSPAN, PVRST, GVRP, MVRP, NDP, CoS, SP, DoS, 802.1x authentication, PTP, MACsec support, OpenFlow support, SCP, VXLAN, MAC address authentication, NTP, AAA, Root Guard, Voice VLAN, Private VLAN, protected ports, ERSPAN, WRR, MAC based VLAN, Telnet server, Telnet client, BPDU Guard, Q-in-Q tunnelling, SmartZone, IPG adjustment, MAC Learning Disable, Port Loop Detection, Flexible authentication, Web authentication, CoA |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.3bz |
Power Redundancy | Yes |
Dimensions (WxDxH) | 44 cm x 40.64 cm x 4.4 cm |
Weight | 6.11 kg |
Extended Specifications
General
Device Type | Switch – 24 ports – L3 – Managed – stackable |
|---|---|
Enclosure Type | Rack-mountable 1U |
Subtype | Gigabit Ethernet |
Ports | 24 x 10/100/1000 + 4 x 40 Gigabit QSFP+ (uplink) |
Performance | Switching capacity: 368 Gbps Forwarding capacity: 274 Mpps Aggregate stacking bandwidth: 960 Gbps |
Capacity | Virtual interfaces (VLANs): 4095 PVLANs supported: 256 Maximum ports per trunk: 32 Trunk groups: 256 Spanning Tree Protocol instances: 512 Priority QoS queues: 48 Multicast groups: 8192 VRF instances: 128 |
Jumbo Frame Support | 12288 bytes |
Max Units In A Stack | 12 |
Routing Protocol | RIP-1, RIP-2, static IPv4 routing, static IPv6 routing, ECMP |
Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH-2, CLI |
Encryption Algorithm | AES |
Authentication Method | RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2) |
Features | Flow control, full duplex capability, BOOTP support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, MAC address filtering, LFS, MRP support, sFlow, PVST, PIM-SM snooping, RFN, VSRP support, VCT technology, MSTP support, DHCP snooping, ACL support, QoS, DOM support, DHCP server, MLD snooping, PVST+, UDLD, RSPAN, PVRST, GVRP, MVRP, NDP, CoS, SP, DoS, 802.1x authentication, PTP, MACsec support, OpenFlow support, SCP, VXLAN, MAC address authentication, NTP, AAA, Root Guard, Voice VLAN, Private VLAN, protected ports, ERSPAN, WRR, MAC based VLAN, Telnet server, Telnet client, BPDU Guard, Q-in-Q tunnelling, SmartZone, IPG adjustment, MAC Learning Disable, Port Loop Detection, Flexible authentication, Web authentication, CoA |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.3bz |
RAM | 4 GB |
Flash Memory | 4 GB |
Expansion / Connectivity
Interfaces | 24 x 1000Base-T RJ-45 4 x 40Gbit LAN QSFP+ uplink/stacking 1 x console RJ-45 1 x console (USB) Type C 1 x 1000Base-T RJ-45 management |
|---|---|
Expansion Slots | 1 (total) / 1 (free) x Expansion Slot |
Power
Power Device | Internal power supply (not installed) – hot-plug |
|---|---|
Max Supported Qty | 2 |
Power Redundancy | Yes |
Power Redundancy Scheme | 1+1 (with optional power supply) |
Miscellaneous
MTBF | 319,662 hours |
|---|---|
Compliant Standards | EN 61000-3-2, ICES-003, EN 61000-3-3, EN55024, EN 61000-6-1, EN 61000-4-4, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, UL 60950-1, IEC 60950-1, WEEE, RoHS, EN 61000-6-3, FCC Part 15 A, EN 60825-1, CAN/CSA C22.2 No. 60950-1-07, VCCI Class A, EN 60950-1:2006, IEC 68-2-6, AS/NZS 55022, IEC 68-2-36, EN 55022/CISPR 22 Class A, IEC 68-2-32, IEC 68-2-27 |
Dimensions & Weight
Width | 44 cm |
|---|---|
Depth | 40.64 cm |
Height | 4.4 cm |
Weight | 6.11 kg |
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|---|
Max Operating Temperature | 45 °C |
Humidity Range Operating | 10 – 90% (non-condensing) |
Min Storage Temperature | -40 °C |
Max Storage Temperature | 70 °C |
Humidity Range Storage | 5 – 95% (non-condensing) |
