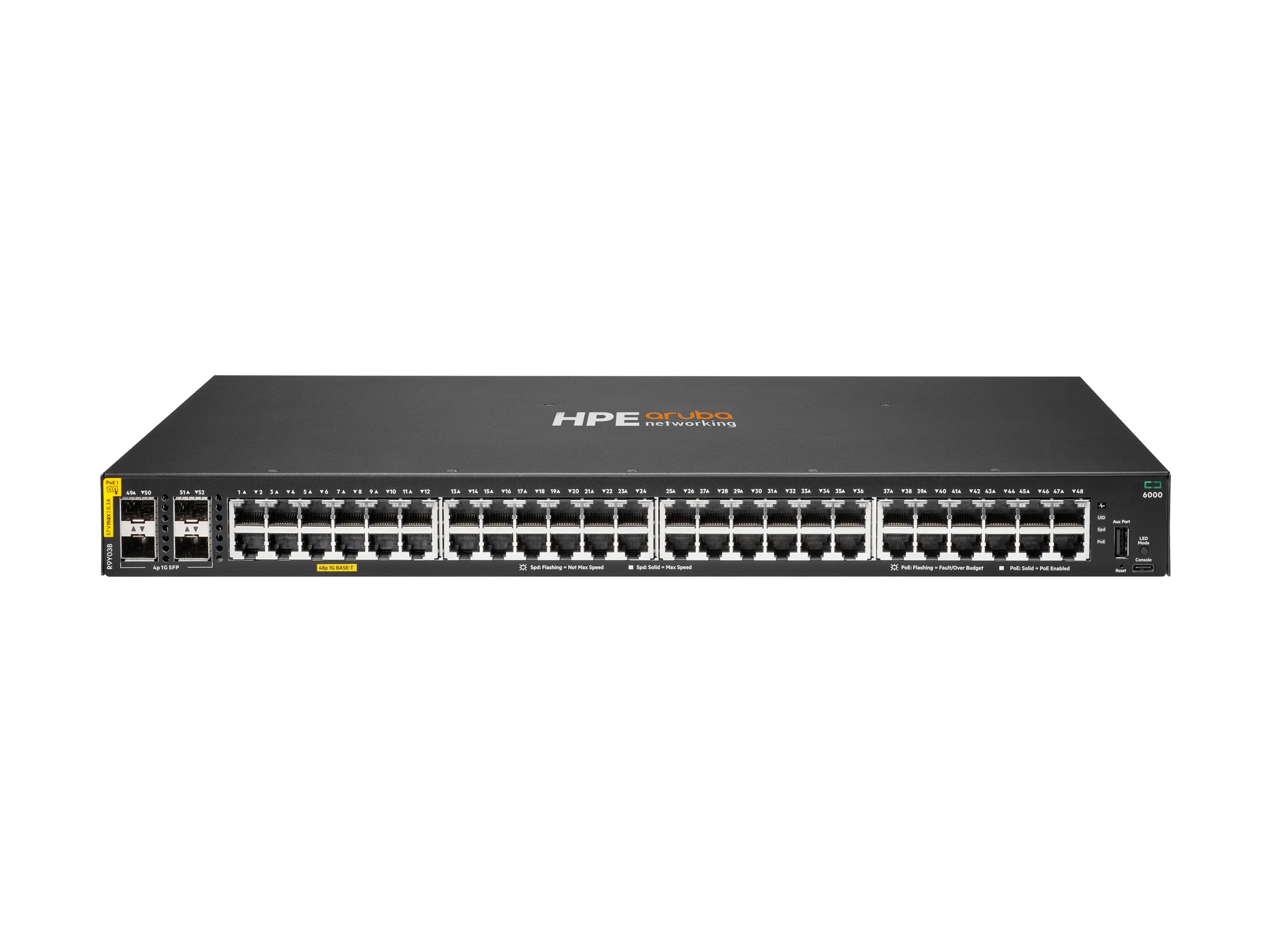

HPE Aruba Networking CX 6000 48p 10M/100M/1G Class4 PoE 4p SFP 1G 740W Switch, Switch, Managed, 48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink), side to side airflow, rack-mountable, wall-mountable, PoE+ (740 W), BTO
$6,443.52 inc GST
✕ Backorder - Email us for a lead time or ETA
✓ Free NZ Delivery
Available on back-order
Ships from: Auckland
- Allow 1–2 days for delivery to the North Island
- Allow 2–3 days for delivery to the South Island
- Add 1–2 days if you are rural
- Collection can be arranged
Description
The HPE Aruba Networking CX 6000 48p 10M/100M/1G Class4 PoE 4p SFP 1G 740W Switch provides a reliable networking solution equipped with 48 10/100/1000 Base-T (PoE+) ports and 4 Gigabit SFP uplink ports. Its switching capacity of 104 Gbps supports a range of data flows, making it suitable for diverse networking needs. With a power budget of 740 W, this switch enables efficient power over Ethernet functionality for connected devices. The rack-mountable and wall-mountable design enhances deployment options for different environments, ensuring adaptability to various setups.
Engineered for performance, it features a minimum operating temperature of 0°C and can withstand conditions up to 45°C. Coupled with a range of security measures, including SSL encryption and multiple authentication methods, the switch ensures secure and efficient management of network traffic. This makes the HPE Aruba Networking CX 6000 Switch a practical choice for businesses looking to enhance their networking infrastructure with reliable performance and scalability.
- 48 10/100/1000 Base-T (PoE+) ports for versatile connectivity
- 740 W power over Ethernet budget for powering devices
- 104 Gbps switching capacity for efficient data handling
- Robust security features including SSL encryption
- Flexible rack-mountable and wall-mountable design
- High capacity packet buffer size
With a packet buffer size of 12.38 MB, this switch ensures smooth data transmission and optimized performance during peak usage. - Versatile environmental tolerance
Designed for various environments, it operates effectively in temperatures ranging from 0°C to 45°C and can withstand storage temperatures from -40°C to 70°C. - Extensive management protocols
Support for MIB, CLI, RMON, and SNMP management protocols enables remote management capabilities, enhancing network monitoring and configuration. - Robust routing and switching features
Equipped with IGMP and MLD routing protocols and layer 2 switching capabilities ensures efficient traffic management in networking environments. - Secure authentication methods
Utilizing multiple secure authentication methods including RADIUS and TACACS+, this switch provides essential security for network access.
Main Specifications
Product Description | HPE Aruba Networking CX 6000 48p 10M/100M/1G Class4 PoE 4p SFP 1G 740W Switch – switch – 48 ports – Managed – rack-mountable |
Device Type | Switch – 48 ports – Managed |
Enclosure Type | Side to side airflow rack-mountable 1U |
Subtype | Gigabit Ethernet |
Ports | 48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink) |
Power Over Ethernet (PoE) | PoE+ |
PoE Budget | 740 W |
Performance | Switching capacity: 104 Gbps Throughput: 77.3 Mpps Latency (1 Gbps): 1.9 µs |
Capacity | Packet buffer size: 12.38 MB Switched virtual interfaces (SVIs) (dual stack): 16 IPv4 host table capacity: 1024 IPv6 host table (ND): 512 IPv4 routes (Unicast): 512 IPv6 routes (Unicast): 512 IGMP groups: 512 MLD groups: 512 IPv4 ACL entries (ingress): 1914 IPv6 ACL entries (ingress): 957 MAC ACL entries (ingress): 1914 |
MAC Address Table Size | 8192 entries |
Jumbo Frame Support | 9198 bytes |
Routing Protocol | IGMP, IGMPv2, IGMPv3, MLD, MLDv2 |
Remote Management Protocol | MIB, CLI, RMON, SNMP, SNMP 2, SNMP 3 |
Features | PoE Class 4, CoS, ToS, TPM, Layer 2 switching, Address Resolution Protocol, LLDP, UTM, UDLD, RPVST+, RSTP support, MSTP support |
Compliant Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3x, IEEE 802.3az |
Power | AC 100-127/200-240 V (50/60 Hz) |
Dimensions (WxDxH) | 44.25 cm x 30.44 cm x 4.39 cm |
Weight | 4.33 kg |
System Requirements | AOS-CX |
Pricing Type | BTO |
Extended Specifications
General
Device Type | Switch – 48 ports – Managed |
|---|---|
Enclosure Type | Side to side airflow rack-mountable, wall-mountable 1U |
Subtype | Gigabit Ethernet |
Ports | 48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink) |
Power Over Ethernet (PoE) | PoE+ |
PoE Budget | 740 W |
Performance | Switching capacity: 104 Gbps Throughput: 77.3 Mpps Latency (1 Gbps): 1.9 µs |
Capacity | Packet buffer size: 12.38 MB Switched virtual interfaces (SVIs) (dual stack): 16 IPv4 host table capacity: 1024 IPv6 host table (ND): 512 IPv4 routes (Unicast): 512 IPv6 routes (Unicast): 512 IGMP groups: 512 MLD groups: 512 IPv4 ACL entries (ingress): 1914 IPv6 ACL entries (ingress): 957 MAC ACL entries (ingress): 1914 |
MAC Address Table Size | 8192 entries |
Jumbo Frame Support | 9198 bytes |
Routing Protocol | IGMP, IGMPv2, IGMPv3, MLD, MLDv2 |
Remote Management Protocol | MIB, CLI, RMON, SNMP, SNMP 2, SNMP 3 |
Encryption Algorithm | SSL |
Authentication Method | RADIUS, TACACS+, Secure Shell (SSH), Secure Shell v.2 (SSH2) |
Features | PoE Class 4, CoS, ToS, TPM, Layer 2 switching, Address Resolution Protocol, LLDP, UTM, UDLD, RPVST+, RSTP support, MSTP support |
Compliant Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3x, IEEE 802.3az |
Processor | 1 x ARM Cortex-A9: 1.016 GHz |
RAM | 2 GB DDR3 SDRAM |
Flash Memory | 8 GB |
Expansion / Connectivity
Interfaces | 48 x 10/100/1000 Base-T (PoE+) RJ-45 PoE Class 4 4 x Gigabit LAN SFP uplink 1 x USB-C console 1 x USB Type A host |
|---|
Power
Power Device | Internal power supply |
|---|---|
Power Provided | 950 watt |
Voltage Required | AC 100-127/200-240 V (50/60 Hz) |
Power Consumption Stand by | 28.8 watt |
Miscellaneous
Rack Mounting Kit | Included |
|---|---|
Compliant Standards | IEC/EN 62368-1:2014, IEC/EN 62368-1:2018, UL 62368-1:2019 Ed.3, CSA C22.2 No. 62368-1:19 Third Edition, CNS 15598:2020, KC 62386-1:2021, VCCI-CISPR 32 Class A, CNS 15936 Class A, FCC CFR 47 Part 15 Class A, EN 55032:2015/A11:2020, CISPR-32 Class A, ICES-003 Issue 7: 2020 Class A, AS/NZS CISPR 32:2015 Class A, IEC/EN 60825-1:2014 Class 1, Laser Class 1, CISPR 35: 2016, EN 55035:2017/A11:2020, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, EN 61000-3-2, IEC 61000-3-2, EN 61000-3-3, IEC 61000-3-3 |
Pricing Type | BTO |
Software / System Requirements
OS Required | AOS-CX |
|---|
Dimensions & Weight
Width | 44.25 cm |
|---|---|
Depth | 30.44 cm |
Height | 4.39 cm |
Weight | 4.33 kg |
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|---|
Max Operating Temperature | 45 °C |
Humidity Range Operating | 5 – 95% (non-condensing) |
Min Storage Temperature | -40 °C |
Max Storage Temperature | 70 °C |
Humidity Range Storage | 5 – 90% (non-condensing) |
