Mercusys Halo H80X V2.2, Wi-Fi system, (3 routers), up to 650 sq.m, mesh 1GbE Dual Band
$352.15 inc GST
✓ In Stock - 6 available
✓ Free NZ Delivery
6 in stock
- Allow 2–3 days for delivery to the North Island
- Allow 1–2 days for delivery to the South Island
- Add 1–2 days if you are rural
- Collection can be arranged
Description
The Mercusys Halo H80X V2.2 offers a Wi-Fi system that supports both wired and wireless connectivity, ensuring a seamless Internet experience for numerous connected devices. Designed to handle over 150 connected devices simultaneously, this system delivers data transfer rates of up to 3 Gbps. The integrated 3-port switch and features such as parental control and MU-MIMO technology enhance network bandwidth and optimize performance across devices.
Operating efficiently in a range of temperatures from 0°C to 40°C, the Halo H80X V2.2 is engineered for reliable performance in various environments. Supporting Wi-Fi 6 standards, along with backward compatibility to previous protocols, this system is prepared for the future of connectivity. With features like Quality of Service (QoS), BSS Coloring, and a guest network, it provides flexibility and control for users managing home or office networks.
- Supports simultaneous connectivity for over 150 devices
- Data transfer rate of up to 3 Gbps
- Features parental control and guest network options
- Equipped with advanced wireless and wired technology
- Designed to operate reliably in various environmental conditions
- Robust connectivity
The device supports both wired and wireless connections, ensuring that users can enjoy high-speed Internet on multiple devices without interruption. - High performance
With a maximum data rate of 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz, the Halo H80X V2.2 delivers speed for gaming, streaming, and browsing. - Advanced network management
Features like parental control, DHCP server, and remote management allow for easier monitoring and control of the network environment. - Enhanced coverage
Offering coverage of up to 270 sq.m, this system is designed to provide strong Wi-Fi signals throughout your home or office. - Secure connections
Equipped with WPA3 encryption and a Stateful Packet Inspection Firewall, the Halo H80X V2.2 ensures that your network remains secure and protected.
Main Specifications
Product Description | Mercusys Halo H80X V2.2 – Wi-Fi system – Wi-Fi 6 – desktop |
Device Type | Wi-Fi system – mesh |
Enclosure Type | Desktop |
Wi-Fi System Components | 3 routers |
Wi-Fi System Coverage | Up to 650 sq.m |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6) |
Frequency Band | 2.4 GHz / 5 GHz |
Data Transfer Rate | 3 Gbps |
Performance | Maximum data rate (2.4 GHz): 574 Mbps Maximum data rate (5 GHz): 2402 Mbps Channel bandwidth: 160 MHz |
Capacity | Connected devices: 150+ |
Network / Transport Protocol | PPTP, L2TP, PPPoE, DHCP, IPv4, IPv6 |
Routing Protocol | Static IP routing |
Remote Management Protocol | DHCP |
Features | Auto-sensing per device, parental control, Access Point operational mode, WMM support, QoS, DHCP server, reset button, SPIF, DHCP client, MU-MIMO technology, beamforming technology, router mode, remote access management, BSS Coloring, Guest Network |
Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11k, IEEE 802.11ac, IEEE 802.11r, IEEE 802.11v, IEEE 802.11ax, Wi-Fi CERTIFIED 6 |
Dimensions (WxDxH) | 12.8 cm x 8.1 cm x 8.37 cm |
Documents
Extended Specifications
Line Properties
Line Coding Format | OFDM, 1024 QAM, OFDMA |
|---|
Expansion / Connectivity

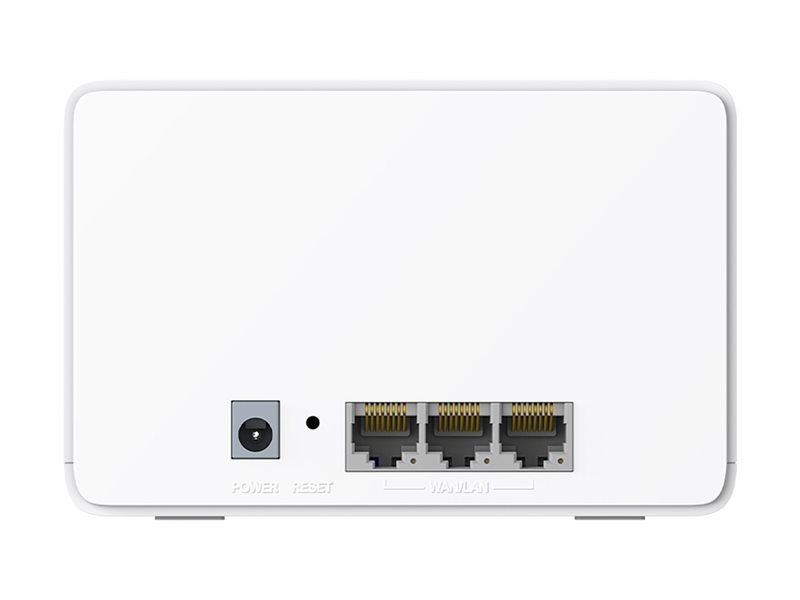

Interfaces | WAN / LAN: 3 x 1000Base-T – RJ-45 |
|---|
Aerial
Aerial | Internal |
|---|
Power
Power Device | External power adapter |
|---|---|
Installed Qty | 3 |
Miscellaneous
Cables Included | 1 x network cable |
|---|
Dimensions & Weight
Width | 12.8 cm |
|---|---|
Depth | 8.1 cm |
Height | 8.37 cm |
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|---|
Max Operating Temperature | 40 °C |
Humidity Range Operating | 10 – 90% (non-condensing) |
General
Device Type | Wi-Fi system – mesh – 3-port switch (integrated) |
|---|---|
Wi-Fi System Components | 3 routers |
Wi-Fi System Coverage | Up to 650 sq.m |
Enclosure Type | Desktop |
Connectivity Technology | Wireless, wired |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6) |
Frequency Band | 2.4 GHz / 5 GHz |
Data Transfer Rate | 3 Gbps |
Performance | Maximum data rate (2.4 GHz): 574 Mbps Maximum data rate (5 GHz): 2402 Mbps Channel bandwidth: 160 MHz |
Capacity | Connected devices: 150+ |
Network / Transport Protocol | PPTP, L2TP, PPPoE, DHCP, IPv4, IPv6 |
Routing Protocol | Static IP routing |
Remote Management Protocol | DHCP |
Encryption Algorithm | WPA-PSK, WPA2-PSK, WPA3 |
Wi-Fi Rating | AX3000 |
Mesh Networking | Yes |
Features | Auto-sensing per device, parental control, Access Point operational mode, WMM support, QoS, DHCP server, reset button, SPIF, DHCP client, MU-MIMO technology, beamforming technology, router mode, remote access management, BSS Coloring, Guest Network |
Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11k, IEEE 802.11ac, IEEE 802.11r, IEEE 802.11v, IEEE 802.11ax, Wi-Fi CERTIFIED 6 |
