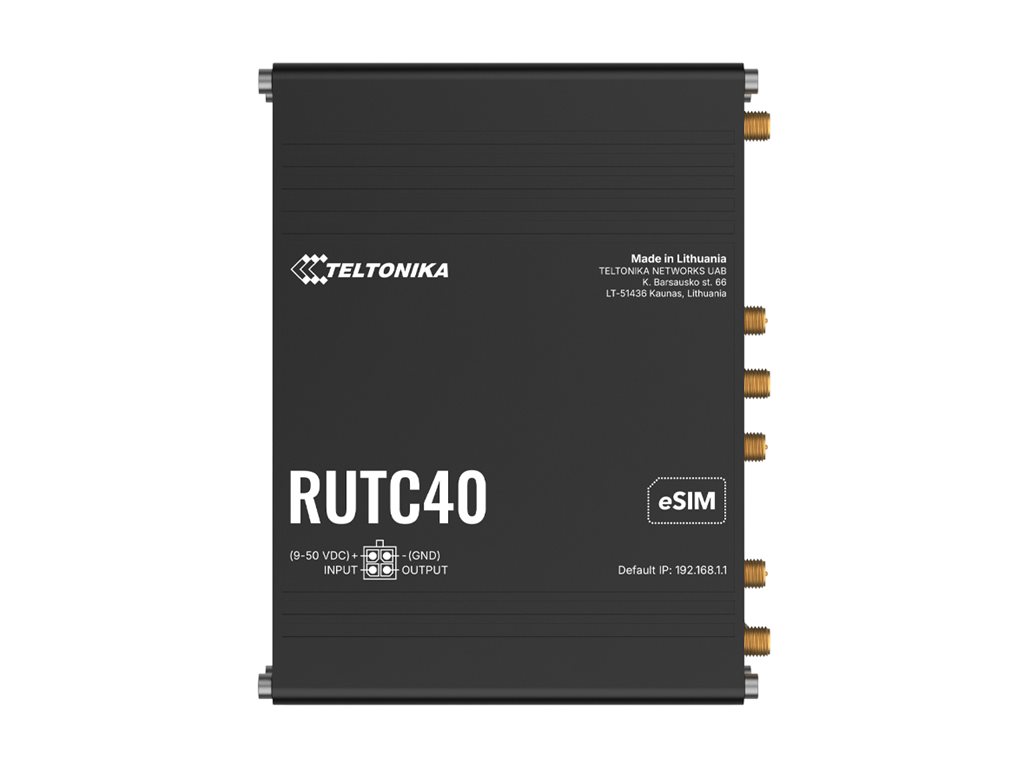

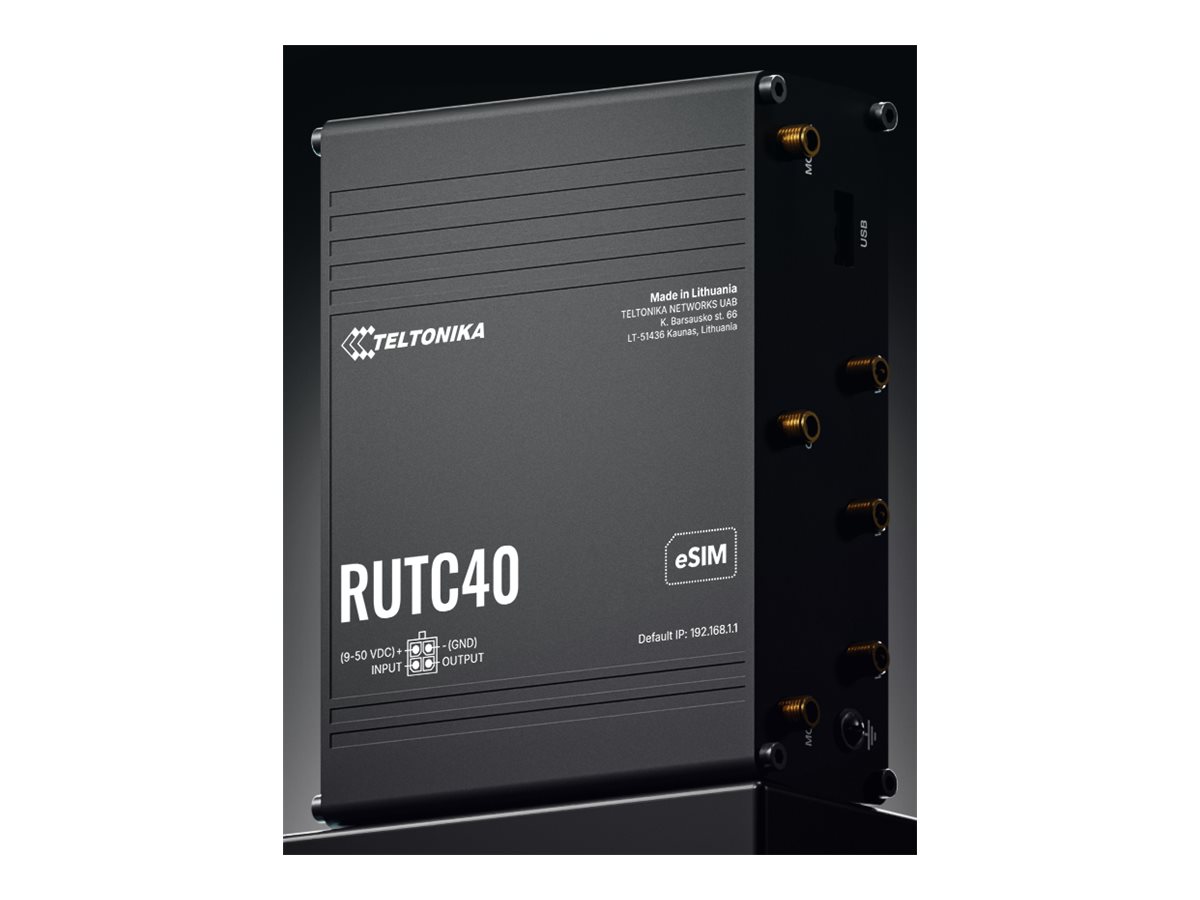

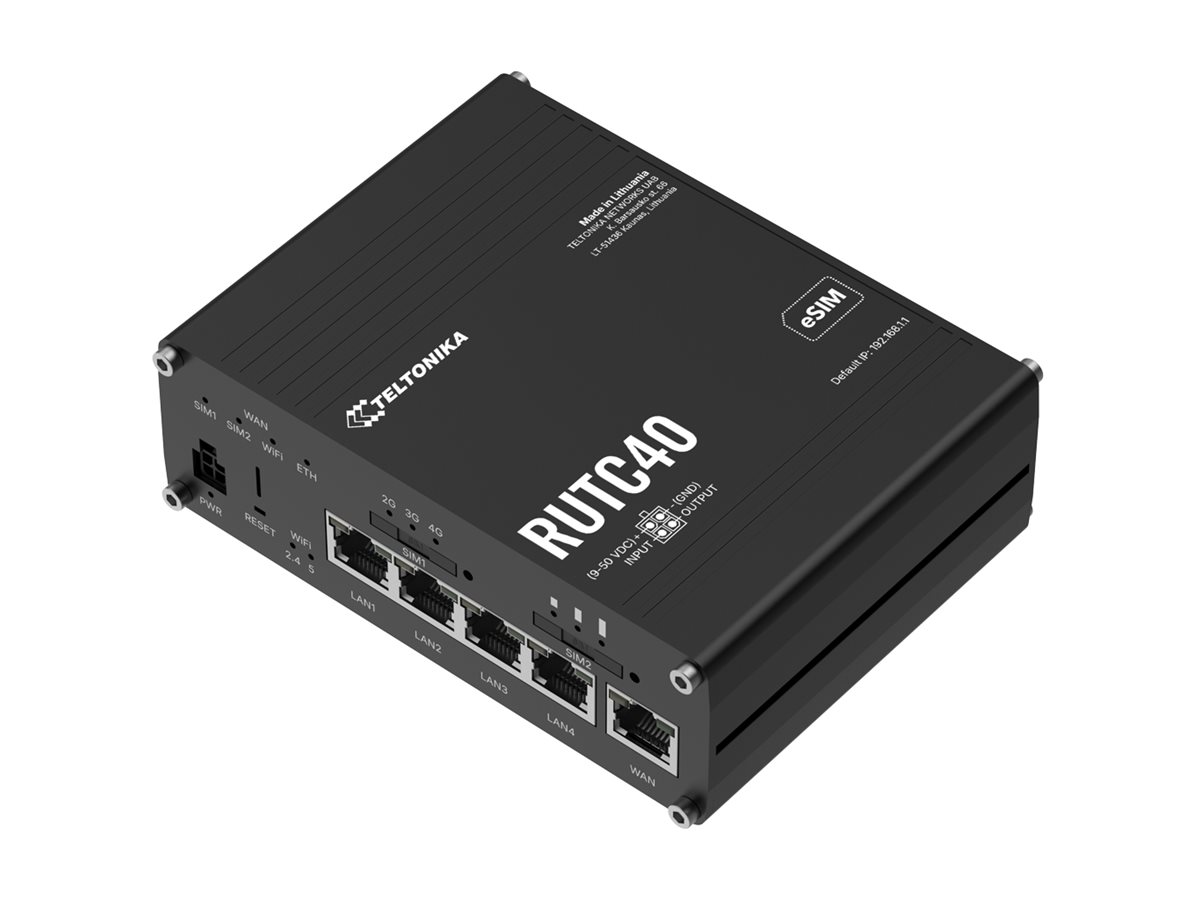

Teltonika RUTC40, Wireless router, WWAN 4-port switch, 1GbE, PPP Dual Band, 3G, 4G, 2G, DIN rail mountable, wall-mountable, surface-mountable
$898.69 inc GST
✓ In Stock - 10 available
✓ Free NZ Delivery
10 in stock
Ships from: Christchurch
- Allow 2–3 days for delivery to the North Island
- Allow 1–2 days for delivery to the South Island
- Add 1–2 days if you are rural
- Collection can be arranged
Description
The Teltonika RUTC40 is a versatile wireless router designed to meet the demands of modern connectivity. With a maximum Wi-Fi user capacity of 512, it allows multiple devices to connect seamlessly, making it ideal for both home and business environments. This router operates efficiently in extreme temperatures ranging from -40°C to 75°C, ensuring reliable performance in any setting.
Featuring a robust design, the RUTC40 includes a 4-port integrated switch and supports various networking protocols, including 802.11a/b/g/n/ac/ax. With advanced security measures like WPA3 and VPN support, users can enjoy secure connections and data protection. The RUTC40 is also IoT-compatible, making it a suitable choice for smart homes and businesses looking to integrate advanced technologies.
- Supports a maximum Wi-Fi user capacity of 512
- Operates in extreme temperatures from -40°C to 75°C
- Equipped with a 4-port integrated switch for versatile connectivity
- Advanced security features including WPA3 and VPN support
- IoT-compatible for smart home and business applications
- Reliable performance in extreme environments
The RUTC40 operates effectively in temperatures between -40°C and 75°C, making it suitable for various outdoor and industrial applications. - Enhanced connectivity options
With one WAN port, four LAN ports, and two USB 2.0 ports, the RUTC40 provides multiple connectivity options tailored to various networking needs. - Robust security features
The router offers advanced encryption protocols such as WPA3, ensuring that user data remains secure while providing support for VPN connectivity. - Broadband connectivity support
Compatible with 2G, 3G, and 4G networks, the RUTC40 provides flexible mobile broadband options to suit different environments. - User-friendly management
Features like DHCP server management and Teltonika Remote Management System (RMS) allow easy configuration and remote monitoring of the network.
Main Specifications
Product Description | Teltonika RUTC40 – wireless router – WWAN – Wi-Fi 6 – 3G, 4G, 2G – DIN rail mountable, wall-mountable, surface-mountable |
Device Type | Wireless router – wireless cellular modem – 4-port switch (integrated) |
Enclosure Type | DIN rail mountable, wall-mountable, surface-mountable |
Mobile Communication Protocol | FDD LTE, TDD LTE |
Generation | 3G, 4G, 2G |
Cellular Band | LTE B1, LTE B3, LTE B5, LTE B7, LTE B8, LTE B20, LTE B28, LTE B38, LTE B40, LTE B41 |
WAN Ports Qty | 1 |
Data Link Protocol | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Ethernet, Fast Ethernet, Gigabit Ethernet, PPP |
Frequency Band | 2.4 GHz / 5 GHz |
Capacity | Maximum WiFi user capacity: 512 |
Network / Transport Protocol | TCP, UDP, IPv4, IPv6, NTP, DNS, HTTP, HTTPs, SFTP, FTP, SMTP, ARP, PPPoE, IPSec |
Routing Protocol | Static IP routing, BGP, OSPFv2, RIP-1, RIP-2, EIGRP, NHRP, policy-based routing (PBR), VRRP, VXLAN |
Platform | Cumulocity, ThingWorx, Azure IoT Hub, AWS IoT Core |
Remote Management Protocol | SSH, DHCP, Telnet, SMPP, SNMP, MQTT, ICMP, SNMP 1, SNMP 2, SNMP 3, HTTP, HTTPS, TR-069, JSON-RPC, CLI |
VoIP Protocols | H.323, SIP |
Features | 3GPP Release 9, RSSI support, USSD support, allow/block list, auto APN, band management, bridge mode, multiple PDN, SIM idle protection service, SIM PIN management, MU-MIMO technology, protected management frames, ESSID stealth mode, auto-uplink (auto MDI/MDI-X), WOL, DHCP relay, DHCP server, QoS, WMM Admission Control, Teltonika RMS, FOTA, reset button, anodised aluminium housing, DNP3 outstation, DNP3 station, H.323 Pass-Through, DDoS Protection, port-based VLAN, tagged VLAN, SSHFS support, Tailscale encryption, Tinc encryption, DMVPN, SSTP client instance support, WireGuard, ZeroTier VPN client support, GRE tunneling, Docker Support, eSIM support |
Compliant Standards | IEEE 802.11w, IEEE 802.11s, IEEE 802.11k, IEEE 802.11r, IEEE 802.11v, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, UPnP, IEEE 802.11e |
Power | DC 9 – 50 V |
Dimensions (WxDxH) | 13.04 cm x 10.4 cm x 4.26 cm |
Weight | 480 g |
Documents
Extended Specifications
General
Device Type | Wireless router – 4-port switch (integrated) |
|---|---|
Enclosure Type | DIN rail mountable, wall-mountable, surface-mountable |
Connectivity Technology | Wired, wireless |
Data Link Protocol | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Ethernet, Fast Ethernet, Gigabit Ethernet, PPP |
Frequency Band | 2.4 GHz / 5 GHz |
Capacity | Maximum WiFi user capacity: 512 |
Network / Transport Protocol | TCP, UDP, IPv4, IPv6, NTP, DNS, HTTP, HTTPs, SFTP, FTP, SMTP, ARP, PPPoE, IPSec |
Routing Protocol | Static IP routing, BGP, OSPFv2, RIP-1, RIP-2, EIGRP, NHRP, policy-based routing (PBR), VRRP, VXLAN |
Remote Management Protocol | SSH, DHCP, Telnet, SMPP, SNMP, MQTT, ICMP, SNMP 1, SNMP 2, SNMP 3, HTTP, HTTPS, TR-069, JSON-RPC, CLI |
Encryption Algorithm | WPA2-Enterprise, PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE, AES-CCMP, TKIP, EAP-TLS, PKCS#12, TLS, SSL, RC2, DESX, CAST5, 128-bit AES-CBC, 192-bit AES-CBC, 256-bit AES-CBC, IKEv1, IKEv2, MODBUS, 128-bit AES, 192-bit AES, 256-bit AES |
Authentication Method | RADIUS, TACACS+, Secure Shell (SSH), Secure Shell v.2 (SSH2), X.509 certificates |
Features | 3GPP Release 9, RSSI support, USSD support, allow/block list, auto APN, band management, bridge mode, multiple PDN, SIM idle protection service, SIM PIN management, MU-MIMO technology, protected management frames, ESSID stealth mode, auto-uplink (auto MDI/MDI-X), WOL, DHCP relay, DHCP server, QoS, WMM Admission Control, Teltonika RMS, FOTA, reset button, anodised aluminium housing, DNP3 outstation, DNP3 station, H.323 Pass-Through, DDoS Protection, port-based VLAN, tagged VLAN, SSHFS support, Tailscale encryption, Tinc encryption, DMVPN, SSTP client instance support, WireGuard, ZeroTier VPN client support, GRE tunneling, Docker Support, eSIM support |
Compliant Standards | IEEE 802.11w, IEEE 802.11s, IEEE 802.11k, IEEE 802.11r, IEEE 802.11v, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, UPnP, IEEE 802.11e, 3GPP Release 9, IP30, REACH, RoHS, UKCA, CB, WEEE |
Processor | 1 x MediaTek Cortex-A53 1.3 GHz |
RAM | 1 GB DDR4 SDRAM |
Flash Memory | 16 MB |
Status Indicators | WAN, mobile network type, signal strength, LAN, power, 2.4 GHz, 5 GHz |
Communications
Type | Wireless cellular modem |
|---|---|
Mobile Communication Protocol | FDD LTE, TDD LTE |
Generation | 3G, 4G, 2G |
Cellular Band | LTE B1, LTE B3, LTE B5, LTE B7, LTE B8, LTE B20, LTE B28, LTE B38, LTE B40, LTE B41 |
Max Transfer Rate | 150 Mbps |
IP Telephony
VoIP Protocols | H.323, SIP |
|---|
Internet of Things (IoT)
Internet of Things (IoT) Compatible | Yes |
|---|---|
Platform | Cumulocity, ThingWorx, Azure IoT Hub, AWS IoT Core |
Expansion / Connectivity

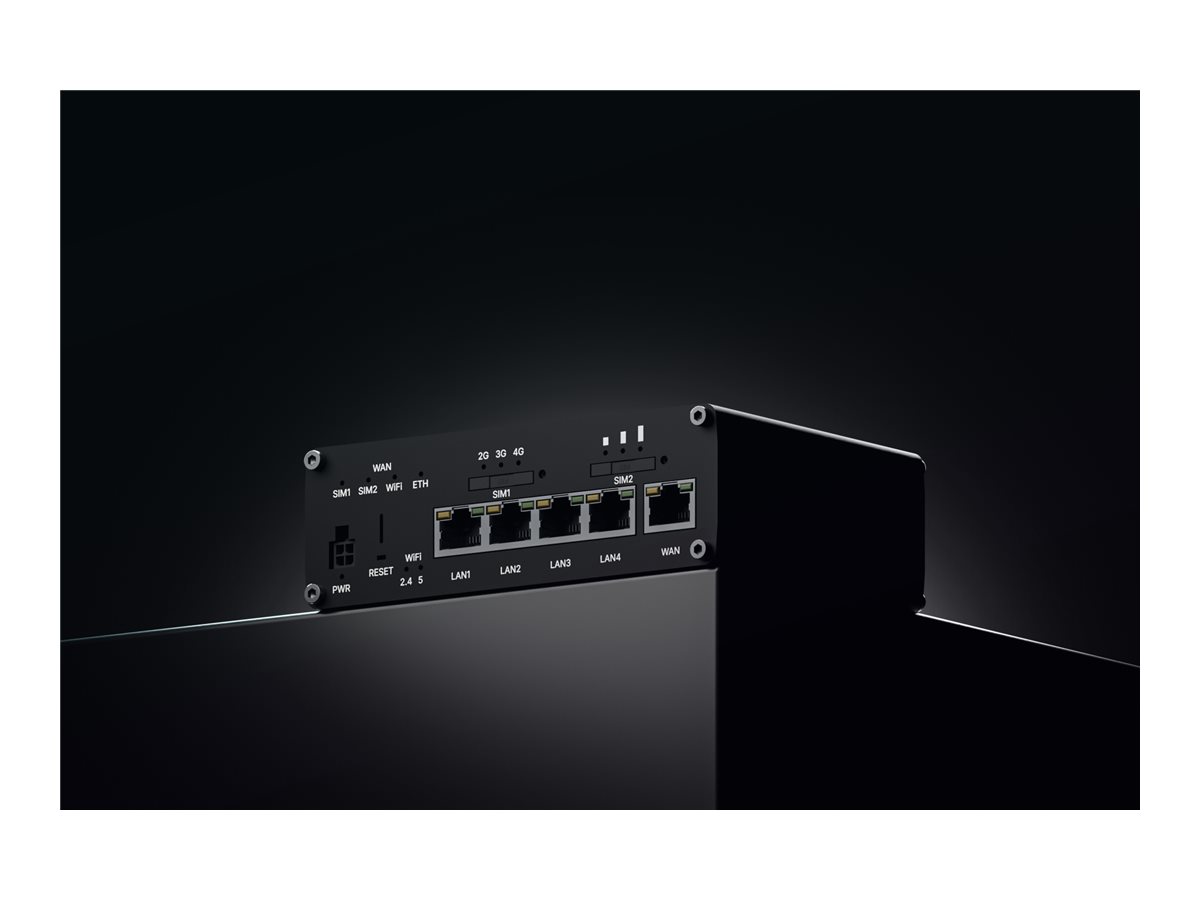

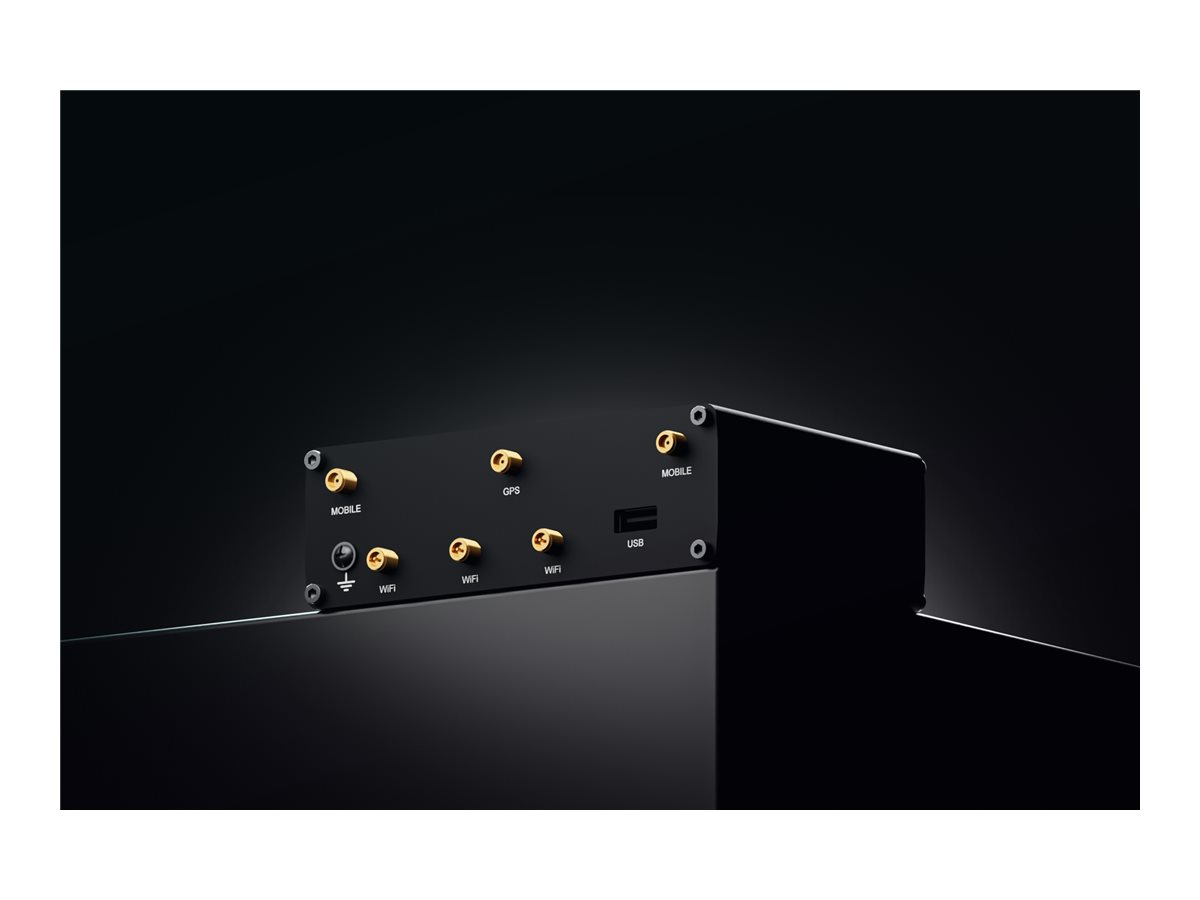

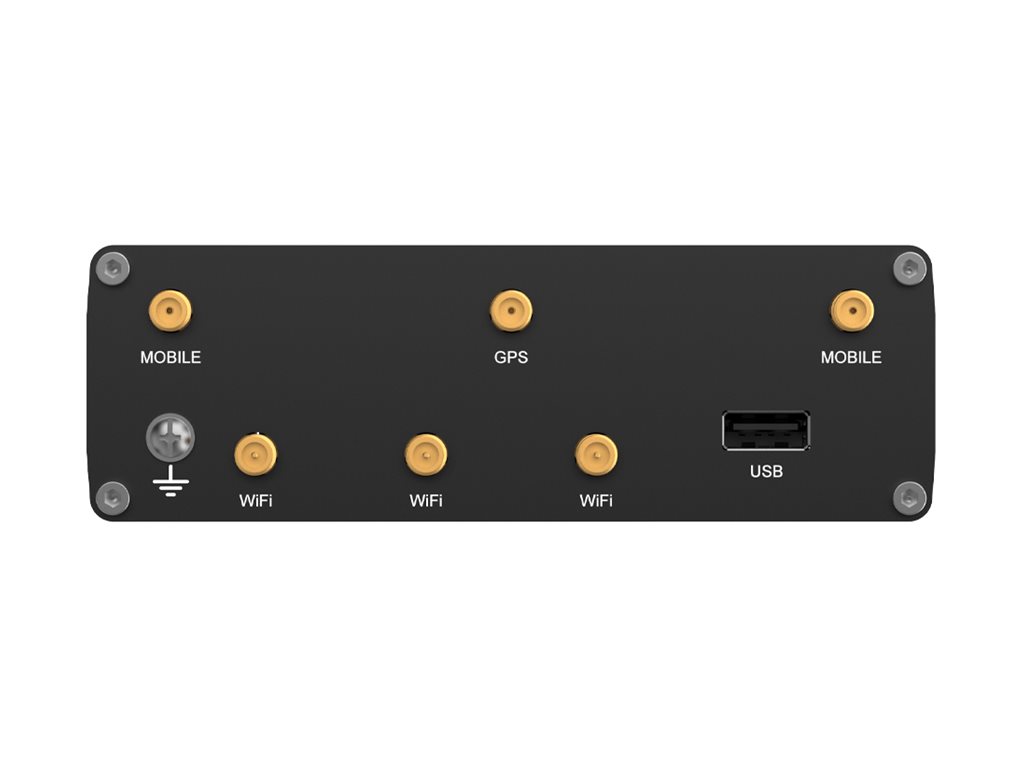

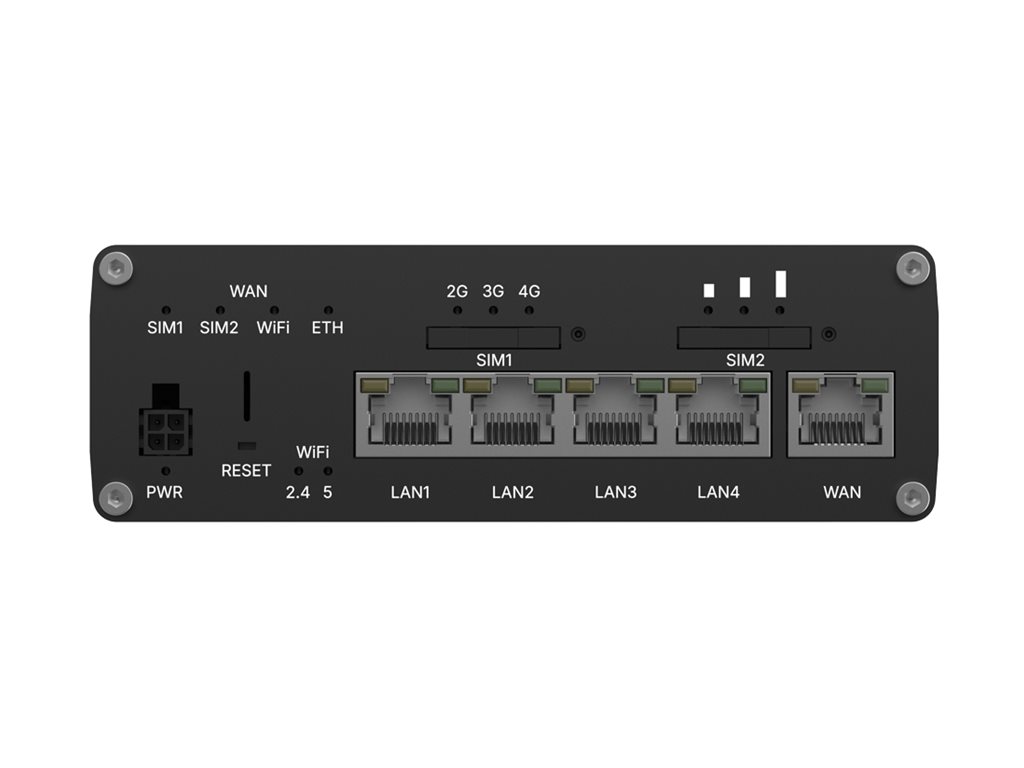

Interfaces | WAN: 1 x 10Base-T/100Base-TX/1000Base-T – RJ-45 LAN: 4 x 10Base-T/100Base-TX/1000Base-T – RJ-45 1 x DI – 4 pin power 1 x DO – 4 pin power USB 2.0: 1 x 4 pin USB Type A Antenna: 2 x SMA – mobile Antenna: 3 x RP-SMA – Wi-Fi |
|---|---|
Expansion Slots | 2 (total) / 2 (free) x Mini-SIM |
Power
Power Device | External power adapter |
|---|---|
Voltage Required | DC 9 – 50 V |
Power Consumption Operational | 5.6 watt |
Miscellaneous
Included Accessories | Power adapter (EU), SIM card adapter kit |
|---|---|
Cables Included | Network cable – 1.5 m |
Software / System Requirements
OS Provided | RutOS |
|---|
Dimensions & Weight
Width | 13.04 cm |
|---|---|
Depth | 10.4 cm |
Height | 4.26 cm |
Weight | 480 g |
Environmental Parameters
Min Operating Temperature | -40 °C |
|---|---|
Max Operating Temperature | 75 °C |
Humidity Range Operating | 10 – 90% (non-condensing) |
