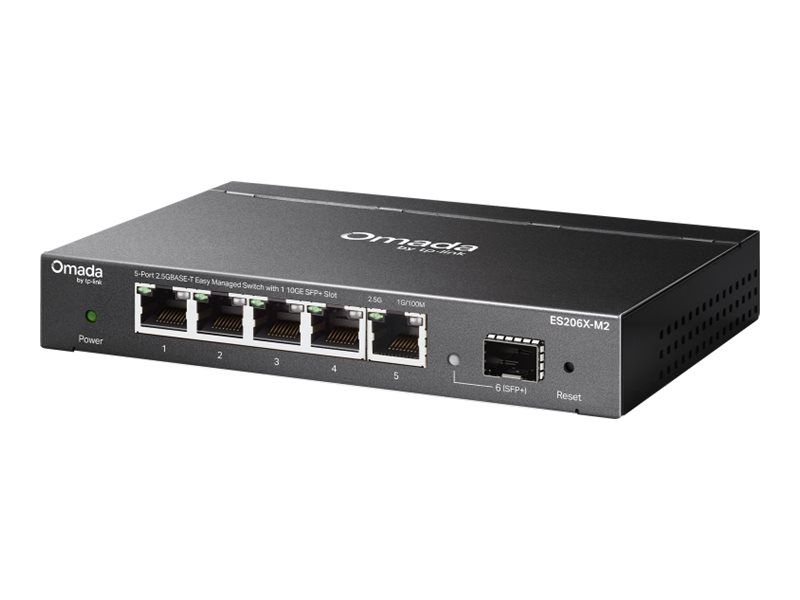

TP-Link Omada ES206X-M2 V1, Switch, Managed, 5 x 10/100/1000/2.5G + 1 x 10 Gigabit SFP+, desktop, wall-mountable
$144.82 inc GST
✓ In Stock - 5 available
✓ Free NZ Delivery
5 in stock
Ships from: Auckland
- Allow 1–2 days for delivery to the North Island
- Allow 2–3 days for delivery to the South Island
- Add 1–2 days if you are rural
- Collection can be arranged
Description
The TP-Link Omada ES206X-M2 V1 is a versatile 2.5 Gigabit Ethernet switch designed for both desktop and wall-mountable applications. With a switching capacity of 45 Gbps and a packet forwarding rate of 33.48 Mpps, it efficiently manages data flow to optimize network performance. This switch supports up to 4000 VLANs and features 8 priority queues, making it suitable for a variety of networking needs. Equipped with 5 ports that support 10/100/1000/2.5G and an additional 10 Gigabit SFP+ port, it offers flexible connectivity options for diverse environments. The robust device is built with a fanless design and a sturdy metal housing, ensuring durability and silent operation even in demanding conditions while providing convenient features like VLAN support, Quality of Service (QoS), and network security functionalities.
- Supports up to 4000 VLANs for enhanced network segmentation
- Equipped with 5 versatile ports including 2.5G and 10 Gigabit options
- Fanless design ensures quiet operation in office environments
- Built-in Quality of Service (QoS) to prioritize network traffic
- Metal housing for improved durability and reliability
- Robust design
The switch features a metal housing that enhances durability while also being designed without a fan to ensure quiet operation, making it suitable for various environments. - High capacity
With a switching capacity of 45 Gbps and a packet forwarding rate of 33.48 Mpps, this switch efficiently handles large volumes of data, supporting smooth network performance. - Advanced VLAN support
This model supports 4000 VLANs and 8 priority queues, enabling effective network segmentation and management, which is crucial for optimizing traffic flow and improving security. - Flexible connectivity options
Equipped with 5 ports for 10/100/1000/2.5G connections and an additional 10 Gigabit SFP+ port, the device offers versatile connectivity to suit various networking hardware. - Enhanced security features
The switch includes various security functionalities like loop prevention, port isolation, and support for multiple storm control types, ensuring a reliable and secure network environment.
Main Specifications
Product Description | TP-Link Omada ES206X-M2 V1 – switch – 5 ports – Managed |
Device Type | Switch – 5 ports – Managed |
Subtype | 2.5 Gigabit Ethernet |
Ports | 5 x 10/100/1000/2.5G + 1 x 10 Gigabit SFP+ |
Performance | Switching capacity: 45 Gbps Packet forwarding rate: 33.48 Mpps |
Capacity | Priority queues: 8 VLAN groups: 32 VLANs supported: 4000 Packet buffer memory: 640 KB |
MAC Address Table Size | 16K entries |
Jumbo Frame Support | 10KB |
Routing Protocol | IGMP, IGMPv2, IGMPv3 |
Remote Management Protocol | DHCP |
Features | Reset button, fanless, metal housing, security slot (Kensington security lock compatible), loop prevention, VLAN support, port isolation, QoS, IGMP snooping, store and forward, 2KV Surge protection, 4KV ESD Protector (contact discharge), 6KV Surge protection, 8KV ESD Protector (air-gap discharge), cloud managed, automatic device discovery, firmware upgradable, flow control, Link Aggregation, loopback detection, One-to-Many, One-to-One, port mirroring, fast leave, WRR, bandwidth control, Broadcast Storm Control, Multicast Storm Control, Unknown Storm Control, Unicast Storm Control, Cable Diagnostics Function |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1ab (LLDP) |
Power | DC 12 V |
Dimensions (WxDxH) | 15.8 cm x 10.07 cm x 2.54 cm |
Weight | 520 g |
Extended Specifications
General
Device Type | Switch – 5 ports – Managed |
|---|---|
Enclosure Type | Desktop, wall-mountable |
Subtype | 2.5 Gigabit Ethernet |
Ports | 5 x 10/100/1000/2.5G + 1 x 10 Gigabit SFP+ |
Performance | Switching capacity: 45 Gbps Packet forwarding rate: 33.48 Mpps |
Capacity | Priority queues: 8 VLAN groups: 32 VLANs supported: 4000 Packet buffer memory: 640 KB |
MAC Address Table Size | 16K entries |
Jumbo Frame Support | 10KB |
Routing Protocol | IGMP, IGMPv2, IGMPv3 |
Remote Management Protocol | DHCP |
Features | Reset button, fanless, metal housing, security slot (Kensington security lock compatible), loop prevention, VLAN support, port isolation, QoS, IGMP snooping, store and forward, 2KV Surge protection, 4KV ESD Protector (contact discharge), 6KV Surge protection, 8KV ESD Protector (air-gap discharge), cloud managed, automatic device discovery, firmware upgradable, flow control, Link Aggregation, loopback detection, One-to-Many, One-to-One, port mirroring, fast leave, WRR, bandwidth control, Broadcast Storm Control, Multicast Storm Control, Unknown Storm Control, Unicast Storm Control, Cable Diagnostics Function |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1ab (LLDP) |
Flash Memory | 64 MB |
Status Indicators | Link/activity, power |
Expansion / Connectivity
Interfaces | 5 x 10/100/1000/2.5G RJ-45 1 x 10 Gigabit Ethernet SFP+ SFP+ |
|---|
Power
Power Device | External power adapter |
|---|---|
Voltage Required | DC 12 V |
Power Consumption Stand by | 1.62 Watt |
Miscellaneous
Included Accessories | Rubber feet, power adapter |
|---|---|
MTBF | 1,223,587 hours |
Compliant Standards | Plug and Play, RoHS, FCC |
Dimensions & Weight
Width | 15.8 cm |
|---|---|
Depth | 10.07 cm |
Height | 2.54 cm |
Weight | 520 g |
Environmental Parameters
Min Operating Temperature | -5 °C |
|---|---|
Max Operating Temperature | 40 °C |
Humidity Range Operating | 10 – 90% RH (non-condensing) |
Min Storage Temperature | -40 °C |
Max Storage Temperature | 70 °C |
Humidity Range Storage | 5 – 90% (non-condensing) |
Additional information
| Manufacturer |
|---|
