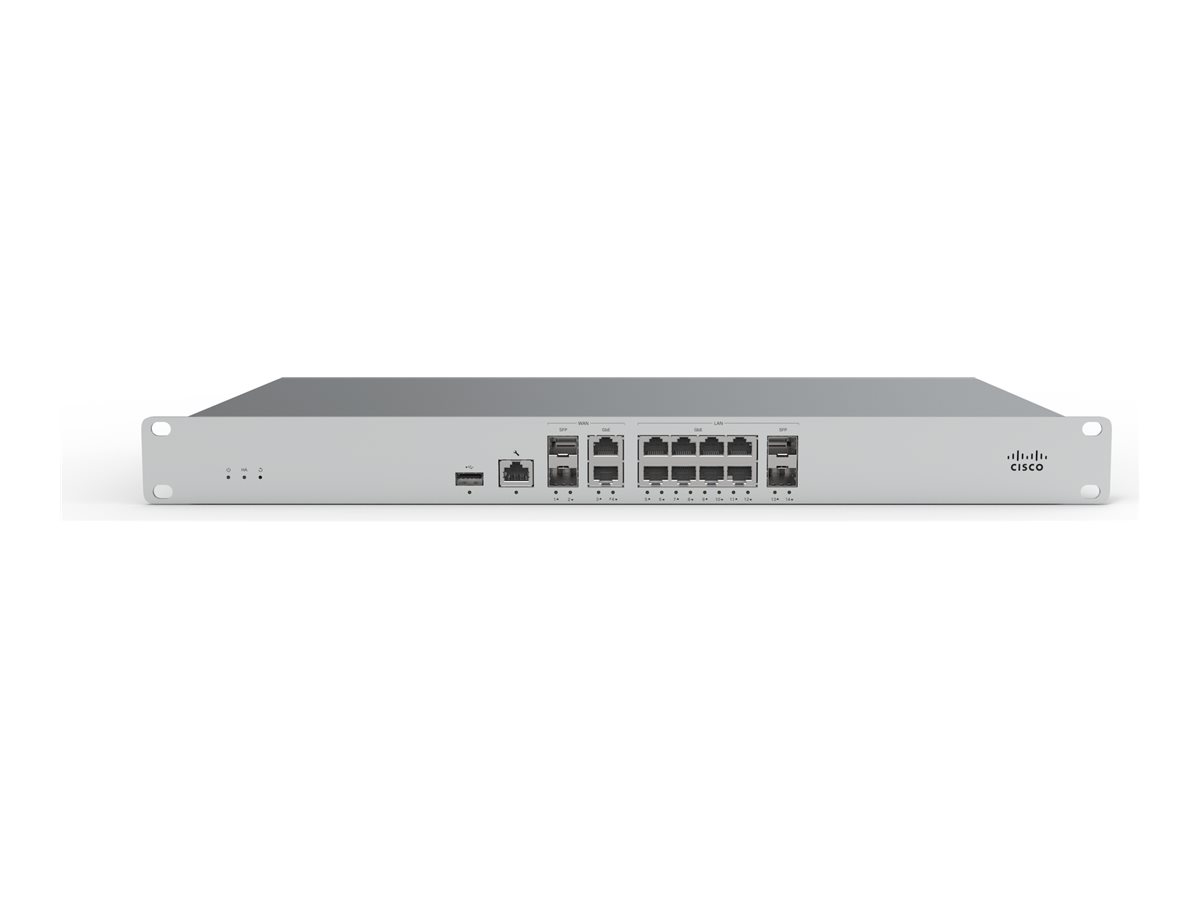

Cisco Meraki MX85, Security appliance, 1GbE, 1U, cloud-managed, rack-mountable
$3,601.02 inc GST
✕ Backorder - Email us for a lead time or ETA
✓ Free NZ Delivery
Available on back-order
- Allow 1–2 days for delivery to the North Island
- Allow 2–3 days for delivery to the South Island
- Add 1–2 days if you are rural
- Collection can be arranged
Description
The Cisco Meraki MX85 is designed as a security appliance for organizations seeking network management. With the capability to support up to 200 VPN tunnels, it is a solution for establishing secure site-to-site connections. This rack-mountable device accommodates the needs of up to 250 devices, making it a versatile choice for a range of environments.
Built for reliability, the MX85 operates effectively within a temperature range of 0°C to 40°C and a humidity range of 5 to 95%, ensuring stability in various conditions. Connectivity options include eight ports featuring USB 3.0, 1000Base-T (PoE+), and 1000Base-T (management), allowing for integration within existing infrastructures while ensuring performance and scalability.
- Supports up to 200 VPN tunnels for secure site-to-site connections
- Accommodates up to 250 devices for versatile use
- Rack-mountable design for efficient space utilization
- Operates reliably in diverse environmental conditions
- Comprehensive security features including Advanced Malware Protection
- Robust security performance
The MX85 delivers security throughput needed for modern network demands, ensuring protection against various threats while maintaining high performance across connected devices. - Comprehensive connectivity options
Equipped with multiple interfaces including USB 3.0 and Gigabit Ethernet, the MX85 provides flexible options for integration into existing networks, facilitating management and power over Ethernet. - Environmentally adaptable
With an operating temperature range from 0°C to 40°C and humidity support from 5 to 95%, this device is built to perform consistently in a variety of operating environments. - Flexible networking functionalities
The MX85 supports features like DHCP, VLAN capabilities, traffic shaping, and WAN load balancing, providing tools for effective traffic management and optimization. - Cloud-managed convenience
Being cloud-managed allows users to access and control the MX85 remotely, simplifying network administration and offering real-time insights into usage statistics and performance.
Main Specifications
Product Description | Cisco Meraki MX85 – security appliance – cloud-managed |
Device Type | Security appliance |
Form Factor | Rack-mountable – 1U |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
Performance | NGFW throughput: 1 Gbps Advanced security throughput: 1 Gbps VPN throughput (site to site): 1 Gbps Stateful firewall throughput: 1 Gbps Next-generation firewall performance: 1 Gbps |
Capacity | Recommended number of devices: up to 250 VPN tunnels (site-to-site): 200 |
Power | AC 100-240 V (50/60 Hz) |
Dimensions (WxDxH) | 48.46 cm x 25 cm x 4.38 cm |
Weight | 3.7 kg |
Extended Specifications
General
Device Type | Security appliance |
|---|---|
Height (Rack Units) | 1U |
Width | 48.46 cm |
Depth | 25 cm |
Height | 4.38 cm |
Weight | 3.7 kg |
Networking
Form Factor | Rack-mountable |
|---|---|
Connectivity Technology | Wired |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
Routing Protocol | Static IP routing |
Remote Management Protocol | Syslog |
Cloud-Managed | Yes |
Performance | NGFW throughput: 1 Gbps Advanced security throughput: 1 Gbps VPN throughput (site to site): 1 Gbps Stateful firewall throughput: 1 Gbps Next-generation firewall performance: 1 Gbps |
Capacity | Recommended number of devices: up to 250 VPN tunnels (site-to-site): 200 |
Features | Auto firmware update, WAN load balancing, WAN failover, SD-WAN support, DNS Application Firewall (DAF), DHCP support, VLAN support, VPN client, L2TP over IPSec, content filtering, Advanced Malware Protection, IDS/IPS support, traffic shaping, usage statistics, NetFlow |
Authentication Method | Active Directory |
Expansion / Connectivity
Interfaces | 2 x 1000Base-T – SFP (WAN) 1 x 1000Base-T – RJ-45 (WAN) 1 x 1000Base-T (PoE+) – RJ-45 (WAN) 8 x 1000Base-T – RJ-45 2 x 1000Base-T – SFP 1 x 1000Base-T (management) – RJ-45 1 x USB 3.0 – Type A (WAN) |
|---|
Miscellaneous
Compliant Standards | FCC |
|---|
Power
Power Device | Internal power supply |
|---|---|
Voltage Required | AC 100-240 V (50/60 Hz) |
Power Consumption Operational | 12 watt |
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|---|
Max Operating Temperature | 40 °C |
Humidity Range Operating | 5 – 95% |
