Description

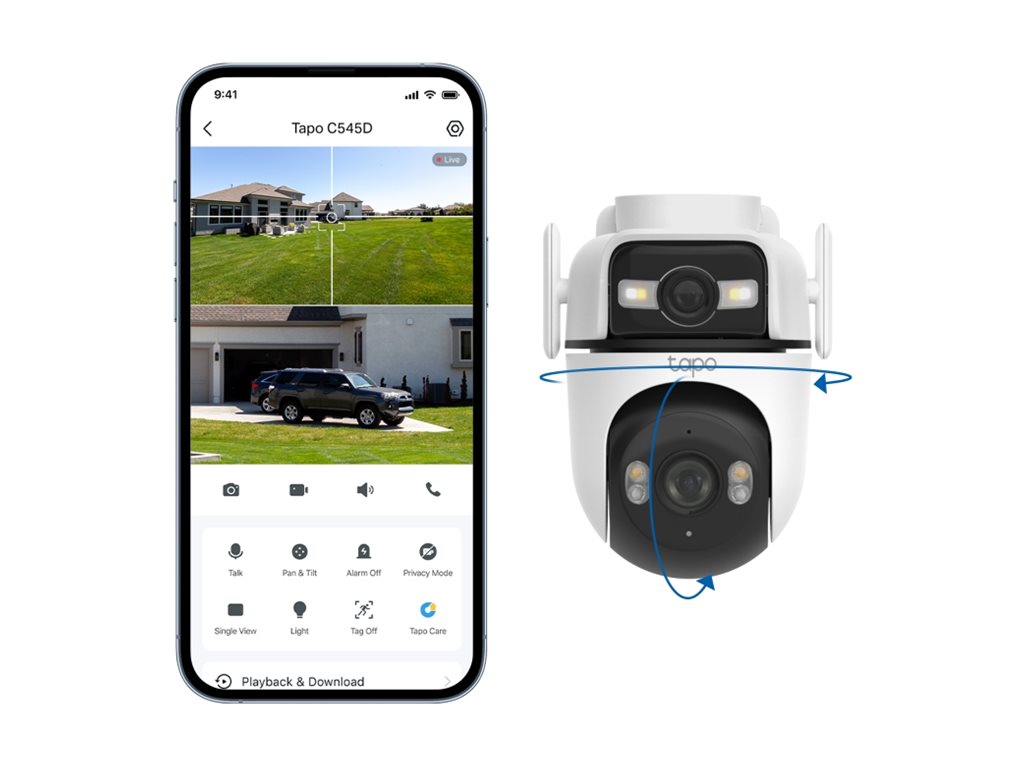

The TP-Link Tapo C545D V1 offers a versatile outdoor surveillance solution with features to safeguard any space. Its dual lens system provides a panoramic view with a wide-angle lens for expanded coverage. With AI Person Detection, the camera alerts users to potential threats, enhancing security. Night vision capabilities and an infrared distance of up to 29.9 m ensure clear monitoring in low-light conditions, while real-time notifications keep users informed of activity in designated zones. Designed for durability, this camera is compliant with IP66 standards, making it resistant to dust and water.
Equipped with two-way audio, the camera facilitates seamless communication, making it suitable for homes or businesses. Integration with Google Assistant and Alexa allows for voice control through the Tapo app, providing convenience and ease of use. The camera supports multiple network protocols and Wi-Fi standards for reliable connectivity, while encryption algorithms safeguard data transmission for enhanced security. Experience surveillance with smart tracking, customizable activity zones, and features like Privacy Zones and AI Camera Tampering Detection.
- Dual lens system for panoramic view
- AI Person Detection enhances security
- Night vision up to 29.9 m for low-light monitoring
- Two-way audio for seamless communication
- IP66 compliant design for outdoor durability
- Monitoring capabilities

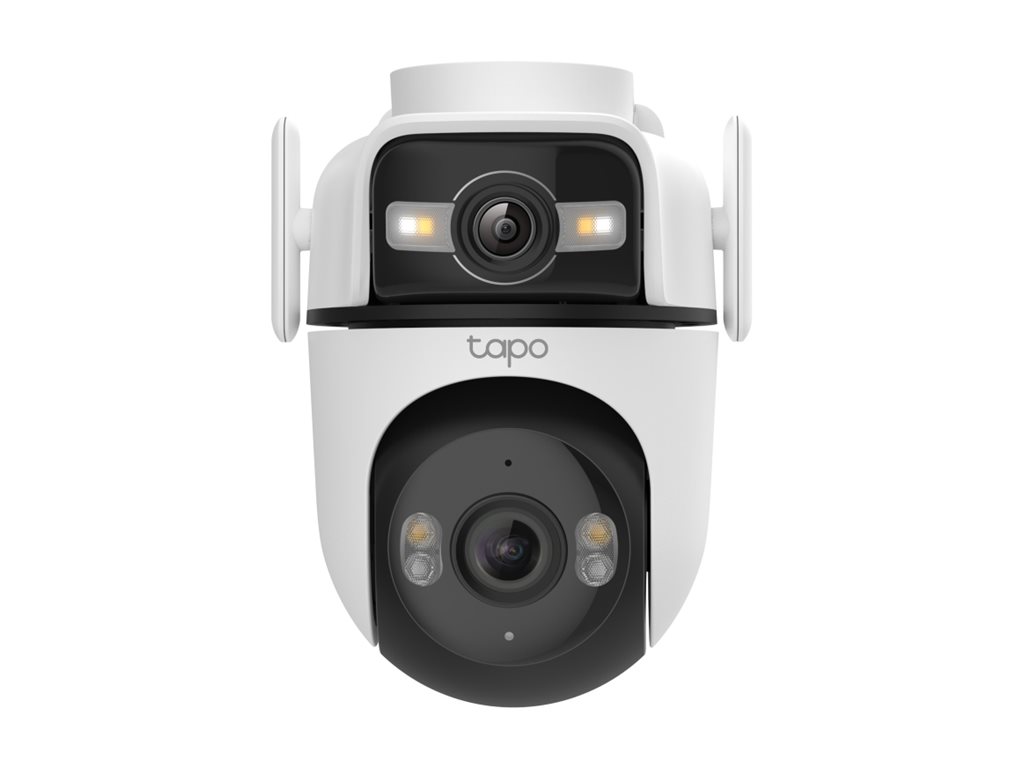

The TP-Link Tapo C545D V1 features a dual lens system with a wide-angle lens to capture a 137.6° horizontal view and 66.5° diagonal view, ensuring comprehensive coverage of monitored areas. It supports a digital video resolution of 2304 x 1296, allowing for detailed image clarity. - Outdoor design

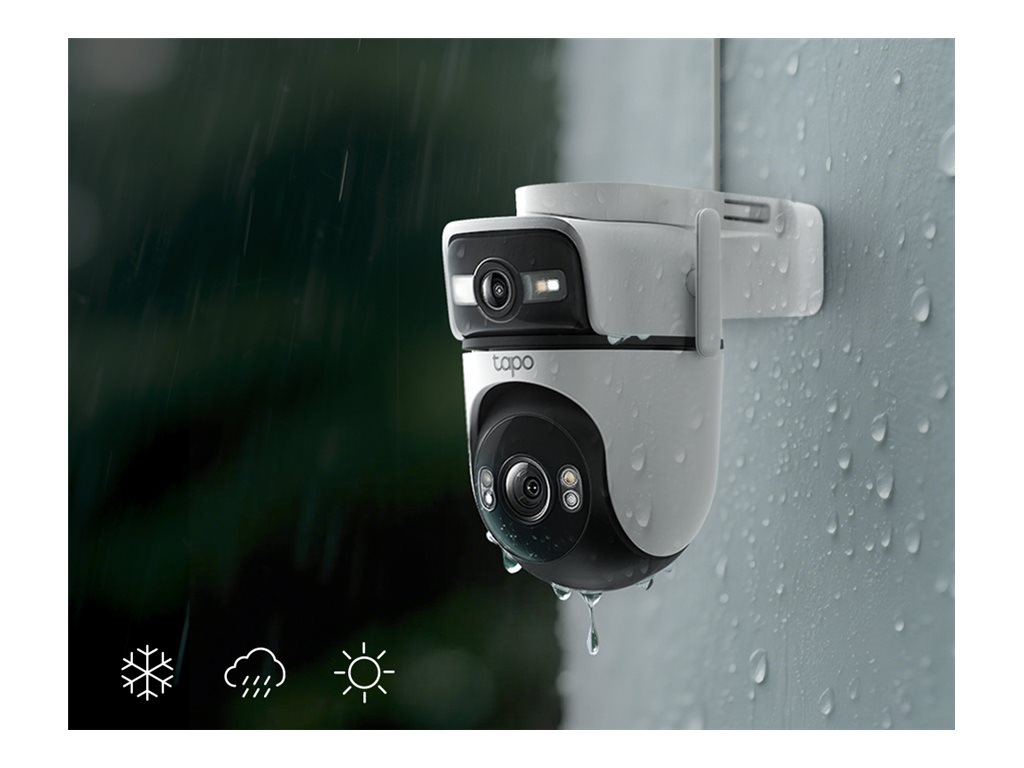

Built to withstand harsh environmental conditions, the camera is IP66 weatherproof and operates in temperatures ranging from -30°C to 60°C. Its dust resistance further enhances its suitability for outdoor usage. - Detection features

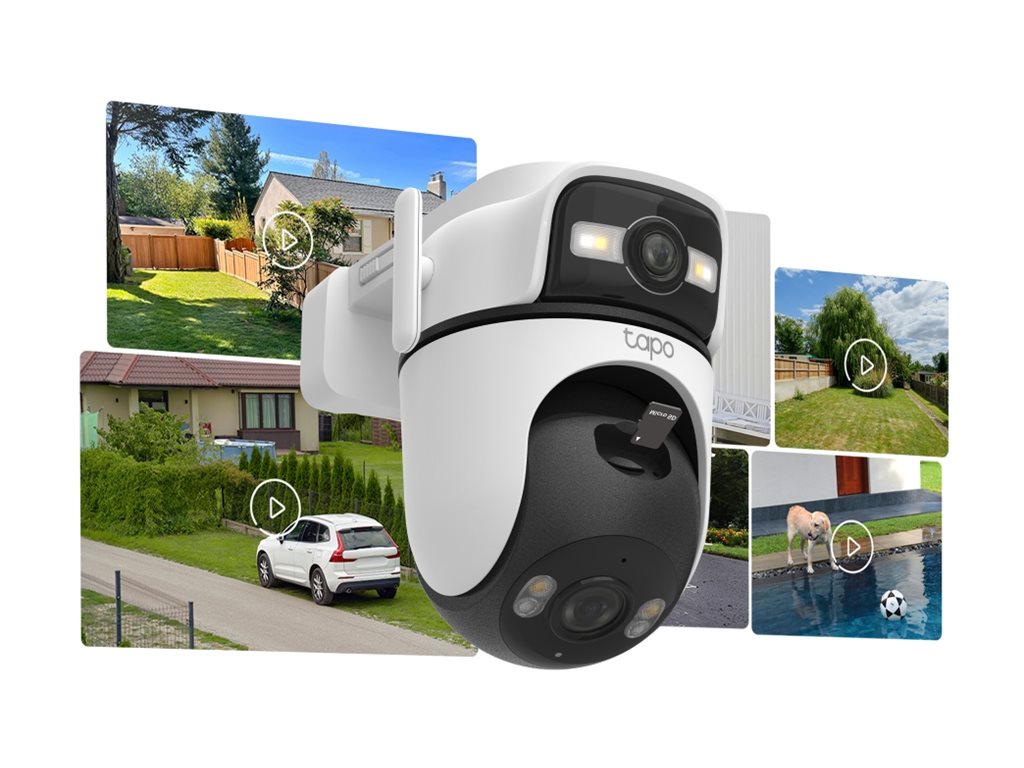

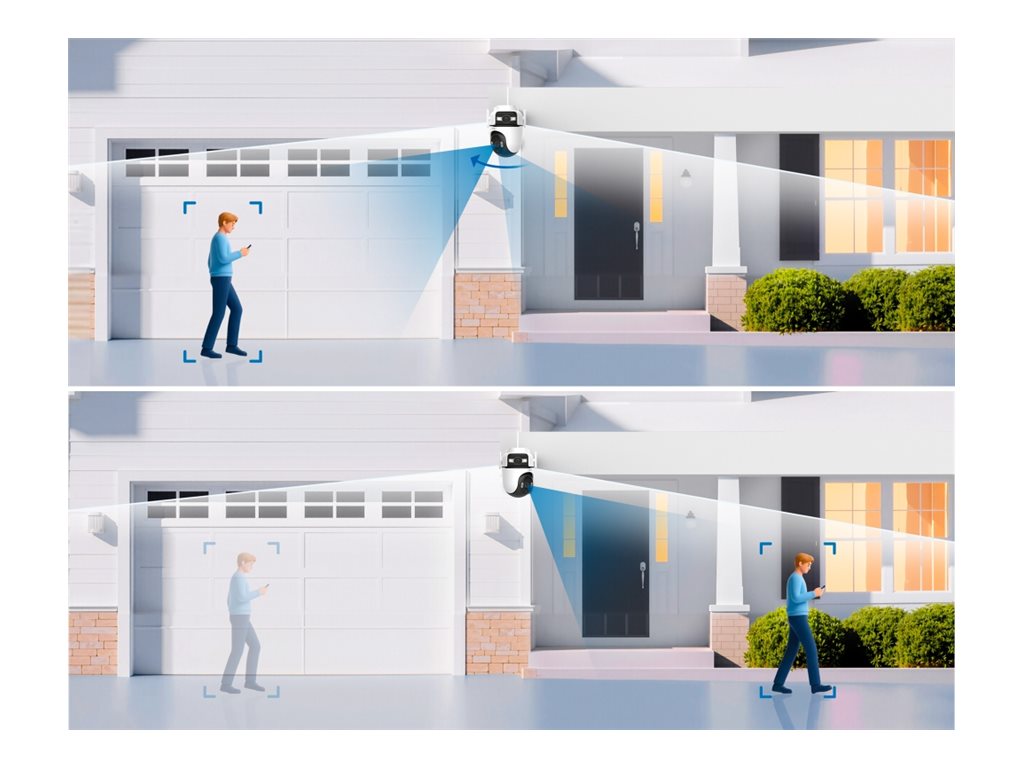

The integration of AI technology allows the camera to perform functions like person detection, vehicle detection, and pet detection. Users can set customized activity zones and receive AI notifications for relevant movement. - Audio support
Equipped with a built-in speaker and microphone, the camera allows for two-way audio communication to interact with visitors or monitor activity within the vicinity. - Connectivity options
The camera supports multiple encryption algorithms, including WPA3 and TLS, ensuring secure data transmission. It is compatible with various network protocols like DHCP and ONVIF for flexible integration into existing systems.
What’s in the Box
- Tapo C545D V1
- Power cable – 3 m
- Power adapter, mounting bracket, 4 screws, 4 anchors, waterproof seal, mounting template sticker, waterproof cable attachments
Main Specifications
Product Description | Tapo C545D V1 – network surveillance camera |
Device Type | Network surveillance camera – pan / tilt – outdoor – dust resistant / water resistant |
Audio | Yes: built-in speaker, two-way audio capability, built-in microphone |
Camera Mount Type | Wall mount, ceiling mount, pole mount |
Dimensions (WxDxH) | 11.457 cm x 15.955 cm x 15.21 cm |
Weight | 491 g |
Connectivity Technology | Wireless, wired |
Camera | Colour – Day&Night |
Max Resolution | 2304 x 1296 |
Frame Rate (max) | 15 frames per second |
Motion Detection | Yes |
Video Modes | 2K |
Optical Sensor Type | 1 x Progressive Scan CMOS – 1/2.8″
1 x Progressive Scan CMOS – 1/2.8″ |
Lens System | 1 x 6 mm – f/1.6
1 x 2.53 mm – f/1.6 |
Panning Range (degree) | 360 |
Interfaces | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ax |
Platform | Tapo Care, Google Home, SmartThings |
Intelligent Assistant | Alexa, Google Assistant – indirect |
Cables Included | Power cable – 3 m |
Voltage | AC 100-240 V, DC 12 V |
Features | Dual lens, Patrol Mode, AI Tracking, built-in siren (99 dB), 3D digital noise reduction (DNR), Wide Dynamic Range (WDR), Smart Focus, telephoto lens, wide-angle lens, Smart Color Night Vision, auto-switching, dual wi-fi antennas, IR-cut filter, AI motion detection, AI Person Detection, AI Pet Detection, AI vehicle detection, Smart AI Notification, smart tracking, customised activity zone, Full-time Live View, privacy zones, AI Camera Tampering Detection, Push Notification, Snapshot notification, line-crossing detection, panoramic view |
Environmental Parameters (operating) | -30 °C – 60 °C; 10 – 90% RH (non-condensing) relative humidity |
Documents
Extended Specifications
Lens Construction
Lens System | 1 x 6 mm – f/1.6 – 57.3° (H) / 31.7° (V) / 66.5° (D)
1 x 2.53 mm – f/1.6 – 137.6° (H) / 73° (V) / 165.1° (D) |
|---|
Panning
Interfaces
Network Interface | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ax |
|---|
Network Protocols | TCP/IP, DHCP, ICMP, DNS, NTP, HTTPS, TCP, UDP, RTSP, ONVIF |
|---|
Expansion / Connectivity
Ports | LAN – RJ-45 |
|---|
Supported Memory Cards | microSD Card |
|---|
Encryption Algorithm | 128-bit AES, SSL, TLS, WPA, WPA2-PSK, WPA3 |
|---|
Miscellaneous
Included Accessories | Mounting bracket, mounting template sticker, 4 screws, 4 anchors, waterproof cable attachments, waterproof seal |
|---|
Cables Included | Power cable – 3 m |
|---|
Compliant Standards | IP66 |
|---|
Power
Power Requirements | DC 12 V – 1 A |
|---|
Power Device | Power adapter – external AC 100-240 V (50/60 Hz) 5.3 watt |
|---|
Internet of Things (IoT)
Internet of Things (IoT) Compatible | Yes |
|---|
Platform | Tapo Care, Google Home, SmartThings |
|---|
Compatible Application | Tapo app |
|---|
Communications Technology | Wi-Fi 2.4GHz |
|---|
Intelligent Assistant | Alexa, Google Assistant |
|---|
Voice Controlled | Indirect |
|---|
Environmental Parameters
Min Operating Temperature | -30 °C |
|---|
Max Operating Temperature | 60 °C |
|---|
Relative Humidity (operating) | 10 – 90% RH (non-condensing) |
|---|
General
Device Type | Network surveillance camera |
|---|
Audio Support | Yes: built-in speaker, two-way audio capability, built-in microphone |
|---|
Camera Mount Type | Wall mount, ceiling mount, pole mount |
|---|
Connectivity Technology | Wireless, wired |
|---|
Width | 11.457 cm |
|---|
Depth | 15.955 cm |
|---|
Height | 15.21 cm |
|---|
Weight | 491 g |
|---|
Camera
Type | Colour – Day&Night – pan / tilt – outdoor – dust resistant / water resistant |
|---|
Digital Video Format | H.264 |
|---|
Max Digital Video Resolution | 2304 x 1296 |
|---|
Motion Detection | Yes |
|---|
Video Modes | 2K |
|---|
Digital Zoom | 10.8 |
|---|
Infrared LEDs | Yes |
|---|
Infrared Distance | 29.9 m |
|---|
Digital Video Capture Resolution | 2304 x 1296 |
|---|
Frame Rate (max) | 15 frames per second |
|---|
Features | Dual lens, Patrol Mode, AI Tracking, built-in siren (99 dB), 3D digital noise reduction (DNR), Wide Dynamic Range (WDR), Smart Focus, telephoto lens, wide-angle lens, Smart Color Night Vision, auto-switching, dual wi-fi antennas, IR-cut filter, AI motion detection, AI Person Detection, AI Pet Detection, AI vehicle detection, Smart AI Notification, smart tracking, customised activity zone, Full-time Live View, privacy zones, AI Camera Tampering Detection, Push Notification, Snapshot notification, line-crossing detection, panoramic view |
|---|
Image Sensor
Type | 1 x Progressive Scan CMOS 1/2.8″
1 x Progressive Scan CMOS 1/2.8″ |
|---|
