Description
Re-engineered to get all the power of a full-size tower at a fraction of the size. The Z2 SFF AI workstation delivers high performance for intensive workflows-from 3D design to real time ray tracing-now and in the future. When demands change, you have the impressive ability to upgrade and expand.
- Small form. Big power. Impressive expandability. Design, simulate, and real-time ray trace on the Z2 SFF AI workstation, with low-profile NVIDIA RTXTM graphics and an Intel Core Ultra processor, including K-Series. Easily upgrade memory and storage as work evolves with tool-less access.

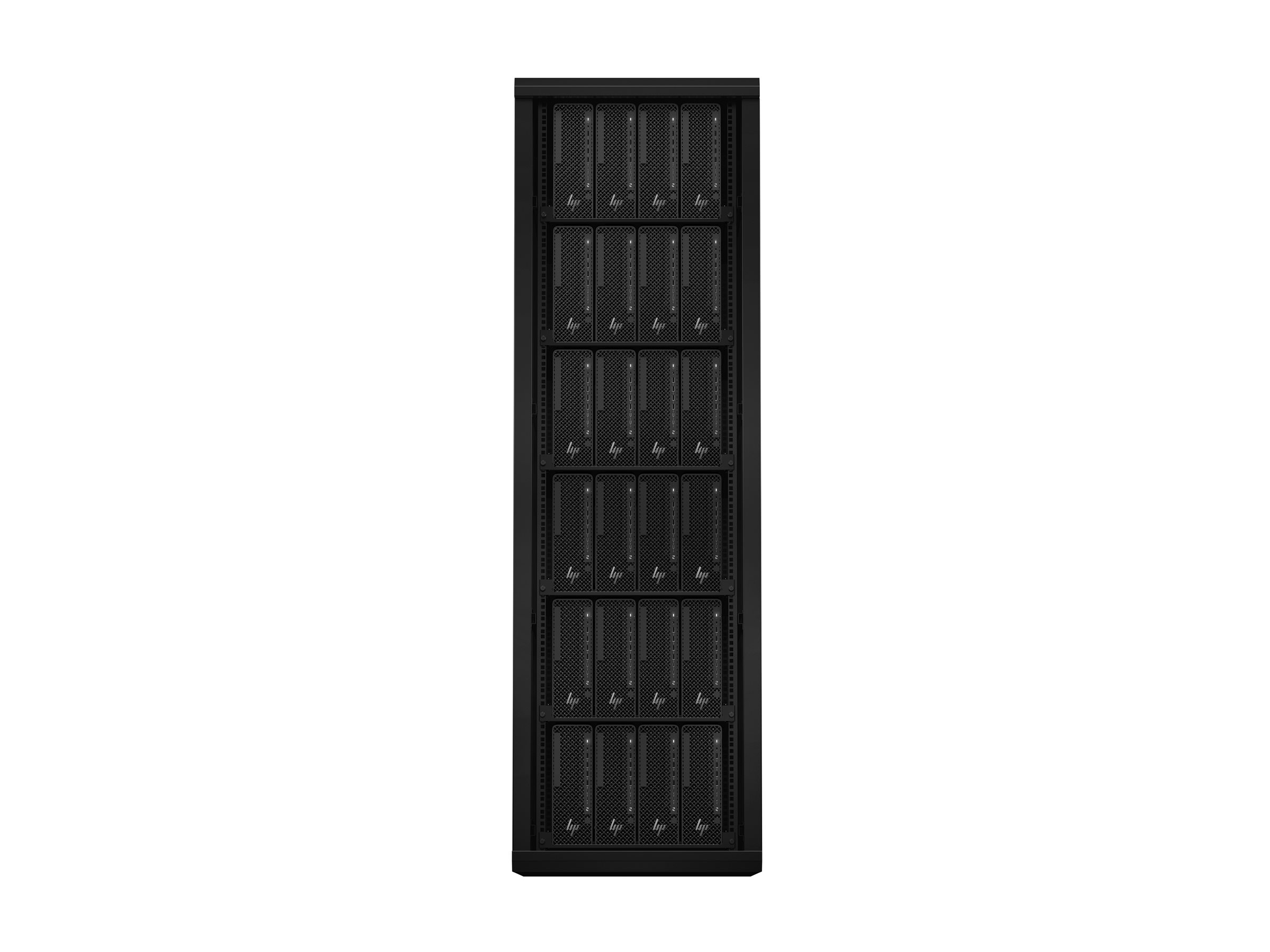

- Smaller design. Big impact. Whether placed horizontally or vertically, the Z2 SFF defies space constraints. Its smaller size allows for 4 units across a 7U rack. Stylish yet purposeful venting improves airflow to enable powerful K-series CPUs and NVIDIA low profile GPUs.
- Power AI-accelerated workflows. Accelerate AI workflows with the Z2 SFF AI workstation. Iterate and problem solve faster on your local device with a powerful discrete GPU delivering AI TOPS while a built-in NPU takes on productivity tasks.
- Help protect our shared future. At HP, we care about the impact our products have on our people, communities, and planet. That’s why this device is EPEAT Gold with Climate+ and the outer box packaging is 100% sustainably sourced.
- HP recommends Windows 11 Pro for business
Work anywhere without compromising on performance with Windows 11 and HP collaboration, security, and connectivity technology. Summarize and rewrite content, get relevant content recommendations, and stay organized with Microsoft Copilot. - Smaller, Functional Design
The stunning new design features front and rear ledges, so you can easily move your system from location to location. - Independent Software Vendor Certifications
Work with confidence knowing your PC is certified by leading software vendors to ensure peak performance even on complex projects.
What’s in the Box
- HP Workstation Z2 G1i
- Power adapter
Main Specifications
Product Description | HP Workstation Z2 G1i – SFF – AI PC, AI Workstation – Core Ultra 7 265 2.4 GHz – 32 GB – SSD 1 TB – Australia/New Zealand |
Type | Workstation – SFF – AI PC, AI Workstation |
Processor | 1 x Intel Core Ultra 7 (Series 2) 265 / 2.4 GHz (up to 5.3 GHz, (20-core) |
Processor Socket | LGA1851 Socket |
Processor Main Features | Intel Turbo Boost Technology |
Neural Processor Unit (NPU) | Intel AI Boost – up to 13 TOPS |
Cache Memory | 30 MB L3 Cache |
Cache Per Processor | 30 MB |
RAM | 32 GB (installed) / 256 GB (max) – DDR5 SDRAM |
Storage Controller | RAID (NVM Express) |
Hard Drive | SSD 1 TB – PCI Express 4.0 – M.2 |
Optical Storage | No optical drive |
Multi-GPU Configuration | 1 single GPU card / integrated GPU |
Graphics Controller | PCIe 4.0 x8 – NVIDIA RTX A1000 / Intel Graphics – up to 8 TOPS |
Video Memory | 8 GB GDDR6 SDRAM |
Networking | 1GbE, 802.11a, 802.11b/g/n, Wi-Fi 5, Wi-Fi 6E, Bluetooth 5.3 |
Keyboard | Australia/New Zealand |
Power | (50/60 Hz) |
OS Provided | Windows 11 Pro |
Software Included | HP Support Assistant, HP PC Hardware Diagnostics UEFI, HP Secure Erase, HP Image Assistant, HP PC Hardware Diagnostics, HP Sure Click, HP Manageability Integration Kit, HP Sure Admin, HP Client Security Manager Gen6, HP BIOSphere Gen6, HP ZCentral Remote Boost, HP Sure Recover Gen4, HP Performance Advisor 3.0, HP Sure Sense Gen2, HP Sure Run Gen5 |
Colour | Black |
Dimensions (WxDxH) | 10 cm x 30.8 cm x 30.3 cm |
Weight | 4 kg |
Manufacturer Selling Program | HP Smart Buy |
Environmental Standards | ENERGY STAR Qualified |
Documents
Extended Specifications
General
Type | Workstation |
|---|
AI Level | AI PC, AI Workstation |
|---|
Product Form Factor | SFF |
|---|
Built-in Devices | Speaker |
|---|
Sensors | HP Tamper Lock |
|---|
Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
|---|
Colour | Black |
|---|
Processor / Chipset
CPU | Intel Core Ultra 7 (Series 2) 265 |
|---|
Clock Speed | 2.4 GHz (P-core) / 1.8 GHz (E-core) |
|---|
Max Turbo Speed | 5.3 GHz (P-core) / 4.6 GHz (E-core) |
|---|
Number of Cores | 20-core |
|---|
CPU Qty | 1 |
|---|
Max CPU Qty | 1 |
|---|
L2 cache | 36 MB |
|---|
CPU Upgradability | Upgradable |
|---|
Processor Main Features | Intel Turbo Boost Technology |
|---|
CPU Socket | LGA1851 Socket |
|---|
Chipset Type | Intel W880 |
|---|
Neural Processor Unit (NPU)
Neural Processor Unit (NPU) | Intel AI Boost |
|---|
NPU Performance Up To (TOPS) | 13 TOPS |
|---|
Total Processor Performance Up To (TOPS) | 33 TOPS |
|---|
AI Datatype Support on NPU | INT8 |
|---|
Sparsity Support | Yes |
|---|
AI Software Frameworks Supported by NPU | DirectML, OpenVINO, WebNN, WindowsML, ONNX RT |
|---|
Windows Studio Effects Support | Yes |
|---|
Cache Memory
Installed Size | L3 Cache – 30 MB |
|---|
Cache Per Processor | 30 MB |
|---|
RAM
Installed Size | 32 GB (installed) / 256 GB (max) |
|---|
Technology | DDR5 SDRAM |
|---|
Effective Memory Speed | 3200 MHz |
|---|
Rated Memory Speed | 3200 MHz |
|---|
Form Factor | SO-DIMM 262-pin |
|---|
Slots | 2 (Total) / 1 (empty) |
|---|
Configuration Features | 1 x 32 GB |
|---|
Hard Drive
Type | SSD – M.2 |
|---|
Capacity | 1 x 1 TB |
|---|
Interface Type | PCI Express 4.0 |
|---|
Storage Controller
Type | 1 x RAID |
|---|
Controller Interface Type | NVM Express |
|---|
RAID Level | RAID 0, RAID 1 |
|---|
Optical Storage
Monitor
Graphics Controller
Interface Type | PCIe 4.0 x8 |
|---|
Multi-GPU Configuration | 1 single GPU card / integrated GPU |
|---|
Graphics Processor | NVIDIA RTX A1000 / Intel Graphics – up to 8 TOPS |
|---|
Video Memory | 8 GB GDDR6 SDRAM |
|---|
Bandwidth | 96 GBps |
|---|
Video Interfaces | DisplayPort |
|---|
Audio Output
Compliant Standards | High Definition Audio |
|---|
Input Device
Keyboard
Keyboard Name | HP 320K |
|---|
Localization & Layout | Australia/New Zealand |
|---|
Mouse
Mouse Name | HP 320M |
|---|
Interface | USB |
|---|
Networking
Interface (Bus) Type | M.2 2230 |
|---|
Ethernet Controller | Intel I219-LM |
|---|
Wireless LAN Supported | Yes |
|---|
Wireless NIC | Intel Wi-Fi 6E AX 211 |
|---|
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3 |
|---|
Compliant Standards | IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1as, IEEE 802.3az |
|---|

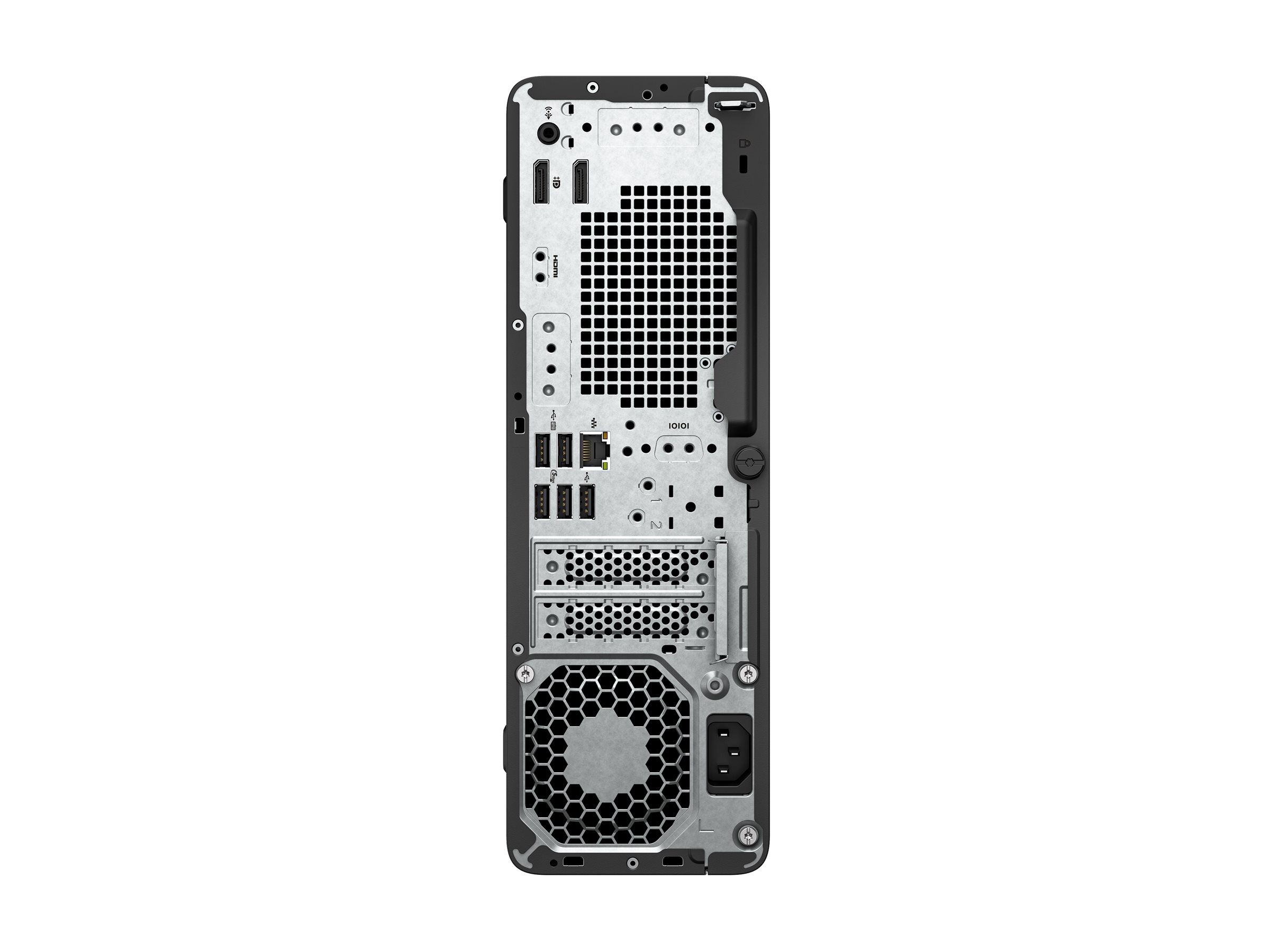

Expansion / Connectivity
Slots | 1 (total) / 0 (free) x PCIe 5.0 x16 (x8 mode, full-length, low-profile)
2 (total) / 1 (free) x M.2 Card – 2280 (PCIe 5.0 x4 mode (for internal storage))
1 (total) / 0 (free) x M.2 Card – 2230 (PCIe 4.0 x1 mode and Intel CNVi wireless module) |
|---|
Interfaces | 1 x headphones/microphone (1 side) (CTIA and OMTP headset support)
4 x USB 3.2 Gen 2 (1 side, 3 rear) (one of them is charging)
2 x USB-C 3.2 Gen 2×2 (2 side) (charging)
2 x DisplayPort 1.4 (2 rear)
1 x LAN (Gigabit Ethernet) – RJ-45 (1 rear)
2 x USB 3.1 – Type A
4 x Mini DisplayPort 1.4a |
|---|
Miscellaneous
Theft/Intrusion Protection | Security lock slot (cable lock sold separately), chassis intrusion sensor |
|---|
Security Slot Type | Kensington security slot |
|---|
Compliant Standards | RoHS, FIPS 140-2, WEEE, CECP, low halogen |
|---|
Manufacturer Selling Program | HP Smart Buy |
|---|
Power
Device Type | Power adapter |
|---|
Voltage Required | AC 100-240 V (50/60 Hz) |
|---|
Power Provided | 500 watt |
|---|
Efficiency | 92% |
|---|
Power Factor Correction | Yes (active) |
|---|
Operating System / Software
OS Provided | Windows 11 Pro English |
|---|
Software | HP Support Assistant, HP PC Hardware Diagnostics UEFI, HP Secure Erase, HP Image Assistant, HP PC Hardware Diagnostics, HP Sure Click, HP Manageability Integration Kit, HP Sure Admin, HP Client Security Manager Gen6, HP BIOSphere Gen6, HP ZCentral Remote Boost, HP Sure Recover Gen4, HP Performance Advisor 3.0, HP Sure Sense Gen2, HP Sure Run Gen5 |
|---|
Sustainability Information
Dimensions & Weight
Width | 10 cm |
|---|
Depth | 30.8 cm |
|---|
Height | 30.3 cm |
|---|
Weight | 4 kg |
|---|
Dimensions & Weight (Shipping)
Shipping Width | 49.9 cm |
|---|
Shipping Depth | 20 cm |
|---|
Shipping Height | 39.4 cm |
|---|
Shipping Weight | 6.5 kg |
|---|
Environmental Parameters
Min Operating Temperature | 5 °C |
|---|
Max Operating Temperature | 35 °C |
|---|
Humidity Range Operating | 8 – 85% RH (non-condensing) |
|---|
