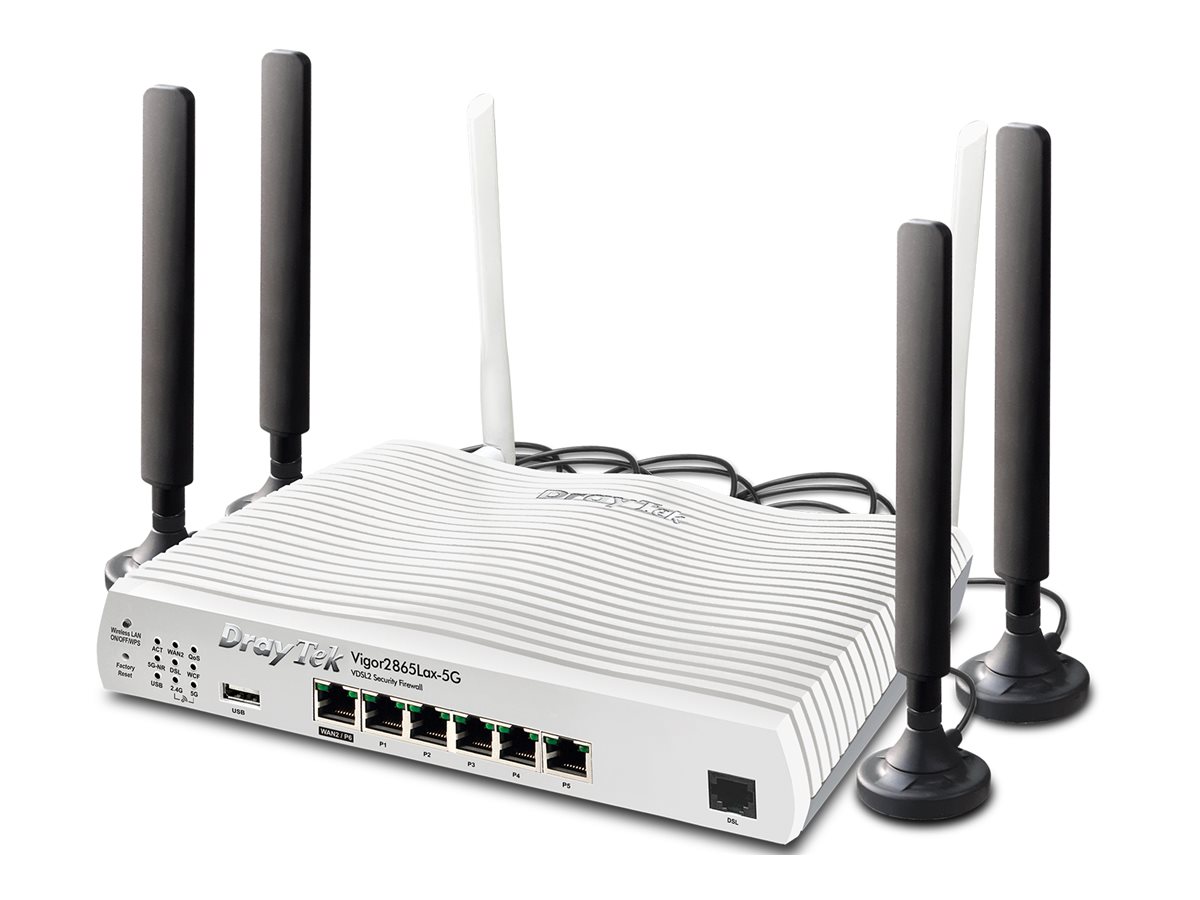

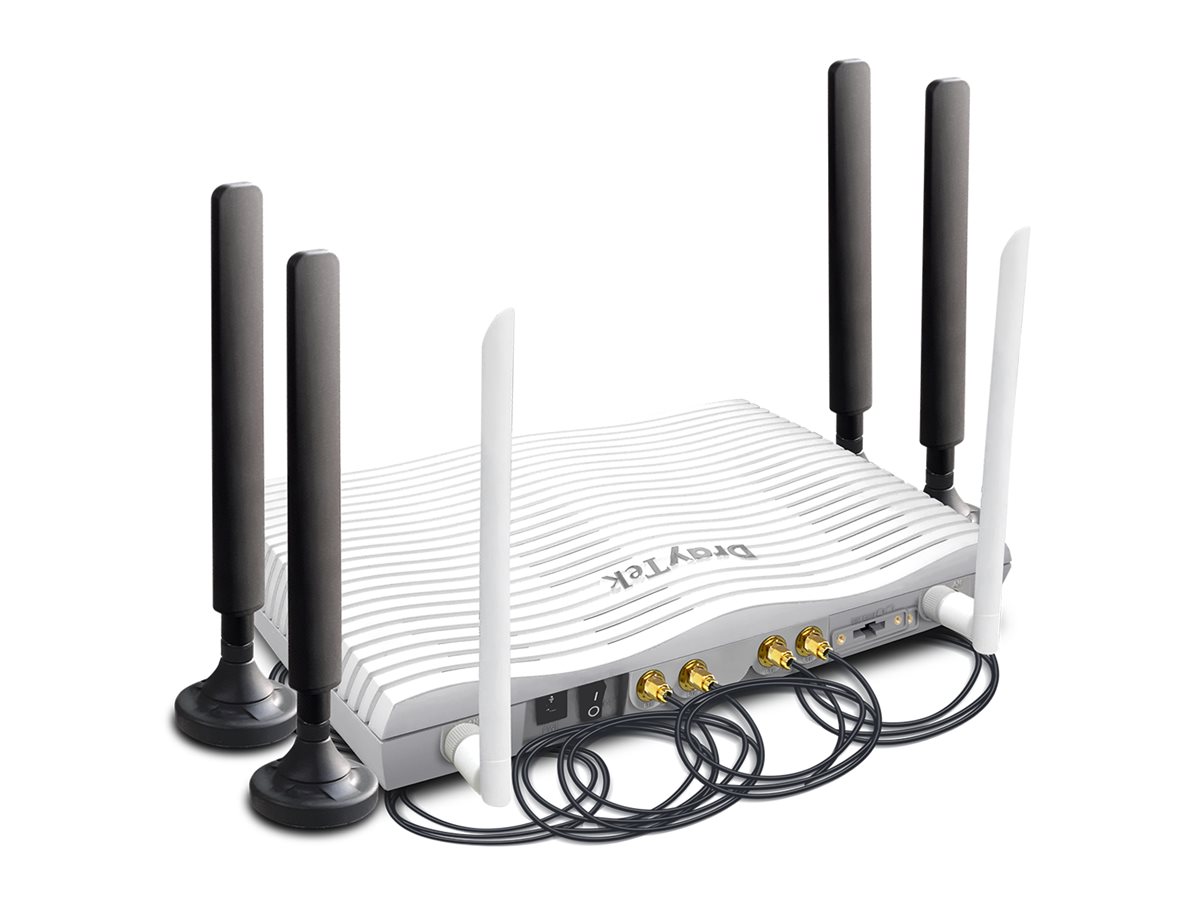

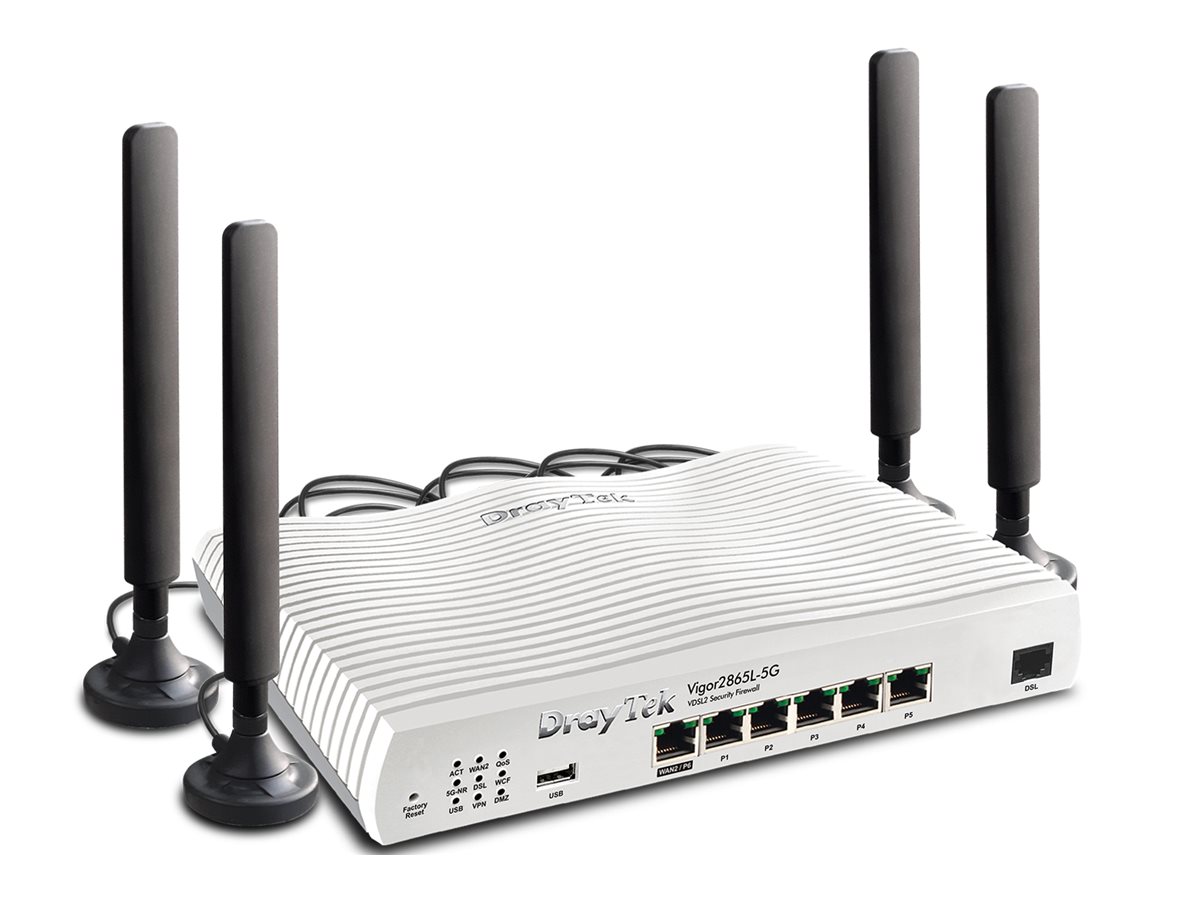

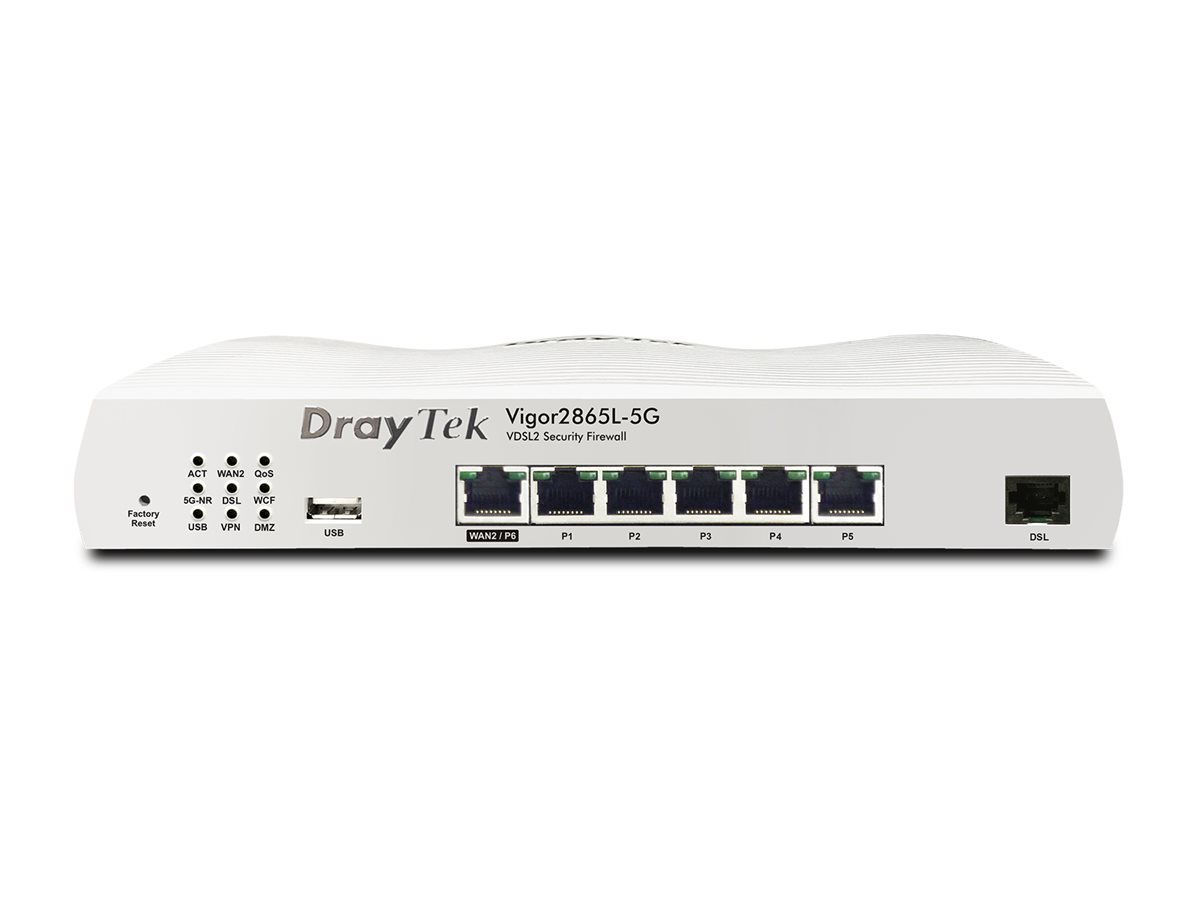

Draytek Vigor 2865L-5G, Router, DSL modem 5-port switch, 1GbE, PPP, WAN ports: 2, 5G, wall-mountable
$1,829.35 inc GST
✓ In Stock - 1 available
✓ Free NZ Delivery
1 in stock (can be backordered)
Ships from: Auckland
- Allow 1–2 days for delivery to the North Island
- Allow 2–3 days for delivery to the South Island
- Add 1–2 days if you are rural
- Collection can be arranged
Description
The Draytek Vigor 2865L-5G offers a robust and versatile networking solution suitable for home and office environments. It supports up to 16 concurrent VPN tunnels, 60000 NAT sessions, and 4 SSIDs per radio, designed to handle significant traffic while ensuring security and flexibility. Dual SIM slots and compatibility with 5G, LTE, and WCDMA mobile protocols provide reliable connectivity while on-the-go, making it suitable for multi-device usage.
This router features a powerful DSL modem with a maximum transfer rate of 300 Mbps. It includes five interfaces for versatile connectivity, including VDSL2, ADSL2+, and a 5-port switch for efficient local networking. Additional features such as firewall protection, QoS capabilities, and VPN passthrough make the Draytek Vigor 2865L-5G a comprehensive networking device that caters to diverse connectivity needs and maintains data integrity.
- Supports up to 16 concurrent VPN tunnels and 60000 NAT sessions
- Equipped with dual SIM slots for 5G, LTE, and WCDMA connectivity
- Includes a powerful DSL modem with a maximum transfer rate of 300 Mbps
- Features advanced security protocols like firewall protection and content filtering
- Offers versatile connectivity with multiple WAN and LAN ports
- Powerful performance
The Draytek Vigor 2865L-5G supports a maximum VPN throughput of 100 Mbps and offers high NAT throughput capabilities, ensuring efficient data handling and minimal lag during heavy network usage. - Comprehensive connectivity options
This router features dual WAN ports and multiple LAN ports, providing flexible network configurations to accommodate various devices and user requirements seamlessly. - Advanced security and management
Support for various encryption algorithms like AES and triple DES, along with features for firewall protection and content filtering, ensures a secure and manageable network environment. - Versatile installation choices
Designed for both desktop and wall-mountable setups, the Draytek Vigor 2865L-5G adapts to different workspaces and preferences without compromising performance. - Enhanced mobile broadband capabilities
The integration of 5G cellular technology allows for high-speed Internet access, making this router suitable for users who require reliable connectivity on mobile networks.
Main Specifications
Product Description | Draytek Vigor 2865L-5G – router – DSL modem – 5G – desktop, wall-mountable |
Device Type | Router – DSL modem – 5-port switch (integrated) |
Enclosure Type | Desktop, wall-mountable |
Digital Signaling Protocol | ADSL, VDSL, ADSL2, ADSL2+, VDSL2, Vplus 35b |
Mobile Communication Protocol | LTE, 5G, WCDMA |
Generation | 5G |
Cellular Band | 5G n1, 5G n3, 5G n7, 5G n8, 5G n20, 5G n28, 5G n38, 5G n40, 5G n77, 5G n78, LTE B1, LTE B3, LTE B7, LTE B8, LTE B20, LTE B28, LTE B38, LTE B40, WCDMA B1, WCDMA B8 |
WAN Ports Qty | 2 |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, PPP |
Performance | NAT throughput (with VDSL2): 100 Mbps NAT throughput (with VDSL2 35b): 300 Mbps NAT throughput for single WAN with hardware acceleration: 950 Mbps NAT throughput (total multi-WAN): 1.3 Gbps NAT throughput without hardware acceleration: 800 Mbps VPN throughput (256-bit AES IPSec): 300 Mbps VPN throughput (hardware accelerated IPSec): 800 Mbps VPN throughput (SSL): 130 Mbps |
Capacity | NAT sessions: 60000 Concurrent VPN tunnels: 32 Concurrent SSL VPN tunnels: 16 SSIDs per radio: 4 |
Network / Transport Protocol | IPSec, DDNS, DHCP, PPPoE, PPTP, L2TP, IPv4, IPv6, DHCPv6, Bonjour, SMB, RTSP, FTP |
Routing Protocol | Static IPv4 routing, static IPv6 routing, RIP, BGP, policy-based routing (PBR), GRE, MPOA |
Remote Management Protocol | Telnet, HTTP, HTTPS, SSH, TR-069, TFTP, SNMP 1, SNMP 2c, SNMP 3 |
VoIP Protocols | SIP, H.323 |
Features | Firewall protection, VPN support, reset button, load balancing, content filtering, DynDNS, bandwidth control, DHCP server, IPv6 support, IPv4 support, VLAN Tagging, ARP support, port-based VLAN, IP-MAC binding, port mirroring, DNS server, High Availability, IGMP proxy, IGMP snooping, file sharing, LAN-to-LAN bridging, GRE, IPSec NAT-T, failover protection, port triggering, DMZ support, ALG support, VPN passthrough, application filtering, URL filtering, Web Filtering, anti-spoofing protection, DoS attack prevention, QoS, ToS, DSCP support, DSCP based ToS, ACL support, Brute Force Protection, E-mail alert, SMS alert, Syslog support, tagged VLAN, keyword filtering |
Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, ANSI T1.413, ITU-T G.993.1, ITU-T G.993.2, ITU-T G.997.1, ITU-T G.992.1 (G.dmt), ITU-T G.992.2 (G.lite) Annex A, ITU-T G.992.3, ITU-T G.992.5, UPnP |
Power | AC 100-240 V |
Dimensions (WxDxH) | 24.1 cm x 16.5 cm x 4.4 cm |
Weight | 600 g |
Documents
Extended Specifications
General
Device Type | Router – 5-port switch (integrated) |
|---|---|
Enclosure Type | Desktop, wall-mountable |
Connectivity Technology | Wired |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, PPP |
Performance | NAT throughput (with VDSL2): 100 Mbps NAT throughput (with VDSL2 35b): 300 Mbps NAT throughput for single WAN with hardware acceleration: 950 Mbps NAT throughput (total multi-WAN): 1.3 Gbps NAT throughput without hardware acceleration: 800 Mbps VPN throughput (256-bit AES IPSec): 300 Mbps VPN throughput (hardware accelerated IPSec): 800 Mbps VPN throughput (SSL): 130 Mbps |
Capacity | NAT sessions: 60000 Concurrent VPN tunnels: 32 Concurrent SSL VPN tunnels: 16 SSIDs per radio: 4 |
Network / Transport Protocol | IPSec, DDNS, DHCP, PPPoE, PPTP, L2TP, IPv4, IPv6, DHCPv6, Bonjour, SMB, RTSP, FTP |
Routing Protocol | Static IPv4 routing, static IPv6 routing, RIP, BGP, policy-based routing (PBR), GRE, MPOA |
Remote Management Protocol | Telnet, HTTP, HTTPS, SSH, TR-069, TFTP, SNMP 1, SNMP 2c, SNMP 3 |
Encryption Algorithm | SSL, IKEv2, SHA-1, 256-bit SHA, DES, Triple DES, AES, MPPE |
Authentication Method | RADIUS, XAUTH authentication, internal user database, LDAP, TACACS+, X.509 certificates |
Features | Firewall protection, VPN support, reset button, load balancing, content filtering, DynDNS, bandwidth control, DHCP server, IPv6 support, IPv4 support, VLAN Tagging, ARP support, port-based VLAN, IP-MAC binding, port mirroring, DNS server, High Availability, IGMP proxy, IGMP snooping, file sharing, LAN-to-LAN bridging, GRE, IPSec NAT-T, failover protection, port triggering, DMZ support, ALG support, VPN passthrough, application filtering, URL filtering, Web Filtering, anti-spoofing protection, DoS attack prevention, QoS, ToS, DSCP support, DSCP based ToS, ACL support, Brute Force Protection, E-mail alert, SMS alert, Syslog support, tagged VLAN, keyword filtering |
Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, ANSI T1.413, ITU-T G.993.1, ITU-T G.993.2, ITU-T G.997.1, ITU-T G.992.1 (G.dmt), ITU-T G.992.2 (G.lite) Annex A, ITU-T G.992.3, ITU-T G.992.5, UPnP, UKCA, RoHS |
Status Indicators | DMZ, DSL, link/activity, USB, VPN, WAN |
Line Properties
Framing Format | ANSI T1.413 |
|---|
Communications
Type | DSL modem |
|---|---|
Digital Signaling Protocol | ADSL, VDSL, ADSL2, ADSL2+, VDSL2, Vplus 35b |
Mobile Communication Protocol | LTE, 5G, WCDMA |
Generation | 5G |
Cellular Band | 5G n1, 5G n3, 5G n7, 5G n8, 5G n20, 5G n28, 5G n38, 5G n40, 5G n77, 5G n78, LTE B1, LTE B3, LTE B7, LTE B8, LTE B20, LTE B28, LTE B38, LTE B40, WCDMA B1, WCDMA B8 |
Protocols & Specifications | ITU G.993.2, ITU G.993.5, ITU G.992.1 (G.DMT) Annex A, ITU G.992.3 Annex A, ITU G.992.5 Annex A |
Max Transfer Rate | 300 Mbps |
IP Telephony
VoIP Protocols | SIP, H.323 |
|---|
Expansion / Connectivity
Interfaces | LAN: 5 x 10Base-T/100Base-TX/1000Base-T – RJ-45 WAN / LAN: 1 x 10Base-T/100Base-TX/1000Base-T – RJ-45 WAN: 1 x VDSL2 / ADSL2+ – RJ-11 USB 2.0: 2 x 4 pin USB Type A |
|---|---|
Expansion Slots | 2 (total) / 2 (free) x SIM |
Aerial
Aerial | External detachable |
|---|---|
Antenna Qty | 4 |
Power
Power Device | External power adapter |
|---|---|
Voltage Required | AC 100-240 V |
Power Consumption Operational | 31.2 Watt |
Miscellaneous
Included Accessories | Wall plugs, wall mount screws, 4 x LTE aerials, 4 x LTE extension bases |
|---|---|
Cables Included | 1 x modem cable – 1 m 1 x network cable – 2 m |
Software / System Requirements
OS Provided | No operating system |
|---|
Dimensions & Weight
Width | 24.1 cm |
|---|---|
Depth | 16.5 cm |
Height | 4.4 cm |
Weight | 600 g |
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|---|
Max Operating Temperature | 45 °C |
Humidity Range Operating | 10 – 90% (non-condensing) |
