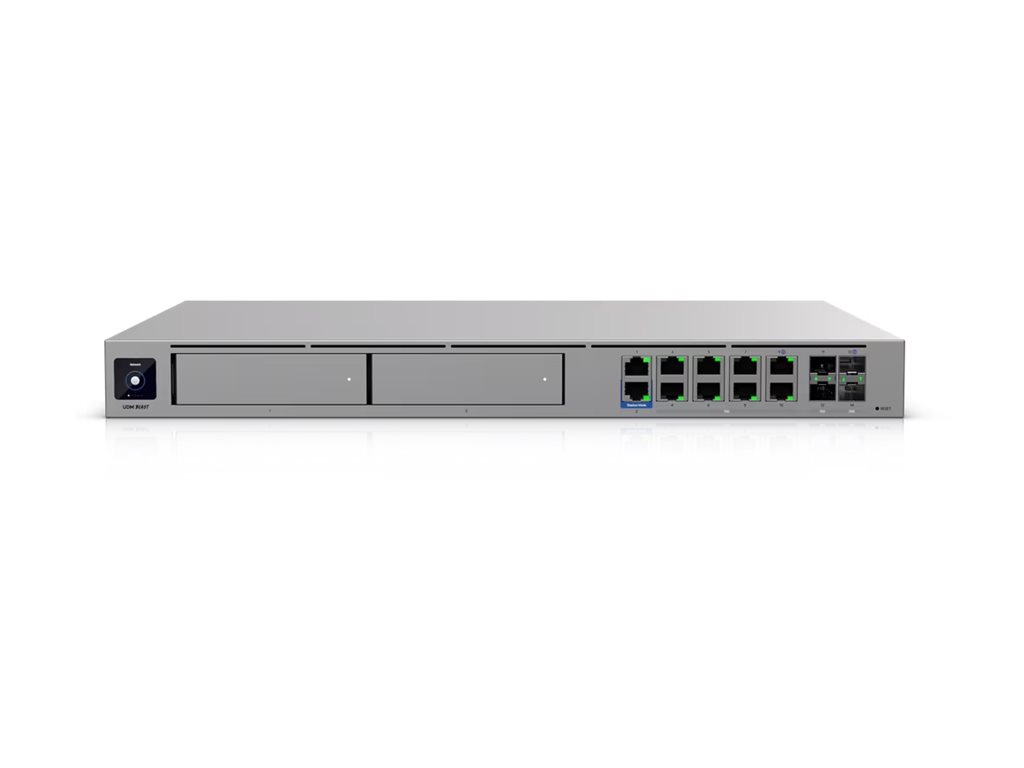

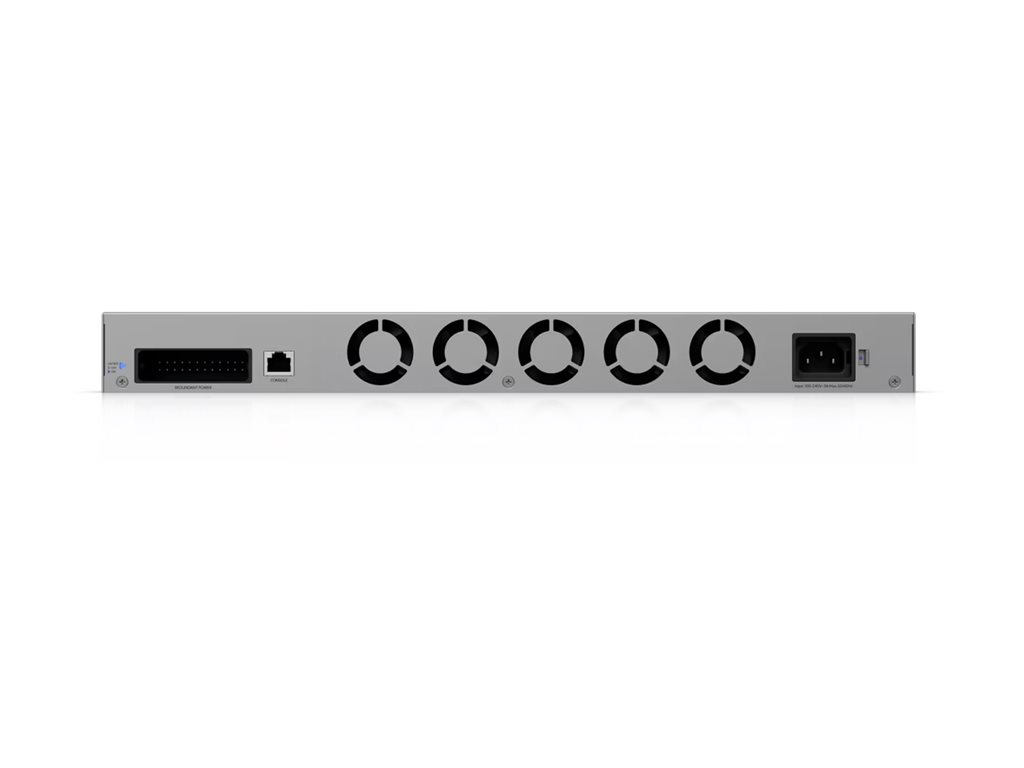

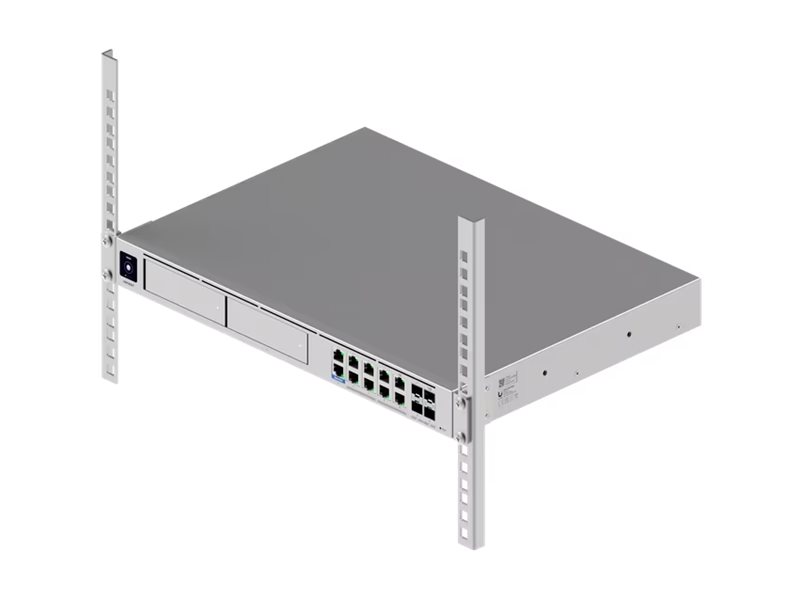

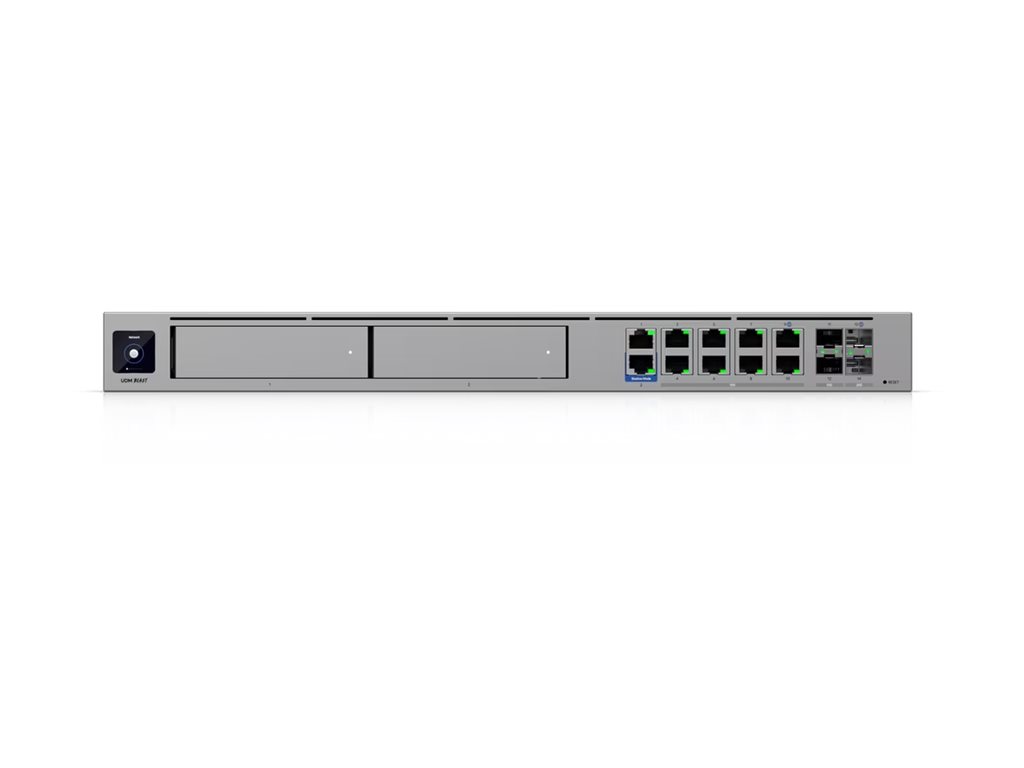

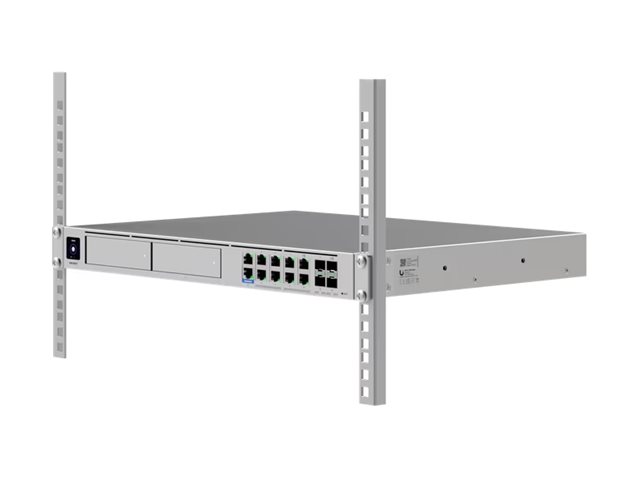

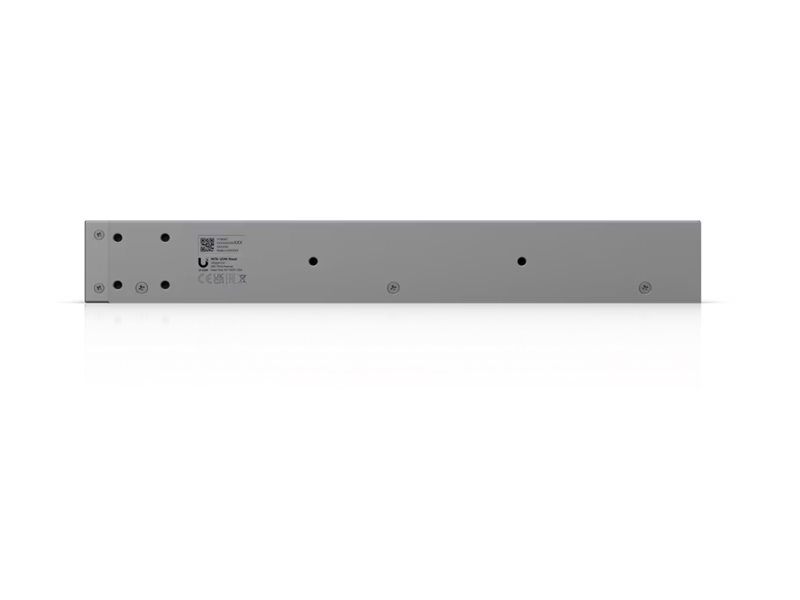

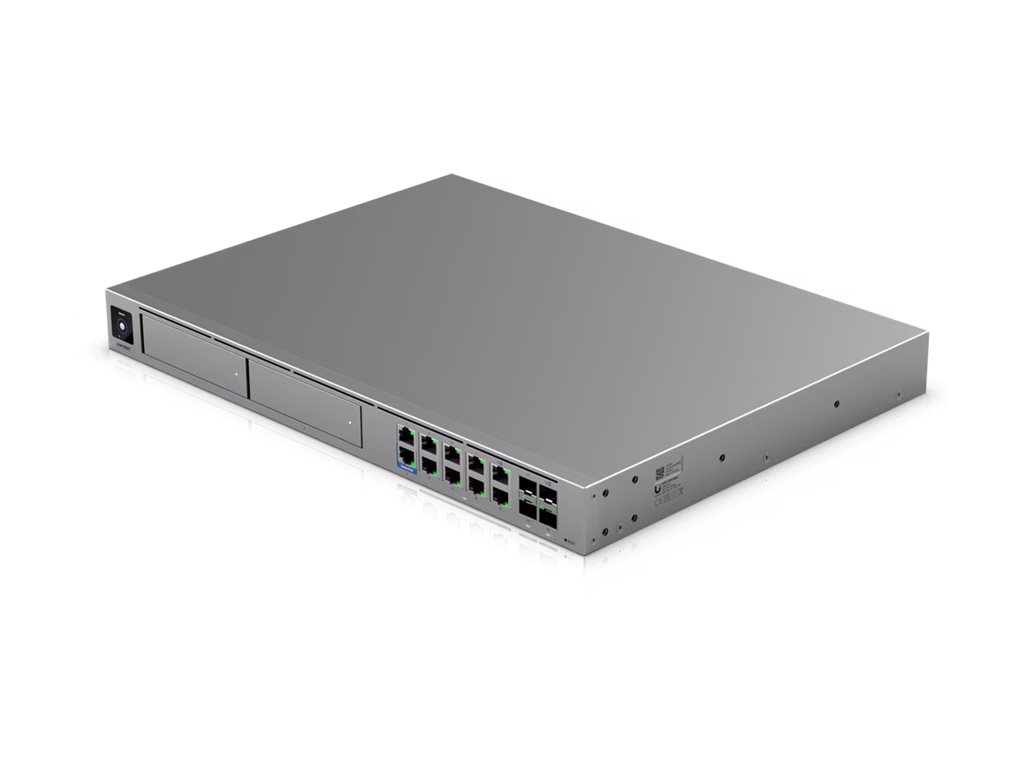

Ubiquiti UniFi Dream Machine Beast, Router 8-port switch, 2.5GbE, 5GbE, 10GbE, 25GbE, WAN ports: 2, rack-mountable, for P/N: UACC-CABLE-PATCH-EL-C6A-0.15M-W, UACC-CM-RJ45-MG, UACC-OM-SFP28-LR
$3,483.86 inc GST
Available on back-order
Ships from Auckland
- Allow 1-2 days for delivery to the North Island
- Allow 2-3 days for delivery to the South Island
- add 1-2 days if you are rural
- Collection can be arranged
We are currently experiencing shipping delays from this supplier warehouse
Description
The Ubiquiti UniFi Dream Machine Beast combines robust performance and advanced networking capabilities to cater to demanding environments. Offering a capacity to support up to 750 UniFi devices, 100 cameras, and 200 managed hubs, it’s equipped to handle up to 7500 simultaneous users, ideal for both small businesses and larger enterprises. The device’s built-in 1.3″ touchscreen display and 128 GB SSD ensure intuitive management and efficient storage solutions for network needs.
Designed for seamless connectivity, the Dream Machine Beast features wired connectivity technology and a powerful integrated 8-port switch. With multiple WAN ports and support for various data link protocols, including Gigabit and 10 Gigabit Ethernet, users can experience high-speed data transfer and reliable performance. Additionally, advanced security features such as a firewall, VPN support, and intrusion prevention systems keep the network secure while providing robust monitoring tools for traffic management.
- Supports up to 750 UniFi devices and 100 cameras
- Integrated 8-port switch for efficient connectivity
- Robust security with firewall and VPN support
- 1.3″ touchscreen for easy management
- Handles up to 7500 simultaneous users
- High capacity performance
Supports up to 750 UniFi devices, 100 cameras, and 200 managed hubs while accommodating 7500 simultaneous users, ensuring efficiency in high-demand environments. - Intuitive management interface
Features a built-in 1.3″ touchscreen display that provides easy access to settings and real-time status updates, making network management straightforward. - Versatile connectivity options
Equipped with multiple WAN ports and an integrated 8-port switch, this device offers flexible connectivity options to suit various networking needs. - Advanced security measures
Utilizes features including a firewall, VPN capabilities, intrusion prevention, and advanced traffic management tools to keep the network secure. - Robust environmental specifications
Operates efficiently within a temperature range of 0°C to 40°C and supports a humidity range from 5% to 95%, ensuring reliability in diverse conditions.
Main Specifications
Product Description | Ubiquiti UniFi Dream Machine Beast – router – rack-mountable |
Device Type | Router – 8-port switch (integrated) |
Enclosure Type | Rack-mountable – 1U |
WAN Ports Qty | 2 |
Data Link Protocol | Fast Ethernet, Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet |
Performance | IDS/IPS throughput: 25 Gbps |
Capacity | Number of UniFi supported devices: 750 Maximum cameras: 100 Managed hubs: 200 Simultaneous users: 7500 |
Network / Transport Protocol | IPSec, OpenVPN, L2TP, IPv6 |
Routing Protocol | OSPF, BGP, IGMP |
Remote Management Protocol | DHCP |
Features | Reset button, VRRP support, application-aware layer 7 firewall, DPI & traffic identification, zone-based firewall advanced filtering, content filtering, IPS, IDP, ad blocking, OpenVPN server, WireGuard, OpenVPN client, multi-WAN load balancing, LACP port aggregation, Advanced QoS, mDNS, DNAT support, SNAT support, Internet quality, outage reporting, policy-based WAN, VPN routing, DHCP server, IGMP proxy, aluminium/steel housing, Bluetooth management, 4KV ESD Protector (contact discharge), 8KV ESD Protector (air-gap discharge), safety latch |
Power | AC 100-240 V (50/60 Hz) |
Dimensions (WxDxH) | 44.24 cm x 32.5 cm x 4.37 cm |
Weight | 5.5 kg |
Designed For | P/N: UACC-CABLE-PATCH-EL-C6A-0.15M-W, UACC-CM-RJ45-MG, UACC-DAC-SFP10-0.5M, UACC-DAC-SFP28-0.5M, UACC-OM-SFP28-LR |
Extended Specifications
Miscellaneous
Rack Mounting Kit | Included |
|---|
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|---|
Max Operating Temperature | 40 °C |
Dimensions & Weight
Weight | 5.5 kg |
|---|---|
Depth | 32.5 cm |
Miscellaneous

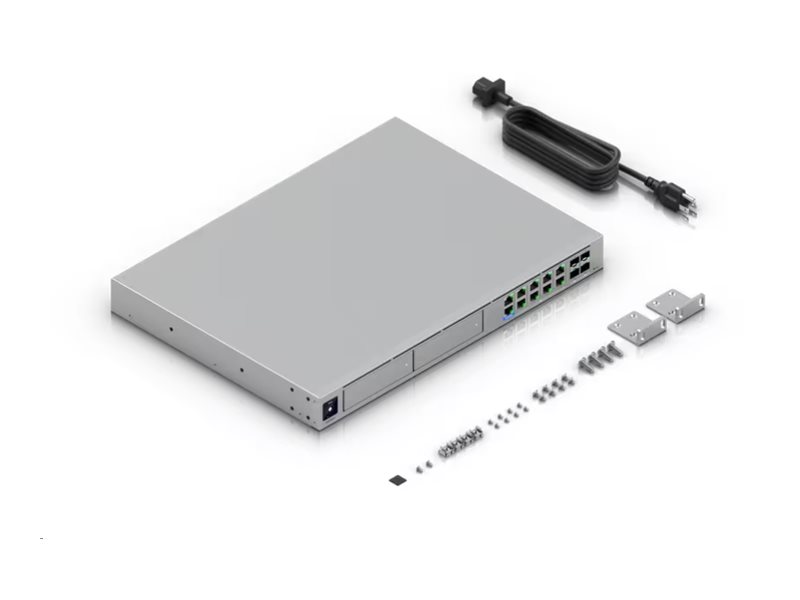

Included Accessories | Power cable |
|---|
General
RAM | 16 GB |
|---|
Dimensions & Weight
Height | 4.37 cm |
|---|
General
Encryption Algorithm | TLS |
|---|---|
Connectivity Technology | Wired |
Remote Management Protocol | DHCP |
Routing Protocol | OSPF, BGP, IGMP |
Enclosure Type | Rack-mountable – 1U |
Environmental Parameters
Humidity Range Operating | 5 – 95% (non-condensing) |
|---|
General
Device Type | Router – 8-port switch (integrated) |
|---|---|
MAC Address Table Size | 32000 entries |
Dimensions & Weight
Width | 44.24 cm |
|---|
Power
Power Device | Internal power supply |
|---|---|
Voltage Required | AC 100-240 V (50/60 Hz) |
Expansion / Connectivity
Expansion Slots | 2 (total) / 2 (free) x 3.5″ HDD bay |
|---|
General
Authentication Method | RADIUS, RADSEC |
|---|---|
Compliant Standards | NDAA, IC, FCC |
Network / Transport Protocol | IPSec, OpenVPN, L2TP, IPv6 |
Built-in Devices | 1.3″ touch screen display, 128 GB SSD |
Data Link Protocol | Fast Ethernet, Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet |
Performance | IDS/IPS throughput: 25 Gbps |
Capacity | Number of UniFi supported devices: 750 Maximum cameras: 100 Managed hubs: 200 Simultaneous users: 7500 |
Features | Reset button, VRRP support, application-aware layer 7 firewall, DPI & traffic identification, zone-based firewall advanced filtering, content filtering, IPS, IDP, ad blocking, OpenVPN server, WireGuard, OpenVPN client, multi-WAN load balancing, LACP port aggregation, Advanced QoS, mDNS, DNAT support, SNAT support, Internet quality, outage reporting, policy-based WAN, VPN routing, DHCP server, IGMP proxy, aluminium/steel housing, Bluetooth management, 4KV ESD Protector (contact discharge), 8KV ESD Protector (air-gap discharge), safety latch |
Processor | 1 x ARM 2.1 GHz |
Status Indicators | Link/activity, disk, RPS (Redundant Power Supply), SFP+ |
Expansion / Connectivity
Interfaces | LAN: 2 x 10Base-T/100Base-TX/1000Base-T – RJ-45 LAN: 7 x 10Gb Ethernet – RJ-45 WAN: 1 x 10Gb Ethernet – RJ-45 WAN: 1 x 25Gb Ethernet – SFP28 LAN: 1 x 25Gb Ethernet – SFP28 LAN: 2 x 10Gb Ethernet – SFP+ Console: 1 x |
|---|
Compatibility Information
Designed For | P/N: UACC-CABLE-PATCH-EL-C6A-0.15M-W, UACC-CM-RJ45-MG, UACC-DAC-SFP10-0.5M, UACC-DAC-SFP28-0.5M, UACC-OM-SFP28-LR |
|---|
Additional information
| Manufacturer |
|---|
