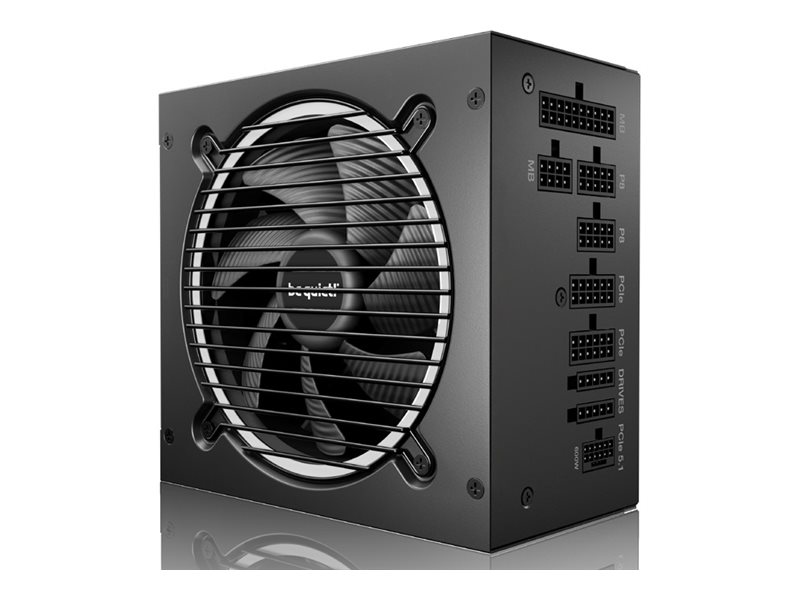

be quiet! Pure Power 13 M 850W, Power supply (internal), ATX12V 3.1/ EPS12V 2.92, 80 PLUS Gold, Cybenetics Gold, AC 100-240 V, 850 Watt, active PFC, Australia, black
$232.97 inc GST
✓ In Stock - 50 available
✓ Free NZ Delivery
50 in stock
Ships from: Auckland or Christchurch
- Allow 1–2 days for delivery
- Add 1–2 days if you are rural
- No collections
Description
The be quiet! Pure Power 13 M 850W power supply combines performance with silent operation, making it a suitable choice for any system build. With an 80 PLUS Gold certification, energy efficiency is ensured, reducing electricity costs while maintaining reliable power output. The 120 mm rifle bearing cooling fan operates at a low sound emission of 7.6 dB, ensuring a quiet computing experience even under load. The included sleeved and flat cables facilitate easy cable management and enhance airflow within the case. Protection features, including overheat, overcurrent, and short-circuit protections, safeguard your components.
- 80 PLUS Gold certification for efficient power delivery
- Silent cooling with a 120 mm rifle bearing fan
- Flexible modular cable management
- Comprehensive protection features for reliable operation
- Long lifespan with high MTBF of 100,000 hours
- Efficient power supply
With a power output of 850 W and an active Power Factor Correction (PFC) of 0.98, this power supply meets the demand of high-performance components while maximizing energy efficiency. - Robust cooling solution
Equipped with a 120 mm fan designed for silent performance, this power supply maintains optimal operating temperatures while generating minimal noise, ensuring a tranquil user experience. - Advanced protection mechanisms
The power supply includes multiple safety features such as overheat protection, overvoltage protection, and short-circuit protection to safeguard your system from potential damage. - Modular and organized
The modular cable management allows users to connect only the cables necessary for their setup, minimizing clutter and enhancing airflow within the PC case. - Compliance with standards
This power supply complies with various international standards including ENERGY STAR and RoHS, ensuring it meets stringent environmental guidelines.
Main Specifications
Product Description | be quiet! Pure Power 13 M 850W – power supply – 850 Watt |
Device Type | Power supply – active Power Factor Correction (PFC) – internal |
Specification Compliance | ATX12V 3.1/ EPS12V 2.92 |
80 PLUS Certification | 80 PLUS Gold |
Cybenetics Certification | Cybenetics Gold |
Weight | 2.62 kg |
Input Voltage | AC 100-240 V |
Output Voltage | +3.3, +5, ±12 V, +5Vsb V |
Power Capacity | 850 Watt |
Output Current | +3.3V – 22 A +5V – 22 A +12V1 – 70.9 A -12V – 0.3 A +5VSB – 3 A |
Output connectors | 1 x power 24 pin ATX with detachable 4 pin section 1 x power 8 pin +12V with detachable 4 pin section 1 x power 4 pin +12V 1 x 12V 2×6 PCIE 5.1 4 x 8 pin PCI Express power with detachable 2 pin section 6 x 15 pin Serial ATA power 2 x 4 pin Parallel ATA power |
Modular Cable Management | Yes |
Cooling System | 120 mm fan |
Included Accessories | Cable ties, screws |
Colour | Black |
Dimensions (WxDxH) | 15 cm x 16 cm x 8.6 cm |
Environmental Standards | ENERGY STAR |
Extended Specifications
General
Device Type | Power supply – active Power Factor Correction (PFC) – internal |
|---|---|
Specification Compliance | ATX12V 3.1/ EPS12V 2.92 |
PSU Form Factor | ATX |
Colour | Black |
Power Device
Input Voltage | AC 100-240 V |
|---|---|
Frequency Required | 50 – 60 Hz |
Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section 1 x power 8 pin +12V with detachable 4 pin section 1 x power 4 pin +12V 1 x 12V 2×6 PCIE 5.1 4 x 8 pin PCI Express power with detachable 2 pin section 6 x 15 pin Serial ATA power 2 x 4 pin Parallel ATA power |
Output Voltage | +3.3, +5, ±12 V, +5Vsb V |
Power Capacity | 850 Watt |
Output Current | +3.3V – 22 A +5V – 22 A +12V1 – 70.9 A -12V – 0.3 A +5VSB – 3 A |
Power Factor (PF) | 0.98 |
Modular Cable Management | Yes |
80 PLUS Certification | 80 PLUS Gold |
Cybenetics Certification | Cybenetics Gold |
Miscellaneous
Included Accessories | Cable ties, screws |
|---|---|
MTBF | 100,000 hours |
Cooling System | 120 mm fan |
Features | Sleeved cables, flat cables, LLC resonant converter technology, Synchronous Rectifier (SR) technology, DC-DC technology, Modern Standby compatible, no load power consumption < 0.1W, silent performance, rifle bearing cooling fan, single 12V rail, overheat protection, over current protection, overpower protection, short-circuit protection, over voltage protection, undervoltage protection, surge & inrush protection |
Compliant Standards | BSMI, CCC, CB, cTUVus, CU, FCC, RCM, TUV, UKCA, Energy Star 8.0, ERP, WEEE, RoHS |
Sustainability Information
ENERGY STAR | Yes |
|---|
Environmental Parameters
Max Operating Temperature | 40 °C |
|---|---|
Sound Emission | 7.6 dB |
Dimensions & Weight
Width | 15 cm |
|---|---|
Depth | 16 cm |
Height | 8.6 cm |
Weight | 2.62 kg |
