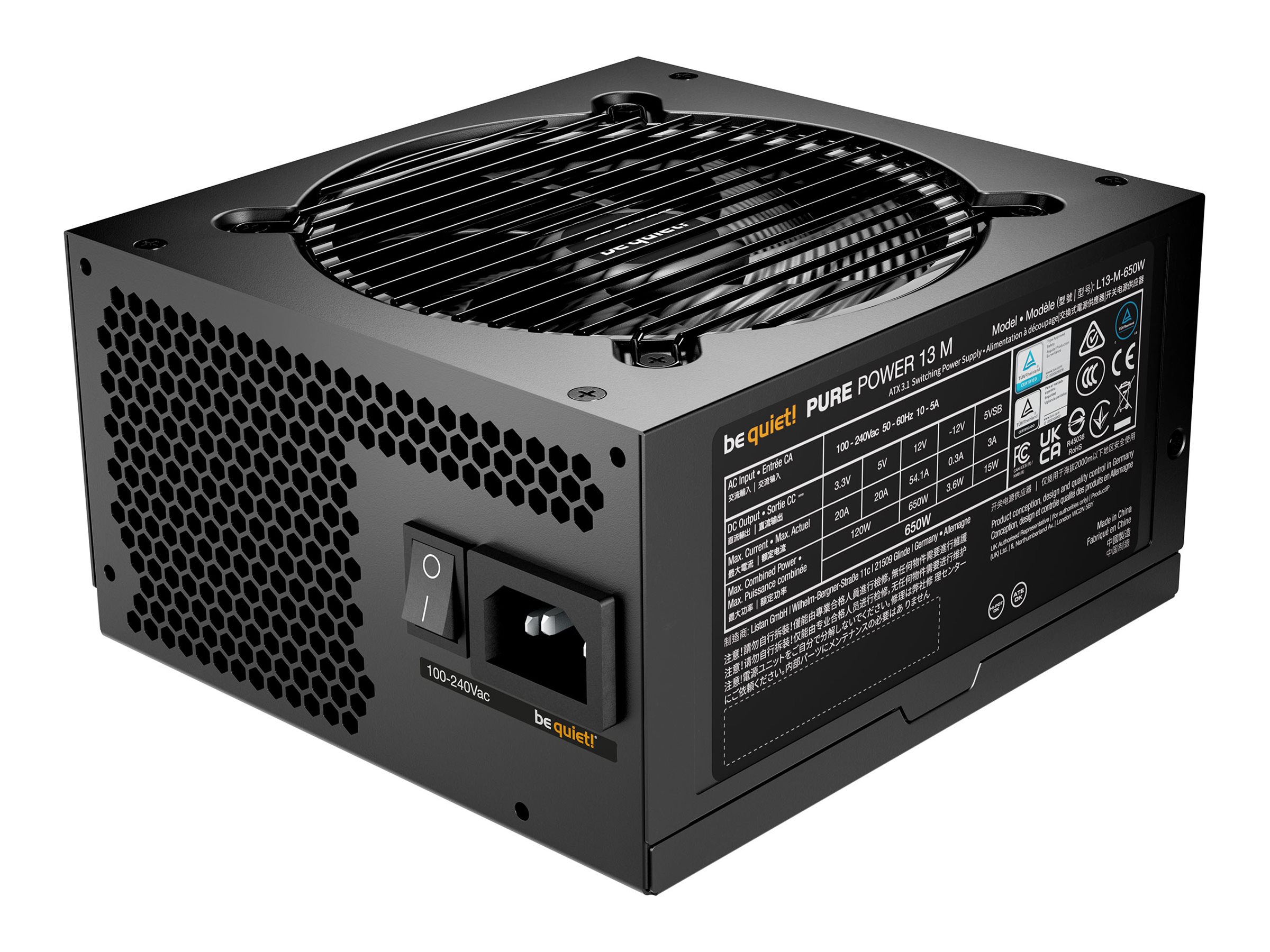

be quiet! Pure Power 13 M 650W, Power supply (internal), ATX12V 3.1/ EPS12V 2.92, 80 PLUS Gold, AC 100-240 V, 650 Watt, active PFC, Australia, black
$179.31 inc GST
✓ In Stock - 1 available
✓ Free NZ Delivery
1 in stock (can be backordered)
Ships from: Auckland or Christchurch
- Allow 1–2 days for delivery
- Add 1–2 days if you are rural
- No collections
Description
Experience reliable and efficient power with the be quiet! Pure Power 13 M 650W power supply. It operates within a maximum temperature of 40°C while maintaining a low sound emission of 7.2 dB, ensuring a quiet environment. With an MTBF of 100,000 hours, this power supply is designed for longevity and durability, providing consistent performance for your system. The power supply features modular cable management with sleeved and flat cables, enhancing both connectivity and aesthetics. With a robust 650 W power output and compliance with numerous environmental standards, the be quiet! Pure Power 13 M is energy-efficient, boasting an 80 PLUS Gold certification. Benefit from features including overheat, overcurrent, and surge protection to keep your system safe, plus a rifle bearing cooling fan for silent performance.
- Operating noise level of just 7.2 dB for quiet operation
- 80 PLUS Gold certification for energy efficiency
- Modular cable management for an organized setup
- Multiple safety features including overheat and overload protection
- MTBF of 100,000 hours for reliable performance
- Efficient energy usage
The power supply achieves up to 94.2% efficiency at 50% load, ensuring minimal energy waste and lower electricity bills. - Silent and reliable cooling
Equipped with a 120 mm rifle bearing cooling fan, it operates quietly while effectively maintaining optimal operating temperatures. - Extensive protection mechanisms
Features such as overvoltage, undervoltage, and short-circuit protections safeguard your components, providing peace of mind. - Modular design for flexibility
The modular cable management allows users to connect only the cables they need, promoting better airflow and reducing clutter. - Long lifespan and durability
With a mean time between failures (MTBF) of 100,000 hours, this power supply is built for longevity and dependability in various gaming and workstation setups.
Main Specifications
Product Description | be quiet! Pure Power 13 M 650W – power supply – 650 Watt |
Device Type | Power supply – active Power Factor Correction (PFC) – internal |
Specification Compliance | ATX12V 3.1/ EPS12V 2.92 |
80 PLUS Certification | 80 PLUS Gold |
Weight | 2.32 kg |
Input Voltage | AC 100-240 V |
Output Voltage | +3.3, +5, ±12 V, +5Vsb V |
Power Capacity | 650 Watt |
Output Current | +3.3V – 20 A +5V – 20 A +12V1 – 54.1 A -12V – 0.3 A +5VSB – 3 A |
Output connectors | 1 x power 24 pin ATX with detachable 4 pin section 1 x power 8 pin +12V with detachable 4 pin section 1 x power 4 pin +12V 1 x 12V 2×6 PCIE 5.1 2 x 8 pin PCI Express power with detachable 2 pin section 5 x 15 pin Serial ATA power 2 x 4 pin Parallel ATA power |
Modular Cable Management | Yes |
Cooling System | 120 mm fan |
Included Accessories | Cable ties, screws |
Colour | Black |
Dimensions (WxDxH) | 15 cm x 16 cm x 8.6 cm |
Environmental Standards | ENERGY STAR |
Extended Specifications
General
Device Type | Power supply – active Power Factor Correction (PFC) – internal |
|---|---|
Specification Compliance | ATX12V 3.1/ EPS12V 2.92 |
PSU Form Factor | ATX |
Colour | Black |
Power Device
Input Voltage | AC 100-240 V |
|---|---|
Frequency Required | 50 – 60 Hz |
Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section 1 x power 8 pin +12V with detachable 4 pin section 1 x power 4 pin +12V 1 x 12V 2×6 PCIE 5.1 2 x 8 pin PCI Express power with detachable 2 pin section 5 x 15 pin Serial ATA power 2 x 4 pin Parallel ATA power |
Output Voltage | +3.3, +5, ±12 V, +5Vsb V |
Power Capacity | 650 Watt |
Output Current | +3.3V – 20 A +5V – 20 A +12V1 – 54.1 A -12V – 0.3 A +5VSB – 3 A |
Efficiency | 71.1% at 2% Load (230 VAC), 90% at 10% Load (230 VAC), 93.1% at 20% Load (230 VAC), 94.2% at 50% Load (230 VAC), 92.8% at 100% Load (230 VAC) |
Power Factor (PF) | 0.98 |
Modular Cable Management | Yes |
80 PLUS Certification | 80 PLUS Gold |
Miscellaneous
Included Accessories | Cable ties, screws |
|---|---|
MTBF | 100,000 hours |
Cooling System | 120 mm fan |
Features | Sleeved cables, flat cables, LLC resonant converter technology, Synchronous Rectifier (SR) technology, DC-DC technology, Modern Standby compatible, no load power consumption < 0.1W, silent performance, rifle bearing cooling fan, single 12V rail, overheat protection, over current protection, overpower protection, short-circuit protection, over voltage protection, undervoltage protection, surge & inrush protection |
Compliant Standards | BSMI, CCC, CB, cTUVus, CU, FCC, RCM, TUV, UKCA, Energy Star 8.0, ERP, WEEE, RoHS |
Sustainability Information
ENERGY STAR | Yes |
|---|
Environmental Parameters
Max Operating Temperature | 40 °C |
|---|---|
Sound Emission | 7.2 dB |
Dimensions & Weight
Width | 15 cm |
|---|---|
Depth | 16 cm |
Height | 8.6 cm |
Weight | 2.32 kg |
Dimensions & Weight (Shipping)
Shipping Width | 32 cm |
|---|---|
Shipping Depth | 21 cm |
Shipping Height | 13.3 cm |
Shipping Weight | 3.1 kg |
