Description
The HPE ProLiant DL380 Gen11 is designed to excel in demanding data center environments, offering flexibility and performance to meet diverse workload requirements. With a Xeon Silver processor and support for DDR5 SDRAM, this server allows for improvements in memory speed and capacity. Its rack-mountable chassis is optimized for space efficiency while providing easy access to components, ensuring effective cooling management within server racks. The HPE ProLiant DL380 Gen11 features hot-swap server storage bays compatible with SATA, SAS, and NVMe interfaces. The server is designed for scalability with two-way configuration support and plenty of expansion options, including available bays and slots. Additionally, its integrated management tools streamline remote administration and enhance security with the Trusted Platform Module (TPM 2.0), ensuring system integrity.
- Xeon Silver processor with upgradable options
- Flexible storage options with hot-swap bays for easy maintenance
- Robust memory support with DDR5 SDRAM technology
- Comprehensive remote management capabilities with integrated Lights-Out 6
- Secure design with Trusted Platform Module (TPM 2.0)
- Efficient storage capabilities
The server features eight hot-swap storage bays, allowing for easy installation and maintenance of drives. It supports various interface options including SATA, SAS, and NVMe, providing the flexibility needed for different storage setups. - Robust expansion options
With a total of 32 RAM slots and the capability to support expansion cards in available half-length, full-height slots, the HPE ProLiant DL380 Gen11 offers the scalability needed for growing business demands. - Effective cooling and operation
Designed for a wide range of operating environments, the DL380 Gen11 operates efficiently between 10°C and 35°C and can handle humidity levels of 8% to 90% RH, ensuring reliability in various conditions. - Integrated management tools
Equipped with Integrated Lights-Out 6, this server streamlines remote management, allowing administrators to monitor and maintain server health and performance without being onsite. - Enhanced security features
The embedded Trusted Platform Module (TPM 2.0) ensures a strong foundation for secure boot processes and encryption, protecting the integrity of sensitive data.
What’s in the Box
- HPE ProLiant DL380 Gen11
- 4 standard fans
Main Specifications
Product Description | HPE ProLiant DL380 Gen11 – rack-mountable Xeon Silver 4514Y 2 GHz – 32 GB – HDD 1.2 TB |
Type | Server – rack-mountable |
Height (Rack Units) | 2U |
Server Scalability | 2-way |
Processor | 1 x Intel Xeon Silver 4514Y / 2 GHz (up to 3.4 GHz, (16-core) |
Cache Memory | 30 MB L3 Cache |
Cache Per Processor | 30 MB |
RAM | 32 GB (installed) / 8 TB (max) – DDR5 SDRAM – Advanced ECC |
Storage Controller | RAID (Serial ATA-600 / SAS 3.0 / PCI Express (NVMe)) – OCP (HPE MR416i-p Gen11 SPDM) |
Server Storage Bays | Hot-swap 2.5″ |
Hard Drive | HDD 1.2 TB – SAS 12Gb/s – 10000 rpm |
Optical Storage | No optical drive |
Video Memory | 16 MB |
Networking | 1GbE |
Power Redundancy | Optional |
OS Provided | No operating system |
Software Included | HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download), HPE iLO Advanced |
Dimensions (WxDxH) | 44.8 cm x 72.7 cm x 8.75 cm |
Weight | 16 kg |
Environmental Standards | ENERGY STAR Qualified |
Documents
Extended Specifications
General
Type | Server |
|---|
Product Form Factor | Rack-mountable – 2U |
|---|
Built-in Devices | Led panel |
|---|
Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
|---|
Server Scalability | 2-way |
|---|
Hot-Swap Bays Qty | 8 |
|---|
Processor / Chipset
CPU | Intel Xeon Silver 4514Y |
|---|
Clock Speed | 2 GHz |
|---|
Max Turbo Speed | 3.4 GHz |
|---|
Number of Cores | 16-core |
|---|
CPU Qty | 1 |
|---|
Max CPU Qty | 2 |
|---|
CPU Upgradability | Upgradable |
|---|
Chipset Type | Intel C741 |
|---|
Cache Memory
Installed Size | L3 Cache – 30 MB |
|---|
Cache Per Processor | 30 MB |
|---|
RAM
Installed Size | 32 GB (installed) / 8 TB (max) |
|---|
Technology | DDR5 SDRAM – Advanced ECC |
|---|
Effective Memory Speed | 4800 MT/s |
|---|
Rated Memory Speed | 5600 MT/s |
|---|
Form Factor | DIMM 288-pin |
|---|
Slots | 32 (Total) / 31 (empty) |
|---|
Features | HPE SmartMemory, registered, slots 17 – 32 are available in two-processor configuration only |
|---|
Configuration Features | 1 x 32 GB |
|---|
Hard Drive
Type | HDD |
|---|
Capacity | 1 x 1.2 TB |
|---|
Interface Type | SAS 12Gb/s |
|---|
Spindle Speed | 10000 rpm |
|---|
Features | Mission critical, basic carrier, HPE Multi Vendor |
|---|
Storage Controller
Type | 1 x RAID – OCP |
|---|
Controller Interface Type | Serial ATA-600 / SAS 3.0 / PCI Express (NVMe) |
|---|
Storage Controller Name | HPE MR416i-p Gen11 SPDM |
|---|
Channel Qty | 16 |
|---|
Buffer Size | 8 GB |
|---|
Optical Storage
Monitor
Graphics Controller
Video Memory | 16 MB |
|---|
Video Interfaces | VGA |
|---|
Networking
Interface (Bus) Type | Open Compute Project mezzanine (OCP) 3.0 |
|---|
Ethernet Ports | 4 x Gigabit Ethernet |
|---|
Ethernet Controller | Broadcom BCM5719 |
|---|
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
|---|
Remote Management Protocol | SNMP 3, IPMI 2.0, SMASH CLP |
|---|
Remote Management Controller | Integrated Lights-Out 6 |
|---|
Features | Wake on LAN (WoL), PXE support |
|---|
Compliant Standards | OCP 3.0 |
|---|
Expansion / Connectivity
Bays | 8 (total) / 6 (free) x hot-swap 2.5″ SFF |
|---|
Slots | 1 (total) / 1 (free) x PCIe 5.0 x16 – full-length, full-height
1 (total) / 1 (free) x PCIe 5.0 x16 – full-length, full-height
1 (total) / 1 (free) x PCIe 5.0 x16 – half-length, full-height (x8 mode)
2 (total) / 0 (free) x Open Compute Project mezzanine (OCP) 3.0 |
|---|

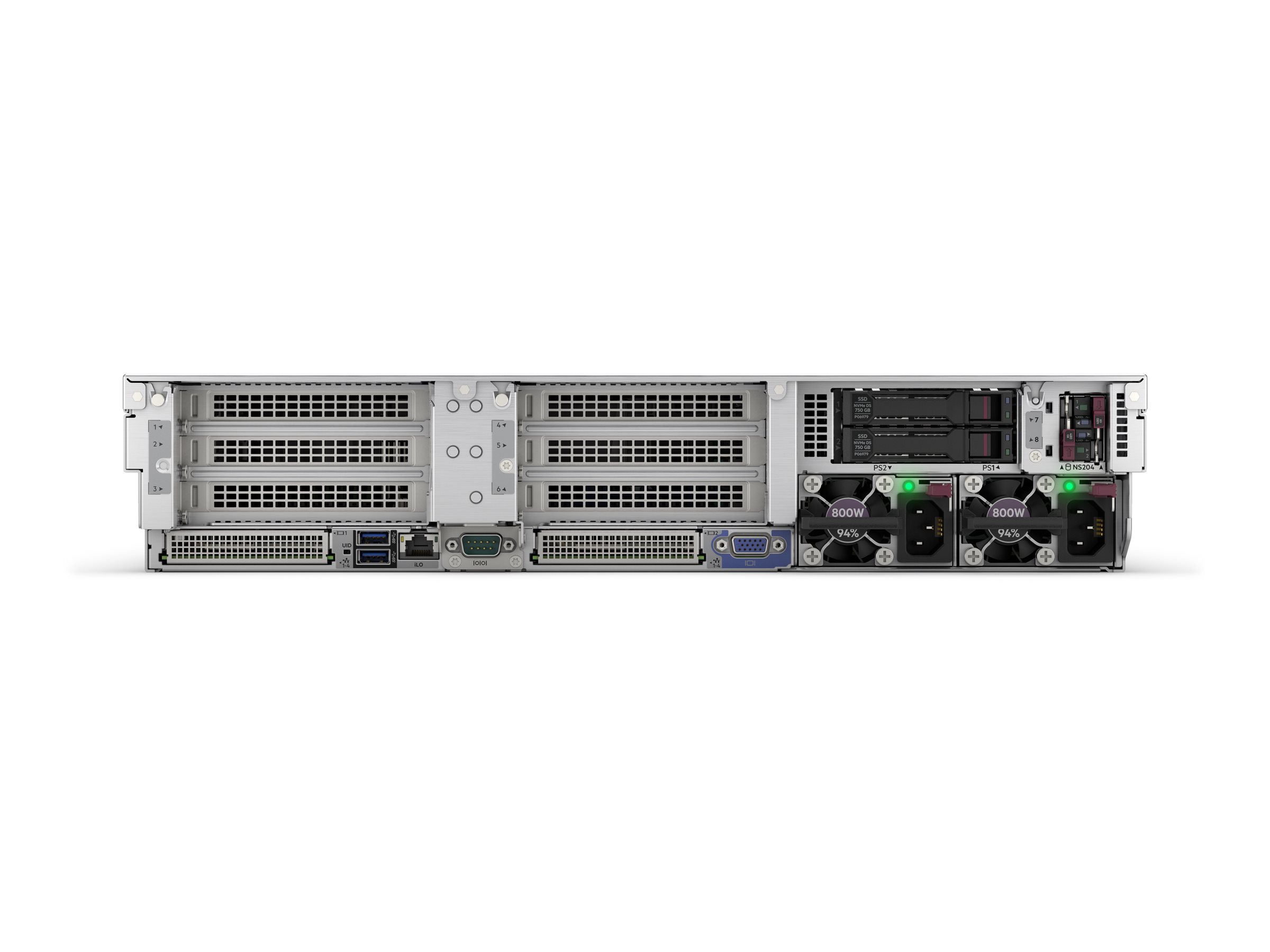

Interfaces | 1 x USB 3.0 (1 in front) (HPE iLO Service Port)
4 x USB 3.0 (2 rear, 2 internal)
1 x HPE iLO – RJ-45 (1 rear)
1 x VGA (1 rear)
4 x LAN (Gigabit Ethernet) – RJ-45 |
|---|
Miscellaneous
Included Accessories | 4 standard fans |
|---|
Compliant Standards | ACPI 6.4, PCIe 5.0, SMBIOS 3.4, Redfish API, AES, Triple DES, TLS v1.2, Active Directory v1.0, ASHRAE Class A3, ASHRAE Class A4, DMTF, ErP Lot 9, FIPS 140-2, WEEE 2002/95/EC |
|---|
Power
Device Type | Power supply – hot-plug |
|---|
Power Redundancy | Optional |
|---|
Power Redundancy Scheme | 1+1 (with optional power supply) |
|---|
Installed Qty | 1 |
|---|
Max Supported Qty | 2 |
|---|
Voltage Required | AC 100-240 V |
|---|
Power Provided | 800 Watt |
|---|
80 PLUS Certification | 80 PLUS Platinum |
|---|
Operating System / Software
OS Provided | No operating system |
|---|
Software | HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download), HPE iLO Advanced |
|---|
Sustainability Information
ENERGY STAR Certified | Yes |
|---|
ENERGY STAR Version | 3.0 |
|---|
Dimensions & Weight
Width | 44.8 cm |
|---|
Depth | 72.7 cm |
|---|
Height | 8.75 cm |
|---|
Weight | 16 kg |
|---|
Environmental Parameters
Min Operating Temperature | 10 °C |
|---|
Max Operating Temperature | 35 °C |
|---|
Humidity Range Operating | 8 – 90% RH (non-condensing) |
|---|
