Description

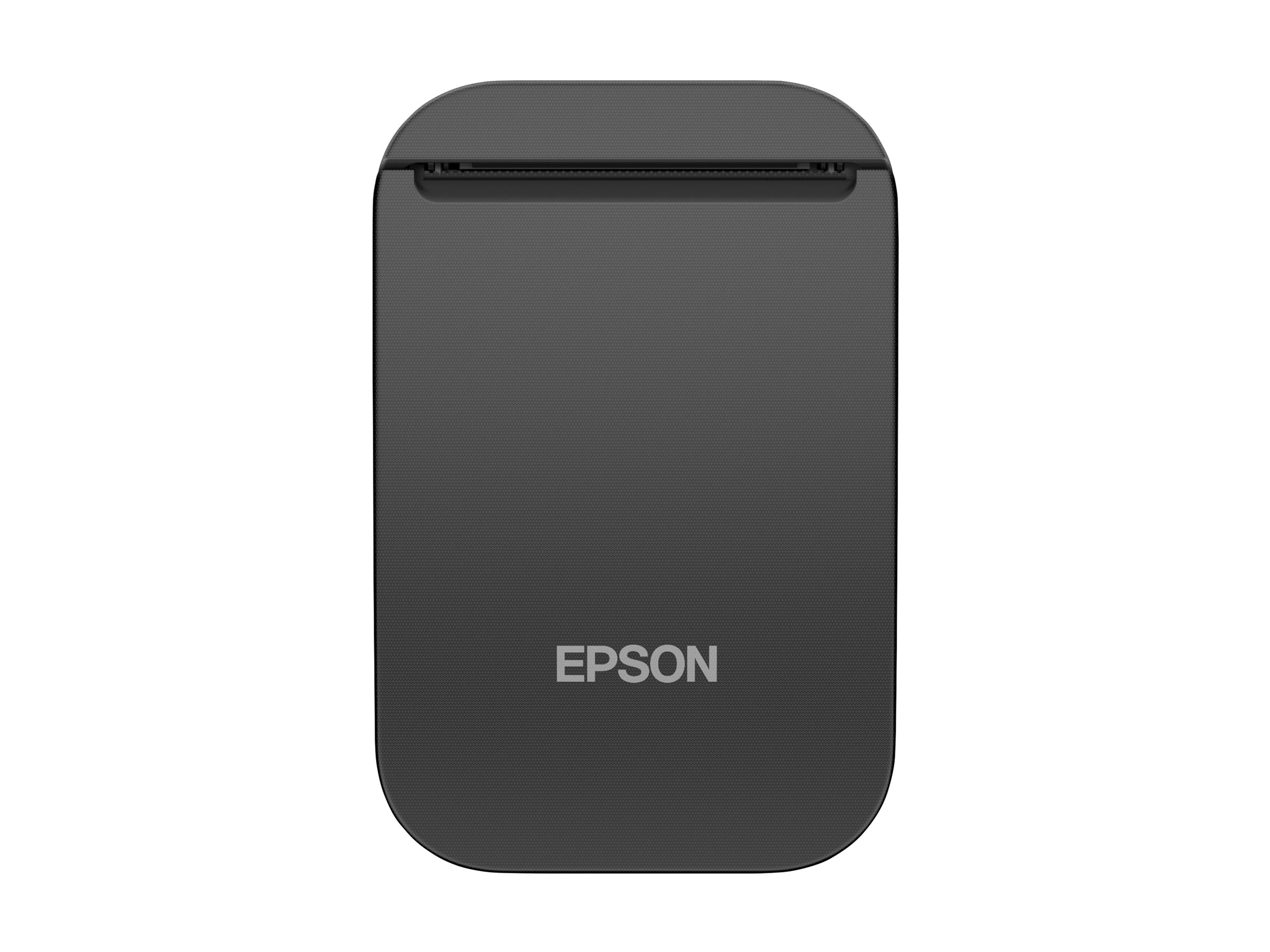

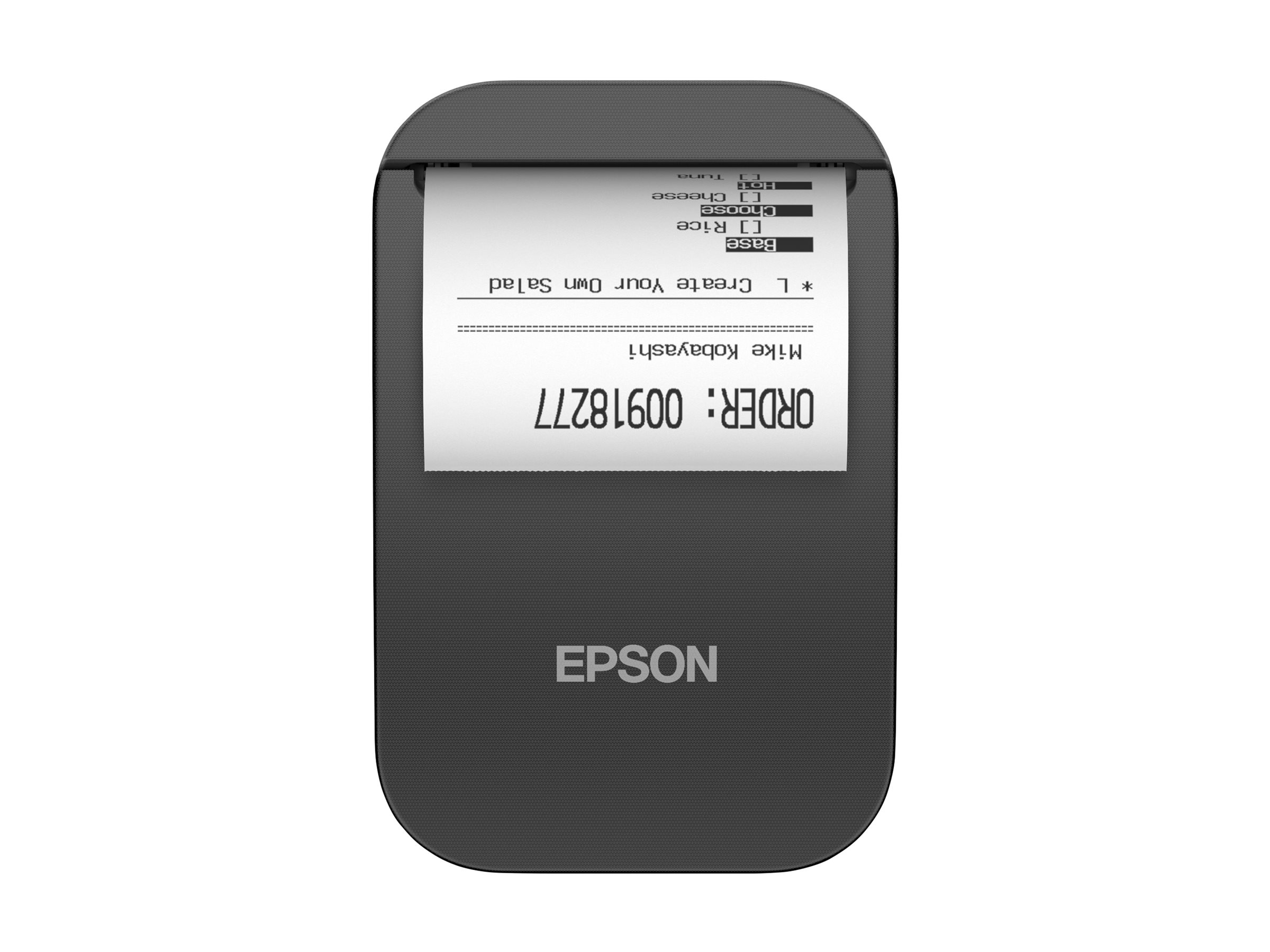

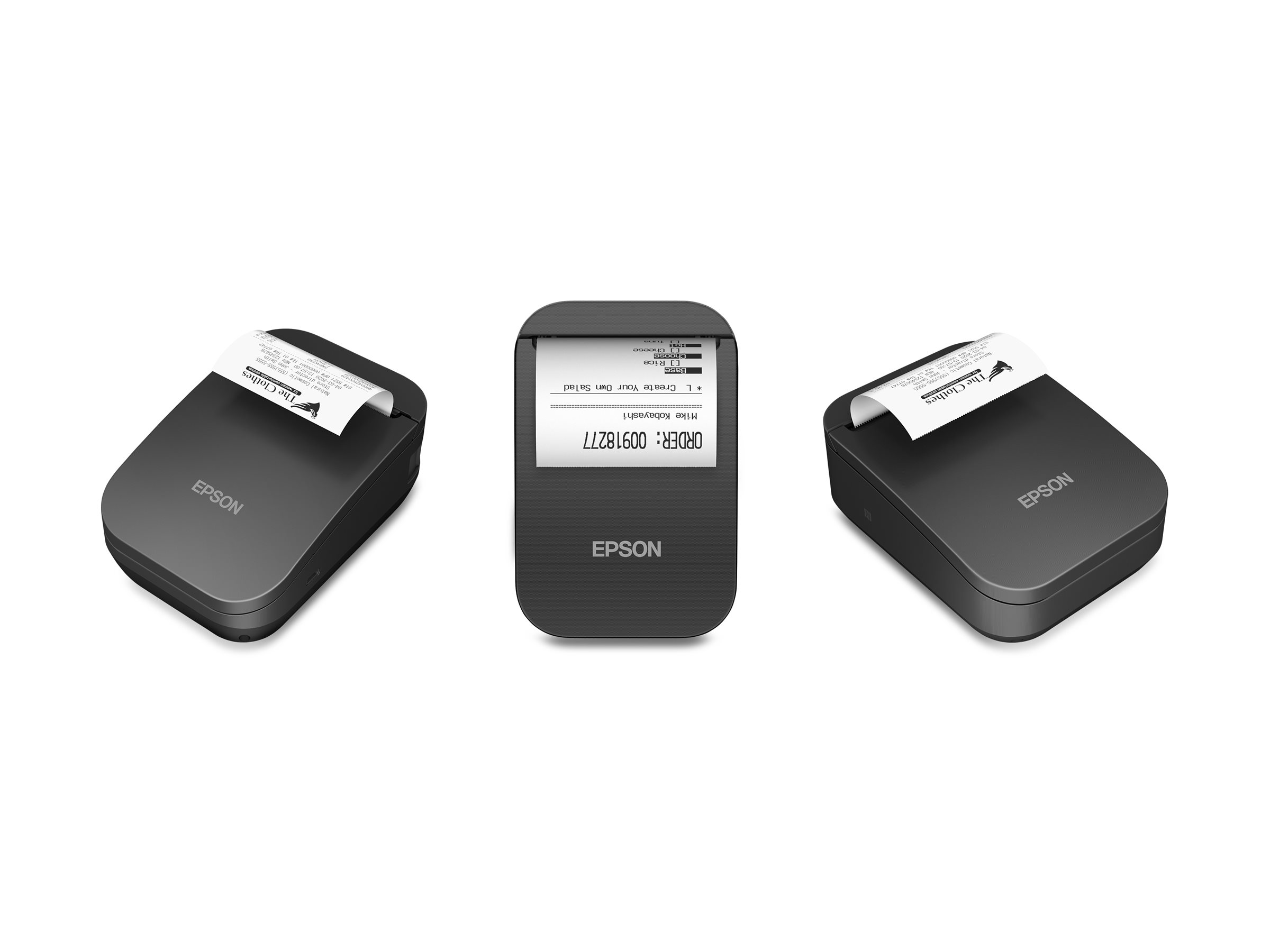

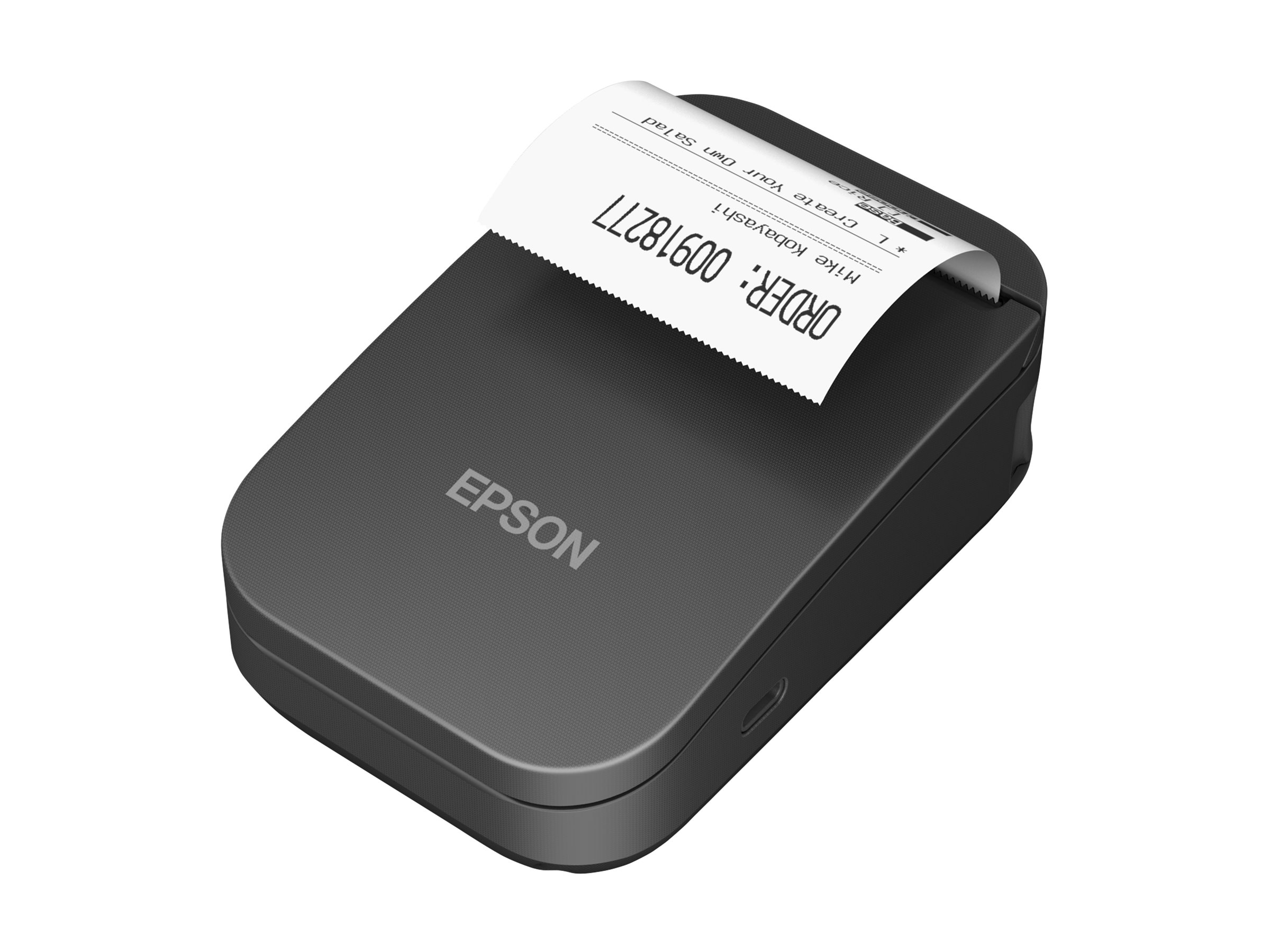

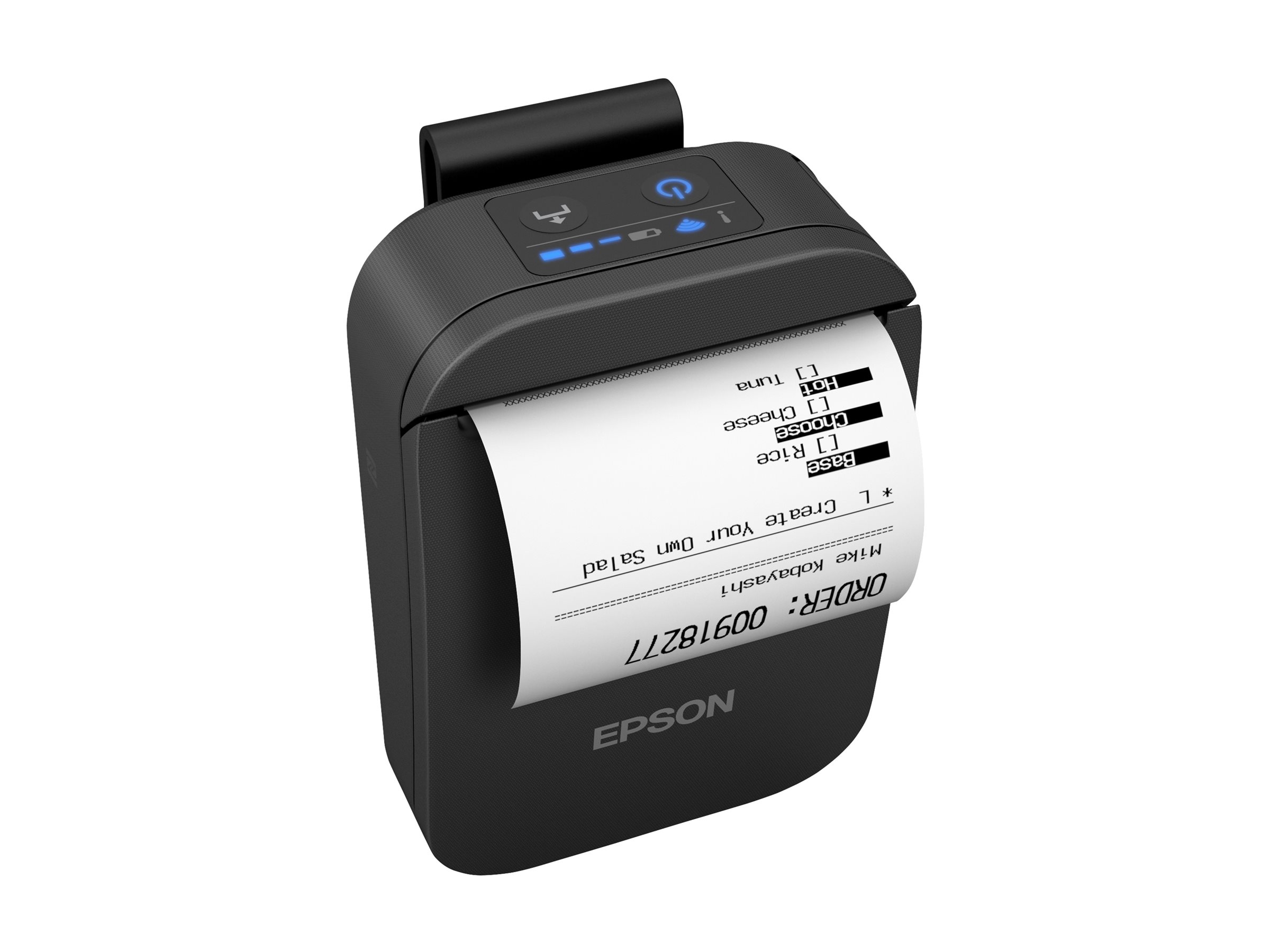

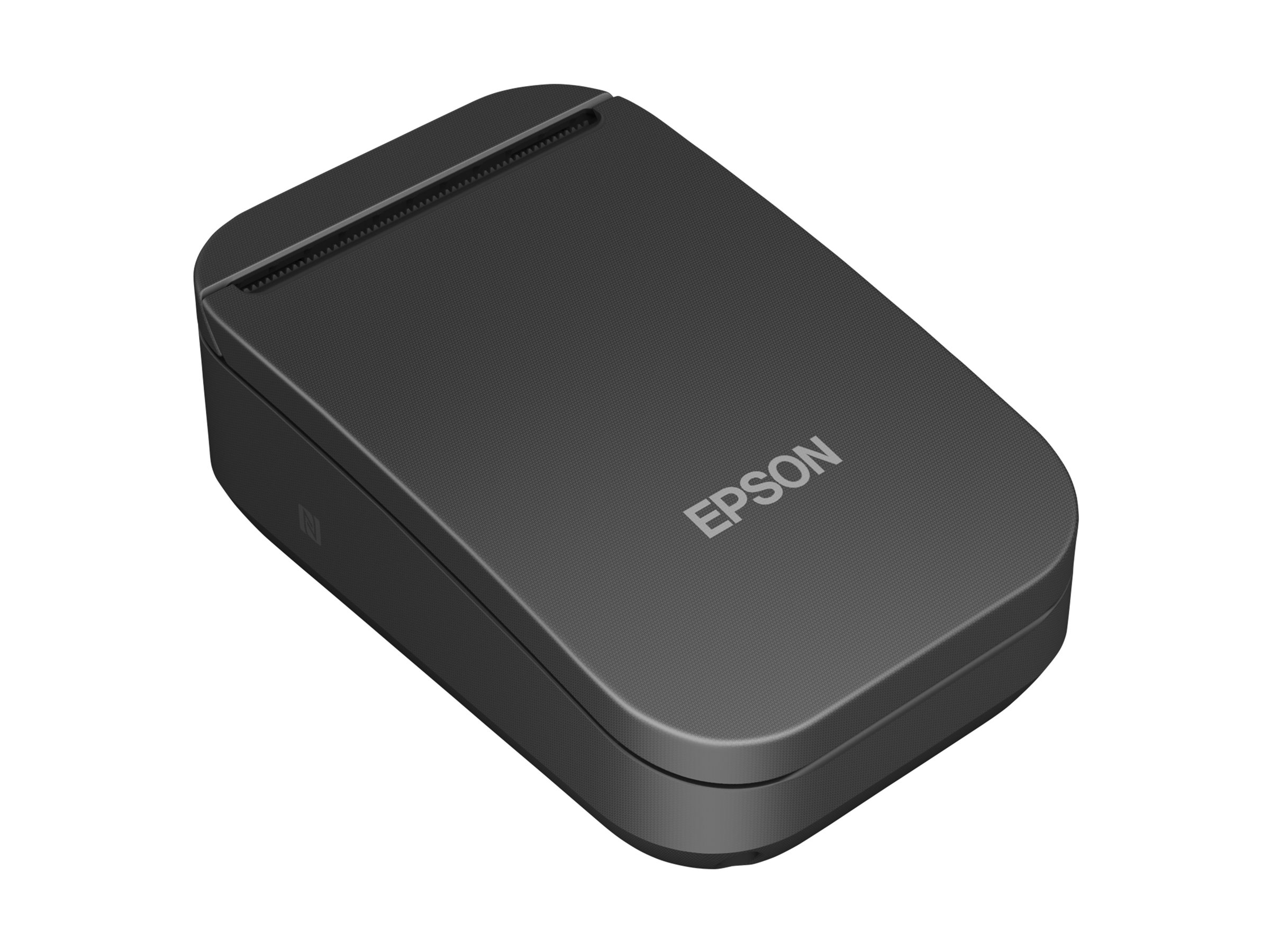

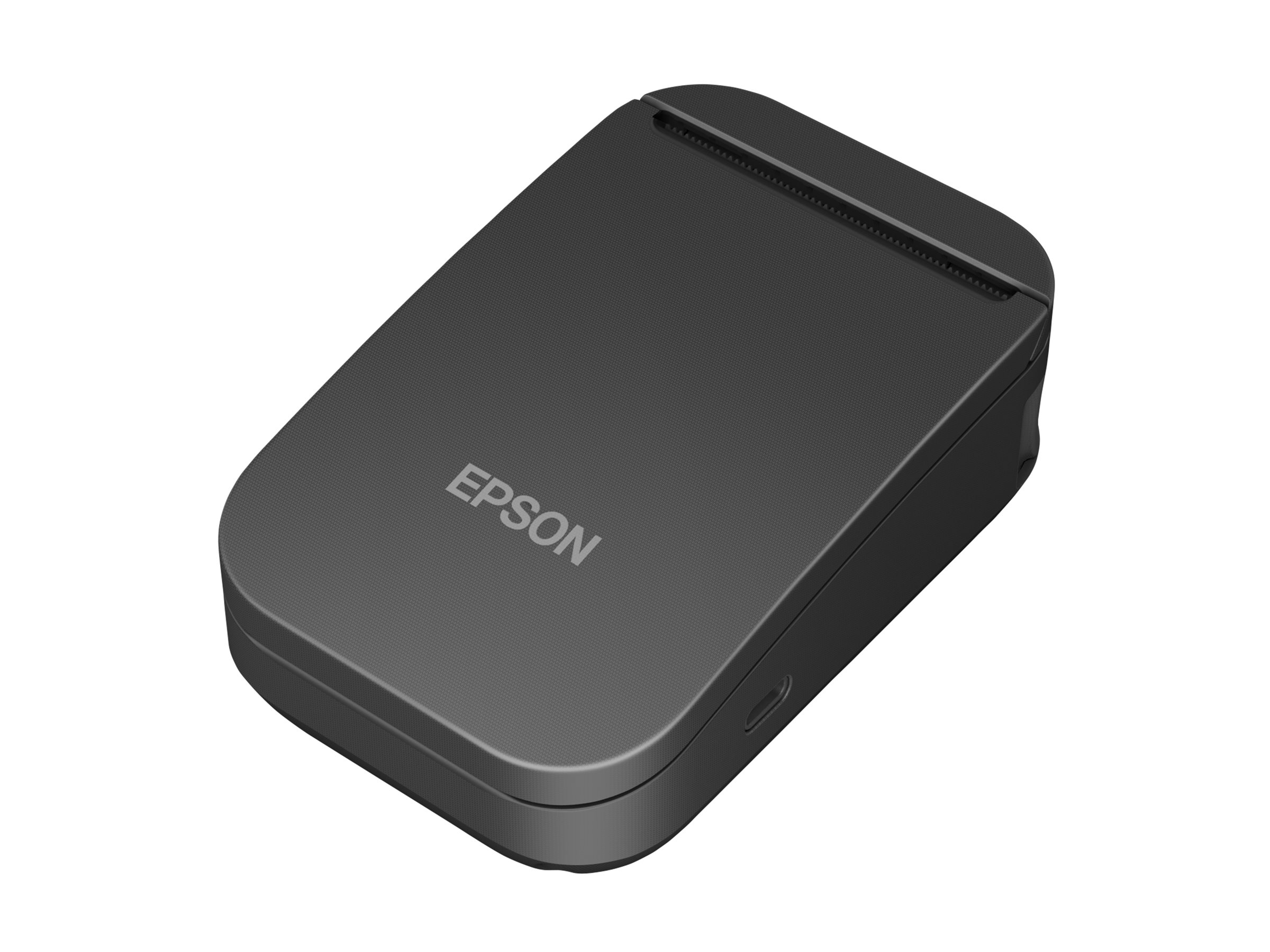

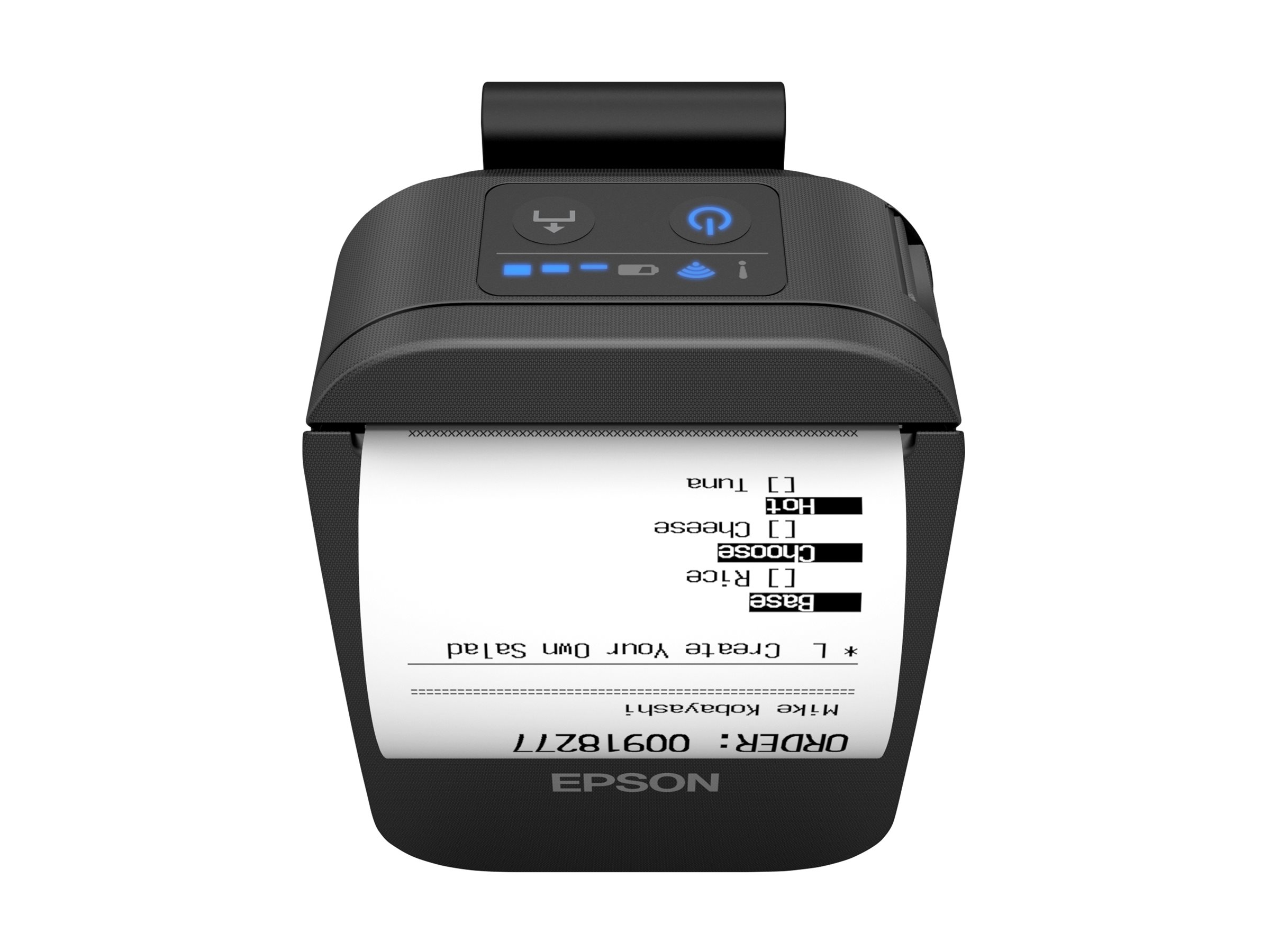

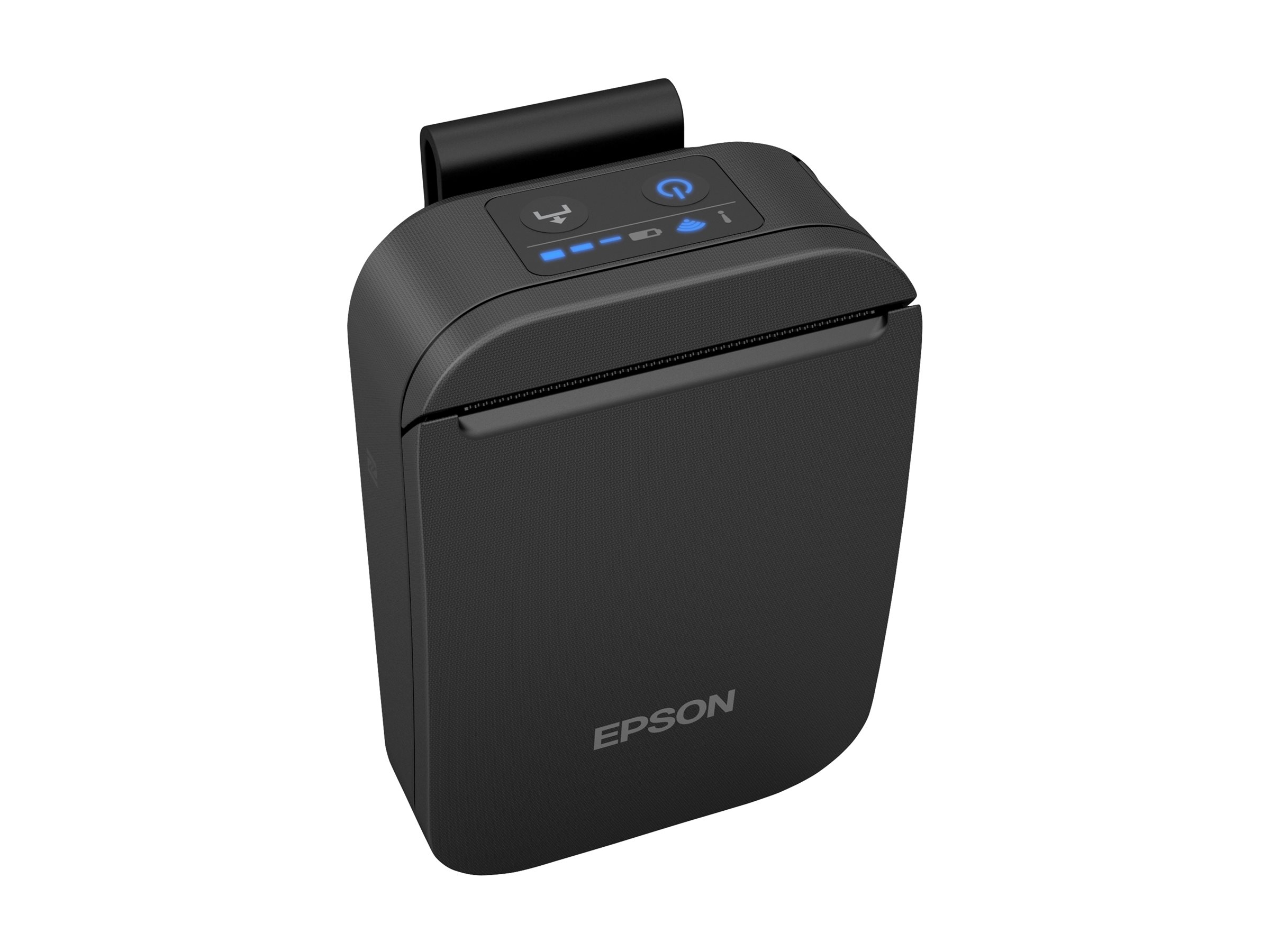

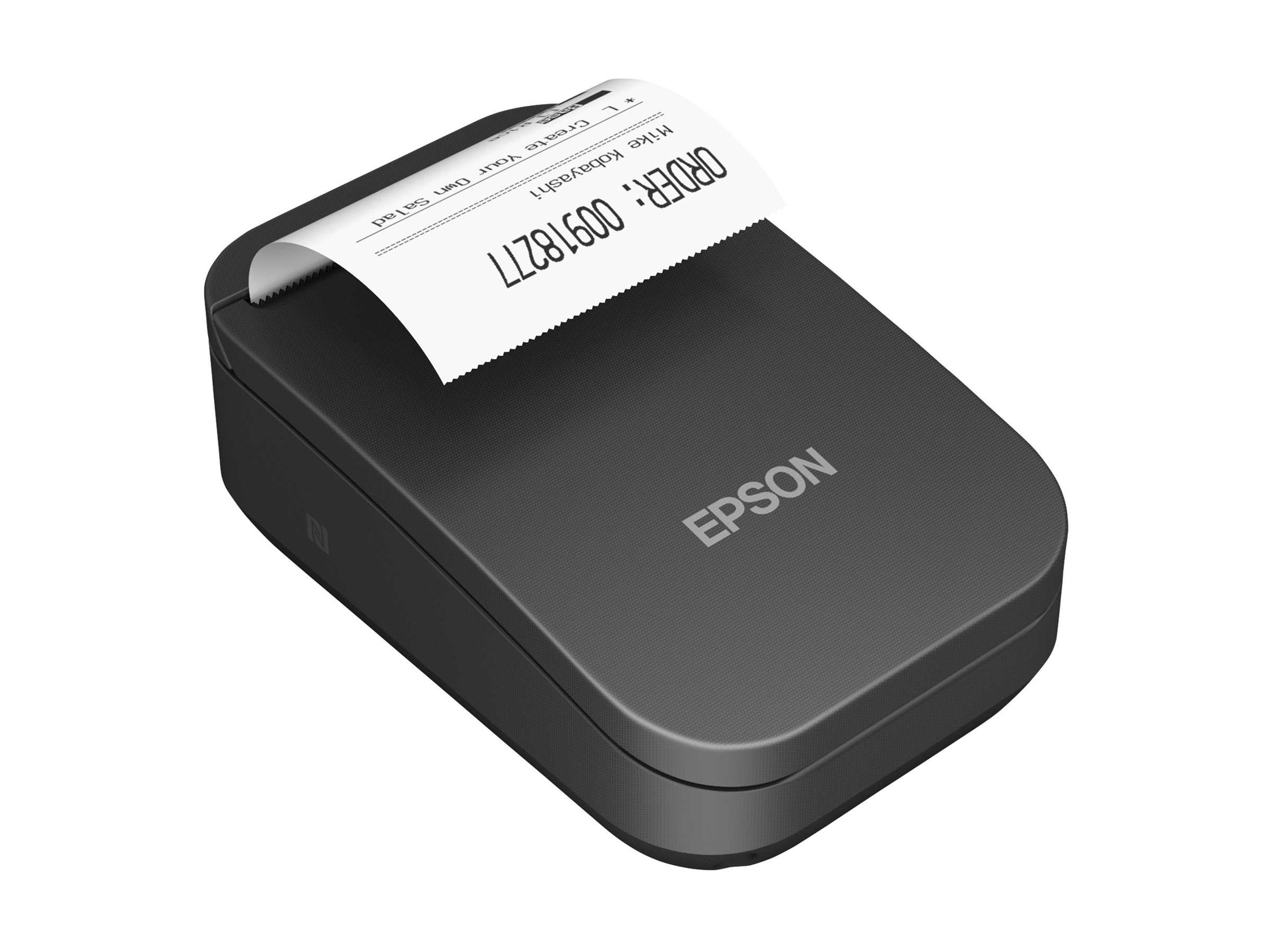

With Epson’s TM-P20II 2-inch portable receipt printer, you get even greater levels of versatility, connectivity, ease-of-use and durability. Sporting an all-new, ultra-light and stylish design, Epson’s TM-P20II portable receipt printer offers a range of advanced features, as well as enhanced durability. Providing outstanding flexibility, reliability, connectivity and ease-of-use, it’s perfect for busy, on-the-go environments such as retail, hospitality and in-vehicle applications. Delivering exceptional performance in a compact, stylish and ultra-light design, the all-new TM-P20II is ideal for anyone who needs receipt printing on-the-go. Also approved for in-vehicle applications, it’s even more robust than ever, providing increased impact resistance and protection to IP54 standards, and can be easily mounted onto a belt, or shoulder carried. With USB-C connectivity, plus support for Bluetooth 5.0 “classic” and low-energy modes, it provides excellent range, seamless pairing and reliable all-day battery life, while its Wi-Fi 5 capability means that it offers excellent wireless performance, including a Wi-Fi “Direct” mode, enabling direct connection of up to 8 devices without the need to connect to a network or hotspot.
- Compact and stylish design – features an ergonomic and light form-factor that’s intuitive to use
- Print anywhere, anytime – perfect for on-the-go environments, including in-vehicle applications
- Extremely robust and reliable – improved impact resistance, and IP54-rated for dust and water ingress
- Excellent connectivity USB-C and W-Fi, plus a W-Fi Direct mode for effortless printing
- Easy to set-up and configure
What’s in the Box
- Epson TM P20II
- 1 thermal roll paper
- USB-C cable
- Power adapter
- Belt clip, battery
Main Specifications
Product Description | Epson TM P20II – receipt printer – B/W – thermal line |
Printer Type | Receipt printer – thermal line – B/W |
Form Factor | Portable |
Weight | 228 g |
Max Media Size | Roll (5.8 cm) |
Max Media Size (Custom) | 58 mm |
Print Speed | Up to 100 mm/sec – max speed |
Max Resolution (B&W) | 203 x 203 dpi |
Max Resolution Class (B&W) | 203 x 203 dpi |
Interface | USB-C, Bluetooth 5.0 |
Barcodes | UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, ITF, Codabar, NW-7, Code 93, Code 39, GS1-128, UCC/EAN-128, GS1 DataBar Omnidirectional, GS1 DataBar Expanded, GS1 DataBar Limited, PDF417, QR code, Data Matrix, MaxiCode, Aztec code, Composite, Code 128 |
Media Type | Thermal paper |
Fonts | Font A (12×24), Font B (9×24), Font C (9×17), Font E (8×16), Font D (10×24) |
Character Sizes | 32 points, 42 points, 38 points, 48 points |
Features | Open cover sensor, paper near end sensor, Black Mark sensor |
Battery | Lithium Ion |
System Requirements | Android, Apple iOS, Microsoft Windows |
Enclosure Colour | Epson black |
Dimensions (WxDxH) | 7.9 cm x 12 cm x 4.6 cm |
Documents
Extended Specifications
General
Printer Type | Receipt printer – thermal line – monochrome |
|---|
Enclosure Colour | Epson black |
|---|
Printer
Print Speed | Up to 100 mm/sec – max speed |
|---|
Built-in Devices | Status LED |
|---|
Connectivity Technology | Wireless |
|---|
Interface | USB-C, Bluetooth 5.0 |
|---|
Max Resolution (B&W) | 203 x 203 dpi |
|---|
Max Resolution Class (B&W) | 203 x 203 dpi |
|---|
Fonts | Font A (12×24), Font B (9×24), Font C (9×17), Font E (8×16), Font D (10×24) |
|---|
Character Sizes | 32 points, 42 points, 38 points, 48 points |
|---|
Character Sizes (mm) | 1 x 2 mm, 1.12 x 2.1 mm, 1.12 x 3 mm, 1.25 x 3 mm, 1.5 x 3 mm |
|---|
Features | Open cover sensor, paper near end sensor, Black Mark sensor |
|---|
Barcodes | UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, ITF, Codabar, NW-7, Code 93, Code 39, GS1-128, UCC/EAN-128, GS1 DataBar Omnidirectional, GS1 DataBar Expanded, GS1 DataBar Limited, PDF417, QR code, Data Matrix, MaxiCode, Aztec code, Composite, Code 128 |
|---|
Media Handling
Media Type | Thermal paper |
|---|
Max Media Size | Roll (5.8 cm) |
|---|
Max Media Size (Custom) | 58 mm |
|---|
Media Sizes | Roll (5.8 cm) |
|---|
Roll Maximum Outer Diameter | 51 mm |
|---|
Roll Core Diameter | 18 mm |
|---|
Media Feeders | 1 x manual – 1 roll – Roll (5.8 cm) |
|---|
Expansion / Connectivity
Miscellaneous
Included Accessories | Battery, belt clip |
|---|
Cables Included | 1 x USB-C cable |
|---|
Media Included | 1 thermal roll paper |
|---|
Features | Alarm buzzer, dustproof, drop-resistant |
|---|
Compliant Standards | IP54, EMI FCC Class B, ICES-003 Class B, UL62368-1/CAN/CSA C22.2 No.62368-1, RoHS |
|---|
Power
Power Device | Power adapter – external |
|---|
Battery
Type | Lithium Ion |
|---|
Run Time (Up To) | 27 hours |
|---|
Software / System Requirements
Software Included | EpsonNet Config, EpsonNet SimpleViewer |
|---|
OS Required | Android, Apple iOS, Microsoft Windows |
|---|
Environmental Parameters
Min Operating Temperature | 10 °C |
|---|
Max Operating Temperature | 50 °C |
|---|
Humidity Range Operating | 10 – 90% |
|---|
Sound Emission (Operating) | 53 dB |
|---|
Dimensions & Weight
Width | 7.9 cm |
|---|
Depth | 12 cm |
|---|
Height | 4.6 cm |
|---|
Weight | 228 g |
|---|
