Description

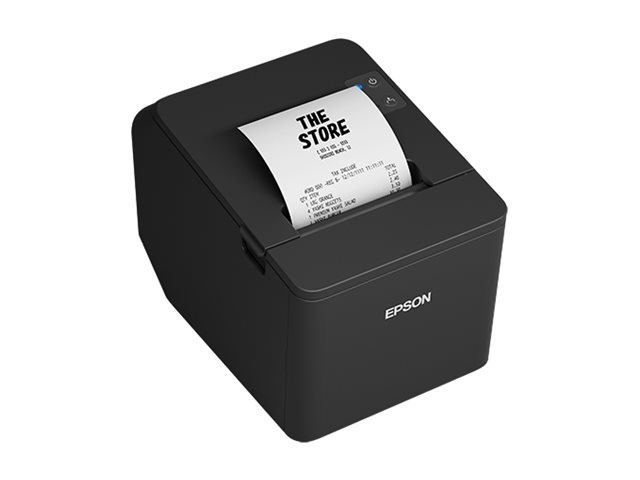

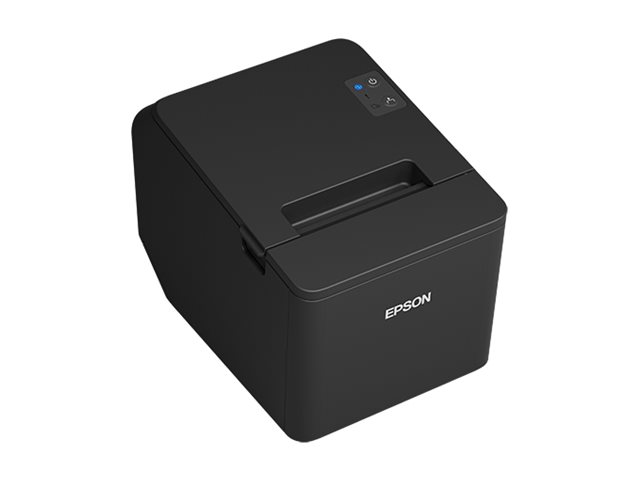

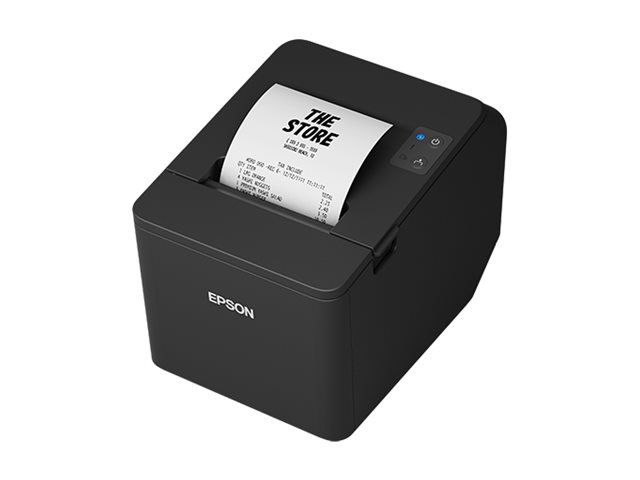

The Epson TM T82IV-812 is a receipt printer designed for efficient and reliable performance. With a maximum printing speed of 250 mm/s and a resolution of 203 x 203 DPI, this thermal line printer ensures crisp and clear receipts. It accommodates various barcode formats including QR codes and Data Matrix, making it suitable for a range of applications. The printer also features a manual media load type, supporting thermal paper rolls up to 7.95 cm in diameter, which enhances usability in busy environments. The compact design of the printer is ideal for any workspace, and it includes essential accessories such as a wall mount bracket and a paper guide plate. Its connectivity options – USB, serial, and LAN – facilitate easy integration with existing systems. Operating within a wide temperature range and featuring a sound emission of only 55 dB, this printer offers a reliable solution for retail or service environments, ensuring user comfort and efficient operations.
- Printing speed of 250 mm/s for rapid receipt generation
- Supports various barcode formats including QR codes and Data Matrix
- Compact design with a maximum media size of 7.95 cm
- Multiple connectivity options including USB 2.0 and LAN
- Includes essential accessories for easy installation
- Efficient performance
The Epson TM T82IV-812 operates at a maximum speed of 250 mm/s, providing quick printing of receipts. With thermal line printing technology, it ensures high-quality output with a resolution of 203 x 203 DPI. - Wide barcode support
This printer accommodates a variety of barcode types, such as QR codes, PDF417, and GS1 DataBar. This flexibility allows for comprehensive use in different retail scenarios. - Varied connectivity options
Featuring USB 2.0, serial, and LAN connectivity, the printer ensures easy integration with point-of-sale systems. This versatility supports various operational setups. - Compact design
The printer is designed to fit easily into limited spaces while still providing functionality and performance. Its ability to accept media rolls up to 7.95 cm enhances adaptability for different environments. - User-friendly features
With included accessories such as a wall mount bracket and paper guide plate, the printer is easy to set up. Additionally, its paper end and near end sensors help prevent print interruptions.
What’s in the Box
- Epson TM T82IV-812
- USB cable
- Power adapter
- Wall mount bracket, 58 mm width paper guide plate, screws, rubber feet, power button cover, waterproof power button cover
Main Specifications
Product Description | Epson TM T82IV-812 – receipt printer – B/W – thermal line |
Printer Type | Receipt printer – thermal line – B/W |
Weight | 1.7 kg |
Max Media Size | Roll (7.95 cm) |
Max Media Size (Custom) | 80 mm |
Print Speed | Up to 250 mm/sec – max speed |
Max Resolution (B&W) | 203 x 203 dpi |
Max Resolution Class (B&W) | 203 x 203 dpi |
Cutter | Yes |
Interface | Serial, USB 2.0, LAN |
RAM Installed (Max) | 4 KB |
Barcodes | UPC-A, UPC-E, Code 39, Code 93, Code 128, Codabar, NW-7, GS1-128, GS1 DataBar Omnidirectional, GS1 DataBar Limited, GS1 DataBar Expanded, GS1 DataBar, Composite, PDF417, QR code, MaxiCode, Data Matrix, Aztec code, ITF, EAN/JAN-13, EAN/JAN-8 |
Media Type | Thermal paper |
Fonts | Font A (12×24), Font B (9×17) |
Features | Partial-cut cutter |
Networking | Print server |
Printer Features | Paper end sensor, paper near end sensor |
Power | 24 V |
System Requirements | Android, Apple iOS, Apple MacOS X, Linux, Windows |
Dimensions (WxDxH) | 14 cm x 19.9 cm x 14.6 cm |
Extended Specifications
General
Printer Type | Receipt printer – thermal line – monochrome |
|---|
Printer
Print Speed | Up to 250 mm/sec – max speed |
|---|
Connectivity Technology | Wired |
|---|
Interface | Serial, USB 2.0, LAN |
|---|
Max Resolution (B&W) | 203 x 203 dpi |
|---|
Max Resolution Class (B&W) | 203 x 203 dpi |
|---|
Fonts | Font A (12×24), Font B (9×17) |
|---|
Character Sizes (mm) | 12 x 24 mm, 9 x 17 mm |
|---|
Columns | 48, 64, 35, 46 |
|---|
Features | Partial-cut cutter |
|---|
Auto Cutter | Yes |
|---|
Barcodes | UPC-A, UPC-E, Code 39, Code 93, Code 128, Codabar, NW-7, GS1-128, GS1 DataBar Omnidirectional, GS1 DataBar Limited, GS1 DataBar Expanded, GS1 DataBar, Composite, PDF417, QR code, MaxiCode, Data Matrix, Aztec code, ITF, EAN/JAN-13, EAN/JAN-8 |
|---|
Printer Features | Paper end sensor, paper near end sensor |
|---|
RAM
Media Handling
Media Type | Thermal paper |
|---|
Max Media Size | Roll (7.95 cm) |
|---|
Max Media Size (Custom) | 80 mm |
|---|
Media Sizes | Roll (7.95 cm), Roll (5.75 cm) |
|---|
Max Printing Width | 72 mm |
|---|
Media Thickness Range | 0.048 mm – 0.08 mm |
|---|
Roll Maximum Outer Diameter | 83 mm |
|---|
Media Feeders | 1 x manual – 1 roll – Roll (7.95 cm) |
|---|
Networking
Expansion / Connectivity
Connections | 1 x USB 2.0 – 4 pin USB Type B
LAN
1 x serial – RS-232C |
|---|
Miscellaneous
Included Accessories | Wall mount bracket, screws, 58 mm width paper guide plate, power button cover, waterproof power button cover, rubber feet |
|---|
Cables Included | 1 x USB cable |
|---|
MTBF | 360,000 hour(s) |
|---|
Power
Power Device | Power adapter – external |
|---|
Voltage Required | 24 V |
|---|
Power Consumption Operational | 29.5 Watt |
|---|
Power Consumption Stand by | 0.8 Watt |
|---|
Software / System Requirements
OS Required | Android, Apple iOS, Apple MacOS X, Linux, Windows |
|---|
Environmental Parameters
Min Operating Temperature | 5 °C |
|---|
Max Operating Temperature | 45 °C |
|---|
Humidity Range Operating | 10 – 90% |
|---|
Sound Emission (Operating) | 55 dB |
|---|
Dimensions & Weight
Width | 14 cm |
|---|
Depth | 19.9 cm |
|---|
Height | 14.6 cm |
|---|
Weight | 1.7 kg |
|---|
