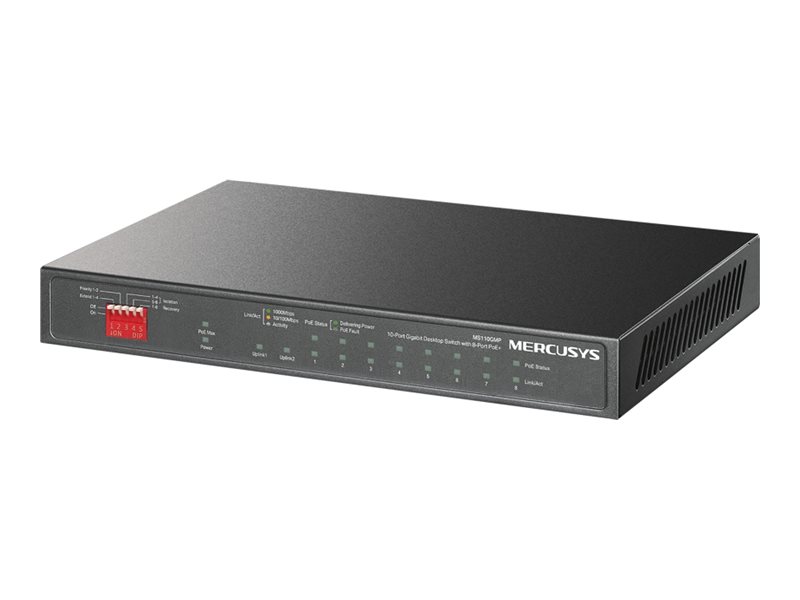

Mercusys MS110GMP V1, Switch, 8 x 10/100/1000 (8 PoE+) + 2 x 10/100/1000, desktop, rack-mountable, PoE+ (111 W)
$156.26 inc GST
✓ In Stock - 1 available
✓ Free NZ Delivery
1 in stock (can be backordered)
- Allow 1–2 days for delivery
- Add 1–2 days if you are rural
- No collections
Description
The Mercusys MS110GMP V1 is a reliable and efficient switch designed to meet the demands of any networking setup. With robust Gigabit Ethernet support and a total of 10 ports, including 8 PoE+ ports, this switch provides ample connectivity for various devices while delivering power over Ethernet. The Plug-and-Play design simplifies installation, allowing for seamless integration into your existing network infrastructure.
Operating under a wide temperature range, from 0°C to 40°C, and compatible with multiple standards such as IEEE 802.3af and IEEE 802.3at, the MS110GMP V1 adapts to diverse environments. This switch also features intelligent capabilities, including MAC address auto-learning, auto-negotiation, and PoE auto detection, ensuring optimal performance and flexibility. Its fanless design promotes silent operation, making it a suitable choice for both desktop and rack-mounted environments.
- 8 PoE+ ports provide power and data connectivity
- Plug-and-Play installation simplifies setup
- Supports a wide temperature and humidity operating range
- Intelligent features enhance network performance
- Fanless design ensures quiet operation
- Robust Gigabit Ethernet support
The switch offers 10 ports, 8 of which support PoE+, providing high-speed data transfer and the ability to power devices without additional power sources. - Wide environmental adaptability
Designed to operate in temperatures from 0°C to 40°C and withstand storage temperatures as low as -40°C, this switch is suitable for various environments. - Intelligent network management
Features such as MAC address auto-learning and PoE auto detection optimize performance and make configuration easier, allowing for effective network management. - Quiet and efficient operation
The fanless design eliminates noise, making it ideal for office environments where silent operation is desirable. - Compliance with industry standards
The Mercusys MS110GMP V1 meets multiple compliance standards, ensuring reliable and secure operation in various networking applications.
What’s in the Box
- Mercusys MS110GMP V1
- External power adapter
Main Specifications
Product Description | Mercusys MS110GMP V1 – switch – 10 ports – rack-mountable |
Device Type | Switch – 10 ports |
Enclosure Type | Rack-mountable |
Subtype | Gigabit Ethernet |
Ports | 8 x 10/100/1000 (8 PoE+) + 2 x 10/100/1000 |
Power Over Ethernet (PoE) | PoE+ |
PoE Budget | 111 W |
Performance | Switching capacity: 20 Gbps Packet forwarding rate: 14.88 Mpps |
MAC Address Table Size | 4K entries |
Jumbo Frame Support | 16KB |
Features | Auto-negotiation, auto-uplink (auto MDI/MDI-X), flow control, full duplex mode, half duplex mode, store and forward, MAC address auto-aging, MAC address auto-learning, fanless, security slot (Kensington security lock compatible), port-based priority, PoE auto detection |
Compliant Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.3i, IEEE 802.3ab, IEEE 802.3u |
Power | AC 100-240 V (50/60 Hz) |
Dimensions (WxDxH) | 20.9 cm x 12.6 cm x 2.6 cm |
Extended Specifications
General
Device Type | Switch – 10 ports |
|---|---|
Enclosure Type | Desktop, rack-mountable |
Subtype | Gigabit Ethernet |
Ports | 8 x 10/100/1000 (8 PoE+) + 2 x 10/100/1000 |
Power Over Ethernet (PoE) | PoE+ |
PoE Budget | 111 W |
Performance | Switching capacity: 20 Gbps Packet forwarding rate: 14.88 Mpps |
MAC Address Table Size | 4K entries |
Jumbo Frame Support | 16KB |
Features | Auto-negotiation, auto-uplink (auto MDI/MDI-X), flow control, full duplex mode, half duplex mode, store and forward, MAC address auto-aging, MAC address auto-learning, fanless, security slot (Kensington security lock compatible), port-based priority, PoE auto detection |
Compliant Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.3i, IEEE 802.3ab, IEEE 802.3u |
Status Indicators | Power, link/activity, PoE max, PoE |
Expansion / Connectivity
Interfaces | 8 x 1000Base-T RJ-45 8 ports (PoE+) – 30 W 2 x 1000Base-T RJ-45 uplink |
|---|
Power
Power Device | External power adapter |
|---|---|
Power Provided | 53.5 V – 2.43 A |
Voltage Required | AC 100-240 V (50/60 Hz) |
Miscellaneous
Compliant Standards | RoHS, FCC, Plug and Play, EAC, UKCA |
|---|
Dimensions & Weight
Width | 20.9 cm |
|---|---|
Depth | 12.6 cm |
Height | 2.6 cm |
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|---|
Max Operating Temperature | 40 °C |
Humidity Range Operating | 10 – 90% RH (non-condensing) |
Min Storage Temperature | -40 °C |
Max Storage Temperature | 70 °C |
Humidity Range Storage | 5 – 95% RH (non-condensing) |
