Description

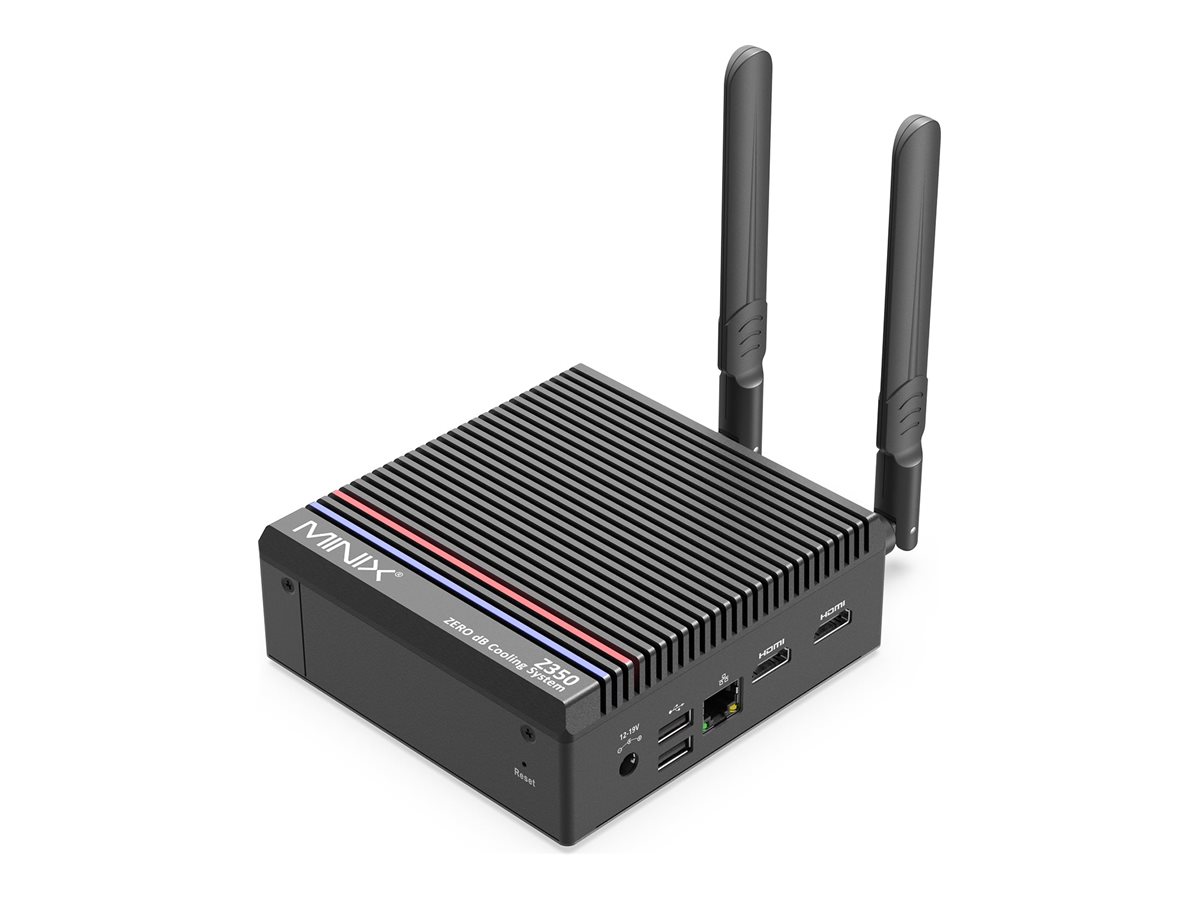

The MiniX NEO Z350-0dB combines performance and compact design, making it an ideal mini PC for various applications. With an Intel Core i3 processor featuring 8 cores and a maximum turbo speed of 3.9 GHz, this device effectively handles multiple tasks. It boasts 16 GB of DDR4 RAM and a 512 GB SSD, ensuring ample storage and quick data access. The unit’s ultra small form factor allows for easy placement in any environment, while VESA compliance ensures it can be mounted conveniently on flat surfaces.
Connectivity is a highlight with the MiniX NEO Z350-0dB, offering a range of interfaces including HDMI, USB 3.2 Gen 2, USB-C, and 2.5 Gigabit Ethernet. It supports dual monitor outputs, enabling an expanded workspace. For wireless connectivity, the device supports Wi-Fi 6 and Bluetooth 5.2, ensuring fast and reliable connections. The mini PC operates within a wide temperature range and under varying humidity levels, making it versatile for diverse settings. With its robust specifications and compact size, this mini PC is suitable for home, office, or entertainment use.
- Intel Core i3 processor with 8 cores
- 512 GB PCIe NVMe SSD for quick data access
- Supports dual monitor outputs for productivity
- Ultra small form factor fits in any space
- Wi-Fi 6 and Bluetooth 5.2 for connectivity
- Compact design
The ultra small form factor of the MiniX NEO Z350-0dB makes it easy to fit into any workspace or entertainment system. Its VESA mount compatibility allows for convenient placement on walls or behind monitors. - High storage capacity
With a 512 GB SSD and advanced PCI Express 3.0 interface, this mini PC provides storage for applications and files while ensuring fast data access with NVM Express technology. - Advanced connectivity options
Equipped with HDMI, USB 3.2 Gen 2, USB-C, and 2.5 Gigabit Ethernet ports, the MiniX NEO Z350-0dB offers connectivity for various peripherals and high-speed Internet access. - Powerful processing capabilities
Boasting an Intel Core i3 processor running at a maximum clock speed of 3.9 GHz, this mini PC is designed to handle multitasking and demanding applications. - Versatile wireless technology
The integration of Wi-Fi 6 and Bluetooth 5.2 ensures wireless performance, providing fast Internet connectivity and the ability to connect with multiple devices simultaneously.
What’s in the Box
- MiniX NEO Z350-0dB
- VESA mount, 2 x dual band antenna
- Power adapter
Main Specifications
Product Description | MiniX NEO Z350-0dB – mini PC Core 3 N350 – 16 GB – SSD 512 GB |
Type | Personal computer – mini PC |
Processor | Intel Core 3 N350 (up to 3.9 GHz, (8-core) |
Processor Main Features | Intel Smart Cache |
Cache Memory | 6 MB |
Cache Per Processor | 6 MB |
RAM | 16 GB (installed) / 16 GB (max) – DDR4 SDRAM |
Hard Drive | SSD 512 GB – PCI Express 3.0 x4 – M.2 2280 – NVM Express (NVMe) |
Optical Storage | No optical drive |
Card Reader | Yes |
Graphics Controller | Intel Graphics |
Networking | 1GbE, 2.5Gb InfiniBand, 802.11a, 802.11b/g/n, Wi-Fi 5, Wi-Fi 6, Bluetooth 5.2 |
OS Provided | Windows 11 Pro |
Colour | Black |
Dimensions (WxDxH) | 12.08 cm x 13.27 cm x 4.29 cm |
Weight | 898 g |
Extended Specifications
General
Type | Personal computer |
|---|
Product Form Factor | Mini PC |
|---|
Colour | Black |
|---|
Processor / Chipset
CPU | Intel Core 3 N350 |
|---|
Max Turbo Speed | 3.9 GHz |
|---|
Number of Cores | 8-core |
|---|
CPU Qty | 1 |
|---|
Max CPU Qty | 1 |
|---|
Processor Main Features | Intel Smart Cache |
|---|
Cache Memory
Installed Size | 6 MB |
|---|
Cache Per Processor | 6 MB |
|---|
RAM
Installed Size | 16 GB (installed) / 16 GB (max) |
|---|
Technology | DDR4 SDRAM |
|---|
Effective Memory Speed | 3200 MHz |
|---|
Rated Memory Speed | 3200 MHz |
|---|
Form Factor | SO-DIMM 260-pin |
|---|
Slots | 1 (Total) / 0 (empty) |
|---|
Configuration Features | 1 x 16 GB |
|---|
Hard Drive
Type | SSD – M.2 2280 |
|---|
Capacity | 1 x 512 GB |
|---|
Interface Type | PCI Express 3.0 x4 |
|---|
Features | NVM Express (NVMe) |
|---|
Optical Storage
Card Reader
Type | Card reader |
|---|
Supported Flash Memory Cards | microSD |
|---|
Monitor
Graphics Controller
Graphics Processor | Intel Graphics |
|---|
Video Interfaces | HDMI |
|---|
Max Monitors Supported | 2 |
|---|
Networking
Interface (Bus) Type | M.2 2230 |
|---|
Ethernet Controller | Realtek RTL8125BG |
|---|
Wireless LAN Supported | Yes |
|---|
Wireless NIC | Intel Wi-Fi 6 AX 201 |
|---|
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5Gb InfiniBand, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.2 |
|---|
Features | Wake on LAN (WoL) |
|---|
Expansion / Connectivity
Slots | 1 (total) / 0 (free) x M.2 Card – 2280
1 (total) / 0 (free) x M.2 Card – 2230 |
|---|
Interfaces | 2 x USB 3.2 Gen 2
1 x headphones/microphone
1 x USB-C 3.2 Gen 2
2 x USB 2.0
1 x LAN (2.5Gigabit Ethernet) – RJ-45
2 x HDMI (supports 4K@60Hz) |
|---|
Miscellaneous
Included Accessories | VESA mount, 2 x dual band antenna |
|---|
VESA Mounting Interface | VESA |
|---|
Compliant Standards | FCC, UKCA, RoHS, WEEE, PSE Mark |
|---|
Power
Device Type | Power adapter |
|---|
Voltage Required | AC 100-240 V |
|---|
Power Provided | 48 Watt |
|---|
Power Consumption Operational | 12 Watt |
|---|
Operating System / Software
OS Provided | Windows 11 Pro |
|---|
Dimensions & Weight
Width | 12.08 cm |
|---|
Depth | 13.27 cm |
|---|
Height | 4.29 cm |
|---|
Weight | 898 g |
|---|
Dimensions & Weight (Shipping)
Shipping Width | 17.5 cm |
|---|
Shipping Depth | 23 cm |
|---|
Shipping Height | 7.2 cm |
|---|
Shipping Weight | 1.6435 kg |
|---|
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|
Max Operating Temperature | 50 °C |
|---|
Humidity Range Operating | 5 – 85% RH |
|---|
