Description
The MiniX NEO J51-C8 MAX is a small form factor mini PC designed for compact spaces without compromising performance. Equipped with a quad-core Intel Celeron processor with a clock speed of 2 GHz, this mini PC can reach a turbo speed of 2.9 GHz, delivering efficient processing power for various applications. The installed 8 GB DDR4 RAM and 512 GB PCIe NVMe SSD provide fast data access and storage for everyday tasks and multimedia activities. Connectivity is a highlight of the J51-C8 MAX, featuring dual external antennas for enhanced wireless performance. With multiple interface options, including HDMI, USB-C, and 2.5 Gigabit Ethernet, this mini PC ensures seamless connectivity for a variety of devices. Designed to operate efficiently in environments ranging from -10°C to 50°C, along with a humidity tolerance of 10 to 95% RH, it is suitable for diverse settings. The MiniX NEO J51-C8 MAX is compact and equipped with security features such as a Kensington security slot, making it an ideal choice for personal and professional use.
- Compact small form factor design
- Quad-core Intel Celeron processor with turbo speed of 2.9 GHz
- 512 GB SSD and 8 GB DDR4 RAM for efficient performance
- Multiple connectivity options including USB-C and HDMI
- Environmentally resilient with a wide operating temperature range
- Robust processing power
The processor features a quad-core setup with a base clock speed of 2 GHz and a max turbo frequency of 2.9 GHz, ensuring swift performance for various tasks. - Efficient storage solution
A 512 GB PCIe NVMe SSD provides rapid access to files and applications while offering sufficient space for storing important data. - Versatile connectivity options
Designed with multiple ports including HDMI, USB 3.2 Gen 2, and 2.5 Gigabit Ethernet, this mini PC supports a wide range of devices and networks. - Compact and durable design
The small form factor allows it to fit in tight spaces while being built to withstand a broad temperature range. - Advanced networking capabilities
Supports Bluetooth 5.2 and various Wi-Fi standards including IEEE 802.11ax, providing reliable and fast wireless connectivity.
What’s in the Box
- MiniX NEO J51-C8 MAX
- Power adapter
Main Specifications
Product Description | MiniX NEO J51-C8 MAX – mini PC Celeron N5105 2 GHz – 8 GB – SSD 512 GB |
Type | Personal computer – mini PC |
Processor | Intel Celeron N5105 / 2 GHz (up to 2.9 GHz, (Quad-Core) |
Processor Main Features | 4 Threads, Intel Smart Cache |
Cache Memory | 4 MB |
Cache Per Processor | 4 MB |
RAM | 8 GB (installed) / 16 GB (max) – DDR4 SDRAM |
Hard Drive | SSD 512 GB – PCI Express 3.0 x4 (NVMe) – M.2 |
Optical Storage | No optical drive |
Graphics Controller | Intel UHD Graphics |
Networking | 1GbE, Wi-Fi 6, 802.11a, Wi-Fi 5, 802.11b/g/n, Bluetooth 5.2, 2.5GbE |
OS Provided | Windows 11 Pro |
Colour | Space grey |
Dimensions (WxDxH) | 13.98 cm x 13.98 cm x 3.9 cm |
Weight | 1.25 kg |
Extended Specifications
General
Type | Personal computer |
|---|
Product Form Factor | Mini PC |
|---|

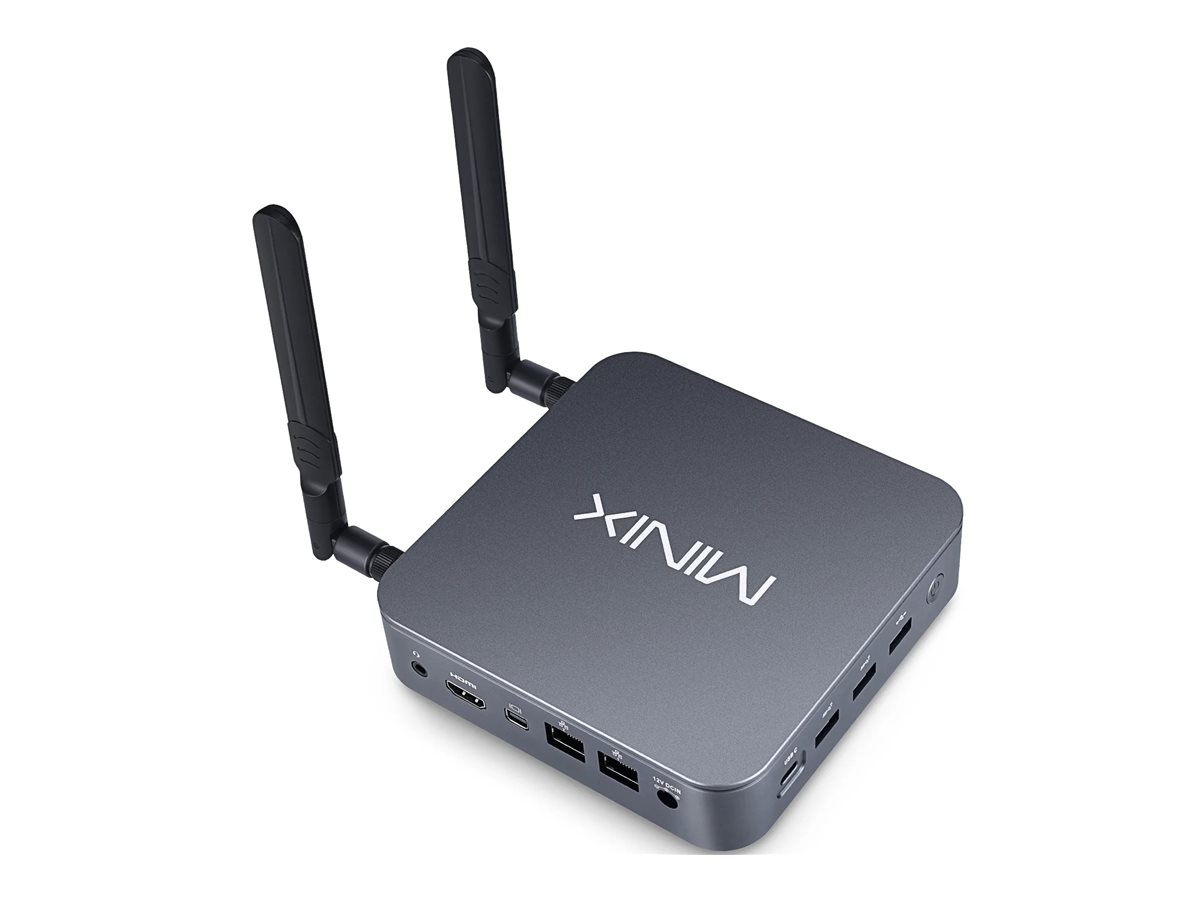

Built-in Devices | Dual external aerials |
|---|
Colour | Space grey |
|---|
Processor / Chipset
CPU | Intel Celeron N5105 |
|---|
Clock Speed | 2 GHz |
|---|
Max Turbo Speed | 2.9 GHz |
|---|
Number of Cores | Quad-Core |
|---|
CPU Qty | 1 |
|---|
Max CPU Qty | 1 |
|---|
Processor Main Features | 4 Threads, Intel Smart Cache |
|---|
Cache Memory
Installed Size | 4 MB |
|---|
Cache Per Processor | 4 MB |
|---|
RAM
Installed Size | 8 GB (installed) / 16 GB (max) |
|---|
Technology | DDR4 SDRAM |
|---|
Form Factor | DIMM 260-pin |
|---|
Slots | 2 (Total) / 1 (empty) |
|---|
Hard Drive
Type | SSD – M.2 |
|---|
Capacity | 1 x 512 GB |
|---|
Interface Type | PCI Express 3.0 x4 (NVMe) |
|---|
Optical Storage
Monitor
Graphics Controller
Graphics Processor | Intel UHD Graphics |
|---|
Video Interfaces | HDMI, DisplayPort, USB-C |
|---|
Networking
Wireless LAN Supported | Yes |
|---|
Data Link Protocol | Ethernet, Gigabit Ethernet, Fast Ethernet, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n, IEEE 802.11b, Bluetooth 5.2, 2.5 Gigabit Ethernet |
|---|
Expansion / Connectivity
Slots | 1 (total) / 0 (free) x M.2 Type M – 2280 (PCIe 3.0 x4 mode) |
|---|

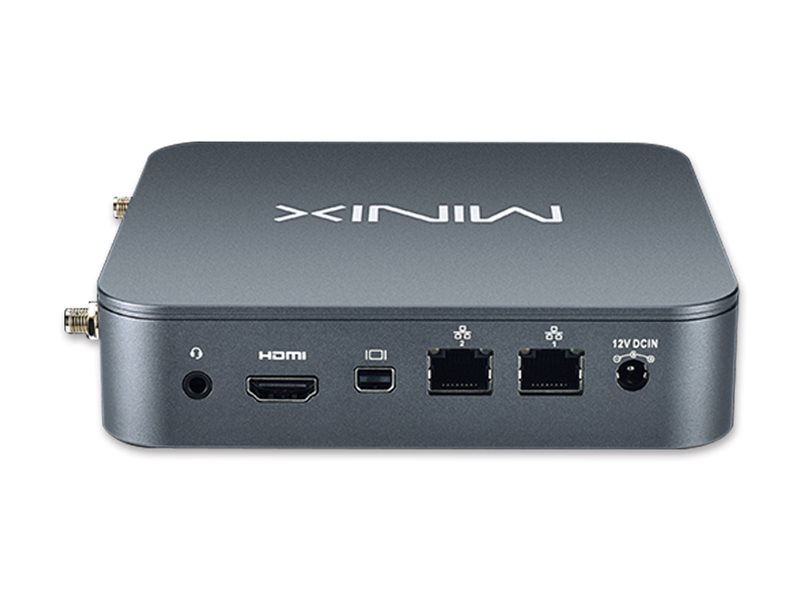

Interfaces | 1 x HDMI
1 x Mini DisplayPort 1.2
2 x LAN (2.5Gigabit Ethernet) – RJ-45
1 x headphones/microphone – mini-jack

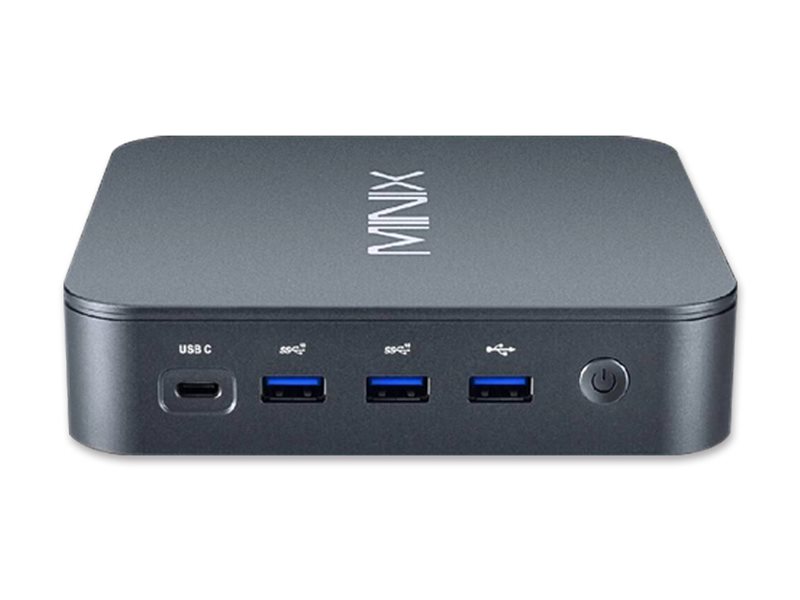

1 x USB-C
2 x USB 3.2 Gen 2 – Type A
1 x USB 2.0 – Type A |
|---|
Miscellaneous
Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
|---|
Security Slot Type | Kensington security slot |
|---|

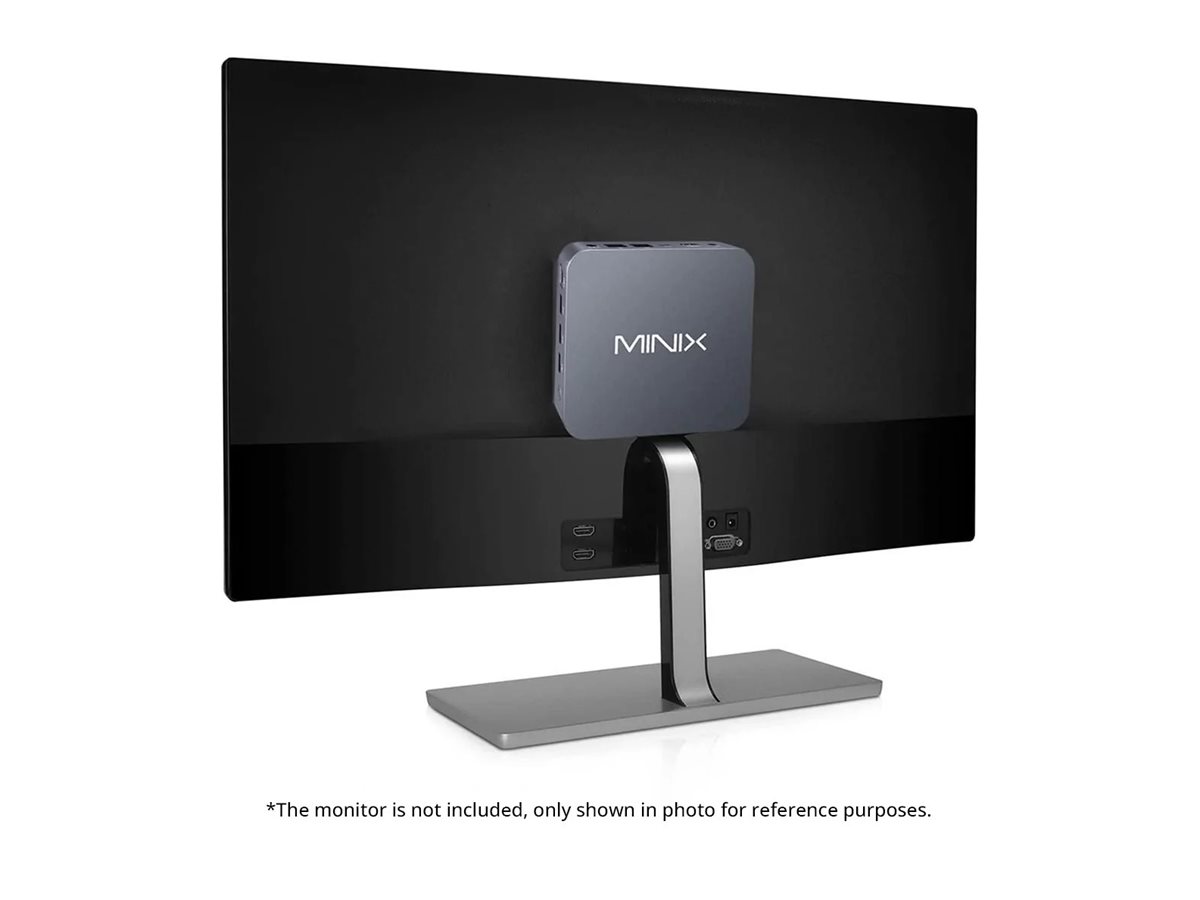

VESA Mounting Interface | Yes |
|---|
Compliant Standards | FCC, RoHS |
|---|
Power
Device Type | Power adapter |
|---|
Voltage Required | DC 12 V |
|---|
Operating System / Software
OS Provided | Windows 11 Pro |
|---|
Dimensions & Weight
Width | 13.98 cm |
|---|
Depth | 13.98 cm |
|---|
Height | 3.9 cm |
|---|
Weight | 1.25 kg |
|---|
Environmental Parameters
Min Operating Temperature | -10 °C |
|---|
Max Operating Temperature | 50 °C |
|---|
Humidity Range Operating | 10 – 95% RH (non-condensing) |
|---|
