Description

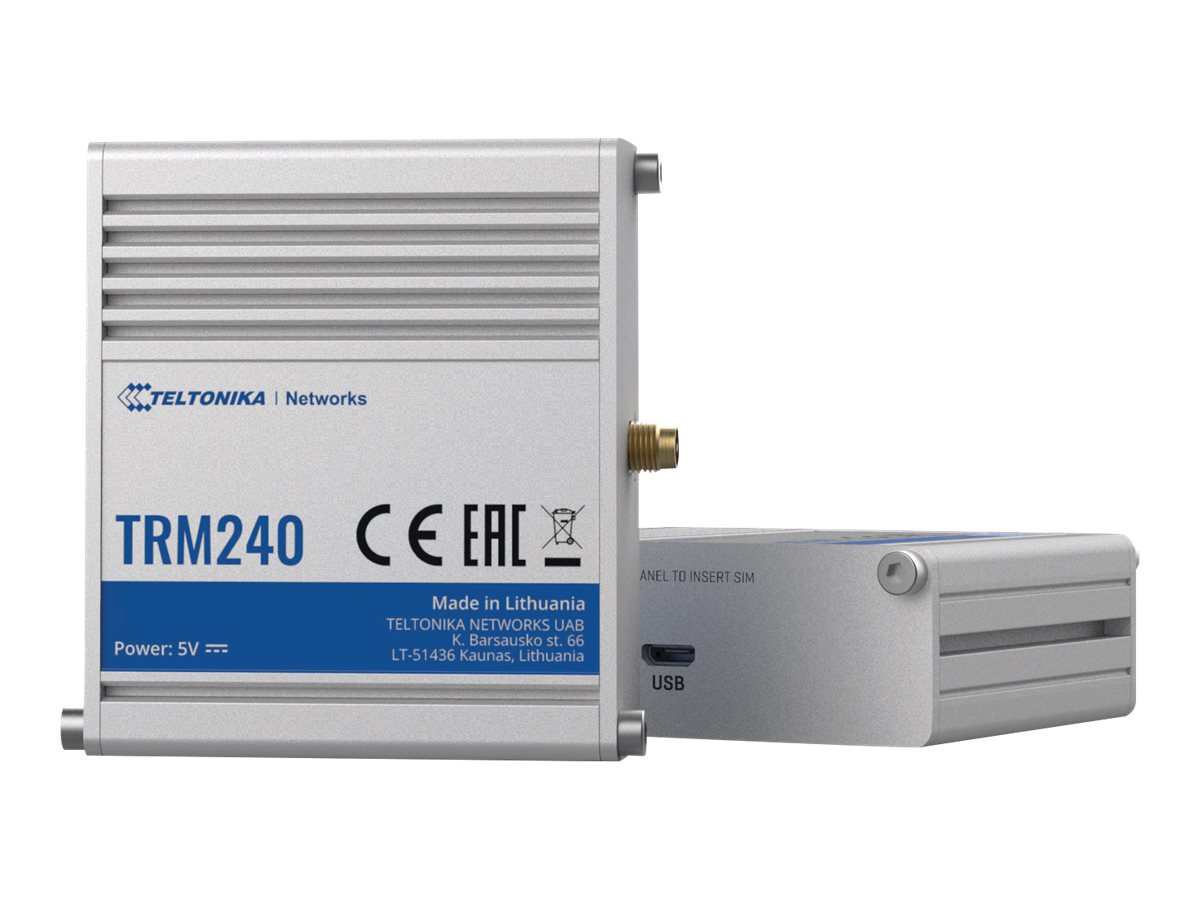

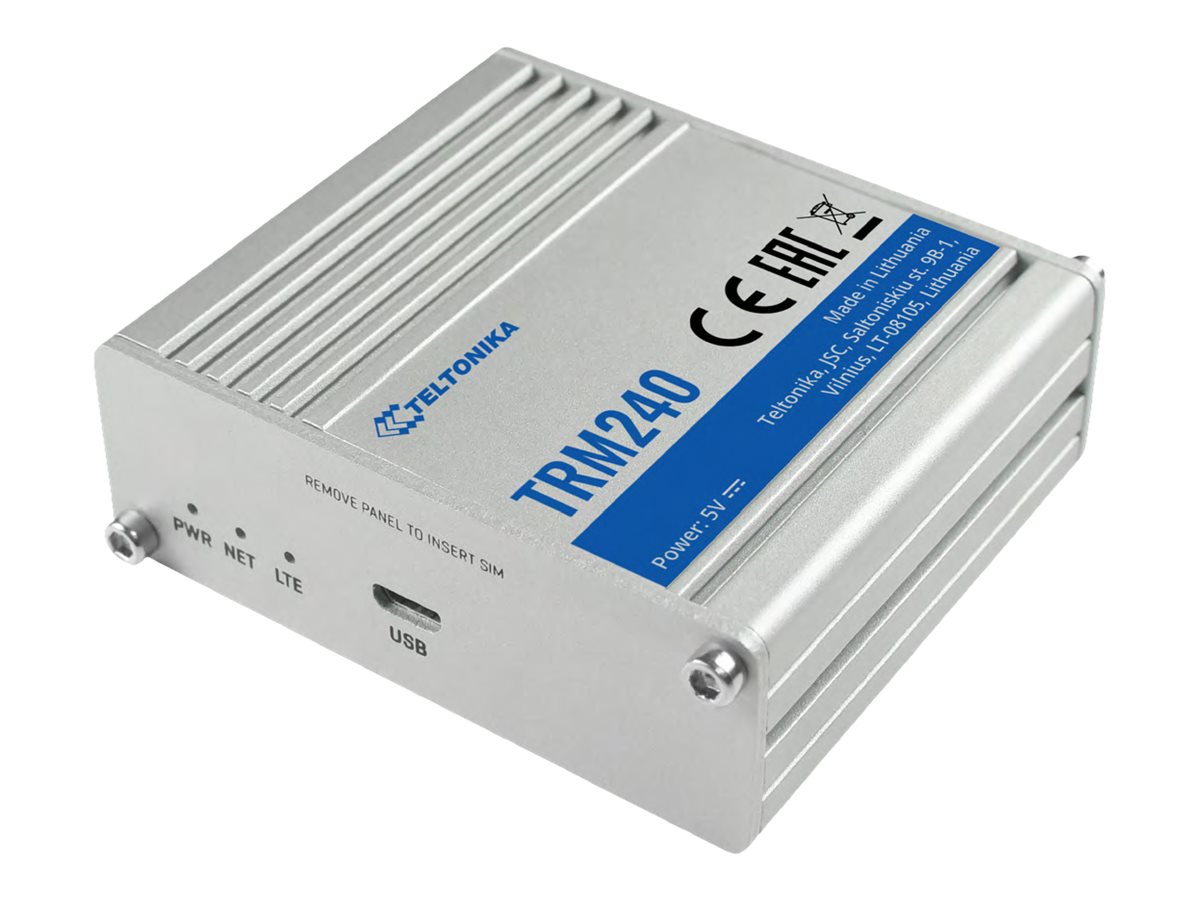

Industrial grade cellular LTE Cat 1 modem with rugged aluminum housing is a compact and easy to use connectivity device that can provide cellular capabilities to equipment across all market segments. It is backward compatible with 3G and 2G, therefore it is an optimal choice when it comes to large scale connectivity upgrades for Industrial or Public infrastructures. It offers a long and stable lifecycle and low power consumption important for IIoT projects. TRM240 comes with a USB interface for power and communication.
- Supports LTE Cat 1 for reliable high-speed connectivity
- Wide temperature range from -40°C to 75°C for harsh environments
- External detachable antenna for enhanced signal quality
- Compatible with multiple operating systems for easy integration
- IP30 compliance for protection against dust ingress
- Reliable connectivity
With LTE Cat 1 communications technology, the TRM240 ensures stable and efficient data transfer, ideal for various applications requiring mobile broadband. - Durable design
The modem operates effectively in extreme temperatures ranging from -40°C to 75°C, suitable for both indoor and outdoor use. - Flexible deployment
This modem features an external detachable antenna, providing enhanced signal reception while also allowing for easy adjustment based on specific deployment needs. - USB-powered convenience
Being USB-powered, the TRM240 simplifies the setup process, making it easy to connect to a variety of devices without the need for additional power sources. - Broad compatibility
The modem supports various operating systems, including multiple versions of Linux and Windows, ensuring wide-ranging compatibility with existing systems.
Main Specifications
Product Description | Teltonika TRM240 – wireless cellular modem – 4G LTE |
Device Type | Wireless cellular modem – USB |
Form Factor | External |
Mobile Communication Protocol | LTE, GSM, WCDMA |
System Requirements | Microsoft Windows 7 / 8 / 8.1 / 10, Microsoft Windows CE 5.0, Microsoft Windows CE 6.0, Linux 2.6, Linux 3.x, Linux 4.1 – 4.14, Android 4.x, Android 5.x, Android 6.x, Android 7.x, Android 8.x |
Dimensions (WxDxH) | 7.45 cm x 6.45 cm x 2.5 cm |
Weight | 131 g |
Extended Specifications
General
Device Type | Wireless cellular modem |
|---|
Form Factor | External |
|---|
Modem
Bus | USB |
|---|
Connectivity Technology | Wireless |
|---|
Mobile Communication Protocol | LTE, GSM, WCDMA |
|---|
Antenna | External detachable |
|---|
Antenna Qty | 1 |
|---|
Features | USB powered |
|---|
Internet of Things (IoT)
Internet of Things (IoT) Compatible | Yes |
|---|
Communications Technology | LTE Cat 1 |
|---|
Expansion / Connectivity
Interfaces | 1 x aerial – SMA
1 x micro-USB |
|---|
Miscellaneous
SIM Card Supported | Regular (mini-SIM) x 1 |
|---|
Cables Included | 1 x micro-USB cable – 80 cm |
|---|
Included Accessories | LTE aerial, hex key |
|---|
Compliant Standards | IP30 |
|---|
Power
Power Consumption Operational | 3.2 Watt |
|---|
Software / System Requirements
OS Required | Microsoft Windows 7 / 8 / 8.1 / 10, Microsoft Windows CE 5.0, Microsoft Windows CE 6.0, Linux 2.6, Linux 3.x, Linux 4.1 – 4.14, Android 4.x, Android 5.x, Android 6.x, Android 7.x, Android 8.x |
|---|
Dimensions & Weight
Width | 7.45 cm |
|---|
Depth | 6.45 cm |
|---|
Height | 2.5 cm |
|---|
Weight | 131 g |
|---|
Environmental Parameters
Min Operating Temperature | -40 °C |
|---|
Max Operating Temperature | 75 °C |
|---|
Humidity Range Operating | 10 – 90% (non-condensing) |
|---|
