Description

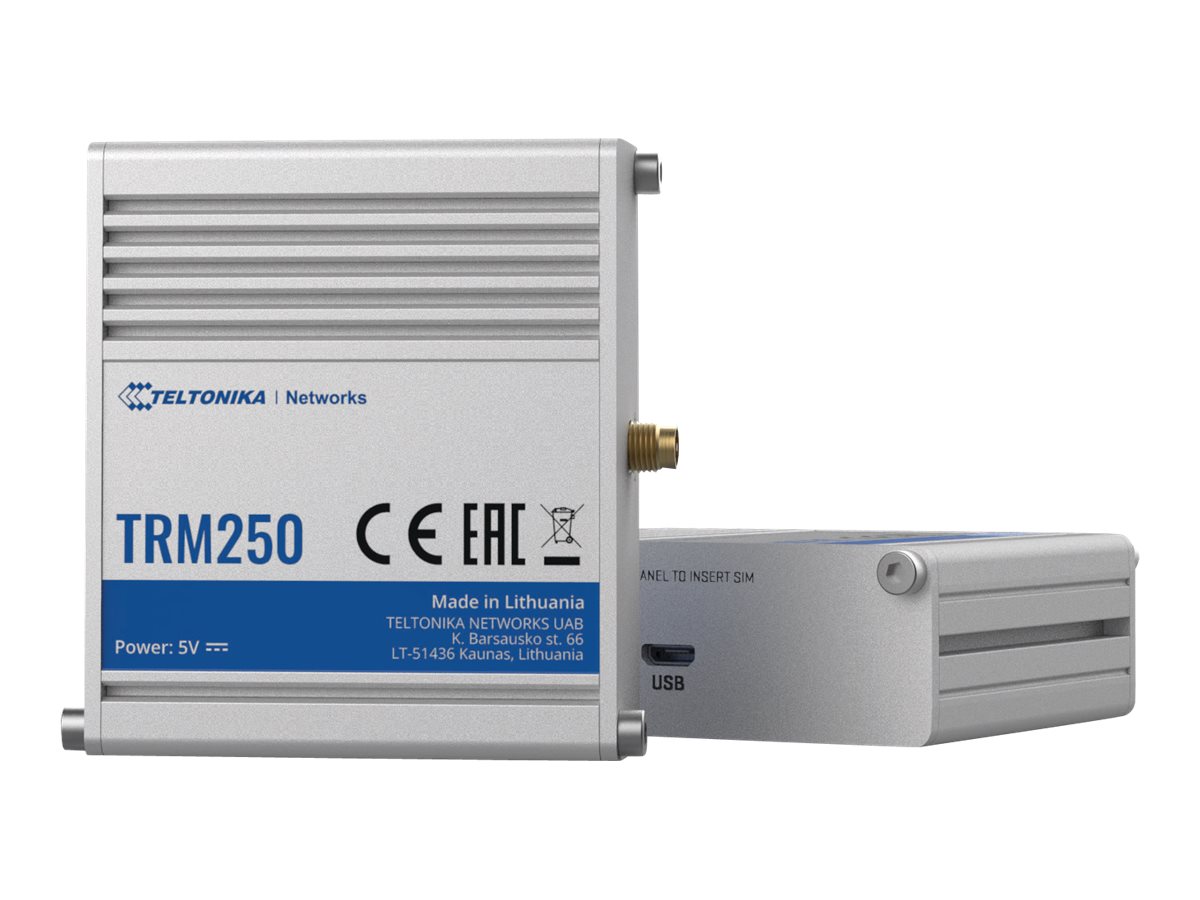

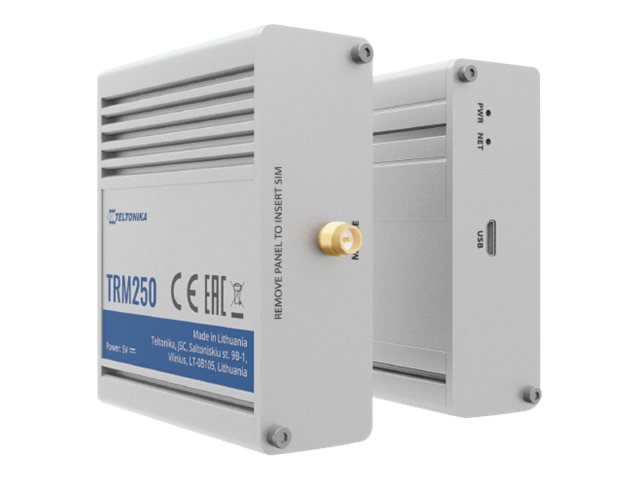

TRM250 is an industrial grade cellular modem with multiple LPWAN connectivity options. It features NB-IoT, LTE Cat-M1, and is backward compatible with EGPRS (2G). It offers an extremely long lifecycle, low power consumption, and is the most flexible option when upgrading the connectivity of existing industrial equipment. TRM250 has a USB interface, a durable aluminum housing, and an external antenna for better signal coverage. It is perfect for providing cost-efficient Internet connectivity in remote monitoring applications.
- Supports multiple communication technologies including NB-IoT and LTE Cat M1
- Operates in extreme temperature conditions from -40°C to 75°C
- External detachable antenna enhances wireless signal strength
- Compatible with various operating systems including Windows and Linux
- USB-powered for connectivity
- Robust connectivity
The Teltonika TRM250 supports communication technologies such as NB-IoT, LTE Cat M1, and EGPRS, providing reliable connectivity for a variety of IoT applications. - Environmentally resilient
Engineered to operate effectively in extreme temperatures, the device functions from -40°C to 75°C and can handle humidity levels from 10% to 90%, ensuring consistent performance in diverse conditions. - Flexible connectivity options
The wireless cellular modem features an external detachable antenna and supports USB power, making it easy to integrate into existing systems while enhancing signal quality. - Easy compatibility
The TRM250 is compatible with a range of operating systems including Linux, Android, and Windows, which simplifies installation and usability in various environments. - Efficient power management
With an operational power consumption of 3.6 W, the device is designed for efficiency, making it suitable for continuous operation in energy-sensitive applications.
Main Specifications
Product Description | Teltonika TRM250 – wireless cellular modem – 4G LTE |
Device Type | Wireless cellular modem – USB |
Form Factor | External |
Mobile Communication Protocol | LTE, GSM, WCDMA |
System Requirements | Microsoft Windows 7 / 8 / 8.1 / 10, Microsoft Windows CE 5.0, Microsoft Windows CE 6.0, Linux 2.6, Linux 3.x, Linux 4.1 – 4.14, Android 4.x, Android 5.x, Android 6.x, Android 7.x, Android 8.x |
Dimensions (WxDxH) | 7.45 cm x 6.45 cm x 2.5 cm |
Weight | 130 g |
Extended Specifications
General
Device Type | Wireless cellular modem |
|---|
Form Factor | External |
|---|
Modem
Bus | USB |
|---|
Connectivity Technology | Wireless |
|---|
Mobile Communication Protocol | LTE, GSM, WCDMA |
|---|
Antenna | External detachable |
|---|
Antenna Qty | 1 |
|---|
Features | USB powered |
|---|
Internet of Things (IoT)
Internet of Things (IoT) Compatible | Yes |
|---|
Communications Technology | LTE Cat M1, NB-IoT, EGPRS |
|---|
Expansion / Connectivity
Interfaces | 1 x aerial – SMA
1 x micro-USB |
|---|
Miscellaneous
SIM Card Supported | Regular (mini-SIM) x 1 |
|---|
Cables Included | 1 x micro-USB cable – 80 cm |
|---|
Included Accessories | LTE aerial, hex key |
|---|
Compliant Standards | IP30 |
|---|
Power
Power Consumption Operational | 3.6 Watt |
|---|
Software / System Requirements
OS Required | Microsoft Windows 7 / 8 / 8.1 / 10, Microsoft Windows CE 5.0, Microsoft Windows CE 6.0, Linux 2.6, Linux 3.x, Linux 4.1 – 4.14, Android 4.x, Android 5.x, Android 6.x, Android 7.x, Android 8.x |
|---|
Dimensions & Weight
Width | 7.45 cm |
|---|
Depth | 6.45 cm |
|---|
Height | 2.5 cm |
|---|
Weight | 130 g |
|---|
Environmental Parameters
Min Operating Temperature | -40 °C |
|---|
Max Operating Temperature | 75 °C |
|---|
Humidity Range Operating | 10 – 90% (non-condensing) |
|---|
