Draytek Vigor 2136ax, Wireless router 4-port switch, 1GbE, 2.5GbE Dual Band, for Draytek ANT-1205
$462.15 inc GST
✕ Backorder - Email us for a lead time or ETA
✓ Free NZ Delivery
Available on back-order
Ships from: Auckland
- Allow 1–2 days for delivery to the North Island
- Allow 2–3 days for delivery to the South Island
- Add 1–2 days if you are rural
- Collection can be arranged
Description
The Draytek Vigor 2136ax is designed to provide robust connectivity and security for small to medium-sized networks. With dual external and internal antennas and support for Wi-Fi 6, this router delivers performance across both 2.4 GHz and 5 GHz bands, ensuring reliable and fast Internet access. The device can manage up to 20 VPN tunnels, 50000 NAT sessions, and 4 SSIDs, making it a powerful tool for businesses needing secure remote access and local network segmentation.
Equipped with versatile connection options, the Vigor 2136ax features multiple Ethernet ports and USB connectivity for varied networking needs. Security protocols such as WPA3, IEEE 802.1x authentication, and IP-based speed limits ensure data protection and efficient traffic management. This device is also capable of features like VLAN tagging, MU-MIMO technology, and traffic shaping for optimized performance, making it an investment for any growing organization.
- Supports Wi-Fi 6 for high-speed wireless connectivity
- Manages up to 20 VPN tunnels for secure remote access
- Equipped with multiple Ethernet ports for flexible connectivity
- Advanced security with WPA3 and various encryption algorithms
- Handles significant traffic loads with 50000 NAT sessions and robust performance
- Robust vpn support
The Vigor 2136ax can manage up to 20 VPN tunnels, providing secure remote access and protecting sensitive data across the network. - High-speed connectivity
With Wi-Fi 6 technology, this router offers enhanced speeds and improves performance for devices connected to 2.4 GHz and 5 GHz bands. - Flexible networking options
The integrated switch features four Ethernet ports, while USB connectivity enhances functionality, allowing versatile deployment in varied environments. - Advanced security protocols
Supports modern encryption algorithms like WPA3 and offers robust authentication methods, ensuring data integrity and secure communication. - Efficient traffic management
Features such as VLAN tagging and traffic shaping allow for optimized performance and more effective bandwidth allocation across devices.
What’s in the Box
- Draytek Vigor 2136ax
- External power adapter, 2 x WiFi aerials
Main Specifications
Product Description | Draytek Vigor 2136ax – wireless router – Wi-Fi 6 – desktop |
Device Type | Wireless router – 4-port switch (integrated) |
Enclosure Type | Desktop |
WAN Ports Qty | 1 |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6) |
Frequency Band | 2.4 GHz / 5 GHz |
Performance | Bandwidth: 160 MHz NAT throughput: 2300 Mbps Maximum aerial gain (2.4 GHz): 2.6 dBi Maximum aerial gain (5 GHz): 2.7 dBi Link rate (2.4 GHz): 574 Mbps Link rate (5 GHz): 2402 Mbps VPN throughput (256-bit AES IPSec): 390 Mbps VPN WireGuard throughput: 90 Mbps |
Capacity | NAT sessions: 50000 Virtual interfaces (VLANs): 8 SSIDs per wireless band: 8 Maximum number of access points (per controller): 20 VPN tunnels: 4 |
Network / Transport Protocol | PPPoE, DHCP, IPv4, IPv6, DHCPv6, IGMP, HTTP, HTTPs, Telnet, FTP, WireGuard, OpenVPN |
Routing Protocol | Static IP routing, static IPv6 routing, static IPv4 routing, policy-based routing (PBR), RIP-1, RIP-2, OSPFv2, OSPFv3 |
Remote Management Protocol | HTTP, HTTPS, Telnet, SSH, TR-069, SNMP 4, SNMP |
Features | WDS/Mesh, PPP, VLAN Tagging, DHCP client, PPPoE client, failover support, ARP detect, ping detect, dynamic DNS, DrayDDNS, LAN/WAN multiplex interface, 802.1x authentication, port mirroring, DNS server, Hotspot Access Point Capability, 2×2 MIMO 2.4Ghz, MU-MIMO technology, OFDMA, AP-Assisted Roaming, WPS button, PIN code control, WDS repeater mode, client isolation, hidden SSID, WLAN scheduling, Airtime Fairness, band steering, WMM Admission Control, mesh root mode, print server, temperature sensor, file sharing, DNSSEC support, IGMP snooping, traffic shaping, IP-based speed limit, QoS, VoIP Prioritisation, MAC address filtering, VPN support, Single-Armed VPN, IPSec NAT-T, backup/restore, dynamic hardware route table allocations, PPPoE passthrough, WAN Budget |
Compliant Standards | IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x |
Dimensions (WxDxH) | 20.7 cm x 13.1 cm x 4.2 cm |
Designed For | Draytek ANT-1205 |
Extended Specifications
General
Device Type | Wireless router – 4-port switch (integrated) |
|---|---|
Enclosure Type | Desktop |
Connectivity Technology | Wired, wireless |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6) |
Frequency Band | 2.4 GHz / 5 GHz |
Performance | Bandwidth: 160 MHz NAT throughput: 2300 Mbps Maximum aerial gain (2.4 GHz): 2.6 dBi Maximum aerial gain (5 GHz): 2.7 dBi Link rate (2.4 GHz): 574 Mbps Link rate (5 GHz): 2402 Mbps VPN throughput (256-bit AES IPSec): 390 Mbps VPN WireGuard throughput: 90 Mbps |
Capacity | NAT sessions: 50000 Virtual interfaces (VLANs): 8 SSIDs per wireless band: 8 Maximum number of access points (per controller): 20 VPN tunnels: 4 |
Network / Transport Protocol | PPPoE, DHCP, IPv4, IPv6, DHCPv6, IGMP, HTTP, HTTPs, Telnet, FTP, WireGuard, OpenVPN |
Routing Protocol | Static IP routing, static IPv6 routing, static IPv4 routing, policy-based routing (PBR), RIP-1, RIP-2, OSPFv2, OSPFv3 |
Remote Management Protocol | HTTP, HTTPS, Telnet, SSH, TR-069, SNMP 4, SNMP |
Encryption Algorithm | OWE, WEP, WPA, WPA2, WPA3, IKEv1, IKEv2, SHA-1, SHA-256, 3DES, DES, AES |
Authentication Method | RADIUS, XAUTH authentication, Extensible Authentication Protocol (EAP), TACACS+, Mobile One Time Password (mOTP), Time-based One Time Password (TOTP), X.509 certificates |
Wi-Fi Rating | AX3000 |
Features | WDS/Mesh, PPP, VLAN Tagging, DHCP client, PPPoE client, failover support, ARP detect, ping detect, dynamic DNS, DrayDDNS, LAN/WAN multiplex interface, 802.1x authentication, port mirroring, DNS server, Hotspot Access Point Capability, 2×2 MIMO 2.4Ghz, MU-MIMO technology, OFDMA, AP-Assisted Roaming, WPS button, PIN code control, WDS repeater mode, client isolation, hidden SSID, WLAN scheduling, Airtime Fairness, band steering, WMM Admission Control, mesh root mode, print server, temperature sensor, file sharing, DNSSEC support, IGMP snooping, traffic shaping, IP-based speed limit, QoS, VoIP Prioritisation, MAC address filtering, VPN support, Single-Armed VPN, IPSec NAT-T, backup/restore, dynamic hardware route table allocations, PPPoE passthrough, WAN Budget |
Compliant Standards | IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x |
Expansion / Connectivity

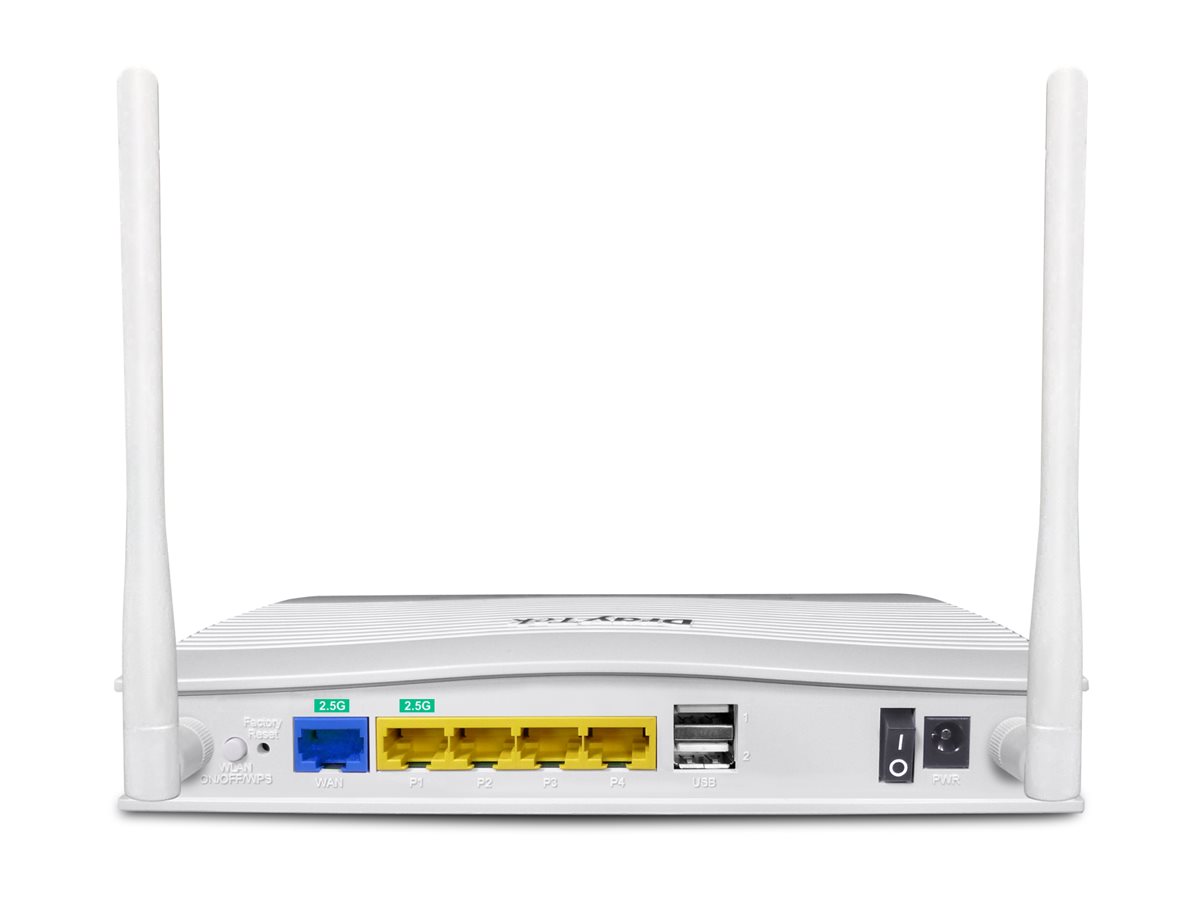

Interfaces | LAN: 3 x 10Base-T/100Base-TX/1000Base-T – RJ-45 WAN: 1 x 100Base-TX/1000Base-TX/2.5GBase-T – RJ-45 USB 2.0: 2 x 4 pin USB Type A WAN / LAN: 1 x 100Base-TX/1000Base-TX/2.5GBase-T – RJ-45 |
|---|
Aerial
Aerial | External detachable and internal |
|---|---|
Antenna Qty | 2 |
Power
Power Device | External power adapter |
|---|
Miscellaneous
Included Accessories | 2 x WiFi aerials |
|---|
Dimensions & Weight
Width | 20.7 cm |
|---|---|
Depth | 13.1 cm |
Height | 4.2 cm |
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|---|
Max Operating Temperature | 45 °C |
Humidity Range Operating | 10 – 90% (non-condensing) |
Compatibility Information
Designed For | Draytek ANT-1205 |
|---|
