Description
The NC40U series comes with powerful and efficient 12th generation Intel Core processor, codenamed “Alder Lake-U”. Despite the nano format with only 850 ml volume, it offers enormous connection variety and expansion options. Thus, up to three UHD displays (4K/60 Hz) and up to seven USB 3.2 devices can be connected, and two NVMe/SSD cards in M.2-2280 format as well as one 2.5″ hard drive (up to 15 mm thickness) can be installed. The NC40U series is ideal for Digital Signage, POS, control, office or even multimedia.
- Intel Core processor
- Intel UHD Graphics for 12th Gen Intel processor
- DDR4 SO-DIMM memory
- Always-on jumper

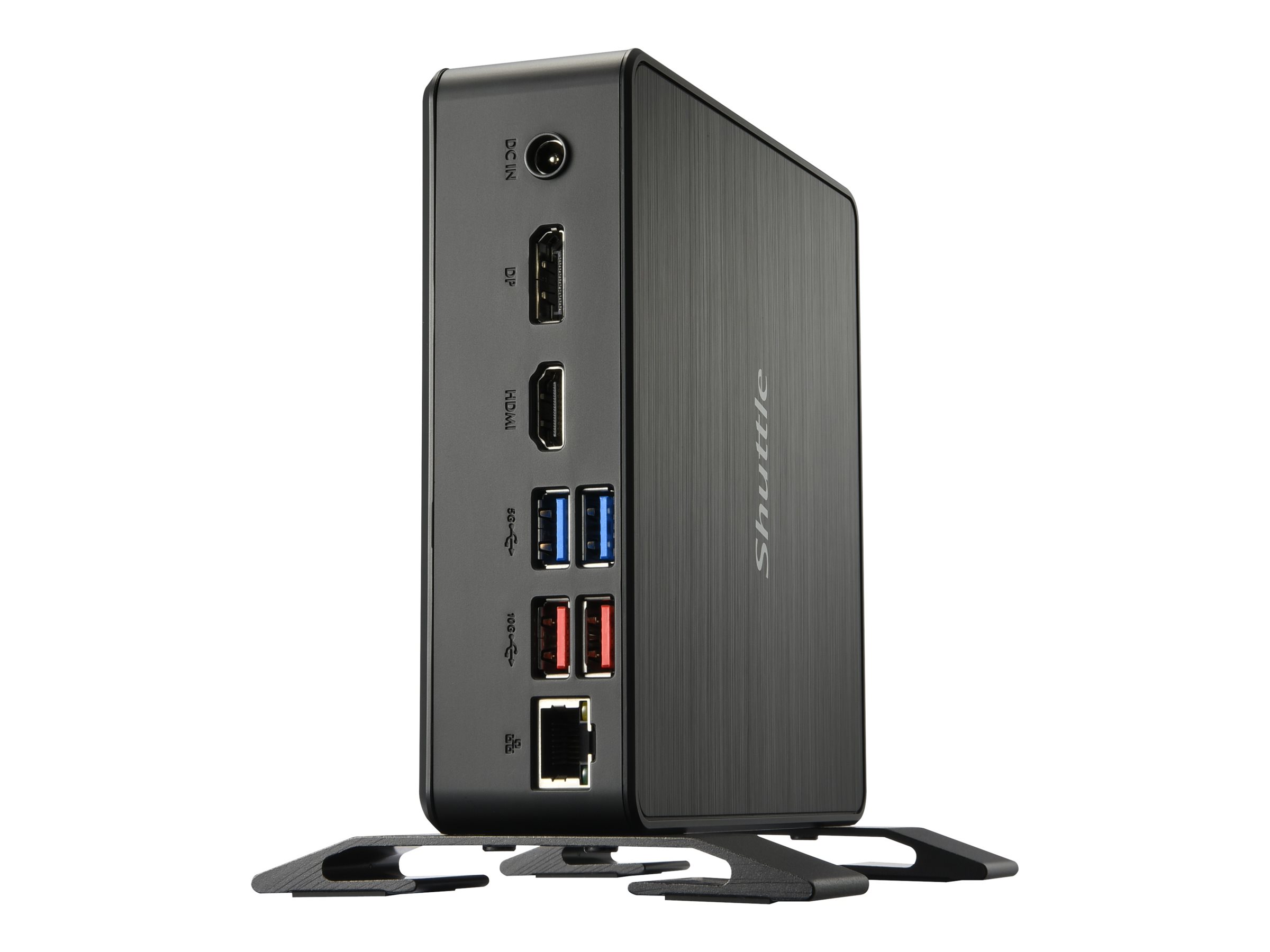

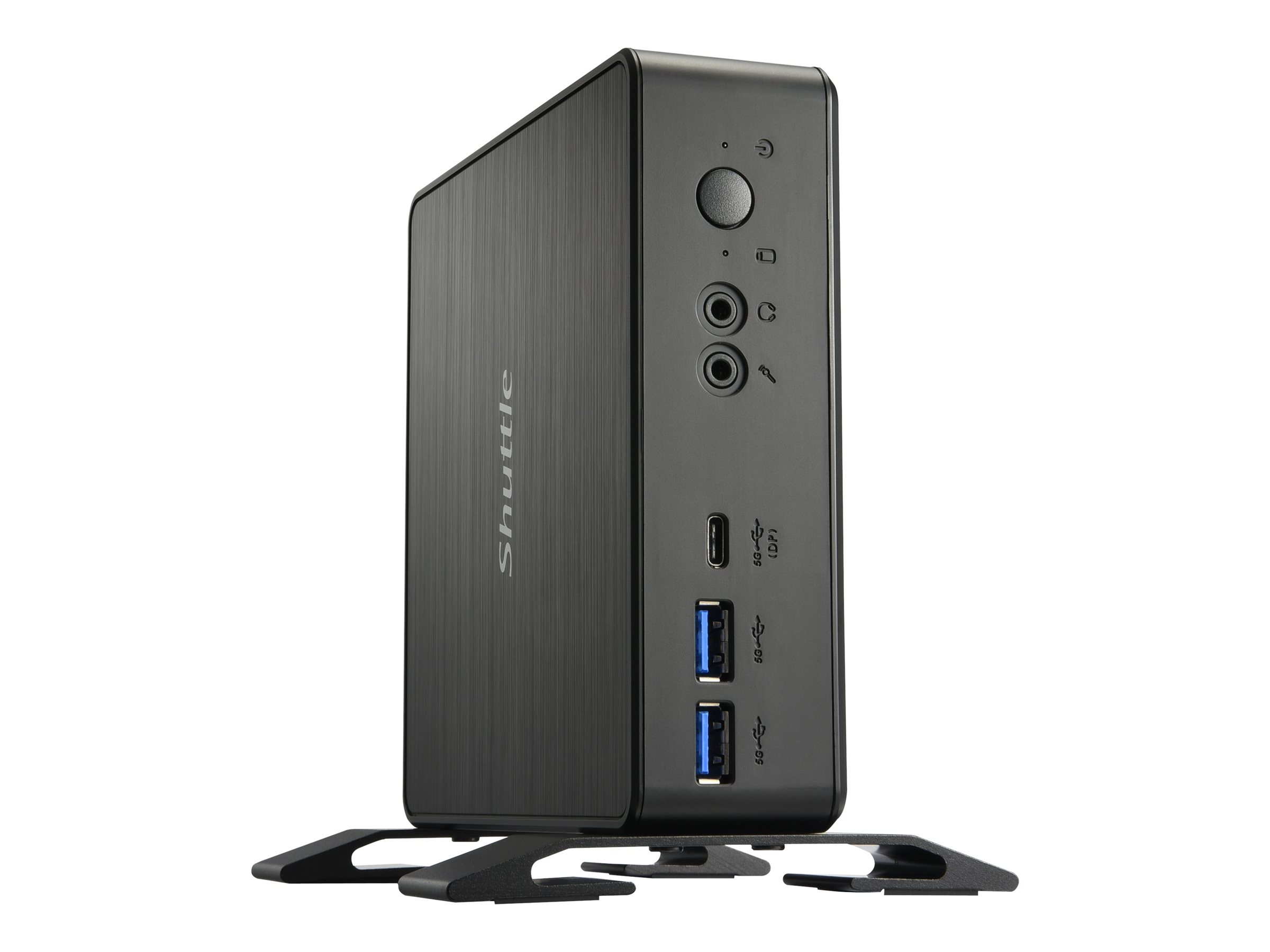

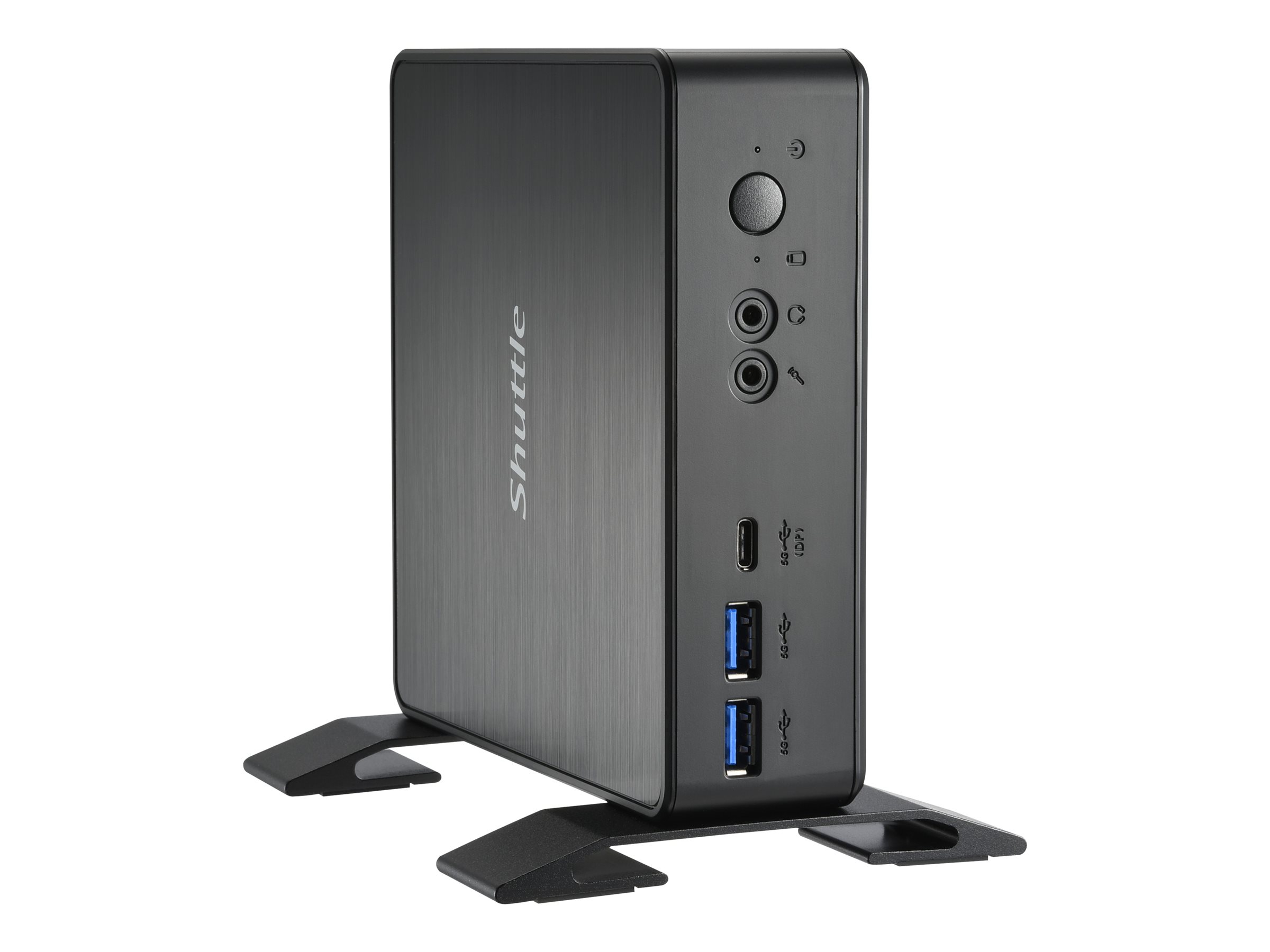

- Wall/VESA mount included
- Three expansion options via M.2 module
Three M.2 slots enable expansion with several data carriers and additional modules, for example for WLAN or mobile radio. Thanks to the fast PCI Express connection, high data volumes can be transported in a short time via the M.2 slot. - Three 4K-capable monitor connections

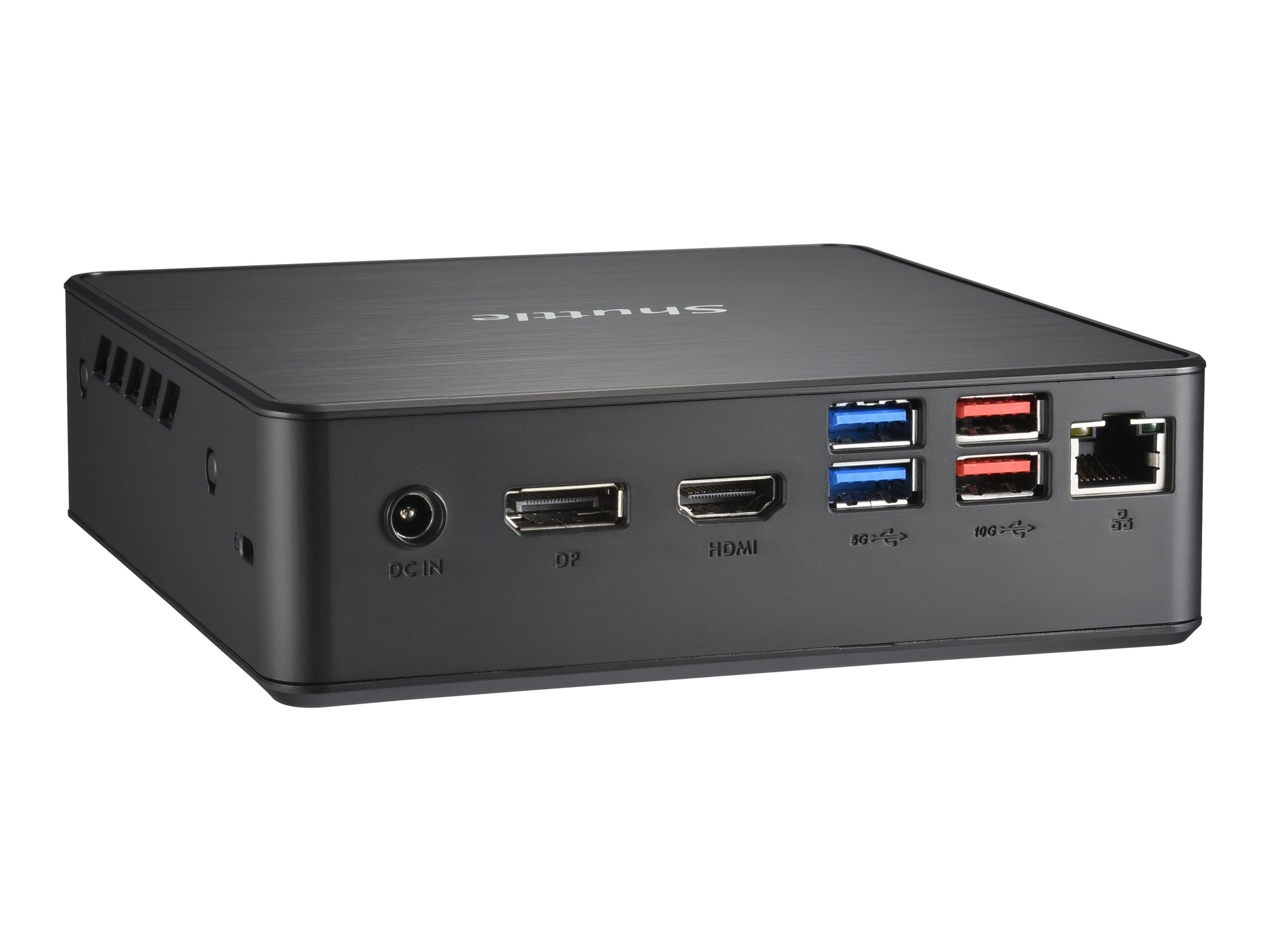

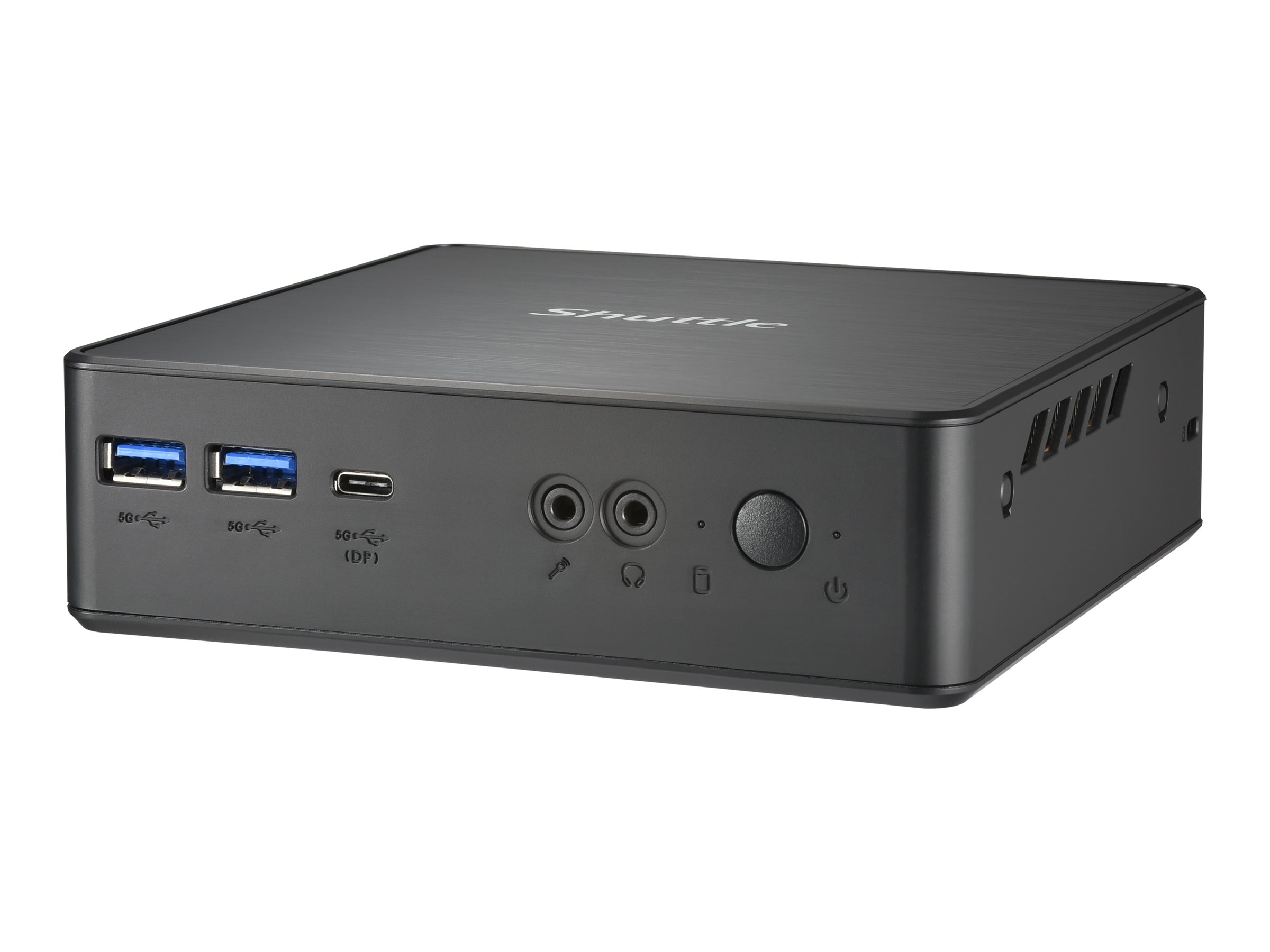

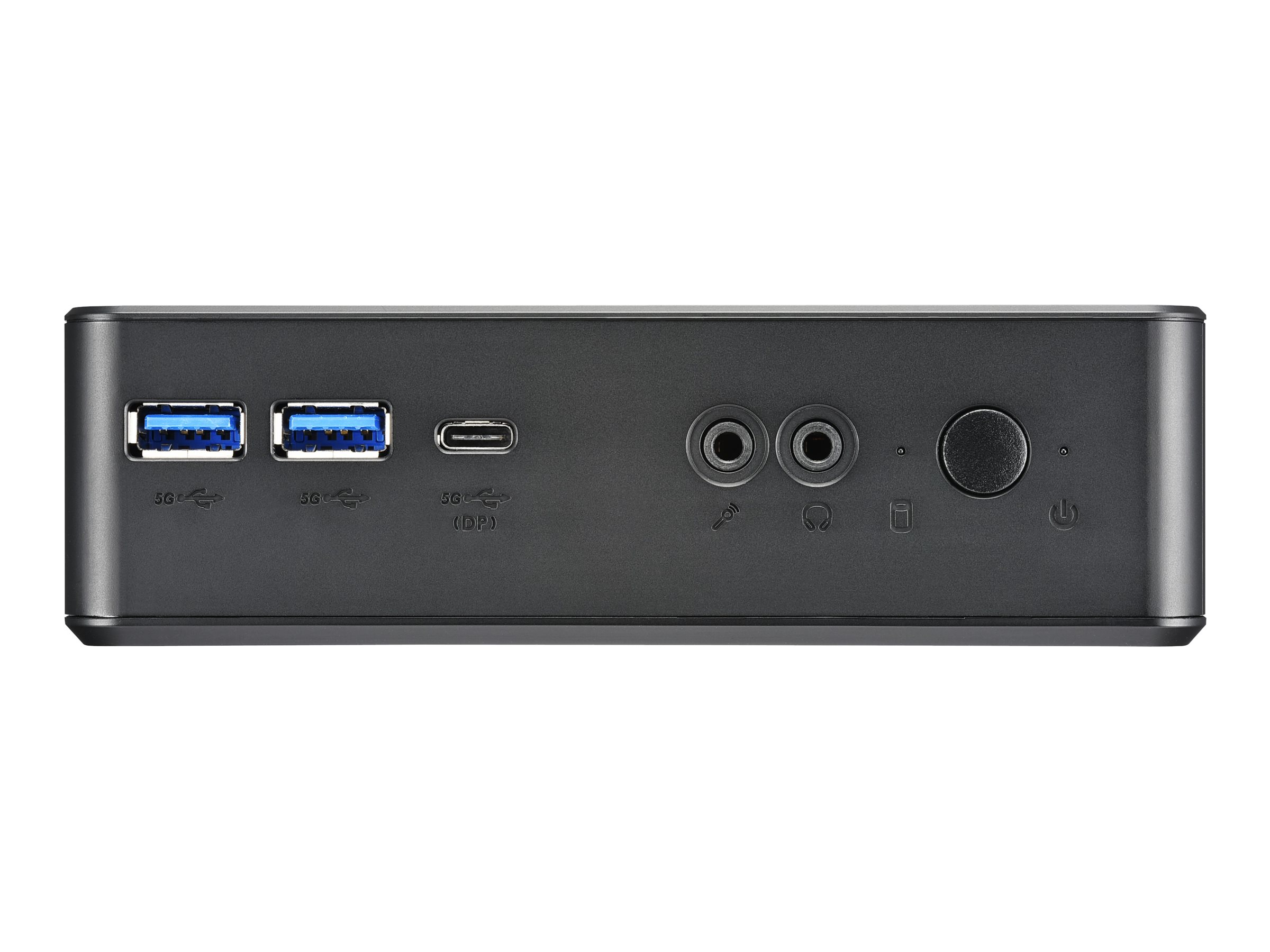

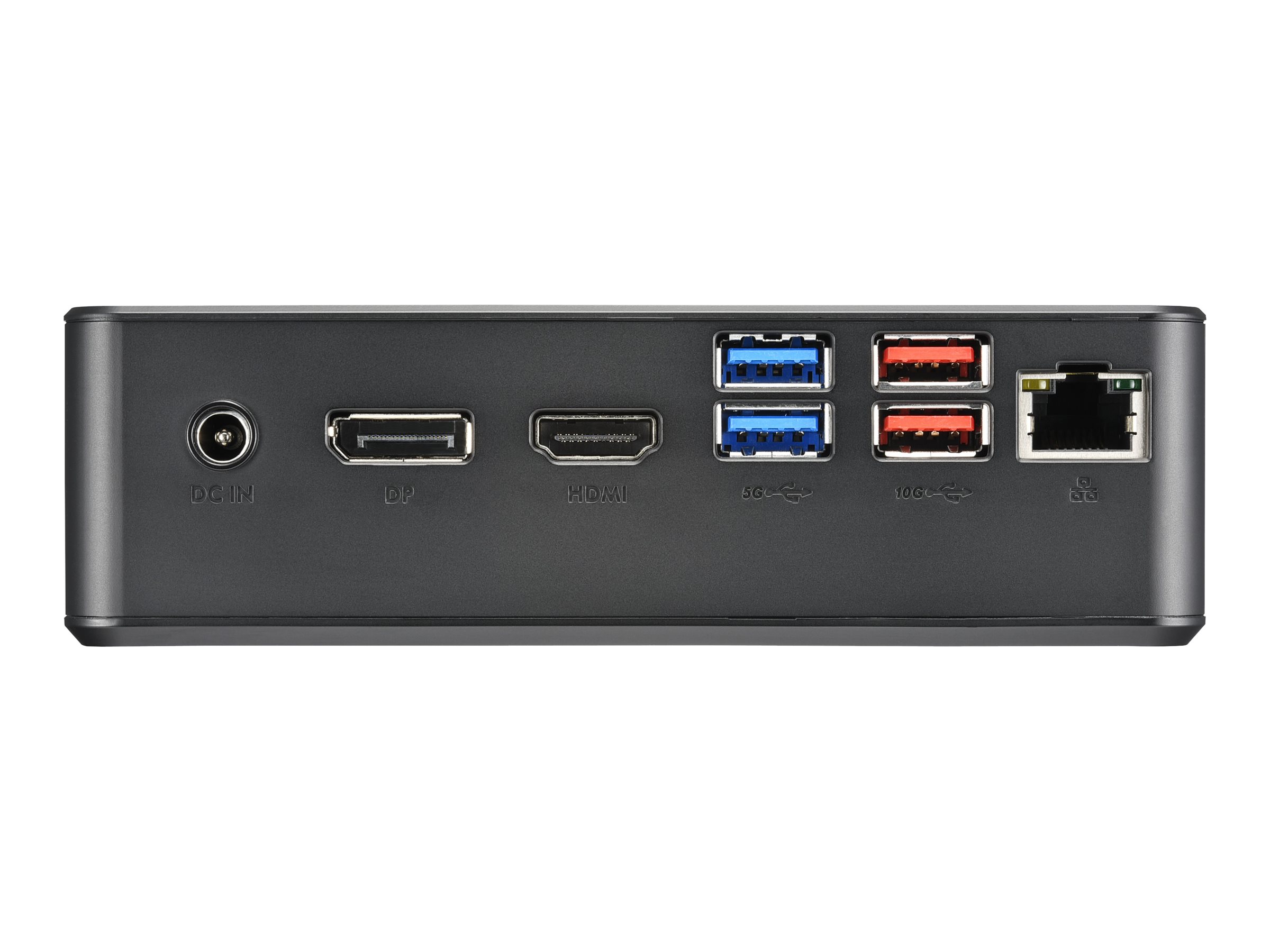

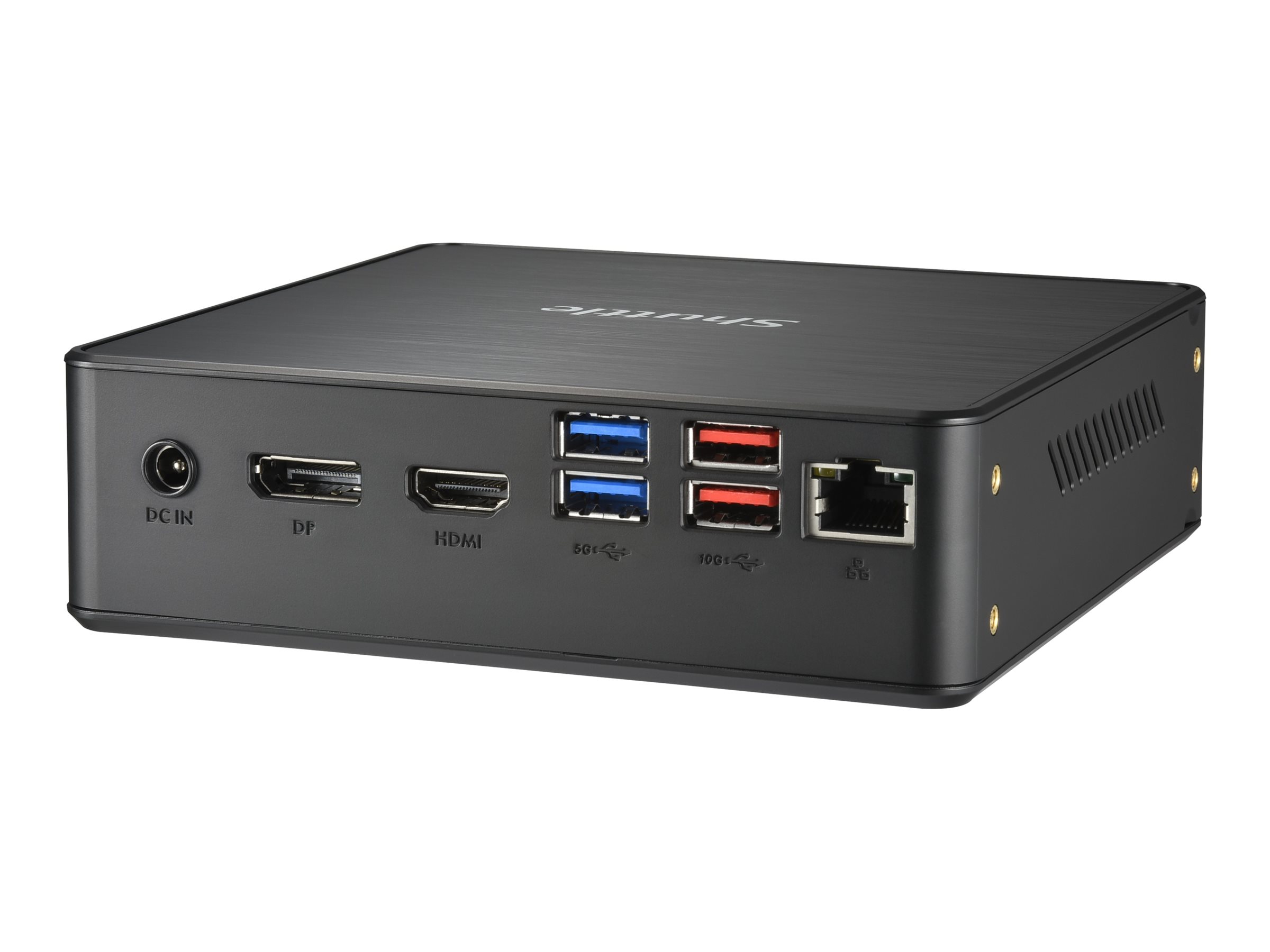

Various graphics outputs with ultra-high resolution digital signals, offer flexibility in the choice of displays and enable multi-monitoring. This model has one HDMI, one DisplayPort and one USB-C port that can be used simultaneously. - Space for a 2.5″ drive
As a complement to an NVMe SSD, this model also offers a home to classic data storage devices in 2.5″ format. Hard disks and SSDs in this format offer many terabytes of storage space.
Main Specifications
Product Description | Shuttle XPC nano NC40U3 – mini PC Core i3 1215U – 0 GB – no HDD |
Type | PC barebone – mini PC |
Processor | 1 x Intel Core i3 (12th Gen) 1215U (up to 4.4 GHz, (6-core) |
Processor Main Features | Intel Smart Cache |
Cache Memory | 10 MB L3 Cache |
Cache Per Processor | 10 MB |
RAM | 0 GB (installed) / 64 GB (max) – DDR4 SDRAM – non-ECC |
Storage Controller | SATA (SATA 6Gb/s) |
Hard Drive | No HDD |
Optical Storage | No optical drive |
Graphics Controller | Intel UHD Graphics 620 |
Networking | 1GbE |
Power | (50/60 Hz) |
OS Provided | No operating system |
Colour | Black |
Dimensions (WxDxH) | 14.2 cm x 14.2 cm x 4.2 cm |
Weight | 400 g |
Extended Specifications
General
Type | PC barebone |
|---|
Product Form Factor | Mini PC |
|---|
Embedded Security | Firmware Trusted Platform Module (TPM 2.0) Security Chip |
|---|
Colour | Black |
|---|
Processor / Chipset
CPU | Intel Core i3 (12th Gen) 1215U |
|---|
Max Turbo Speed | 4.4 GHz (P-core) / 3.3 GHz (E-core) |
|---|
Number of Cores | 6-core |
|---|
CPU Qty | 1 |
|---|
Max CPU Qty | 1 |
|---|
Processor Main Features | Intel Smart Cache |
|---|
Cache Memory
Installed Size | L3 Cache – 10 MB |
|---|
Cache Per Processor | 10 MB |
|---|
RAM
Installed Size | 0 GB (installed) / 64 GB (max) |
|---|
Technology | DDR4 SDRAM – non-ECC |
|---|
Form Factor | SO-DIMM 260-pin |
|---|
Slots | 2 (Total) / 2 (empty) |
|---|
Features | Unbuffered, dual channel memory architecture |
|---|
Hard Drive
Storage Controller
Type | 1 x SATA |
|---|
Controller Interface Type | SATA 6Gb/s |
|---|
Channel Qty | 1 |
|---|
Optical Storage
Monitor
Graphics Controller
Graphics Processor | Intel UHD Graphics 620 |
|---|
Video Interfaces | HDMI, DisplayPort |
|---|
Audio Output
Compliant Standards | High Definition Audio |
|---|
Networking
Ethernet Controller | Intel I219 |
|---|
Data Link Protocol | Ethernet, Gigabit Ethernet, Fast Ethernet |
|---|
Expansion / Connectivity
Bays | 1 (total) / 1 (free) x internal 2.5″ x 1/8H |
|---|
Slots | 2 (total) / 2 (free) x M.2 Card – 2280 |
|---|
Interfaces | 6 x USB 3.2 Gen 2
1 x USB-C 3.1 Gen 2
1 x HDMI
1 x LAN (Gigabit Ethernet)
1 x DisplayPort
1 x audio line-out/headphones
USB 3.1 Gen 2
1 x microphone |
|---|
Miscellaneous
Included Accessories | Horizontal feet, VESA mounting kit |
|---|
Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
|---|
Security Slot Type | Kensington security slot |
|---|
VESA Mounting Interface | 100 x 100 mm, 75 x 75 mm |
|---|
Power
Device Type | Power adapter |
|---|
Voltage Required | AC 100-240 V (50/60 Hz) |
|---|
Power Provided | 65 watt |
|---|
Operating System / Software
OS Provided | No operating system |
|---|
Dimensions & Weight
Width | 14.2 cm |
|---|
Depth | 14.2 cm |
|---|
Height | 4.2 cm |
|---|
Weight | 400 g |
|---|
Dimensions & Weight (Shipping)
