Description

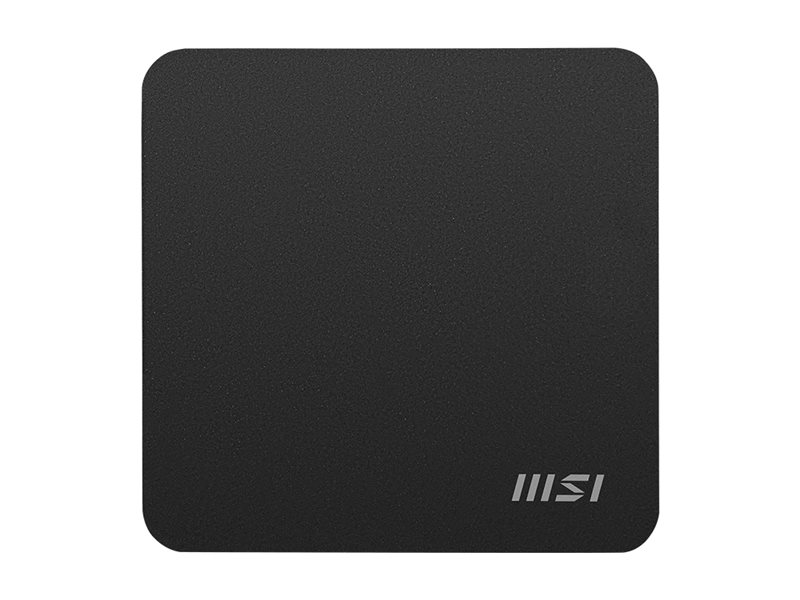

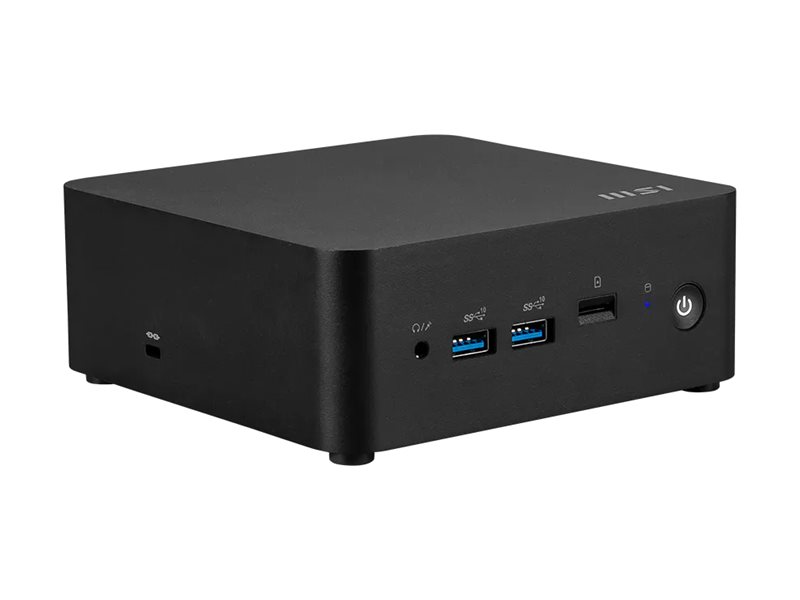

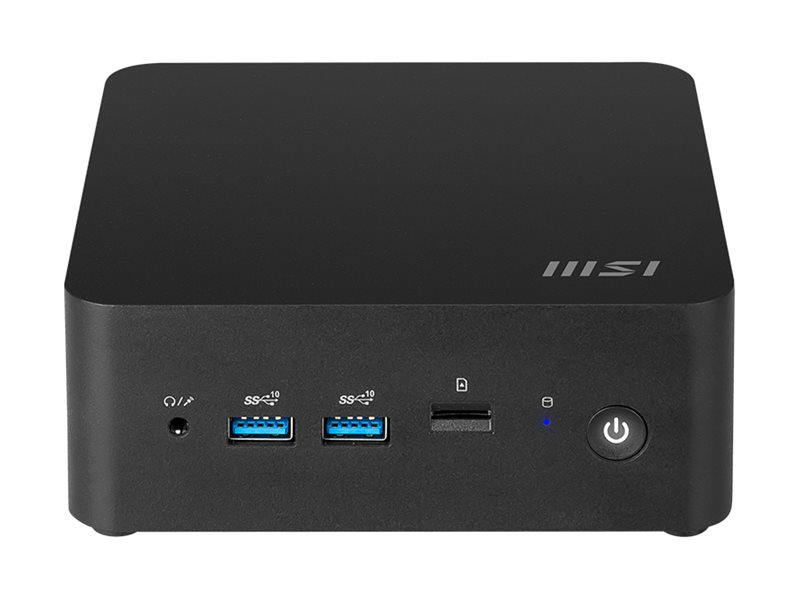

The MSI Cubi NUC 1M redefines efficiency and versatility in a compact form factor. This mini PC, designed to deliver powerful performance and high-speed connectivity, is equipped with an Intel Core 5 processor, featuring a turbo speed of up to 5 GHz and Intel Smart Cache technology for smooth multitasking and quick access to frequently used files. Its small form factor ensures it fits perfectly in any workspace, while the integrated Realtek ALC256 audio codec chip and 2.1 channel surround sound output mode offer an exceptional audio experience for multimedia enjoyment and clear communication.
With USB 3.2 Gen 2 ports, dual LAN (2.5 Gigabit Ethernet), and Wi-Fi 6E, the MSI Cubi NUC 1M ensures fast and reliable connections, making it ideal for both home and office use. Expansion is made easy with M.2 slots and a 2.5″ internal bay, providing flexibility for upgrades and customization. Whether for work or play, the MSI Cubi NUC 1M is a smart choice for those who value performance and convenience in a sleek, space-saving design.
- Small form factor for versatile placement options
- USB 3.2 Gen 2 and dual LAN ports for high-speed connectivity
- Realtek ALC256 for immersive 2.1 channel surround sound
- Intel Core 5 processor with up to 5 GHz turbo speed for powerful performance
- Flexible expansion with M.2 slots and a 2.5″ bay
- Compact and versatile design
The MSI Cubi NUC 1M features a small form factor, making it an ideal choice for spaces where a full-sized PC would be impractical. Its mini PC form factor allows for easy placement in any work environment, from office desks to home entertainment setups. - High-speed connectivity
Equipped with USB 3.2 Gen 2 ports, LAN (2.5 Gigabit Ethernet), and Wi-Fi 6E technology, the MSI Cubi NUC 1M ensures fast and reliable Internet and network connections, facilitating seamless data transfers and high-speed Internet access. - Advanced audio experience
With its Realtek ALC256 integrated audio codec chip and 2.1 channel surround sound output mode, this mini PC delivers a clear and immersive audio experience, enhancing multimedia applications and video conferencing. - Powerful processing capabilities
Powered by an Intel Core 5 processor with a clock speed up to 5 GHz and Intel Smart Cache, the MSI Cubi NUC 1M handles everyday tasks and demanding applications with ease, ensuring smooth and efficient performance. - Flexible expansion options
The MSI Cubi NUC 1M offers ample expansion possibilities with its M.2 card slots and a 2.5″ internal expansion bay, allowing for easy upgrades and customization to meet varying storage and performance needs.
Main Specifications
Product Description | MSI Cubi NUC 1M 005BNZ – mini PC Core 5 120U 1.4 GHz – 0 GB – no HDD |
Type | PC barebone – mini PC |
Processor | 1 x Intel Core 5 (Series 1) 120U / 1.4 GHz (up to 5 GHz, (10-core) |
Processor Main Features | Intel Smart Cache |
Cache Memory | 12 MB |
Cache Per Processor | 12 MB |
RAM | 0 GB (installed) / 64 GB (max) – DDR5 SDRAM |
Storage Controller | SATA (SATA 6Gb/s) |
Hard Drive | No HDD |
Optical Storage | No optical drive |
Graphics Controller | Intel Arc Graphics |
Audio Output | 2.1 channel surround |
Networking | 802.11a, Wi-Fi 5, Wi-Fi 6E, 1GbE, 2.5GbE, Bluetooth 5.3, 802.11b/g/n |
OS Provided | No operating system |
Colour | Black |
Weight | 625 g |
Documents
Extended Specifications
Graphics Controller
Graphics Processor | Intel Arc Graphics |
|---|
Video Interfaces | HDMI |
|---|
Audio Output
Sound Output Mode | 2.1 channel surround |
|---|
Compliant Standards | High Definition Audio |
|---|
Networking
Ethernet Ports | 1 x 2.5 Gigabit Ethernet, 1 x Gigabit Ethernet |
|---|
Wireless LAN Supported | Yes |
|---|
Wireless NIC | Intel Wi-Fi 6E AX 211 |
|---|
Data Link Protocol | IEEE 802.11g, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11ax (Wi-Fi 6E), Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, Bluetooth 5.3, IEEE 802.11n |
|---|
Expansion / Connectivity
Bays | 1 (total) / 1 (free) x internal 2.5″ |
|---|
Slots | 2 (total) / 2 (free) x M.2 Card |
|---|

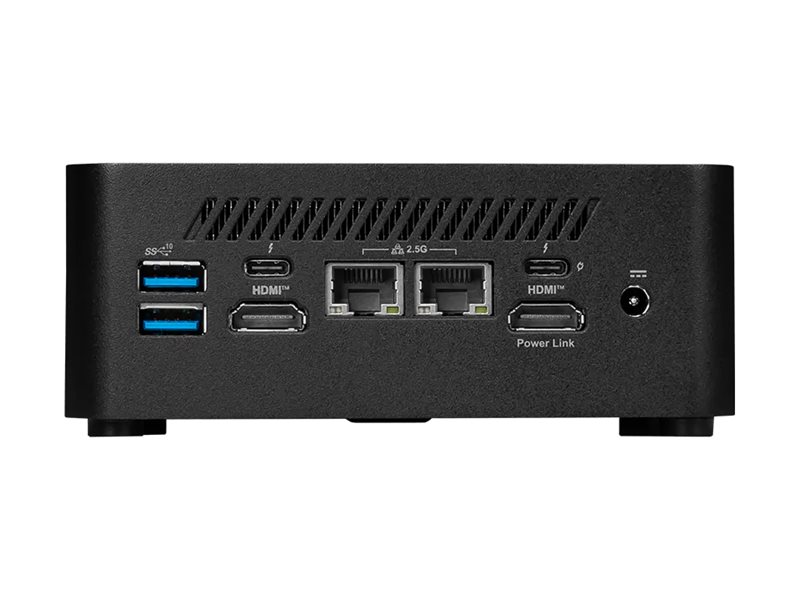

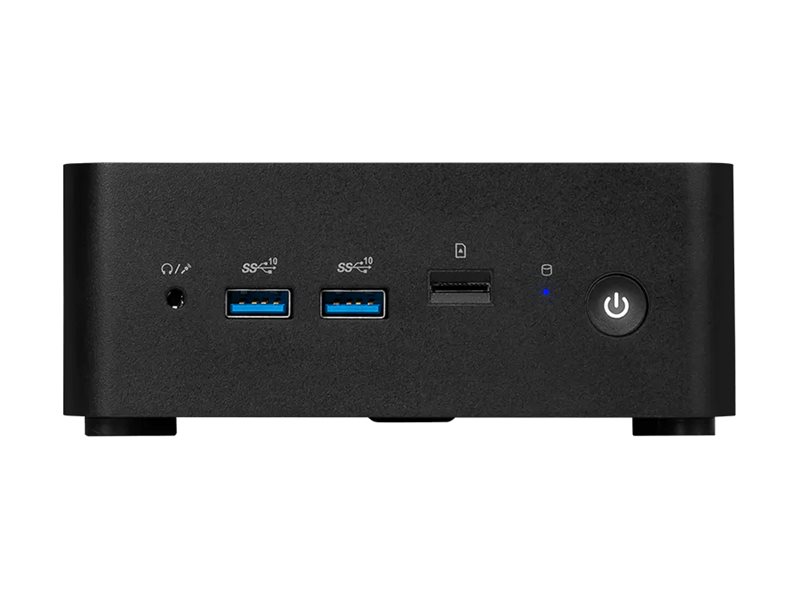

Interfaces | 4 x USB 3.2 Gen 2 (2 front, 2 rear)
2 x LAN (2.5Gigabit Ethernet) – RJ-45
1 x headphones/microphone
1 x HDMI output |
|---|
Miscellaneous

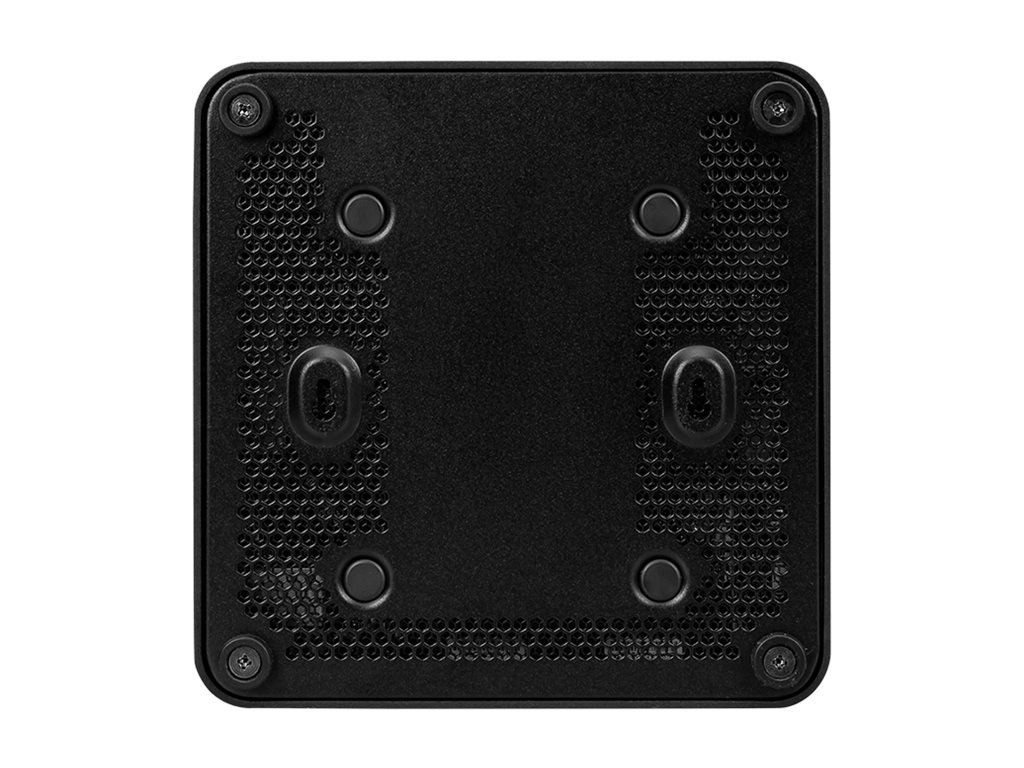

Included Accessories | VESA mounting kit |
|---|

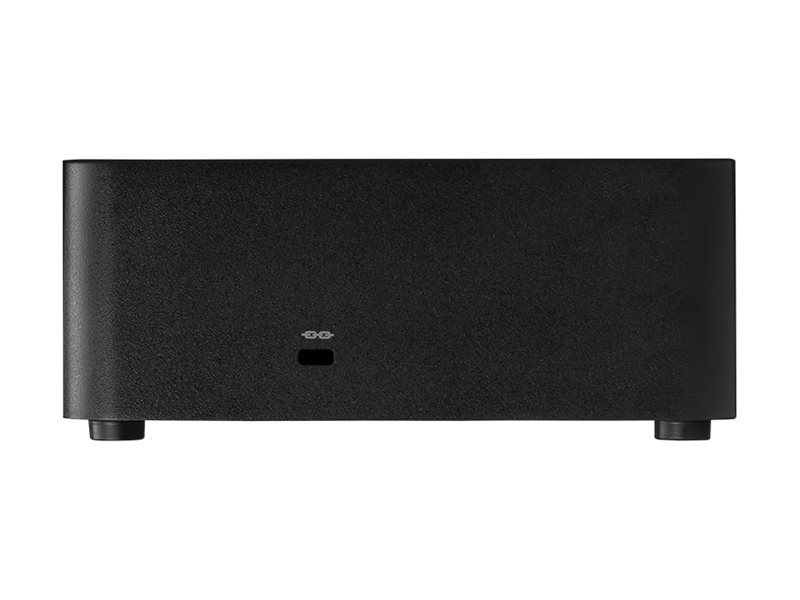

Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
|---|
Security Slot Type | Kensington security slot |
|---|
Compliant Standards | CB, FCC, BSMI, VCCI, RCM, C-Tick, UL, cUL |
|---|
Power
Operating System / Software
OS Provided | No operating system |
|---|
Dimensions & Weight
Dimensions & Weight (Shipping)
General
Type | PC barebone |
|---|
Product Form Factor | Mini PC |
|---|
Embedded Security | Discrete Trusted Platform Module (TPM 2.0) Security Chip |
|---|
Colour | Black |
|---|
Processor / Chipset
CPU | Intel Core 5 (Series 1) 120U |
|---|
Clock Speed | 1.4 GHz (P-core) / 900 MHz (E-core) |
|---|
Max Turbo Speed | 5 GHz (P-core) / 3.8 GHz (E-core) |
|---|
Number of Cores | 10-core |
|---|
CPU Qty | 1 |
|---|
Max CPU Qty | 1 |
|---|
Processor Main Features | Intel Smart Cache |
|---|
Cache Memory
Installed Size | 12 MB |
|---|
Cache Per Processor | 12 MB |
|---|
RAM
Installed Size | 0 GB (installed) / 64 GB (max) |
|---|
Technology | DDR5 SDRAM |
|---|
Form Factor | SO-DIMM 262-pin |
|---|
Slots | 2 (Total) / 2 (empty) |
|---|
Hard Drive
Storage Controller
Type | SATA |
|---|
Controller Interface Type | SATA 6Gb/s |
|---|
Channel Qty | 1 |
|---|
Optical Storage
Monitor
