Description

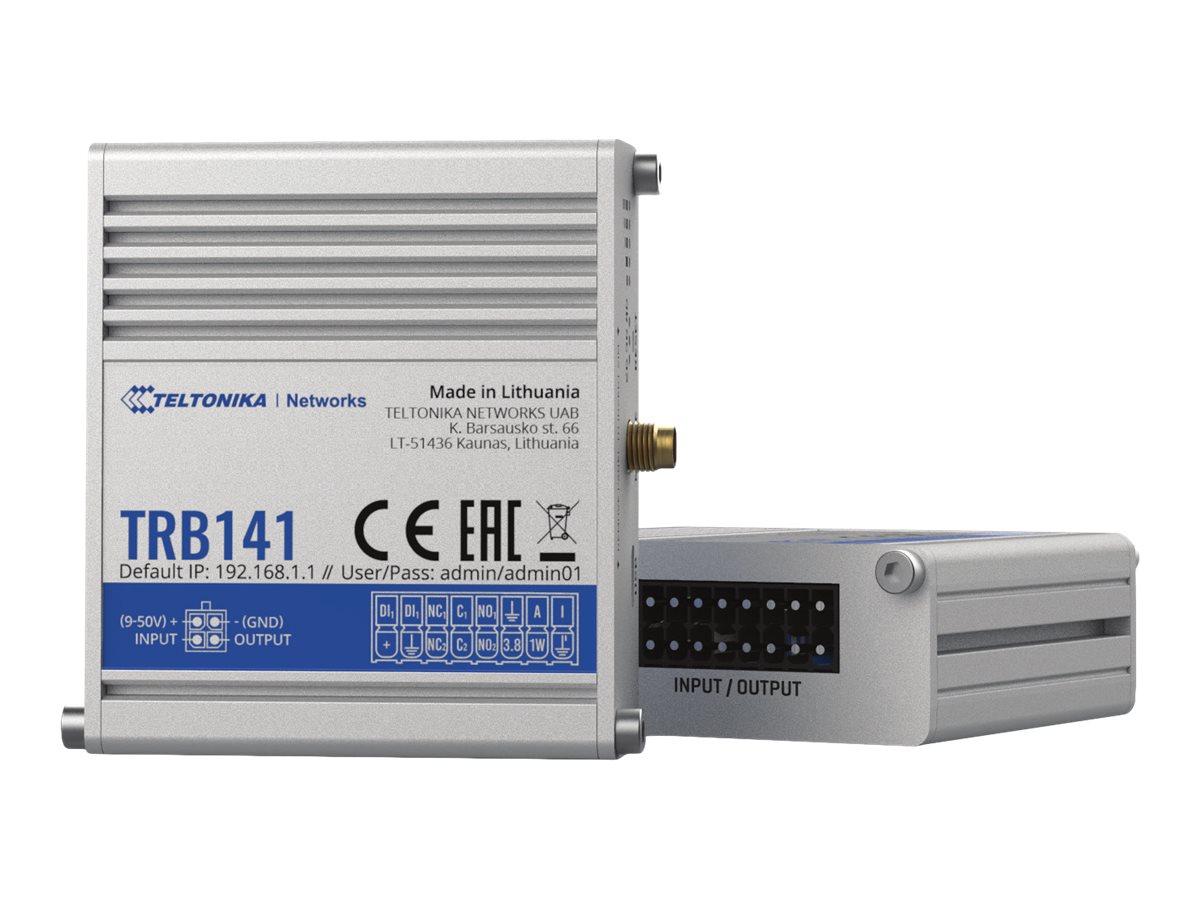

Small Industrial LTE Cat 1 Gateway equipped with multiple Inputs/Outputs and MicroUSB port. Compact design makes this Gateway perfect for applications where devices must be remotely managed using I/O’s.
- Multiple Inputs/Outputs for remote monitoring and control
- LTE Cat 1 for M2M/IoT communications
- Compact size, easy integration
- Wide range of power supply voltages
- Teltonika Remote Management System compatible
- Easy to use, secure and feature rich OpenWrt based Operating System
Main Specifications
Product Description | Teltonika TRB141 – gateway |
Device Type | Gateway |
Form Factor | External |
Processor | 1 x ARM Cortex-A7 1.2 GHz |
RAM | 128 MB |
Flash Memory | 512 MB |
Mobile Broadband Access | Yes |
Mobile Communication Protocol | LTE |
Power | DC 9 – 30 V |
Dimensions (WxDxH) | 6 cm x 7 cm x 1.8 cm |
Weight | 129 g |
Extended Specifications
General
Device Type | Gateway |
|---|
Width | 6 cm |
|---|
Depth | 7 cm |
|---|
Height | 1.8 cm |
|---|
Weight | 129 g |
|---|
Processor / Memory / Storage
Processors Installed | 1 x ARM Cortex-A7 1.2 GHz |
|---|
Max Supported Qty | 1 |
|---|
RAM | 128 MB |
|---|
Flash Memory | 512 MB |
|---|
Networking
Form Factor | External |
|---|
Connectivity Technology | Wired |
|---|
Network / Transport Protocol | TCP/IP, PPTP, UDP/IP, L2TP, NTP, ICMP/IP, IPSec, DHCP, DNS, DDNS |
|---|
Routing Protocol | GRE |
|---|
Remote Management Protocol | SNMP, HTTP, HTTPS, SSH, SSH-2 |
|---|
Status Indicators | Power, signal, data |
|---|
Features | Firewall protection, VPN support, IPv6 support, port forwarding, reset button, IPv4 support, DIN rail mountable, NAS support, aluminium housing |
|---|
Communications
Mobile Broadband Access | Yes |
|---|
Mobile Communication Protocol | LTE |
|---|
Expansion / Connectivity
Expansion Slots | 1 (total) / 1 (free) x SIM card |
|---|
Interfaces | 1 x digital input/output
1 x USB – micro-USB
1 x aerial – SMA |
|---|
Miscellaneous
Compliant Standards | RoHS, WEEE, IP30, EAC, EN 61000-4-2:2009, EN 61000-4-11:2004, EN 50385, EN 61000-4-3:2006+A1:2008+A2:2010, EN 61000-4-6:2014, EN 61000-4-5:2014, EN 61000-4.4:2012, RED, EN 301 489-1 V2.2.0 |
|---|
Power
Voltage Required | DC 9 – 30 V |
|---|
Software / System Requirements
Environmental Parameters
Min Operating Temperature | -40 °C |
|---|
Max Operating Temperature | 75 °C |
|---|
Humidity Range Operating | 10 – 90% (non-condensing) |
|---|
