Description

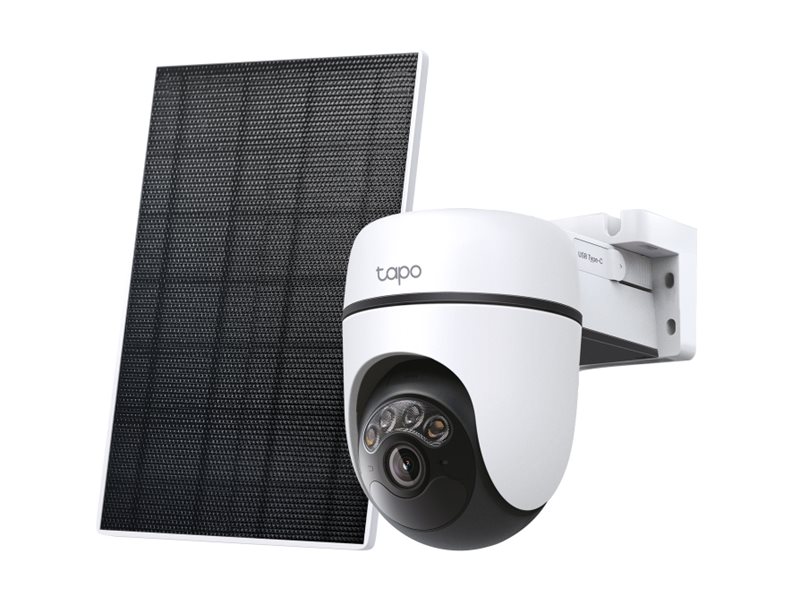

The TP-Link Tapo C630 KIT V1 offers a solution for outdoor surveillance needs, combining technology with user-friendly features. Equipped with a solar panel, this network surveillance camera operates efficiently with a 6700 mAh lithium-ion battery, ensuring continuous surveillance without frequent recharging. With a video resolution of 2880 x 1620, users can capture fine details, even in low light, thanks to features like Color Night Vision and built-in infrared LEDs. Voice control compatibility with Google Assistant and Alexa allows for effortless operation, making it a seamless addition to any smart home system.
The Tapo C630’s IP65 rating protects against dust and water, enabling reliable performance in different weather conditions. With capabilities like Smart Person Detection and AI Tracking, it enhances security by recognizing and following movement effectively. Users can personalize their monitoring with customized activity zones, and the two-way audio feature, combined with a built-in speaker and microphone, facilitates interactive communication. Easy installation options for wall, ceiling, or pole mounting provide versatility in placement, ensuring that every angle is covered.
- High-definition video capture at 2880 x 1620 resolution
- Integrated solar panel for sustainable power supply
- Smart detection features enhance monitoring
- Voice control compatibility with Google Assistant and Alexa
- Flexible installation options supporting various mounting methods
- Enhanced video quality
The Tapo C630 captures detailed video at a resolution of 2880 x 1620, ensuring clarity and sharpness, even in challenging lighting conditions. - Durable and weather-resistant
Designed for outdoor use, the camera boasts an IP65 rating, providing protection against dust and water, allowing for reliable performance in various environments. - Smart detection capabilities
Equipped with features like Smart Person Detection and AI Tracking, this camera intelligently identifies and monitors movement, enhancing security effectiveness. - Solar-powered operation
A built-in solar panel ensures that the camera operates continuously, reducing reliance on traditional power sources and promoting sustainability. - Versatile mounting options

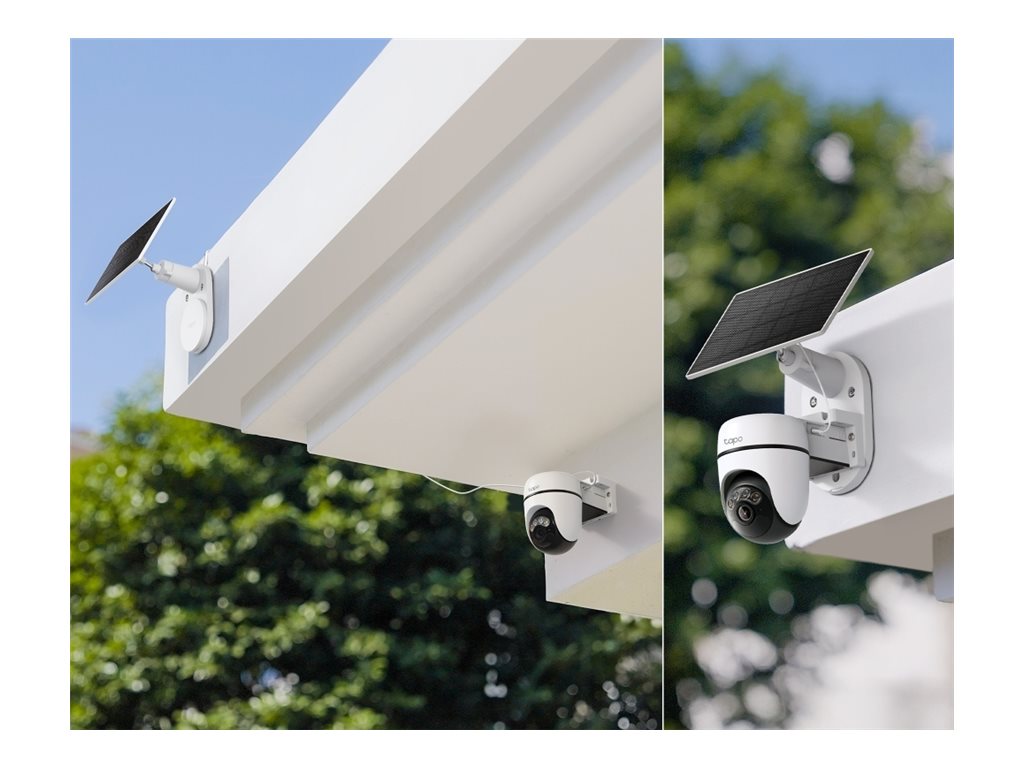

The flexibility in installation allows the Tapo C630 to be mounted on walls, ceilings, or poles, ensuring optimal positioning for surveillance.
What’s in the Box
- Tapo C630 KIT V1
- Tapo A201 solar panel
- USB adapter cable – 50 cm
- Solar charging cable – 25 cm
- Solar power extension cable – 3.8 m
- Solar panel, mounting bracket, base cover, screws, anchors, mounting template sticker, extension wire, cable zip tie
Main Specifications
Product Description | Tapo C630 KIT V1 – network surveillance camera – with Tapo A201 solar panel |
Device Type | Network surveillance camera – pan / tilt – outdoor – dustproof / waterproof |
Bundled with | Tapo A201 solar panel |
Audio | Yes: built-in microphone, built-in speaker, two-way audio capability |
Camera Mount Type | Wall mount, pole mount, ceiling mount |
Dimensions (WxDxH) | 14.1 cm x 12.8 cm x 8.4 cm |
Weight | 429 g |
Connectivity Technology | Wireless |
Camera | Colour – Day&Night |
Max Resolution | 2880 x 1620 |
Frame Rate (max) | 15 frames per second |
Motion Detection | Yes |
Video Modes | 3K |
Optical Sensor Type | Progressive Scan CMOS – 1/2.7″ – 5 MP |
Focal Length Control | Fixed focal |
Focal Length | 4 mm |
Lens Iris | F/1.6 |
Panning Range (degree) | 360 |
Tilting Range (degree) | 130 |
Interfaces | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Platform | Tapo Care, Google Home |
Intelligent Assistant | Alexa, Google Assistant – indirect |
Cables Included | 1 – USB adapter cable – external – 50 cm
1 – solar charging cable – 25 cm
1 – solar power extension cable – 3.8 m |
Features | Built-in 2 spotlights, 3D digital noise reduction (DNR), Wide Dynamic Range (WDR), noise-cancellation microphone, built-in siren, IR-cut filter, Colour Night Vision, AI Tracking, Snapshot notification, customised activity zone, Smart AI Detection, sound and light alarm, reset button, Full-time Live View, motion sensor, Smart Person Detection, 24/7 recording, ambient light sensor |
Environmental Parameters (operating) | -20 °C – 45 °C; 10 – 90% RH (non-condensing) relative humidity |
Documents
Extended Specifications
General
Device Type | Network surveillance camera |
|---|
Audio Support | Yes: built-in microphone, built-in speaker, two-way audio capability |
|---|
Camera Mount Type | Wall mount, pole mount, ceiling mount |
|---|
Connectivity Technology | Wireless |
|---|
Width | 14.1 cm |
|---|
Depth | 12.8 cm |
|---|
Height | 8.4 cm |
|---|
Weight | 429 g |
|---|
Bundled with | Tapo A201 solar panel |
|---|
Camera
Type | Colour – Day&Night – pan / tilt – outdoor – dustproof / waterproof |
|---|
Digital Video Format | H.264 |
|---|
Max Digital Video Resolution | 2880 x 1620 |
|---|
Motion Detection | Yes |
|---|
Video Modes | 3K |
|---|
Digital Zoom | 13.5 |
|---|
Infrared LEDs | Yes |
|---|
Digital Video Capture Resolution | 2880 x 1620 |
|---|
Frame Rate (max) | 15 frames per second |
|---|
Features | Built-in 2 spotlights, 3D digital noise reduction (DNR), Wide Dynamic Range (WDR), noise-cancellation microphone, built-in siren, IR-cut filter, Colour Night Vision, AI Tracking, Snapshot notification, customised activity zone, Smart AI Detection, sound and light alarm, reset button, Full-time Live View, motion sensor, Smart Person Detection, 24/7 recording, ambient light sensor |
|---|
Image Sensor
Type | 5 MP Progressive Scan CMOS 1/2.7″ |
|---|
Lens Construction
Type | Fixed focal |
|---|
Focal Length | 4 mm |
|---|
Lens Iris | F/1.6 |
|---|
Horizontal Field of View (degree) | 88 |
|---|
Vertical Field of View (degree) | 46 |
|---|
Diagonal Field of View (degree) | 105.4 |
|---|
Panning
Tilting
Interfaces
Network Interface | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
|---|
Network Protocols | TCP/IP, DHCP, ICMP, DNS, NTP, HTTPS, TCP, UDP |
|---|
Expansion / Connectivity
Ports | USB – Type C |
|---|
Supported Memory Cards | microSD Card |
|---|
Encryption Algorithm | 128-bit AES, SSL, TLS, WPA, WPA2-PSK |
|---|
Miscellaneous
Included Accessories | Extension wire, cable zip tie, screws, anchors, mounting template sticker, mounting bracket, base cover |
|---|
Cables Included | 1 x USB adapter cable – external – 50 cm
1 x solar charging cable – 25 cm
1 x solar power extension cable – 3.8 m |
|---|
Compliant Standards | FCC, JRF, VCCI, RCM, NTRA, NCC, BSMI, DOE, CEC, IP65, RoHS |
|---|
Power
Power Device | Solar panel – external |
|---|
Battery | Lithium Ion 6700 mAh |
|---|
Software / System Requirements
OS Required | Android 7.0 or later, Apple iOS 12 or later |
|---|
Internet of Things (IoT)
Internet of Things (IoT) Compatible | Yes |
|---|
Platform | Tapo Care, Google Home |
|---|
Compatible Application | Tapo app |
|---|
Supported Host Device Platform | Android, iOS |
|---|
Communications Type | Cloud |
|---|
Communications Technology | Wi-Fi |
|---|
Intelligent Assistant | Alexa, Google Assistant |
|---|
Voice Controlled | Indirect |
|---|
Environmental Parameters
Min Operating Temperature | -20 °C |
|---|
Max Operating Temperature | 45 °C |
|---|
Relative Humidity (operating) | 10 – 90% RH (non-condensing) |
|---|
