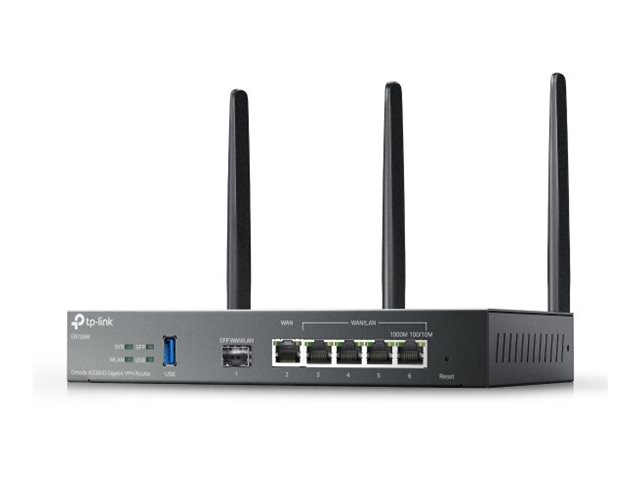

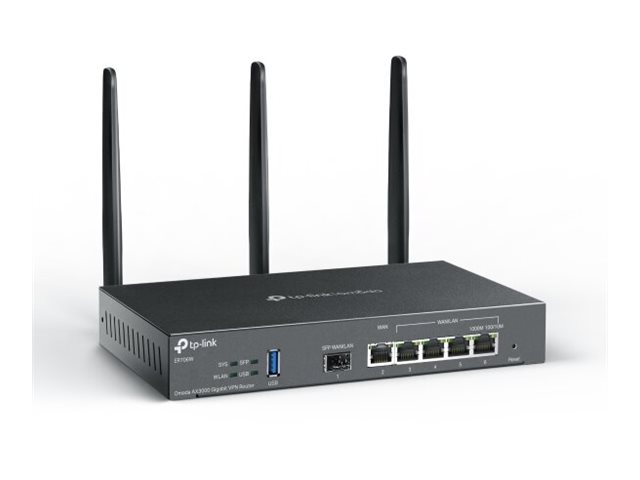

TP-Link Omada ER706W V1, Wireless router 4-port switch, 1GbE, WAN ports: 6, Wi-Fi 6, Dual Band, wall-mountable
$292.13 inc GST
3 in stock
Ships from Auckland, Wellington, or Christchurch
- Allow 1-2 days for delivery
- add 1-2 days if you are rural
- Collection can be arranged
Description
The TP-Link Omada ER706W V1 bridges and routers bring Wi-Fi 6 technology into your home or office, ensuring a high-speed, secure, and reliable Internet connection. With its dual-band capabilities, it delivers impressive speeds of up to 2402 Mbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band, making it perfect for bandwidth-intensive tasks.
Security is paramount, and the ER706W V1 excels with a suite of advanced encryption protocols, including WPA3-Personal, to protect your network from external threats. The router also supports a wide range of VPN protocols, offering flexible and secure options for remote access.
Designed for versatility, it features an integrated 4-port switch, USB 3.0 for LTE connectivity, and multiple WAN ports, ensuring you have all the connectivity options you need. Whether for work or play, the TP-Link Omada ER706W V1 is equipped to handle all your Internet needs with ease.
- Wi-Fi 6 technology for faster and more efficient Internet connectivity
- Supports multiple VPN protocols for secure remote access
- Integrated 4-port switch and USB 3.0 port for versatile connectivity
- Advanced encryption standards including WPA3 for enhanced network security
- Comprehensive VPN throughput capabilities for high-speed encrypted connections
- Enhanced security
With a comprehensive suite of encryption algorithms including 128-bit AES, 192-bit AES, 256-bit AES, and WPA3-Personal, the TP-Link Omada ER706W V1 ensures your network remains secure against external threats. - High-speed connectivity
Experience fast Internet speeds with Wi-Fi 6 technology, offering maximum throughput of 2402 Mbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band, ensuring smooth streaming and gaming. - Versatile VPN support
Supporting a wide range of VPN protocols including IPSec, OpenVPN, and WireGuard, the router provides flexible and secure options for remote access, with impressive throughput rates for both encrypted and unencrypted connections. - Advanced networking features
From seamless roaming and self-healing network capabilities to bandwidth control and load balancing, the TP-Link Omada ER706W V1 is equipped with everything needed to manage a highly efficient network environment. - Robust connectivity options
With multiple WAN ports, USB 3.0 for LTE connectivity, and an integrated 4-port switch, this router offers a variety of options for connecting devices and ensuring constant Internet access.
Main Specifications
Product Description | TP-Link Omada ER706W V1 – wireless router – Wi-Fi 6 – desktop, wall-mountable |
Device Type | Wireless router – 4-port switch (integrated) |
Enclosure Type | Desktop, wall-mountable |
Digital Signaling Protocol | H.323, SIP |
WAN Ports Qty | 6 |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6) |
Frequency Band | 2.4 GHz / 5 GHz |
Performance | Maximum throughput (5 GHz): 2402 Mbps Maximum throughput (2.4 GHz): 574 Mbps Channel bandwidth (5 GHz): 160 MHz GRE unencrypted throughput: 624.2 Mbps GRE encrypted throughput: 301.5 Mbps VPN WireGuard throughput: 393.5 Mbps VPN throughput (256-bit AES+SHA1 IPSec): 646.9Mbps VPN throughput (256-bit AES+SHA256 IPSec): 642.8Mbps VPN throughput (256-bit AES+SHA384 IPSec): 648.9Mbps VPN throughput (256-bit AES+SHA512 IPSec): 658.4 Mbps OpenVPN throughput: 129.3 Mbps VPN unencrypted throughput (L2TP): 1034.0 Mbps VPN encrypted throughput (L2TP): 570.0 Mbps VPN unencrypted throughput (PPTP): 1165.0 Mbps VPN encrypted throughput (PPTP): 209.0 Mbps VPN throughput (SSL): 126.7Mbps Download forwarding rate (66-byte packet size): 1453489 pps Upload forwarding rate (66-byte packet size): 1453488 pps Download forwarding rate (1518-byte packet size): 81274 pps Upload forwarding rate (1518-byte packet size): 91275 pps |
Capacity | Concurrent sessions: 150000 New sessions per second: 5100 SSL VPN tunnels: 50 IPSec VPN tunnels: 100 PPTP VPN clients: 10 PPTP VPN tunnels: 50 L2TP VPN clients: 10 L2TP VPN tunnels: 50 OpenVPN clients: 5 OpenVPN tunnels: 55 |
Network / Transport Protocol | IPSec, WireGuard, PPTP, L2TP, OpenVPN, PPPoE, DHCP, FTP, TCP, UDP, DDNS |
Routing Protocol | GRE, static IP routing, RIP, OSPF |
Remote Management Protocol | DHCP, ICMP, SNMP 1, SNMP 2c, SNMP 3 |
VoIP Protocols | H.323, SIP |
Features | SON technology, self-healing network, Mesh networking, DDoS Protection, IP address filtering, MAC address filtering, URL filtering, load balancing, IP-MAC binding, reset button, seamless roaming, beamforming technology, MU-MIMO technology, Guest Network, NAT support, ACL support, IP policy routing, bandwidth control, port triggering, DMZ support, ALG support, session rate limiting, IPsec failover, IPSec NAT-T, DPD, PFS, PPTP VPN server, L2TP VPN client, L2TP over IPSec, OpenVPN server, GARP, ARP inspection, remote device cloud access, DynDNS, NTP support, port mirroring, Syslog support, schedule reboot |
Compliant Standards | UPnP, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, Wi-Fi CERTIFIED 6 |
Dimensions (WxDxH) | 22.6 cm x 13.1 cm x 3.5 cm |
System Requirements | UNIX, Apple MacOS, Novell NetWare, Linux, Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/8.1/10/11 |
Extended Specifications
General
Device Type | Wireless router – 4-port switch (integrated) |
|---|---|
Enclosure Type | Desktop, wall-mountable |
Connectivity Technology | Wired, wireless |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6) |
Frequency Band | 2.4 GHz / 5 GHz |
Performance | Maximum throughput (5 GHz): 2402 Mbps Maximum throughput (2.4 GHz): 574 Mbps Channel bandwidth (5 GHz): 160 MHz GRE unencrypted throughput: 624.2 Mbps GRE encrypted throughput: 301.5 Mbps VPN WireGuard throughput: 393.5 Mbps VPN throughput (256-bit AES+SHA1 IPSec): 646.9Mbps VPN throughput (256-bit AES+SHA256 IPSec): 642.8Mbps VPN throughput (256-bit AES+SHA384 IPSec): 648.9Mbps VPN throughput (256-bit AES+SHA512 IPSec): 658.4 Mbps OpenVPN throughput: 129.3 Mbps VPN unencrypted throughput (L2TP): 1034.0 Mbps VPN encrypted throughput (L2TP): 570.0 Mbps VPN unencrypted throughput (PPTP): 1165.0 Mbps VPN encrypted throughput (PPTP): 209.0 Mbps VPN throughput (SSL): 126.7Mbps Download forwarding rate (66-byte packet size): 1453489 pps Upload forwarding rate (66-byte packet size): 1453488 pps Download forwarding rate (1518-byte packet size): 81274 pps Upload forwarding rate (1518-byte packet size): 91275 pps |
Capacity | Concurrent sessions: 150000 New sessions per second: 5100 SSL VPN tunnels: 50 IPSec VPN tunnels: 100 PPTP VPN clients: 10 PPTP VPN tunnels: 50 L2TP VPN clients: 10 L2TP VPN tunnels: 50 OpenVPN clients: 5 OpenVPN tunnels: 55 |
Network / Transport Protocol | IPSec, WireGuard, PPTP, L2TP, OpenVPN, PPPoE, DHCP, FTP, TCP, UDP, DDNS |
Routing Protocol | GRE, static IP routing, RIP, OSPF |
Remote Management Protocol | DHCP, ICMP, SNMP 1, SNMP 2c, SNMP 3 |
Encryption Algorithm | SSL, WPA-Personal, WPA2-Personal, WPA3-Personal, WPA-Enterprise, WPA2-Enterprise, WPA3-Enterprise, DES, 3DES, 128-bit AES, 192-bit AES, 256-bit AES, IKEv1, IKEv2, MD5, 384-bit SHA-2, 512-bit SHA-2, SHA-1, MPPE |
Authentication Method | Extensible Authentication Protocol (EAP), LDAP, RADIUS |
Wi-Fi Rating | AX3000 |
Features | SON technology, self-healing network, Mesh networking, DDoS Protection, IP address filtering, MAC address filtering, URL filtering, load balancing, IP-MAC binding, reset button, seamless roaming, beamforming technology, MU-MIMO technology, Guest Network, NAT support, ACL support, IP policy routing, bandwidth control, port triggering, DMZ support, ALG support, session rate limiting, IPsec failover, IPSec NAT-T, DPD, PFS, PPTP VPN server, L2TP VPN client, L2TP over IPSec, OpenVPN server, GARP, ARP inspection, remote device cloud access, DynDNS, NTP support, port mirroring, Syslog support, schedule reboot |
Compliant Standards | UPnP, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, Wi-Fi CERTIFIED 6, FCC, RoHS |
RAM | 512 MB DDR4 SDRAM |
Flash Memory | 128 MB |
Built-in Devices | 3G/4G module |
Status Indicators | System, SFP, WLAN, USB |
Line Properties
Line Coding Format | OFDMA, 1024 QAM |
|---|
Communications
Digital Signaling Protocol | H.323, SIP |
|---|
IP Telephony
VoIP Protocols | H.323, SIP |
|---|
Expansion / Connectivity
Interfaces | WAN: 1 x 1000Base-X – SFP (mini-GBIC) WAN: 1 x 1000Base-T – RJ-45 WAN / LAN: 4 x 1000Base-T – RJ-45 USB 3.0: 1 x – LTE |
|---|
Aerial
Aerial | External detachable |
|---|---|
Antenna Qty | 3 |
Power
Power Device | Internal power supply |
|---|
Software / System Requirements
OS Required | UNIX, Apple MacOS, Novell NetWare, Linux, Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/8.1/10/11 |
|---|
Dimensions & Weight
Width | 22.6 cm |
|---|---|
Depth | 13.1 cm |
Height | 3.5 cm |
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|---|
Max Operating Temperature | 40 °C |
Humidity Range Operating | 10 – 90% (non-condensing) |
