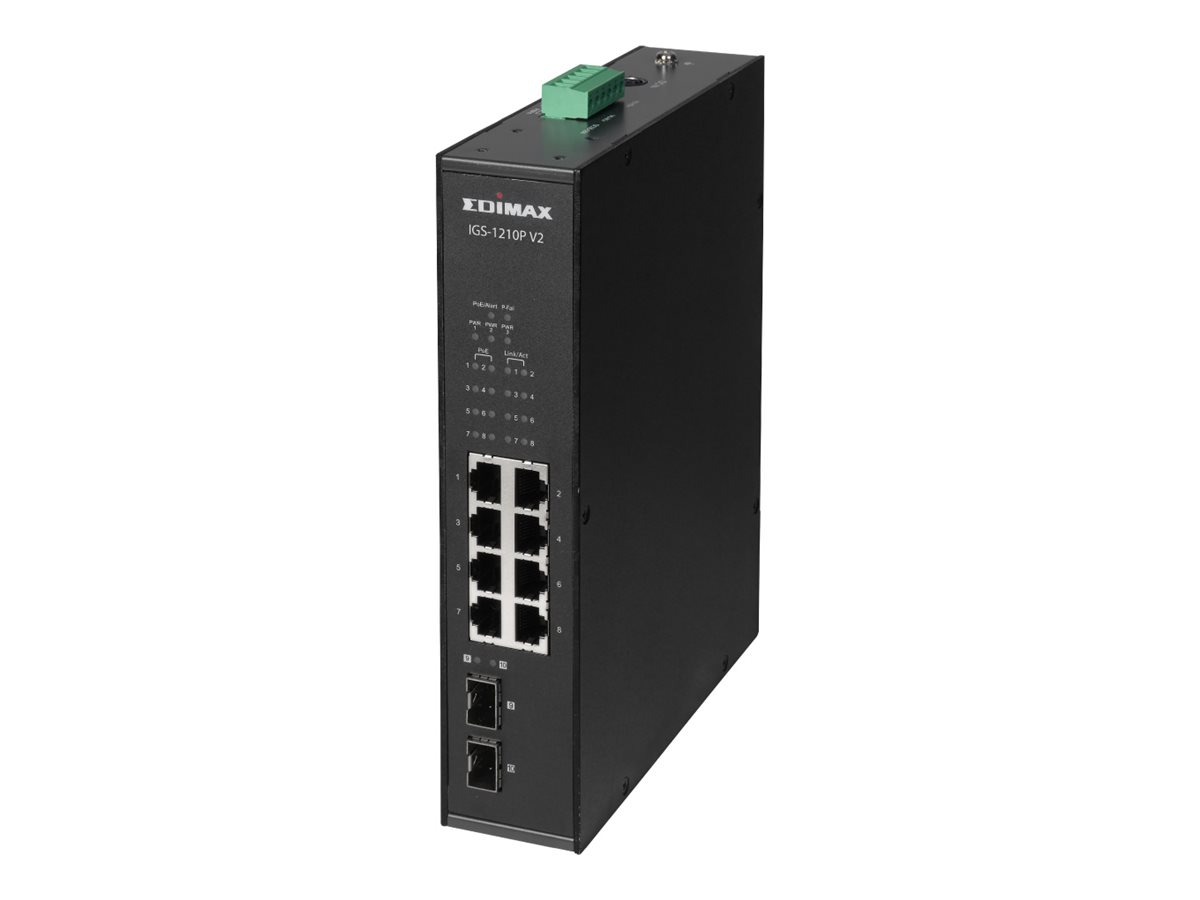

Edimax IGS-1210PV2, Switch, 8 x 10/100/1000 (PoE+) + 2 x Gigabit SFP, DIN rail mountable, wall-mountable, PoE+ (240 W)

Description

The Edimax IGS-1210PV2 is a high-performance, Gigabit Ethernet switch designed to meet the needs of modern network infrastructures. With its robust switching capacity of 20 Gbps and a forwarding rate of 14.88 Mpps, this switch ensures efficient data flow and high-speed connectivity across the network. It features a rugged metal housing, equipped with 6 kV surge protection, over-current protection, and reverse polarity protection, making it an ideal choice for harsh environmental conditions.
The IGS-1210PV2 stands out with its Power over Ethernet Plus (PoE+) capability, offering a generous 240 W PoE budget. This allows for the flexible deployment of PoE devices such as IP cameras and wireless access points without the need for additional power sources. Additionally, the switch supports Quality of Service (QoS) for traffic prioritization, Energy Efficient Ethernet for reduced power consumption, and a 1.5 MB packet buffer to ensure smooth transmission of large files. With fanless design for silent operation and flexible installation options, including DIN rail and wall-mounting, the IGS-1210PV2 is a versatile solution for any network.

• 20 Gbps switching capacity and 14.88 Mpps forwarding rate for high-speed connectivity
• 240 W PoE budget with PoE+ support for efficient power management
• Rugged metal housing with 6 kV surge protection ensures durability
• Fanless design for silent operation, suitable for noise-sensitive environments
• Supports Quality of Service (QoS) for optimized network traffic prioritization

• Robust performance
  With a switching capacity of 20 Gbps and a forwarding rate of 14.88 Mpps, the IGS-1210PV2 ensures efficient data flow and high-speed connectivity across the network.
• Enhanced durability
  Designed with a rugged metal housing and equipped with 6 kV surge protection, over-current protection, and reverse polarity protection, this switch is built to withstand harsh environmental conditions.
• Optimized power management
  Featuring Power over Ethernet Plus (PoE+) with a generous 240 W PoE budget, the IGS-1210PV2 allows for flexible deployment of PoE devices such as IP cameras and wireless access points without the need for additional power sources.
• Advanced networking features
  Supports Quality of Service (QoS) for traffic prioritization, Energy Efficient Ethernet for reduced power consumption, and a 1.5 MB packet buffer to ensure smooth transmission of large files.
• Flexible installation options
  The IGS-1210PV2 is both DIN rail mountable and wall-mountable, offering versatile installation options to meet the specific needs of your network infrastructure.

Main Specifications

Extended Specifications

General

Expansion / Connectivity

Power

Miscellaneous

Dimensions & Weight

Environmental Parameters
