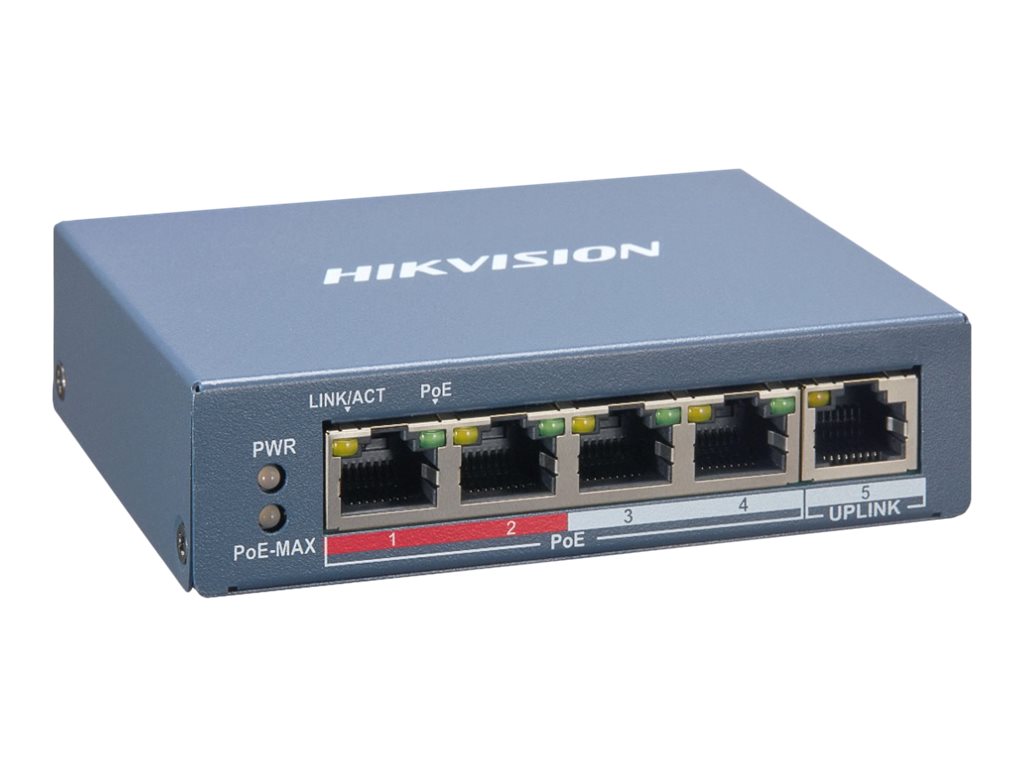

Hikvision DS-3E1105P-EI V2, Switch, smart, 4 x 10/100 (PoE) + 1 x 10/100 (uplink), desktop, PoE (60 W)
$83.78 inc GST
✓ In Stock - 3 available
✓ Free NZ Delivery
3 in stock
- Allow 1–2 days for delivery to the North Island
- Allow 2–3 days for delivery to the South Island
- Add 1–2 days if you are rural
- Collection can be arranged
Description
The Hikvision DS-3E1105P-EI V2 is an efficient and versatile switch designed to meet networking needs in various environments. With support for Power over Ethernet (PoE) delivering up to 30 W per port and a total PoE budget of 60 W, this device integrates power and data transmission over a single cable. Its compact design with a desktop form factor and metal housing ensures durability and can withstand temperatures from 0°C to 40°C and storage conditions as low as -40°C up to 85°C, making it suitable for diverse operating conditions.
This switch incorporates features such as 6KV surge protection, a 768KB packet buffer, and full duplex capability for optimal performance. Managing the device is simplified with remote management options and status indicators for PoE, power, and link/activity. The fanless design ensures quiet operation, while compliance with multiple international standards ensures reliability and safety in its application.
- Delivers up to 30 W per port with PoE support
- Compact and durable metal housing suitable for various environments
- 6KV surge protection enhances device longevity
- Remote management capabilities for easy control
- Fanless design ensures quiet operation
- Efficient power delivery
With Power over Ethernet (PoE) support, the switch provides up to 30 W output per port, allowing for seamless power and data transmission over a single cable. - Temperature resilience
Designed to operate within a range of 0°C to 40°C, this switch can also be stored at temperatures as low as -40°C, making it ideal for various operational settings. - Robust surge protection
The 6KV surge protection feature ensures that the device remains operational even in the presence of voltage spikes, safeguarding network integrity. - Easy management features
Remote management protocols such as HTTP simplify monitoring and configuration, ensuring users have full control over their network setup. - Quiet heat dissipation
The fanless design reduces noise pollution and contributes to a more energy-efficient operation, making it a practical choice for office settings.
Main Specifications
Product Description | Hikvision DS-3E1105P-EI V2 – switch – 4 ports – smart |
Device Type | Switch – 4 ports – smart |
Subtype | Fast Ethernet |
Ports | 4 x 10/100 (PoE) + 1 x 10/100 (uplink) |
Power Over Ethernet (PoE) | PoE |
PoE Budget | 60 W |
Performance | Switching capacity: 1 Gbps Packet forwarding rate: 0.74 Mpps |
MAC Address Table Size | 2K entries |
Routing Protocol | RSTP, STP |
Remote Management Protocol | HTTP |
Features | 6KV Surge protection, full duplex capability, auto-uplink (auto MDI/MDI-X), store and forward, 768KB packet buffer, flow control, metal housing, fanless |
Compliant Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
Power | DC 54 V |
Dimensions (WxDxH) | 12.11 cm x 8.31 cm x 2.76 cm |
Weight | 260 g |
Extended Specifications
General
Device Type | Switch – 4 ports – smart |
|---|---|
Enclosure Type | Desktop |
Subtype | Fast Ethernet |
Ports | 4 x 10/100 (PoE) + 1 x 10/100 (uplink) |
Power Over Ethernet (PoE) | PoE |
PoE Budget | 60 W |
Performance | Switching capacity: 1 Gbps Packet forwarding rate: 0.74 Mpps |
MAC Address Table Size | 2K entries |
Routing Protocol | RSTP, STP |
Remote Management Protocol | HTTP |
Features | 6KV Surge protection, full duplex capability, auto-uplink (auto MDI/MDI-X), store and forward, 768KB packet buffer, flow control, metal housing, fanless |
Compliant Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
Status Indicators | PoE, power, link/activity |
Expansion / Connectivity
Interfaces | 4 x 100Base-TX RJ-45 PoE – 30 W 1 x 100Base-TX RJ-45 uplink |
|---|
Power
Power Device | Internal power supply |
|---|---|
Voltage Required | DC 54 V |
Miscellaneous
Compliant Standards | FCC CFR47 Part 15 B, EMC, EN 55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55024:2010+A1:2015, RCM, AS/NZS CISPR 32:2015, IC, ICES-003 issue 6:2016, UL, UL 60950-1, CB, IEC60950-1:2005+Am1:2009+Am2:2013, LVD, EN 60950-1:2005+Am1:2009+Am 2:2013, RoHS 2011/65/EU, WEEE 2012/19/EU, Regulation EC 1907/2006, REACH |
|---|
Dimensions & Weight
Width | 12.11 cm |
|---|---|
Depth | 8.31 cm |
Height | 2.76 cm |
Weight | 260 g |
Dimensions & Weight (Shipping)
Shipping Weight | 750 g |
|---|
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|---|
Max Operating Temperature | 40 °C |
Humidity Range Operating | 5 – 95% (non-condensing) |
Min Storage Temperature | -40 °C |
Max Storage Temperature | 85 °C |
Humidity Range Storage | 5 – 95% (non-condensing) |
