Description

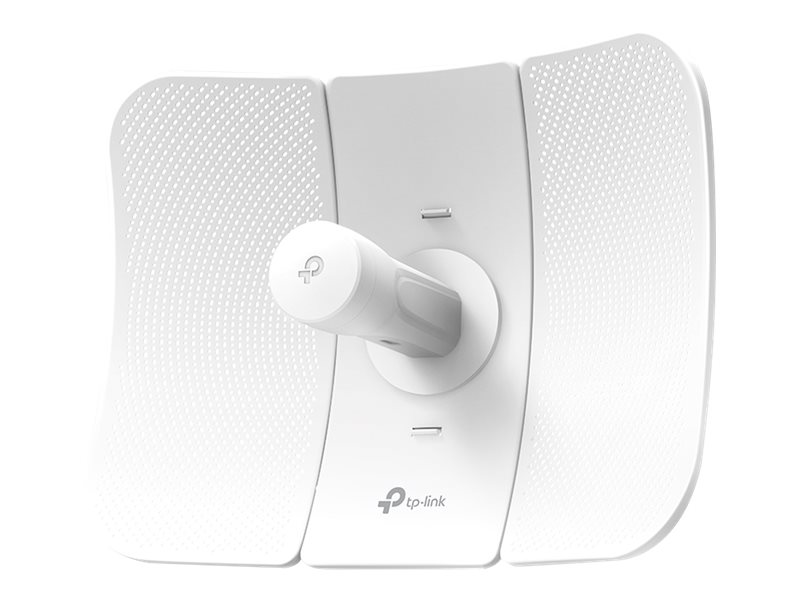

The CPE610 is a directional antenna that delivers professional structural stability for long-distance outdoor Wi-Fi transmission. Professional performance, coupled with user-friendly design, makes the CPE610 an ideal choice and cost-effective solution for outdoor wireless networking applications.
- 23 dBi directional antenna for enhanced signal strength
- Reliable operation in extreme weather conditions
- Supports various encryption algorithms for secure connections
- Easy installation with Power over Ethernet (PoE)
- Compatible with multiple Wi-Fi standards for versatile usage
- Weatherproof design
The CPE610 features a weatherproof chassis that enables it to function in various outdoor environments, ensuring durable performance against the elements. - High data transfer rate
With a data transfer rate of 300 Mbps, this device allows for efficient wireless networking, making it suitable for high-demand applications. - Secure networking options
The inclusion of multiple encryption standards, including WPA2, ensures that the network remains secure, protecting data from unauthorized access. - Power over Ethernet capability
Power over Ethernet (PoE) support simplifies installation by allowing both power and data to be transmitted over a single cable, reducing the need for additional wiring. - Wide environmental tolerance
Designed to operate in temperatures from -40°C to 70°C, the CPE610 remains functional in extreme climates, expanding its usability in diverse locations.
Main Specifications
Product Description | TP-Link CPE610 – radio access point – Wi-Fi |
Device Type | Radio access point |
Form Factor | External – outdoor |
Processor | 1 x Qualcomm MIPS 74KC 560 MHz |
RAM | 64 MB |
Flash Memory | 8 MB |
Data Link Protocol | IEEE 802.11a, IEEE 802.11n |
Frequency Band | 5 GHz |
Included Accessories | PoE injector, pole mount |
OS Required | UNIX, Apple MacOS, Novell NetWare, Microsoft Windows 98 Second Edition, Linux, Microsoft Windows NT, Microsoft Windows 2000/XP/Vista/7/8/10 |
Power Over Ethernet (PoE) Supported | PoE |
Power | DC 16 – 27 V |
Dimensions (WxDxH) | 36 cm x 20.7 cm x 28 cm |
Extended Specifications
General
Device Type | Radio access point |
|---|
Ruggedized Design | Outdoor |
|---|
Width | 36 cm |
|---|
Depth | 20.7 cm |
|---|
Height | 28 cm |
|---|
Processor / Memory / Storage
Processors Installed | 1 x Qualcomm MIPS 74KC 560 MHz |
|---|
Max Supported Qty | 1 |
|---|
RAM | 64 MB DDR2 SDRAM |
|---|
Flash Memory | 8 MB |
|---|
Networking
Form Factor | External |
|---|
Connectivity Technology | Wireless |
|---|
Data Transfer Rate | 300 Mbps |
|---|
Data Link Protocol | IEEE 802.11a, IEEE 802.11n |
|---|
Frequency Band | 5 GHz |
|---|
Features | Routing, power over Ethernet (PoE), auto-uplink (auto MDI/MDI-X), repeating mode, MIMO technology, 15 KV Electrostatic Discharge Protection, WISP mode, wireless bridge mode, Wireless Client Mode, weatherproof |
|---|
Encryption Algorithm | AES, 128-bit WEP, 64-bit WEP, 152-bit WEP, TKIP, WPA, WPA2, WPA-PSK, WPA2-PSK |
|---|
Compliant Standards | IEEE 802.11a, IEEE 802.11n |
|---|
Aerial
Antenna | Internal |
|---|
Antenna Qty | 1 |
|---|
Directivity | Directional |
|---|
Gain Level | 23 dBi |
|---|
Expansion / Connectivity
Interfaces | 1 x 100Base-TX (PoE) – RJ-45 |
|---|
Miscellaneous
Included Accessories | PoE injector, pole mount |
|---|
Compliant Standards | FCC, RoHS, IPX5 |
|---|
Power
Power Over Ethernet (PoE) Supported | PoE |
|---|
Voltage Required | DC 16 – 27 V |
|---|
Software / System Requirements
OS Required | UNIX, Apple MacOS, Novell NetWare, Microsoft Windows 98 Second Edition, Linux, Microsoft Windows NT, Microsoft Windows 2000/XP/Vista/7/8/10 |
|---|
Environmental Parameters
Min Operating Temperature | -40 °C |
|---|
Max Operating Temperature | 70 °C |
|---|
Humidity Range Operating | 10 – 90% (non-condensing) |
|---|
