Description

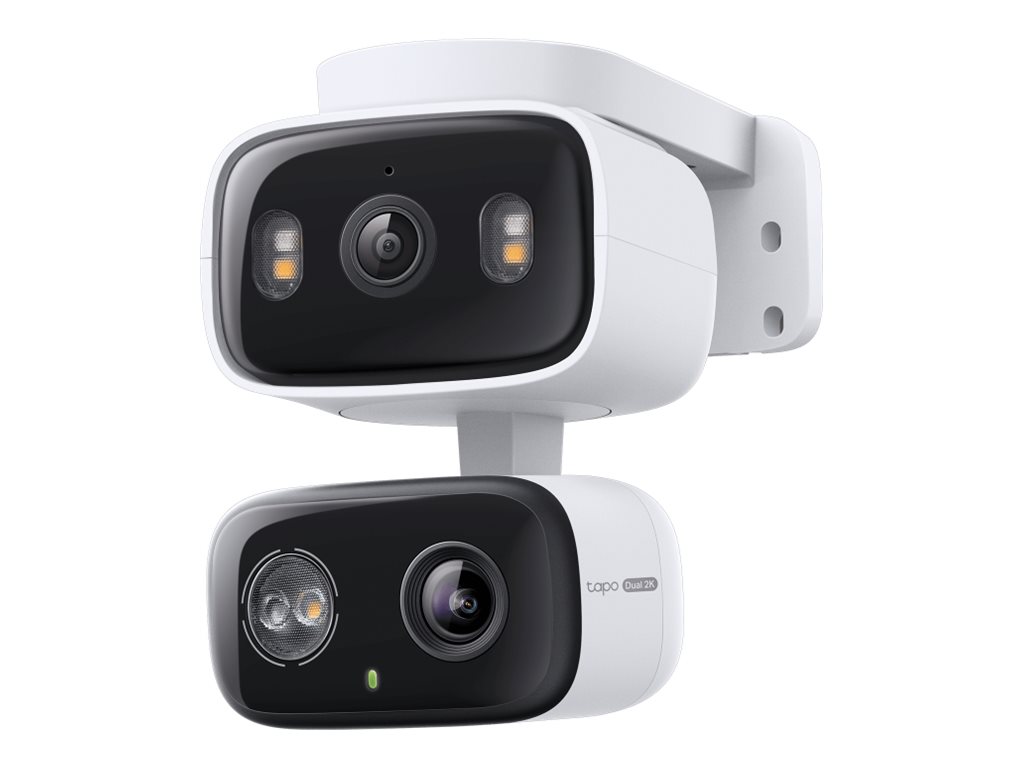

The TP-Link Tapo C246D V1 is designed for flexibility and adaptability in home surveillance. This multi-sensor network surveillance camera provides both indoor and outdoor functionality, enhanced with a 2K digital video resolution of 2304 x 1296 pixels. With features like Smart AI Detection, it can recognize unique events such as baby crying, glass breaking, and pet behavior, ensuring a comprehensive monitoring experience. Enjoy full-time live view capabilities with various preset positions and a 360° panning range for extensive coverage. The device supports intelligent assistance through Google Assistant and Alexa, allowing voice-controlled operation for modern smart home systems.
- Multi-sensor design for comprehensive indoor and outdoor surveillance
- AI-powered event detection for enhanced security monitoring
- Support for Wi-Fi connectivity with cloud communications
- Easy control via the Tapo app with voice commands
- Durable design compliant with IP65 for dust and water resistance
- High-definition video quality
Experience clear and detailed visuals with a maximum digital video resolution of 2304 x 1296 pixels, making it suitable for various lighting conditions. - Various detection capabilities
Equipped with AI detection for events such as baby cries, glass breaks, and adjustable activity zones, enhancing home security. - Flexible mounting options
The camera can be mounted on walls, ceilings, poles, or tables, providing versatility in installation to cater to different setups. - Robust connectivity features
Supports multiple network protocols including DHCP and HTTPS, ensuring stable connections and secure data transmission. - Integrated audio support
Features a built-in speaker and microphone, enabling two-way audio for better interaction and monitoring capabilities.
What’s in the Box
- Tapo C246D V1
- USB-C cable – 3 m
- Power adapter, mounting bracket, 4 screws, 4 anchors, mounting template
Main Specifications
Product Description | Tapo C246D V1 – network surveillance camera |
Device Type | Network surveillance camera – multi-sensor + pan / tilt – indoor, outdoor – dust resistant / water resistant |
Audio | Yes: two-way audio capability, built-in microphone, built-in speaker |
Camera Mount Type | Table mount, wall mount, ceiling mount, pole mount |
Dimensions (WxDxH) | 7.8 cm x 7.683 cm x 10.683 cm |
Weight | 277 g |
Connectivity Technology | Wireless |
Camera | Colour – Day&Night |
Max Resolution | 2304 x 1296 |
Frame Rate (max) | 15 frames per second |
Motion Detection | Yes |
Video Modes | 2K |
Optical Sensor Type | 1 x Progressive Scan CMOS – 1/2.8" – 3 MP
1 x Progressive Scan CMOS – 1/2.8" – 3 MP |
Lens System | 1 x fixed focal – 2.8 mm – f/1.6
1 x fixed focal – 6 mm – f/1.6 |
Panning Range (degree) | 360 |
Tilting Range (degree) | 135 |
Interfaces | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Platform | Tapo Care, SmartThings, Google Home |
Intelligent Assistant | Alexa, Google Assistant – indirect |
Cables Included | 1 – USB-C cable – 3 m |
Voltage | AC 100 -240 V, DC 5 V |
Features | Dual lens, Smart Detection, Starlight Technology, infrared cut filter, reset button, Full-time Live View, 3D digital noise reduction (DNR), Wide Dynamic Range (WDR), noise cancellation, built-in siren (100.1 dB), Smart AI Detection, AI Camera Tampering Detection, AI Person Detection, AI Pet Detection, AI vehicle detection, baby crying detection, Cat Mews Detection, Dog Bark Detection, glass-break detection, line-crossing detection, customised activity zone, alarm notifications, snapshot function, tap control, 8 preset positions |
Environmental Parameters (operating) | -20 °C – 50 °C; 10 – 90% RH (non-condensing) relative humidity |
Extended Specifications
General
Device Type | Network surveillance camera |
|---|
Audio Support | Yes: two-way audio capability, built-in microphone, built-in speaker |
|---|
Camera Mount Type | Table mount, wall mount, ceiling mount, pole mount |
|---|
Connectivity Technology | Wireless |
|---|
Width | 7.8 cm |
|---|
Depth | 7.683 cm |
|---|
Height | 10.683 cm |
|---|
Weight | 277 g |
|---|
Camera
Type | Colour – Day&Night – multi-sensor + pan / tilt – indoor, outdoor – dust resistant / water resistant |
|---|
Digital Video Format | H.264 |
|---|
Max Digital Video Resolution | 2304 x 1296 |
|---|
Motion Detection | Yes |
|---|
Video Modes | 2K |
|---|
Digital Zoom | 10.8 |
|---|
Infrared LEDs | Yes |
|---|
Infrared Distance | 12 m |
|---|
Digital Video Capture Resolution | 2304 x 1296 |
|---|
Frame Rate (max) | 15 frames per second |
|---|
Features | Dual lens, Smart Detection, Starlight Technology, infrared cut filter, reset button, Full-time Live View, 3D digital noise reduction (DNR), Wide Dynamic Range (WDR), noise cancellation, built-in siren (100.1 dB), Smart AI Detection, AI Camera Tampering Detection, AI Person Detection, AI Pet Detection, AI vehicle detection, baby crying detection, Cat Mews Detection, Dog Bark Detection, glass-break detection, line-crossing detection, customised activity zone, alarm notifications, snapshot function, tap control, 8 preset positions |
|---|
Image Sensor
Type | 1 x 3 MP Progressive Scan CMOS 1/2.8"
1 x 3 MP Progressive Scan CMOS 1/2.8" |
|---|
Lens Construction
Lens System | 1 x fixed focal – 2.8 mm – f/1.6 – 107.8° (H) / 57.8° (V) / 125.5° (D)
1 x fixed focal – 6 mm – f/1.6 – 57.8° (H) / 30.1° (V) / 67.1° (D) |
|---|
Panning
Tilting
Interfaces
Network Interface | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
|---|
Network Protocols | TCP/IP, DHCP, ICMP, DNS, NTP, HTTPS, TCP, UDP, RTSP, ONVIF |
|---|
Expansion / Connectivity
Ports | USB – Type C |
|---|
Supported Memory Cards | microSD Card |
|---|
Encryption Algorithm | 128-bit AES, SSL, TLS, WPA-Personal, WPA2-PSK |
|---|
Miscellaneous
Included Accessories | Mounting bracket, mounting template, 4 anchors, 4 screws |
|---|
Cables Included | 1 x USB-C cable – 3 m |
|---|
Compliant Standards | IP65 |
|---|
Power
Power Requirements | DC 5 V |
|---|
Power Device | Power adapter – external AC 100 -240 V (50/60 Hz) 3 watt |
|---|
Internet of Things (IoT)
Internet of Things (IoT) Compatible | Yes |
|---|
Platform | Tapo Care, SmartThings, Google Home |
|---|
Compatible Application | Tapo app |
|---|
Communications Type | Cloud |
|---|
Communications Technology | Wi-Fi |
|---|
Intelligent Assistant | Alexa, Google Assistant |
|---|
Voice Controlled | Indirect |
|---|
Environmental Parameters
Min Operating Temperature | -20 °C |
|---|
Max Operating Temperature | 50 °C |
|---|
Relative Humidity (operating) | 10 – 90% RH (non-condensing) |
|---|
