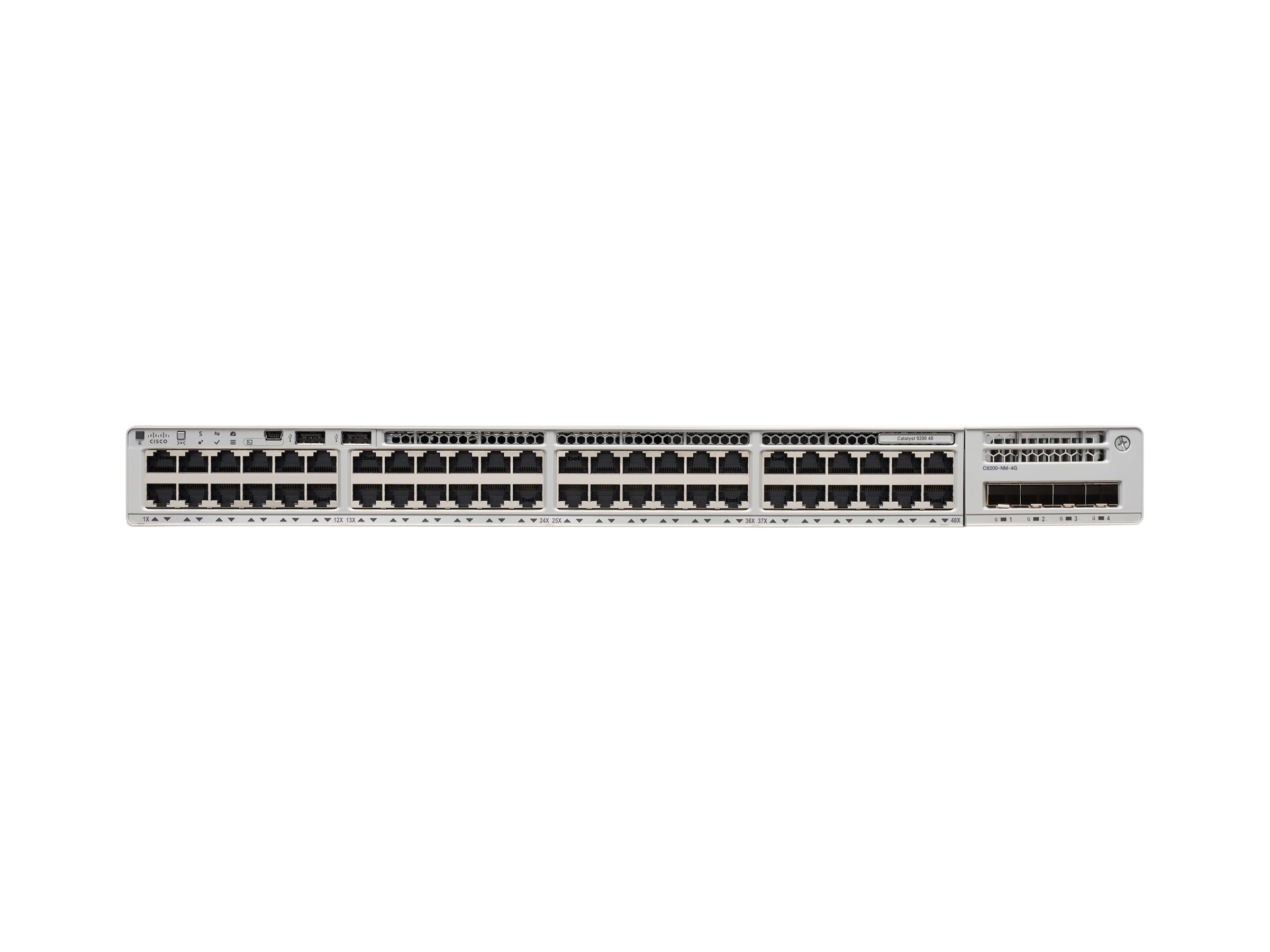

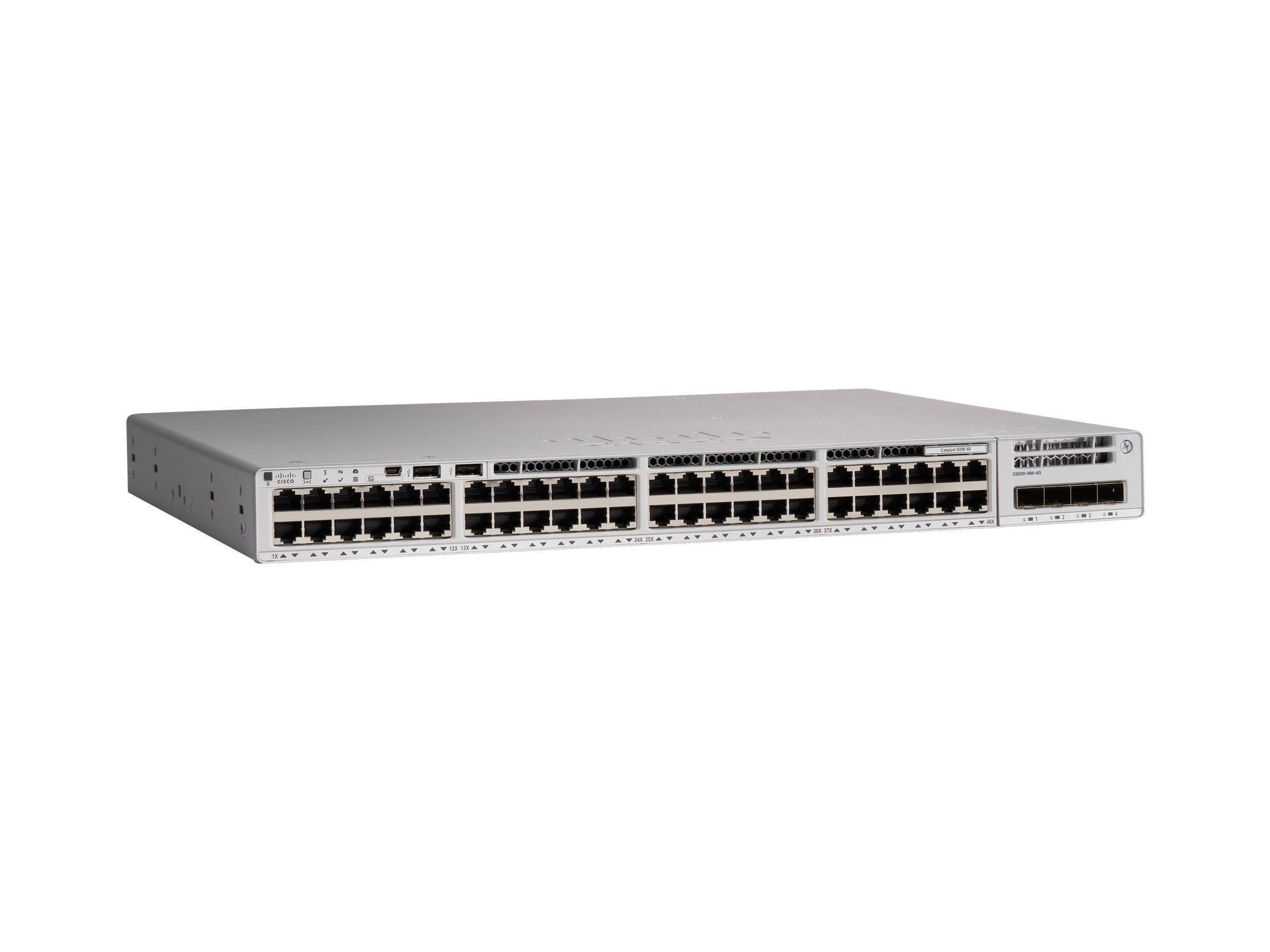

Cisco Catalyst 9200, Network Essentials, switch, L3, Managed, 48 x 10/100/1000, rack-mountable
$5,957.93 inc GST
✕ Backorder - Email us for a lead time or ETA
✓ Free NZ Delivery
Available on back-order
Ships from: Auckland
- Allow 1–2 days for delivery to the North Island
- Allow 2–3 days for delivery to the South Island
- Add 1–2 days if you are rural
- Collection can be arranged
Description
The Cisco Catalyst 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise – it is secure, always on, and IT SIMPLIFIED.
- Super secure
- Always on
- CONFIGURATION
48 x 10/100/1000M Ethernet - IT SIMPLIFIED
Catalyst 9200 Series switches simplify complexity, optimize IT, and reduce operational costs with Cisco UADP ASIC and Cisco IOS XE providing consistency, intelligence and automation - SECURE
Enhanced security with MACsec encryption, full flexible NetFlow, and trustworthy solutions that protect the integrity of the hardware as well as the software and all data that flows through the switch - ALWAYS-ON
Differentiated resiliency with Field-Replaceable Units (FRU) and redundant power supplies and fans, modular uplinks, 160 Gbps backplane stacking and layer 3 support - MANAGEMENT
Choice of CLI, Cisco Catalyst Center (formerly Cisco DNA Center) on-premises management, or cloud monitoring for Catalyst on Meraki dashboard
What’s in the Box
- What’s in the Box
- Switch with default primary power supply
- AC power cord
- rack-mount kit
Main Specifications
Product Description | Cisco Catalyst 9200 – Network Essentials – switch – 48 ports – Managed – rack-mountable |
Device Type | Switch – 48 ports – L3 – Managed – stackable |
Enclosure Type | Rack-mountable |
Subtype | Gigabit Ethernet |
Ports | 48 x 10/100/1000 |
Performance | Stacking bandwidth: 160 Gbps Switching bandwidth: 176 Gbps Forwarding rate: 261.9 Mpps |
Capacity | Virtual networks: 4 IPv4 routing table entries: 4000 IPv6 routing table entries: 2000 Flexible NetFlow entries: 16000 Packet buffer size: 6 MB VLAN IDs: 4096 Switched virtual interfaces (SVIs): 1000 |
MAC Address Table Size | 32000 entries |
Jumbo Frame Support | 9198 bytes |
Routing Protocol | OSPF, RIP, IS-IS, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng, MSTP |
Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF |
Features | ARP support, STP support, QoS, Rapid PVST+, SRR, PXE support, RSPAN, Energy Efficient Ethernet, MIB, CoS, FNF, Cisco StackWise-160 technology, DSCP support, MACsec support, CoPP, SPAN, EEM, PIM, FHS, PVLAN support, CIR |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP) |
Power | AC 100-240 V (50 – 60 Hz) |
Power Redundancy | Optional |
Dimensions (WxDxH) | 44.5 cm x 35 cm x 4.4 cm |
Weight | 5 kg |
Documents
Extended Specifications
General
Device Type | Switch – 48 ports – L3 – Managed – stackable |
|---|---|
Enclosure Type | Rack-mountable |
Subtype | Gigabit Ethernet |
Ports | 48 x 10/100/1000 |
Performance | Stacking bandwidth: 160 Gbps Switching bandwidth: 176 Gbps Forwarding rate: 261.9 Mpps |
Capacity | Virtual networks: 4 IPv4 routing table entries: 4000 IPv6 routing table entries: 2000 Flexible NetFlow entries: 16000 Packet buffer size: 6 MB VLAN IDs: 4096 Switched virtual interfaces (SVIs): 1000 |
MAC Address Table Size | 32000 entries |
Jumbo Frame Support | 9198 bytes |
Routing Protocol | OSPF, RIP, IS-IS, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng, MSTP |
Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF |
Encryption Algorithm | 128-bit AES |
Features | ARP support, STP support, QoS, Rapid PVST+, SRR, PXE support, RSPAN, Energy Efficient Ethernet, MIB, CoS, FNF, Cisco StackWise-160 technology, DSCP support, MACsec support, CoPP, SPAN, EEM, PIM, FHS, PVLAN support, CIR |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP) |
RAM | 4 GB |
Flash Memory | 4 GB |
Expansion / Connectivity
Interfaces | 48 x 10/100/1000 Base-T RJ-45 1 x network stack device 1 x management (LAN) RJ-45 1 x console RJ-45 |
|---|---|
Expansion Slots | 1 (total) / 1 (free) x Expansion Slot |
Power
Power Device | Internal power supply – hot-plug |
|---|---|
Max Supported Qty | 2 |
Power Redundancy | Optional |
Power Provided | 125 watt |
Voltage Required | AC 100-240 V (50 – 60 Hz) |
Miscellaneous
MTBF | 571,440 hours |
|---|---|
Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, EN 55022 Class A, FCC CFR47 Part 15 B Class A, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317, CISPR 35 |
Dimensions & Weight
Width | 44.5 cm |
|---|---|
Depth | 35 cm |
Height | 4.4 cm |
Weight | 5 kg |
Environmental Parameters
Humidity Range Operating | 5 – 90% (non-condensing) |
|---|---|
Min Storage Temperature | -40 °C |
Max Storage Temperature | 70 °C |
Humidity Range Storage | 5 – 90% (non-condensing) |
Additional information
| Manufacturer |
|---|
