Description
NEO Z83-4 MX Fanless Mini PC re-imagines the desktop PC, delivering an unrivaled combination of ultra-compact design and premium performance that is ideal for work, play, and entertainment. Equipped with Intel’s Cherry Trail Quad-Core processor, NEO Z83-4 MX fits the power of computing into the palm of your hand.
The innovative passive cooling design of NEO Z83-4 MX realizes the perfect balance of speed, temperature, performance, and absolute silence. Containing no moving parts, it seamlessly operates without even a whisper of noise, while simultaneously maintaining an incredibly low operation temperature even when accomplishing the most strenuous tasks. Plus, NEO Z83-4 MX is unbelievably energy-efficient requiring 80% less energy than traditional desktop PCs.
Thanks to its 128GB of Samsung eMMC (MLC) NEO Z83-4 MX effortlessly achieves a lightning-fast and highly responsive user experience, delivering the high-end performance that users have come to expect from MINIX. NEO Z83-4 MX also comes packed with 802.11ac Dual-Band Wi-Fi and Gigabit Ethernet, providing substantially improved connectivity capabilities compared to its predecessor. The Z83-4 MX is an upgraded version of the Z83-4 MX. Providing 64GB more storage.
NEO Z83-4 MX truly excels as a Thin Client Solution, being equipped with dual output display ports (Mini DP and HDMI) and combining awesomely fast start-up, seamless web browsing, multi-tasking, and compatibility with a vast array of office productivity software. While also being the perfect Home Theater PC, designed to create a stunning cinematic visual experience in your living room.
Main Specifications
Product Description | MiniX NEO Z83-4MX – mini PC Atom x5 Z8350 1.44 GHz – 4 GB – flash 128 GB |
Type | Personal computer – mini PC |
Processor | Intel Atom x5 Z8350 / 1.44 GHz (up to 1.92 GHz, (Quad-Core) |
Cache Memory | 2 MB |
Cache Per Processor | 2 MB |
RAM | 4 GB DDR3L SDRAM |
Hard Drive | Flash 128 GB – eMMC – eMMC 5.0 |
Card Reader | Yes |
Graphics Controller | Intel HD Graphics |
Networking | 1GbE, Wi-Fi 5, Bluetooth 4.2, 802.11a, 802.11b/g/n |
OS Provided | Windows 10 64-bit Edition |
Dimensions (WxDxH) | 12.7 cm x 12.7 cm x 1.9 cm |
Weight | 431 g |
Extended Specifications
General
Type | Personal computer |
|---|
Product Form Factor | Mini PC |
|---|
Processor / Chipset
CPU | Intel Atom x5 Z8350 |
|---|
Clock Speed | 1.44 GHz |
|---|
Max Turbo Speed | 1.92 GHz |
|---|
Number of Cores | Quad-Core |
|---|
CPU Qty | 1 |
|---|
Max CPU Qty | 1 |
|---|
Cache Memory
Installed Size | 2 MB |
|---|
Cache Per Processor | 2 MB |
|---|
RAM
Installed Size | 4 GB |
|---|
Technology | DDR3L SDRAM |
|---|
Hard Drive
Type | Flash – eMMC |
|---|
Capacity | 128 GB |
|---|
Manufacturer | Samsung |
|---|
Features | eMMC 5.0 |
|---|
Card Reader
Type | Card reader |
|---|
Supported Flash Memory Cards | microSD |
|---|
Monitor
Graphics Controller
Graphics Processor | Intel HD Graphics |
|---|
Video Interfaces | HDMI, DisplayPort |
|---|
Networking
Wireless LAN Supported | Yes |
|---|
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11ac, Bluetooth 4.2, IEEE 802.11a, IEEE 802.11n, IEEE 802.11b, IEEE 802.11g |
|---|
Expansion / Connectivity

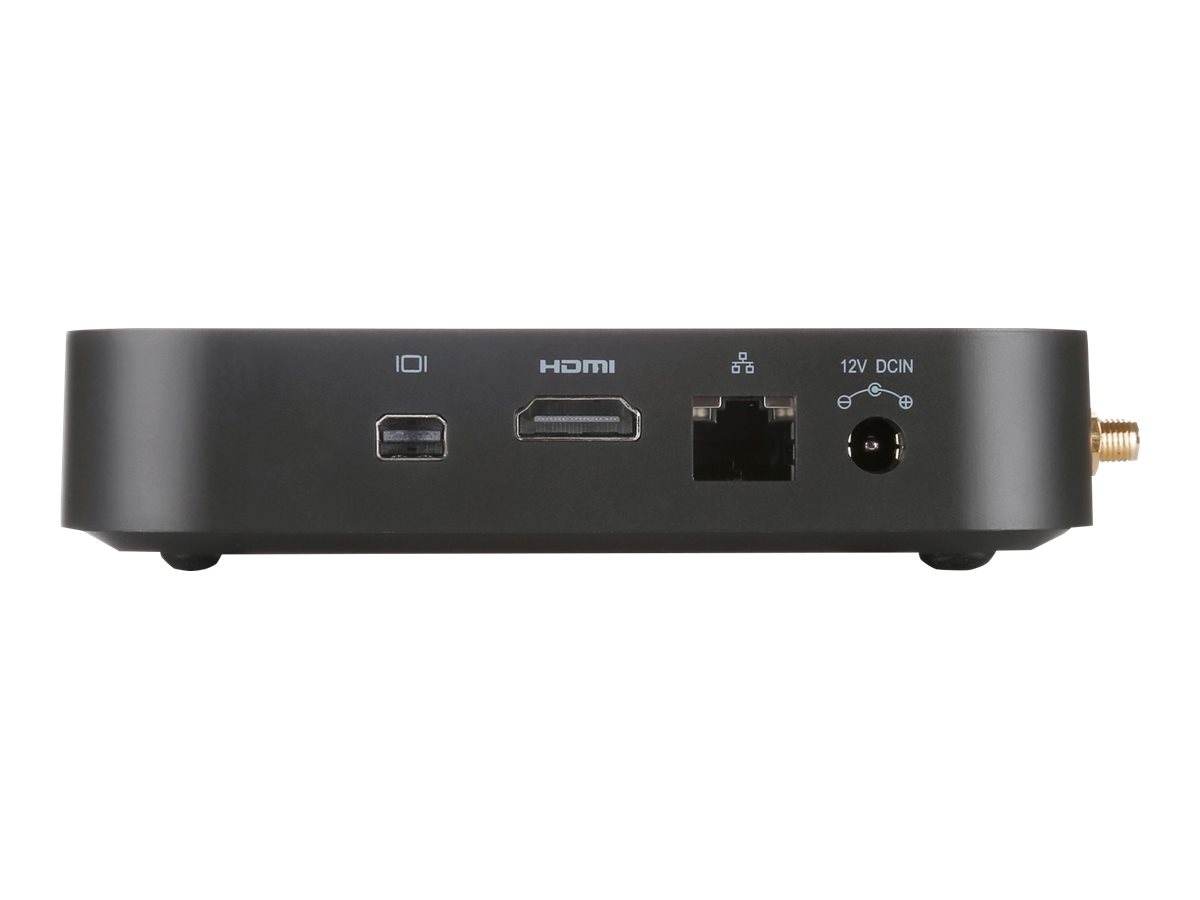

Interfaces | 1 x HDMI
1 x audio line-out – mini-jack
1 x LAN – RJ-45
3 x USB 2.0
1 x Mini DisplayPort
1 x USB 3.0 |
|---|
Miscellaneous
Included Accessories | VESA mounting kit |
|---|

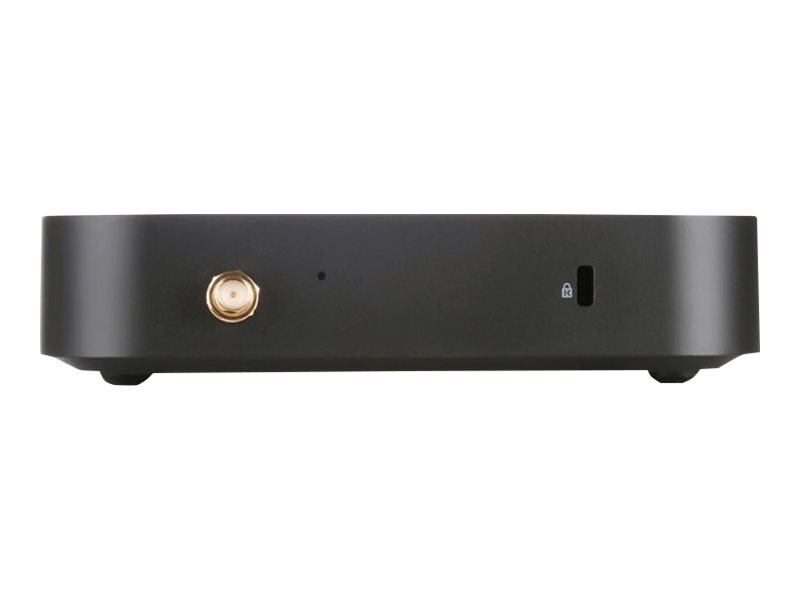

Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
|---|
Security Slot Type | Kensington security slot |
|---|
VESA Mounting Interface | Yes |
|---|
Compliant Standards | FCC |
|---|
Power
Operating System / Software
OS Provided | Windows 10 64-bit Edition |
|---|
Dimensions & Weight
Width | 12.7 cm |
|---|
Depth | 12.7 cm |
|---|
Height | 1.9 cm |
|---|
Weight | 431 g |
|---|
