Draytek VigorAP 1000C, Radio access point, Wi-Fi 5, 2.4 GHz (1 band) / 5 GHz (2 bands), wall / ceiling mountable
$587.74 inc GST
✓ In Stock - 1 available
✓ Free NZ Delivery
1 in stock (can be backordered)
Ships from: Auckland
- Allow 1–2 days for delivery to the North Island
- Allow 2–3 days for delivery to the South Island
- Add 1–2 days if you are rural
- Collection can be arranged
Description
The Vigor1000C is a business-class tri-band access point with single 2.4GHz and dual 5GHz radios, delivering fast speed up to 2.2.Gbps. With the additional 5GHz radio, it is ideal for providing wireless access in high-density environments in AP mode or forming dedicated wireless backhaul link in Mesh mode. Similar to other VigorAP models, VigorAP 1000C comes with band steering, airtime fairness, and AP-assisted roaming, offering reliable and high-performance wireless experience.
- Mesh: easily link to other VigorAP to expand the wireless network
- PoE power supply: simplify the infrastructure by getting data and power through a single cable
- Multiple SSID mapping Wi-Fi clients to different VLANs
- Airtime fairness: equalize the transmission time of each client so the legacy devices won’t slow everyone down
- Band steering: redirect 5GHz-capable devices to the 5GHz radio to get a faster speed
- Assisted Wi-Fi roaming: solve the sticky client problem and improve Wi-Fi roaming experience
- Schedule Wi-Fi On and Off to control wireless access and save energy
What’s in the Box
- Draytek VigorAP 1000C
- Network cable
- External power adapter
- Ceiling mounting plate
Main Specifications
Product Description | Draytek VigorAP 1000C – radio access point – Wi-Fi 5 |
Device Type | Radio access point |
Form Factor | Wall / ceiling mountable |
Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2 |
Frequency Band | 2.4 GHz (1 band) / 5 GHz (2 bands) |
Performance | Maximum data rate (2.4 GHz): 400 Mbps Maximum data rate (5 GHz): 867 Mbps |
Capacity | Users per radio: 128 Maximum number of users: 384 SSIDs total: 12 SSIDs per radio: 4 |
Included Accessories | Ceiling mounting plate |
Power Over Ethernet (PoE) Supported | PoE |
Dimensions (WxDxH) | 17.6 cm x 17.6 cm x 3 cm |
Weight | 460 g |
Extended Specifications
General
Device Type | Radio access point |
|---|---|
Built-in Devices | Led panel |
Width | 17.6 cm |
Depth | 17.6 cm |
Height | 3 cm |
Weight | 460 g |
Networking
Form Factor | Wall / ceiling mountable |
|---|---|
Connectivity Technology | Wireless |
Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2 |
Network / Transport Protocol | DHCP |
Remote Management Protocol | SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, TR-069 |
Frequency Band | 2.4 GHz (1 band) / 5 GHz (2 bands) |
Performance | Maximum data rate (2.4 GHz): 400 Mbps Maximum data rate (5 GHz): 867 Mbps |
Capacity | Users per radio: 128 Maximum number of users: 384 SSIDs total: 12 SSIDs per radio: 4 |
Wi-Fi Rating | AC2200 |
Status Indicators | Link/speed, 5 GHz, 2.4 GHz |
Features | VLAN support, repeating mode, Syslog support, E-mail alert, MAC address filtering, Wireless Distribution System (WDS) support, Access Point operational mode, firmware upgradable, Wi-Fi Multimedia (WMM) support, roaming function, Wi-Fi Protected Setup (WPS), DHCP server, Multiple SSID support, hidden SSID, reset button, 2T2R MIMO technology, DHCP relay, DHCP client, ceiling mountable, security lock slot (cable lock sold separately), band steering, Wireless Scheduler, AP Client Limiting, Airtime Fairness, 2×2 MU-MIMO technology, client isolation, Wireless Mesh support, MAC clone, Client Limit per SSID, Client Limit per radio |
Encryption Algorithm | TLS, PEAP, WPA, WPA2, WEP, WPA3-Personal |
Authentication Method | RADIUS, Radio Service Set ID (SSID) |
Compliant Standards | IEEE 802.1Q, IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac Wave 2 |
Aerial
Antenna | Internal |
|---|---|
Antenna Qty | 6 |
Expansion / Connectivity

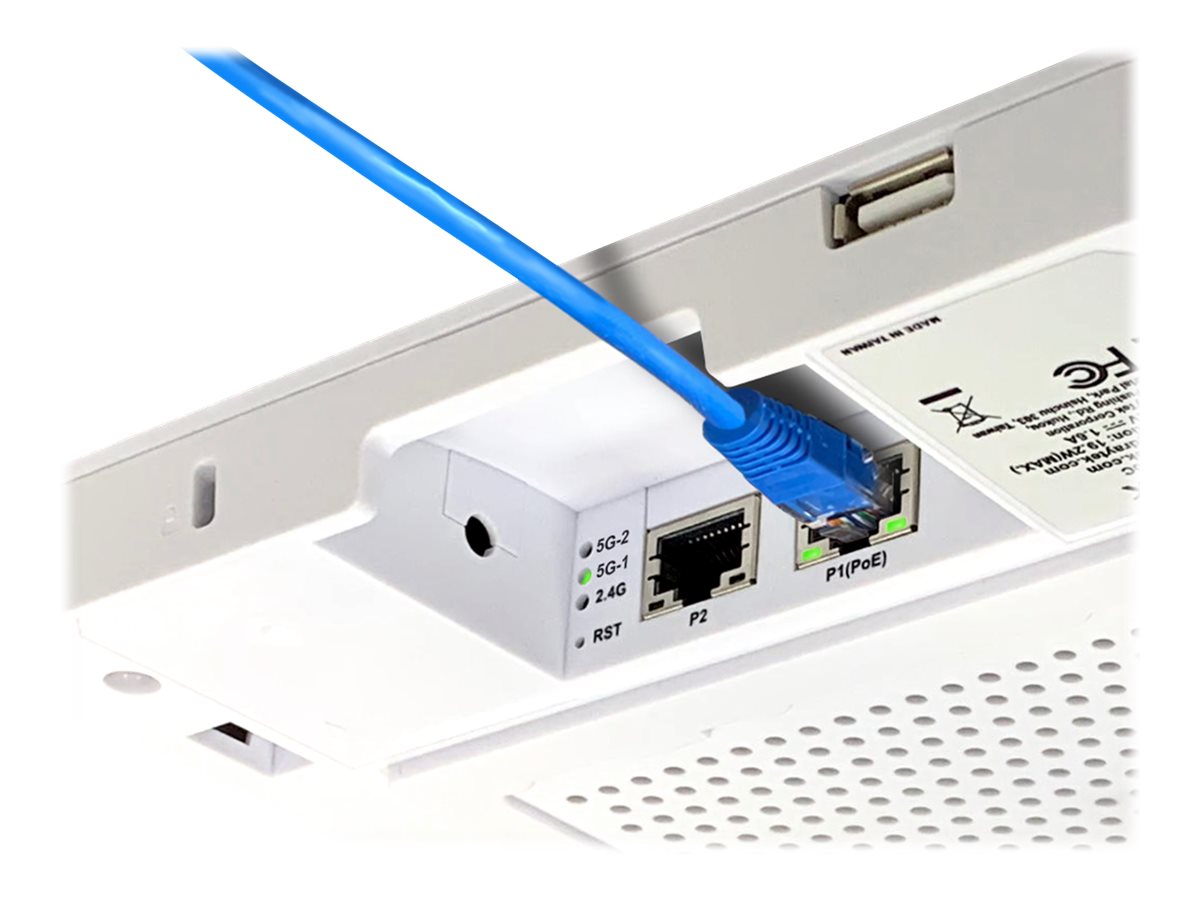

Interfaces | 1 x 1000Base-T (PoE) – RJ-45 1 x 1000Base-T – RJ-45 1 x USB 2.0 – Type A |
|---|
Miscellaneous
Included Accessories | Ceiling mounting plate |
|---|---|
Cables Included | 1 x network cable |
Power
Power Over Ethernet (PoE) Supported | PoE |
|---|---|
Power Device | External power adapter |
Power Consumption Operational | 19.2 Watt |
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|---|
Max Operating Temperature | 45 °C |
Humidity Range Operating | 10 – 90% (non-condensing) |
